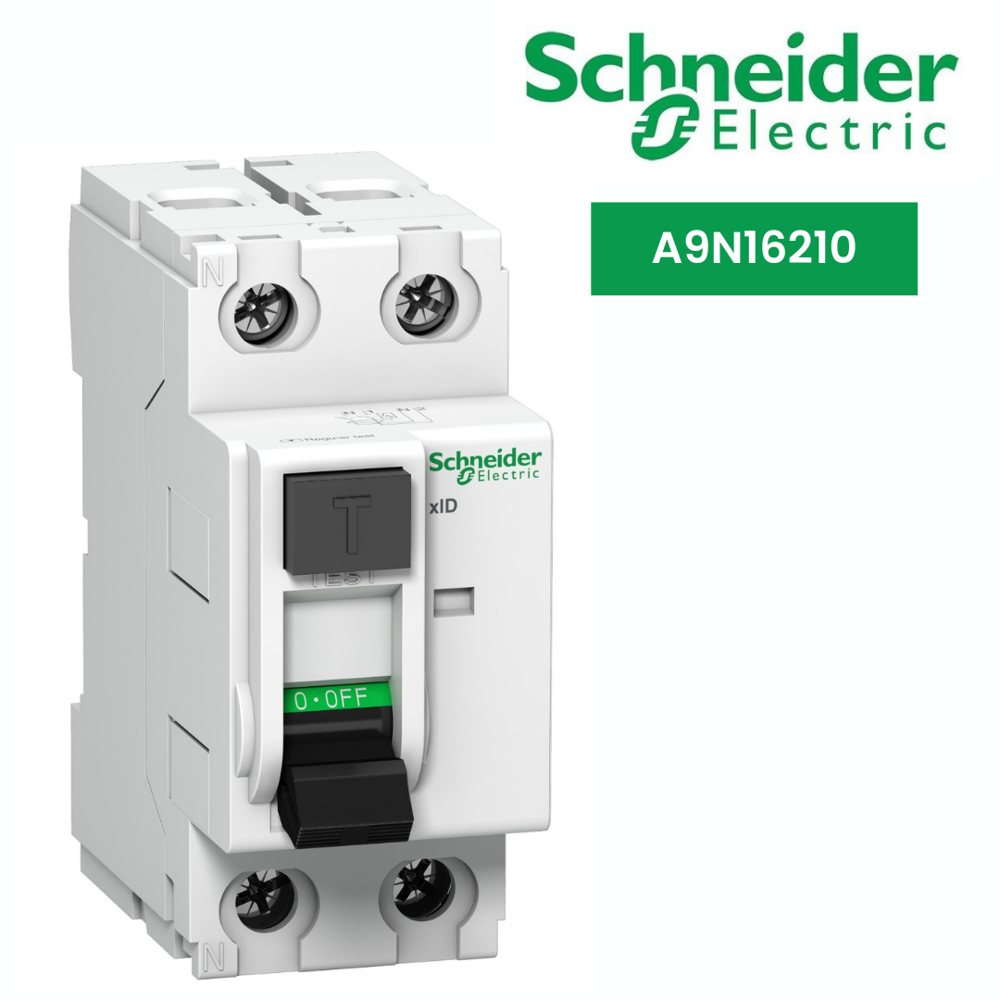

A9N16210-Acti 9 xID residual circuit breaker - 63 A - 2P - 300mA class AC instantaneous
A9N16210-Acti 9 xID residual circuit breaker - 63 A - 2P - 300mA class AC instantaneous

A9N16210-Acti 9 xID residual circuit breaker - 63 A - 2P - 300mA class AC instantaneous

MOQ : 1 Piece

A9N16210-Acti 9 xID residual circuit breaker - 63 A - 2P - 300mA class AC instantaneous Specification

  • Poles Number
  • 2
  • Rated Frequency
  • 50 Hz Hertz (HZ)
  • Warranty
  • 1 YEAR
  • Temperature Protection
  • -40 C to 85 C. Celsius (oC)
  • Weight
  • 210g. Grams (g)
  • Rated Voltage
  • 230V Volt (V)
  • Operating Temperature
  • -5 C to 40 C. Celsius (oC)
  • Material
  • Substances
  • Frequency
  • 50 Hz Hertz (HZ)
  • Rated Current
  • 63A Ampere (amp)


A9N16210-Acti 9 xID residual circuit breaker - 63 A - 2P - 300mA class AC instantaneous Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 32 Pieces Per Week
  • Delivery Time
  • 4 Days
  • Sample Available
  • No
  • Packaging Details
  • RAIP WITH CARTUN
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About A9N16210-Acti 9 xID residual circuit breaker - 63 A - 2P - 300mA class AC instantaneous


This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 63A, AC type protection class and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 630A . The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.
