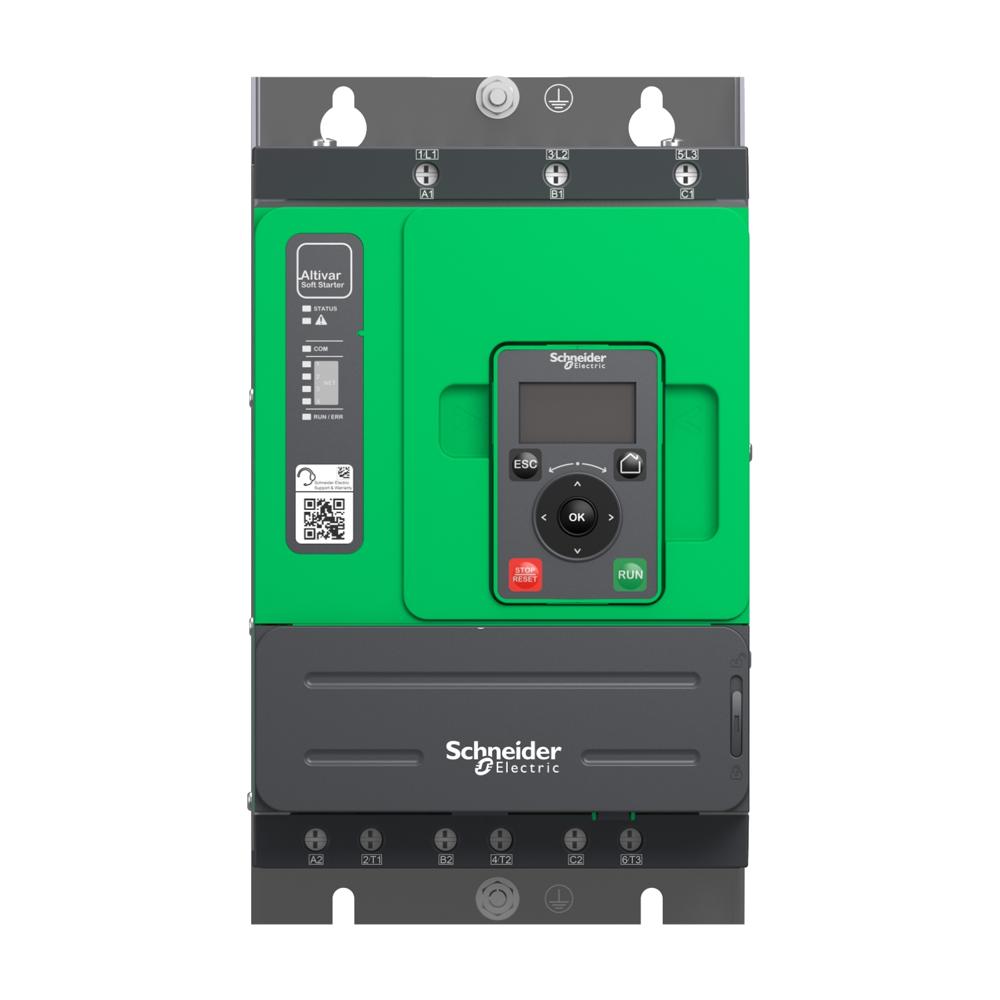

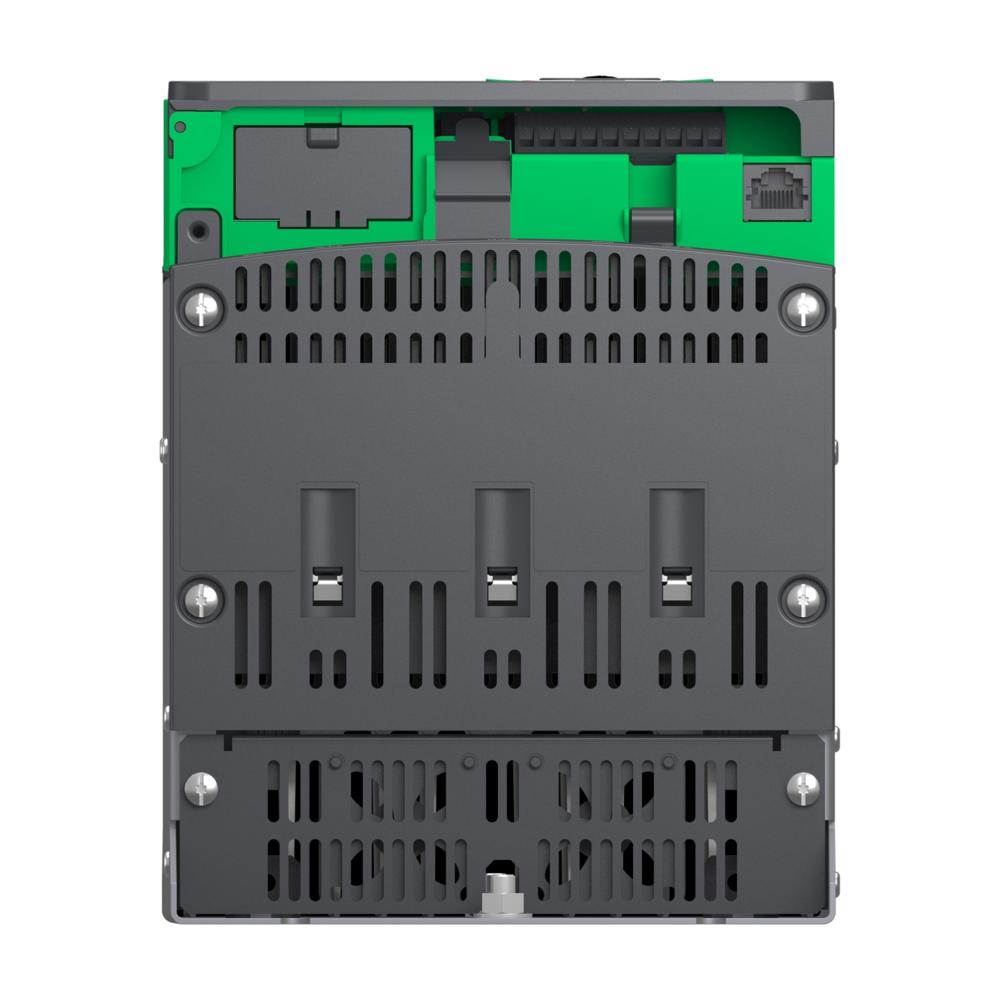

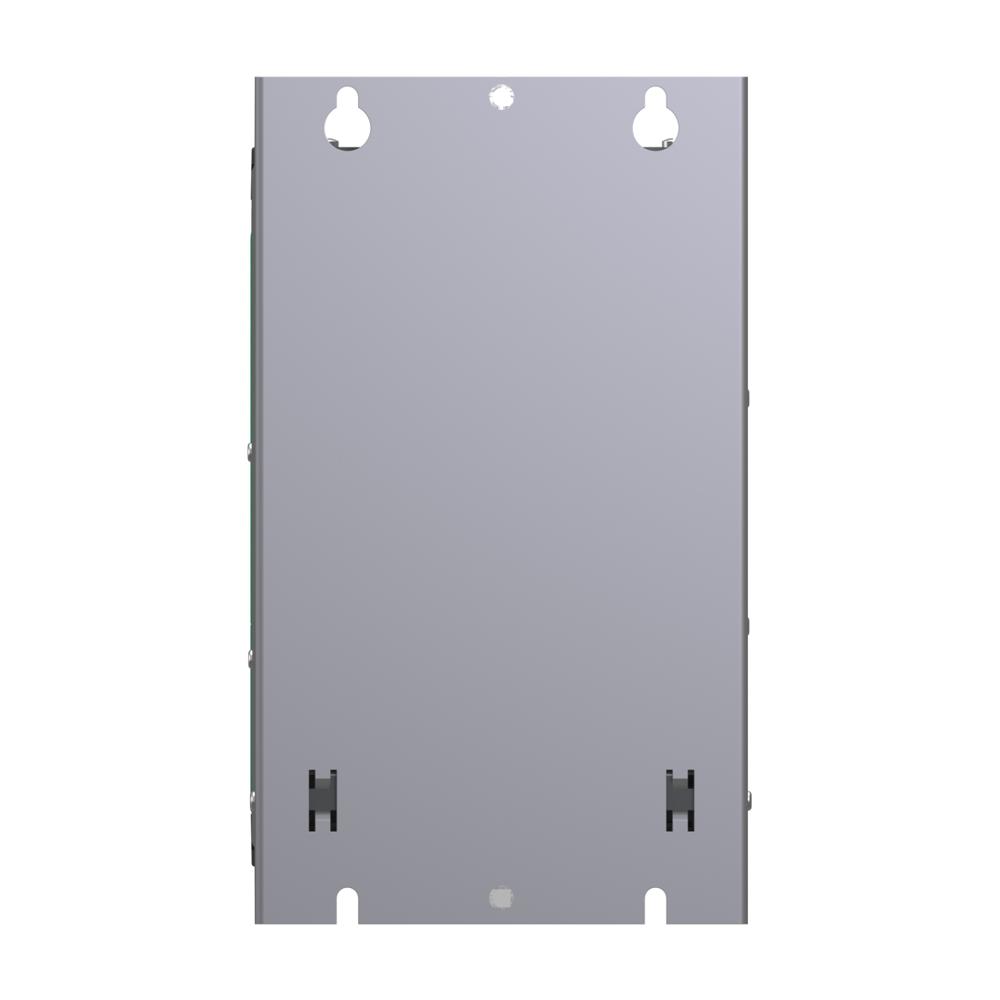

ATS480D22Y-Soft starter, Altistart 480, 22A, 208 to 690V AC, control supply 110 to 230V AC

Name: ATS480D22Y-Soft starter, Altistart 480, 22A, 208 to 690V AC, control supply 110 to 230V AC
Brand: META AUTOMATION SOLUTIONS
Price: 36952.8 INR
Availability: InStock

Price 36952.8 INR/ Piece

Get a Price/Quote

MOQ : 15 Pieces

ATS480D22Y-Soft starter, Altistart 480, 22A, 208 to 690V AC, control supply 110 to 230V AC Specification

Shape
Rectangle

IP Rating
IP20

Connector Type
1 RJ45

Operating Temperature
70 Celsius (oC)

Overheating Protection
YES

Power Rating
5.5KW TO 18.5KW

Product Type
Soft Starter

Application
Process and infrastructures

Frequency (MHz)
60 Hertz (HZ)

Output Type
3

Color
Black/Green

Weight
4.9 Kilograms (kg)

Rated Voltage
690 Volt (V)

Warranty
1YEAR

Phase
Three Phase

Connection Type
In the motor supply line To the motor delta terminals

Rated Current
22 Ampere (amp)

Features
Stable Performance

Frequency
60 Hertz (HZ)

ATS480D22Y-Soft starter, Altistart 480, 22A, 208 to 690V AC, control supply 110 to 230V AC Trade Information

Minimum Order Quantity
15 Pieces

Payment Terms
Cash in Advance (CID), Paypal, Cheque, Cash Advance (CA)

Supply Ability
40 Pieces Per Week

Delivery Time
2 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About ATS480D22Y-Soft starter, Altistart 480, 22A, 208 to 690V AC, control supply 110 to 230V AC

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 22A in normal duty, it supplies motor from 5,5kW to 18,5kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 160mm (width) x 203mm (depth) x 275mm (height) and it weighs 4,9kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
