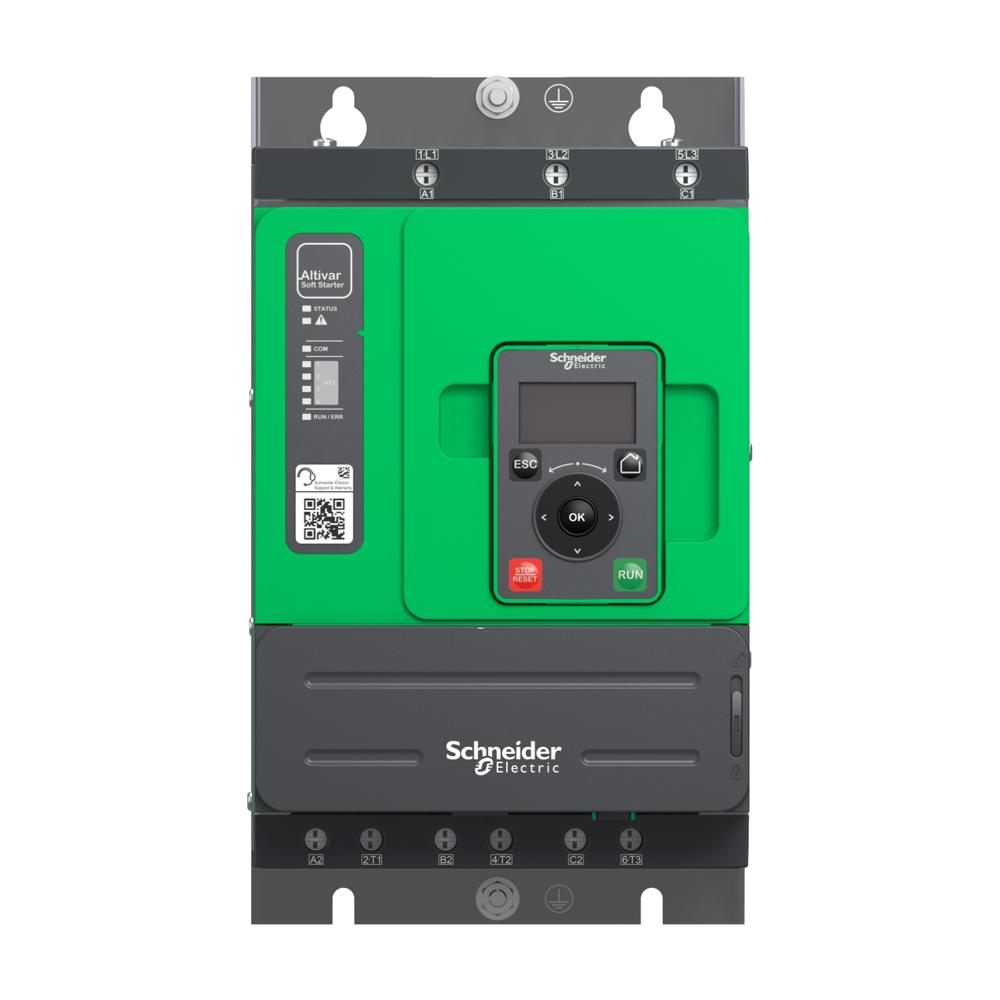

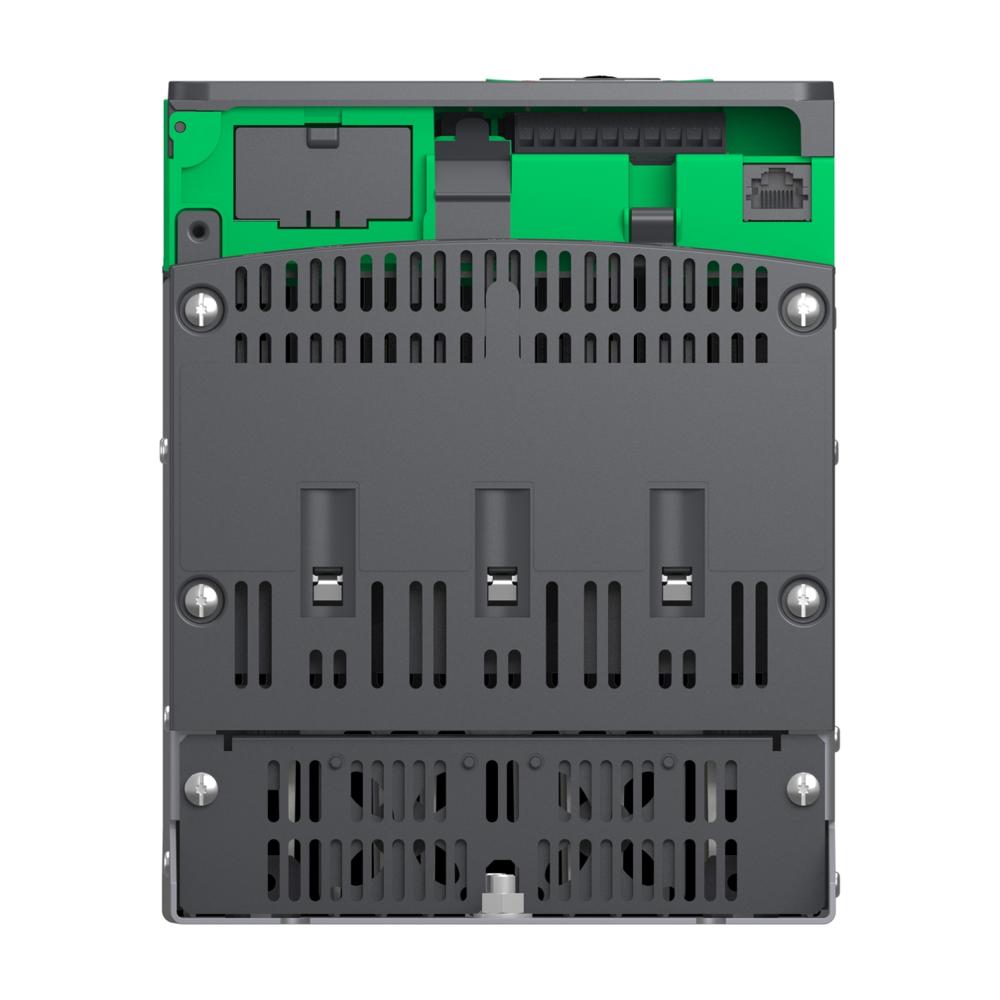

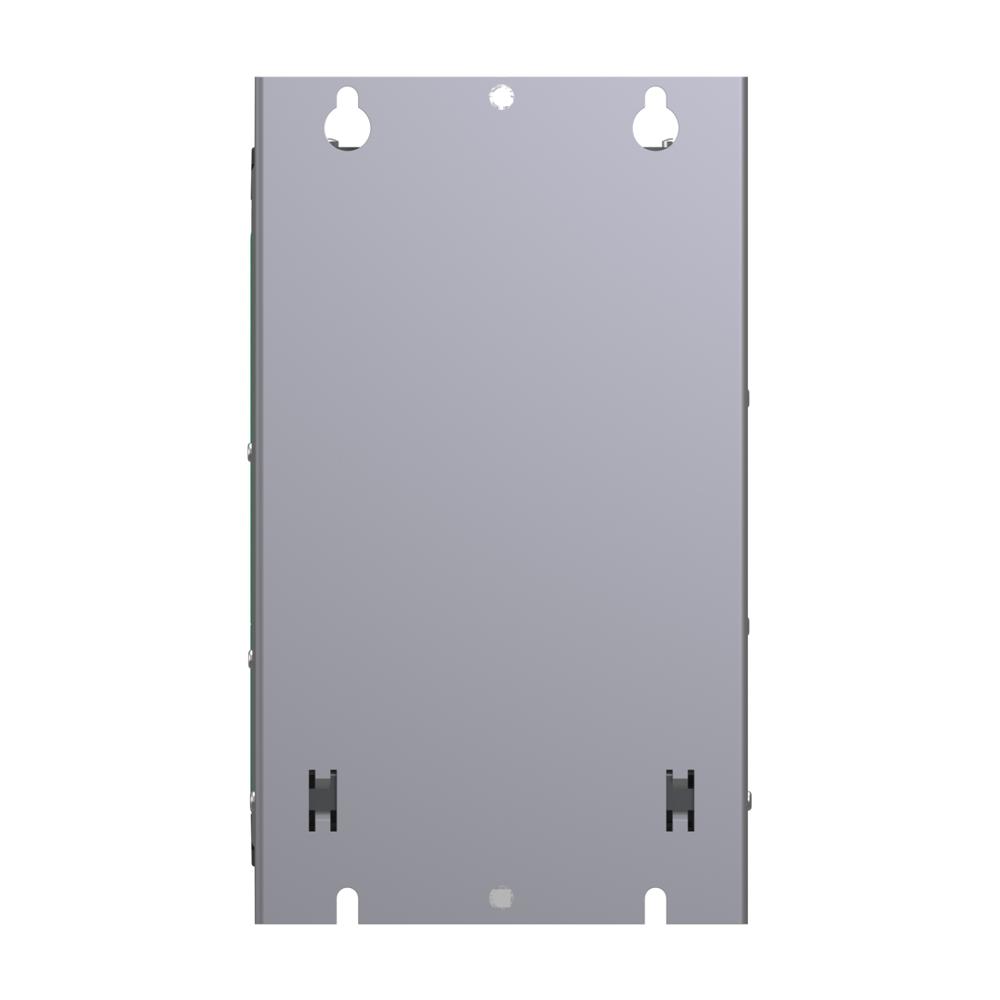

ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC
ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC
ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC
ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC
ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC
ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC
ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC
ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC

ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC

Price 43240.8 INR/ Piece

MOQ : 10 Pieces

ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC Specification

  • Overheating Protection
  • YES
  • IP Rating
  • IP20
  • Connector Type
  • 1 RJ45
  • Operating Temperature
  • 70 Celsius (oC)
  • Surface Finish
  • coated
  • Shape
  • Rectangle
  • Power Rating
  • 7.5
  • Product Type
  • Soft Starter
  • Application
  • Process and infrastructures
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Color
  • Black/Green
  • Rated Voltage
  • 690 Volt (V)
  • Weight
  • 4.9 Kilograms (kg)
  • Warranty
  • 1Year
  • Phase
  • Three Phase
  • Size
  • Standard
  • Features
  • Stable Performance
  • Rated Current
  • 32 Ampere (amp)
  • Frequency
  • 60 Hertz (HZ)
  • Connection Type
  • Connection in line, with line and bypass contactor, freewheel or controlled stop, type 1 or 2 coordination, non reversing, 2-wire or 3-wire


ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC Trade Information

  • Minimum Order Quantity
  • 10 Pieces
  • Payment Terms
  • Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • 40 Pieces Per Week
  • Delivery Time
  • 5 Days
  • Sample Available
  • No
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATS480D32Y-Soft starter, Altistart 480, 32A, 208 to 690V AC, control supply 110 to 230V AC

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 32A in normal duty, it supplies motor from 7,5kW to 22kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 160mm (width) x 203mm (depth) x 275mm (height) and it weighs 4,9kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
