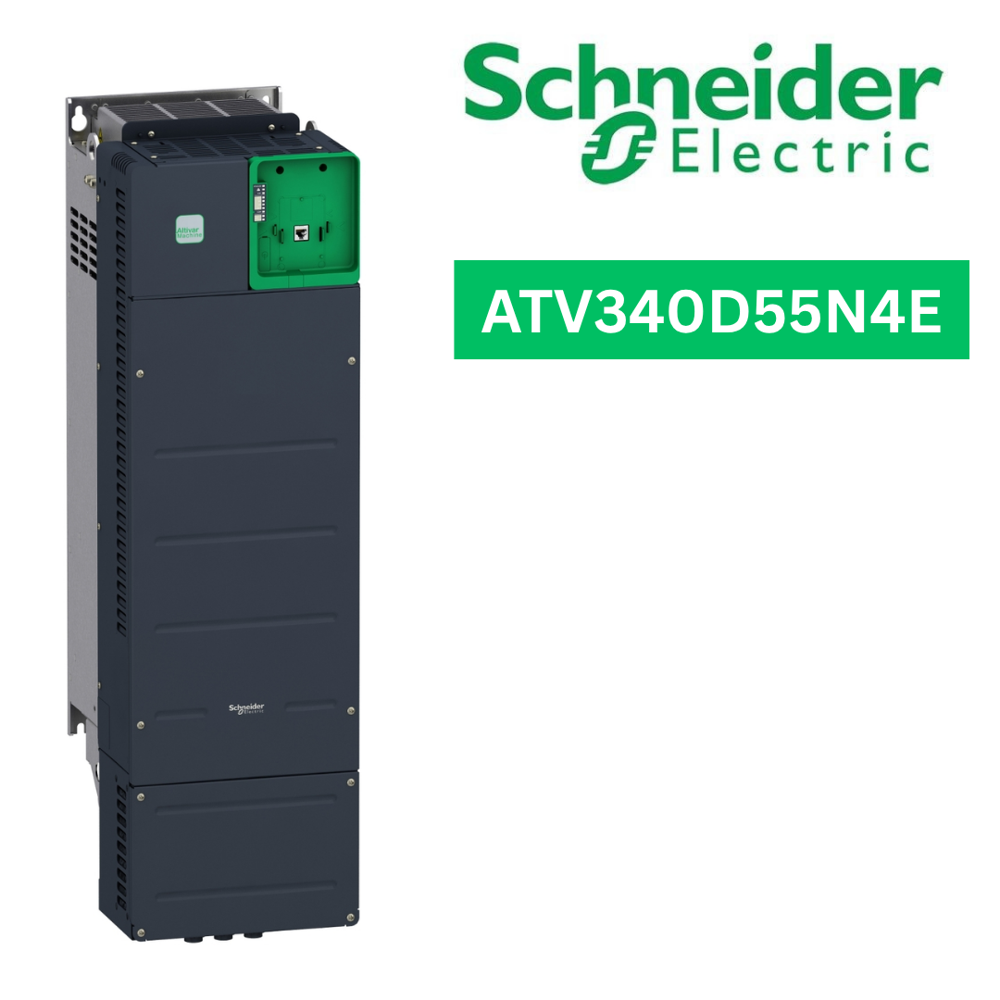

ATV340D55N4E-variable speed drive, Altivar Machine ATV340, 55kW, heavy duty, 400V, 3 phases, Ethernet

Name: ATV340D55N4E-variable speed drive, Altivar Machine ATV340, 55kW, heavy duty, 400V, 3 phases, Ethernet
Brand: META AUTOMATION SOLUTIONS
Price: 178599.04 INR
Availability: InStock

Price 178599.04 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ATV340D55N4E-variable speed drive, Altivar Machine ATV340, 55kW, heavy duty, 400V, 3 phases, Ethernet Specification

Connector Type
3 RJ45

Operating Temperature
60 Celsius (oC)

Mounting Type
WALL MOUNT

Power Rating
55KW

Product Type
Variable speed drive

Application
Machine

Frequency (MHz)
60 Hertz (HZ)

Output Type
Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits

Color
BLACK

Dimension (L*W*H)
271 Millimeter (mm)

Rated Voltage
480 Volt (V)

Weight
57.7 Kilograms (kg)

Warranty
1YEAR

Input Voltage
380 Volt (V)

Phase
THREE PHASE

Connection Type
Screw terminal, clamping capacity: 0.75...1.5 mm for control Screw terminal, clamping capacity: 70...120 mm for DC bus Screw terminal, clamping capacity: 95...120 mm for line side Screw terminal, clamping capacity: 95...120 mm for motor

Rated Current
106 Ampere (amp)

Frequency
60 Hertz (HZ)

ATV340D55N4E-variable speed drive, Altivar Machine ATV340, 55kW, heavy duty, 400V, 3 phases, Ethernet Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
16 Pieces Per Week

Delivery Time
4 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About ATV340D55N4E-variable speed drive, Altivar Machine ATV340, 55kW, heavy duty, 400V, 3 phases, Ethernet

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 55kW / 75hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 57.9kg and its dimensions are, 271mm wide, 908mm high, 309mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
