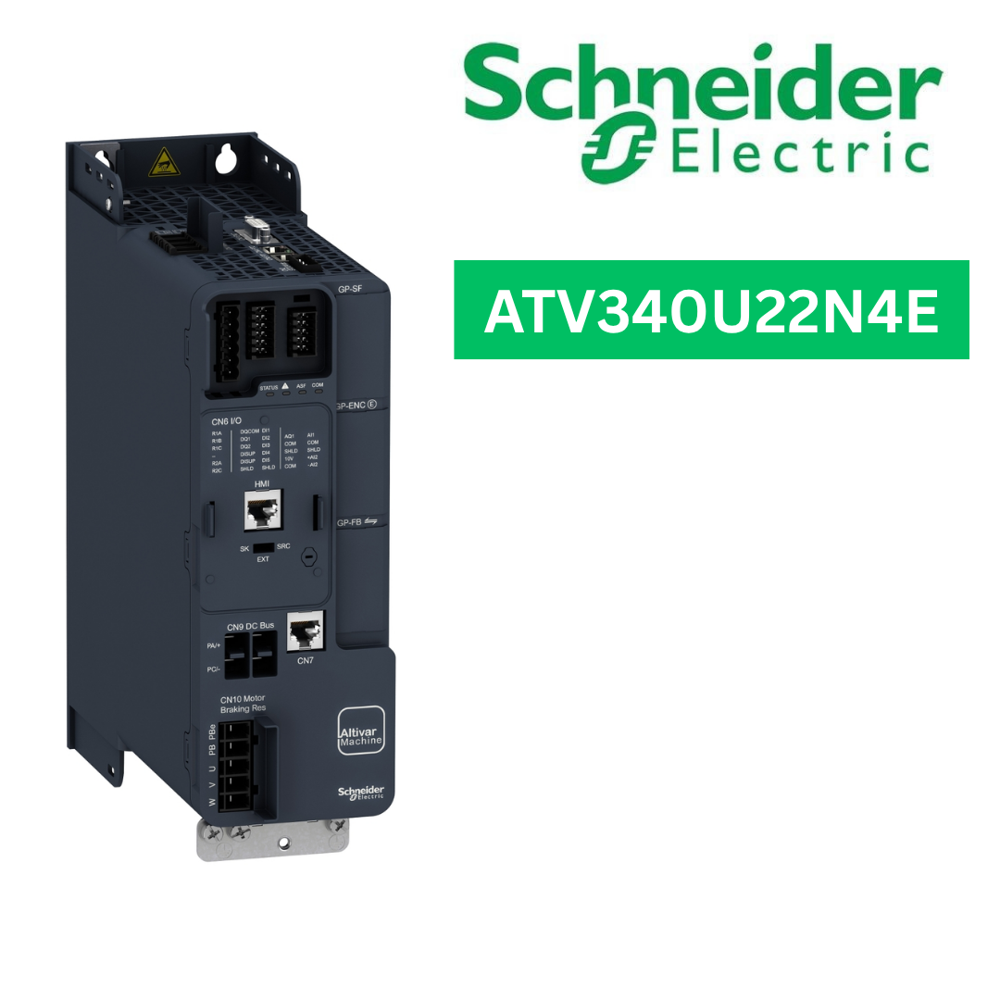

ATV340U22N4E-variable speed drive, Altivar Machine ATV340, 2.2kW, heavy duty, 400V, 3 phases, Ethernet

Price 37087.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ATV340U22N4E-variable speed drive, Altivar Machine ATV340, 2.2kW, heavy duty, 400V, 3 phases, Ethernet Specification

Operating Temperature
60 Celsius (oC)

Connector Type
3 RJ45

IP Rating
IP20

Mounting Type
Cabinet mount

Power Rating
2.2KW

Product Type
Variable speed drive

Application
Machine

Frequency (MHz)
60 Hertz (HZ)

Color
Black

Dimension (L*W*H)
270 Millimeter (mm)

Rated Voltage
480 Volt (V)

Warranty
1YEAR

Input Voltage
380 Volt (V)

Phase
3 PHASE

Rated Current
5.6 Ampere (amp)

Connection Type
Screw terminal, clamping capacity: 1.5...4 mm for line side Screw terminal, clamping capacity: 4...6 mm for DC bus Screw terminal, clamping capacity: 1.5...4 mm for motor Screw terminal, clamping capacity: 0.2...2.5 mm for control

Frequency
60 Hertz (HZ)

ATV340U22N4E-variable speed drive, Altivar Machine ATV340, 2.2kW, heavy duty, 400V, 3 phases, Ethernet Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
35 Pieces Per Week

Delivery Time
5 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About ATV340U22N4E-variable speed drive, Altivar Machine ATV340, 2.2kW, heavy duty, 400V, 3 phases, Ethernet

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 1.8kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.
