ATV340U40N4-variable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases
ATV340U40N4-variable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases

ATV340U40N4-variable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases

Price 35559.36 INR/ Piece

MOQ : 1 Piece

ATV340U40N4-variable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases Specification

  • Overheating Protection
  • YES
  • IP Rating
  • IP20
  • Connector Type
  • 1 RJ45
  • Mounting Type
  • WALL MOUNT
  • Power Rating
  • 4KW
  • Product Type
  • Variable speed drive
  • Application
  • Machine
  • Protection Level
  • IP55
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Dimension (L*W*H)
  • 85 Millimeter (mm)
  • Weight
  • 47 Kilograms (kg)
  • Rated Voltage
  • 401 Volt (V)
  • Warranty
  • 1 YEAR
  • Phase
  • THREE PHASE
  • Input Voltage
  • 400 Volt (V)
  • Rated Current
  • 9.3 Ampere (amp)
  • Frequency
  • 60 Hertz (HZ)
  • Connection Type
  • Line side: screw terminal 1.5...4 mm /AWG 14...AWG 12 DC bus: screw terminal 4...6 mm /AWG 12...AWG 10 Motor: screw terminal 1.5...4 mm /AWG 14...AWG 12 Control: screw terminal 0.2...2.5 mm /AWG 24...AWG 12


ATV340U40N4-variable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 32 Pieces Per Week
  • Delivery Time
  • 4 Days
  • Sample Available
  • No
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India

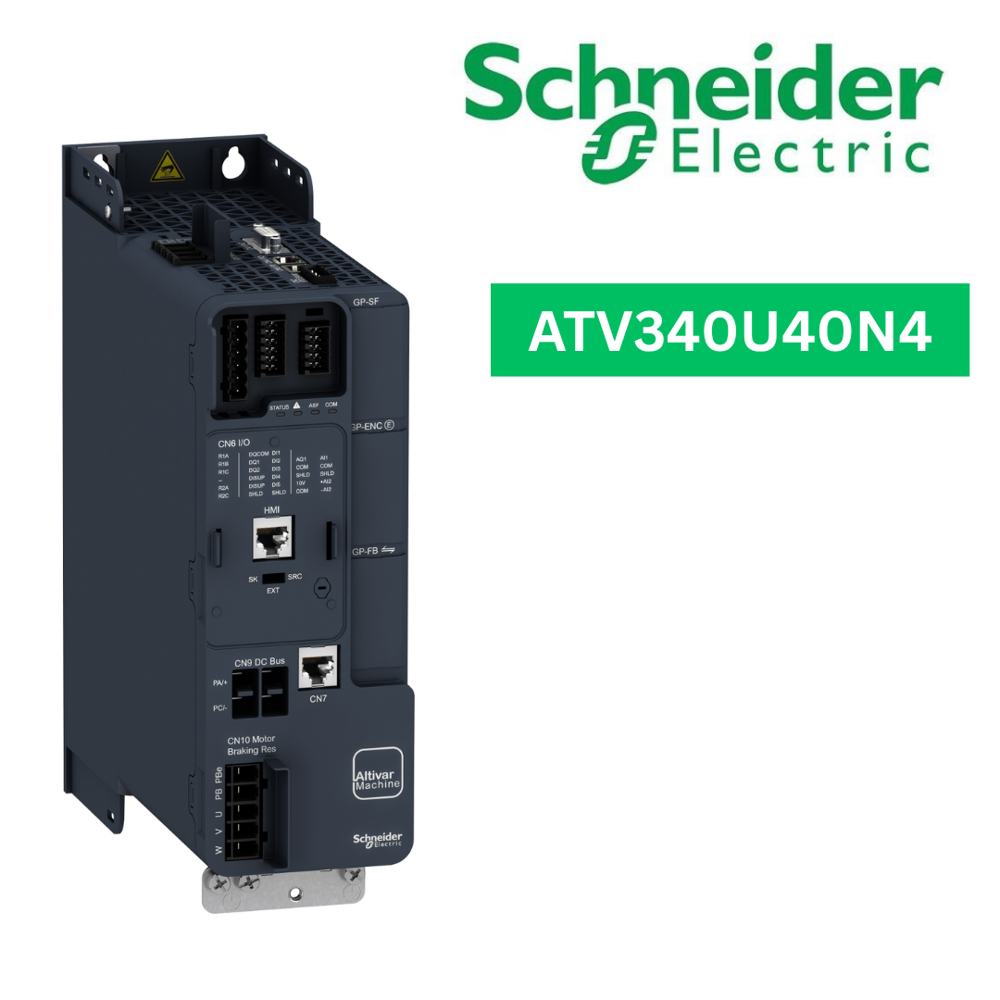

About ATV340U40N4-variable speed drive, Altivar Machine ATV340, 4kW, heavy duty, 400V, 3 phases

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. it weighs 2.2kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Variable Speed Drive Category

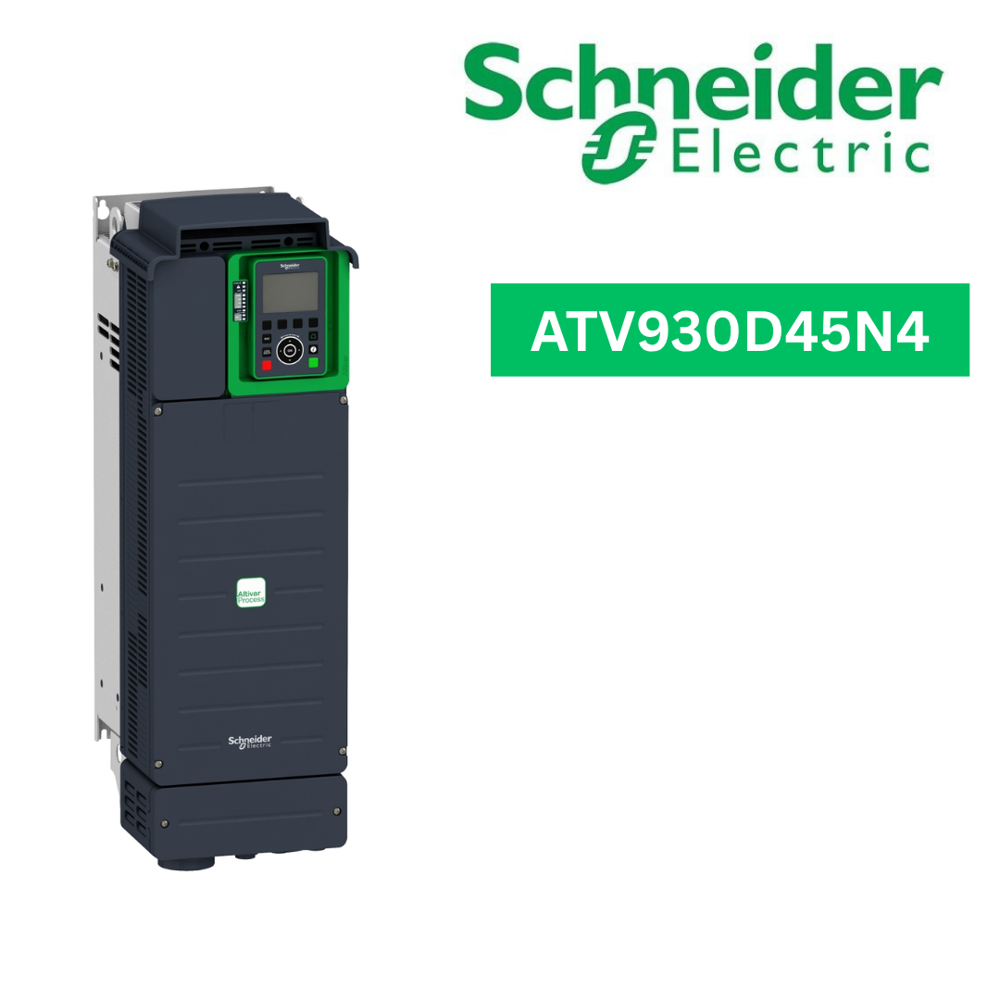

ATV930D45N4-variable speed drive, Altivar Process ATV900, ATV930, 45kW, 400 to 480V, with braking unit, IP21

ATV930D45N4-variable speed drive, Altivar Process ATV900, ATV930, 45kW, 400 to 480V, with braking unit, IP21

Price 145987.21 INR / Piece

Minimum Order Quantity : 5 Pieces

IP Rating : IP21

Frequency : 60 Hertz (HZ)

Warranty : 1 YEAR

Frequency (MHz) : 4 Kilohertz ( KHZ )

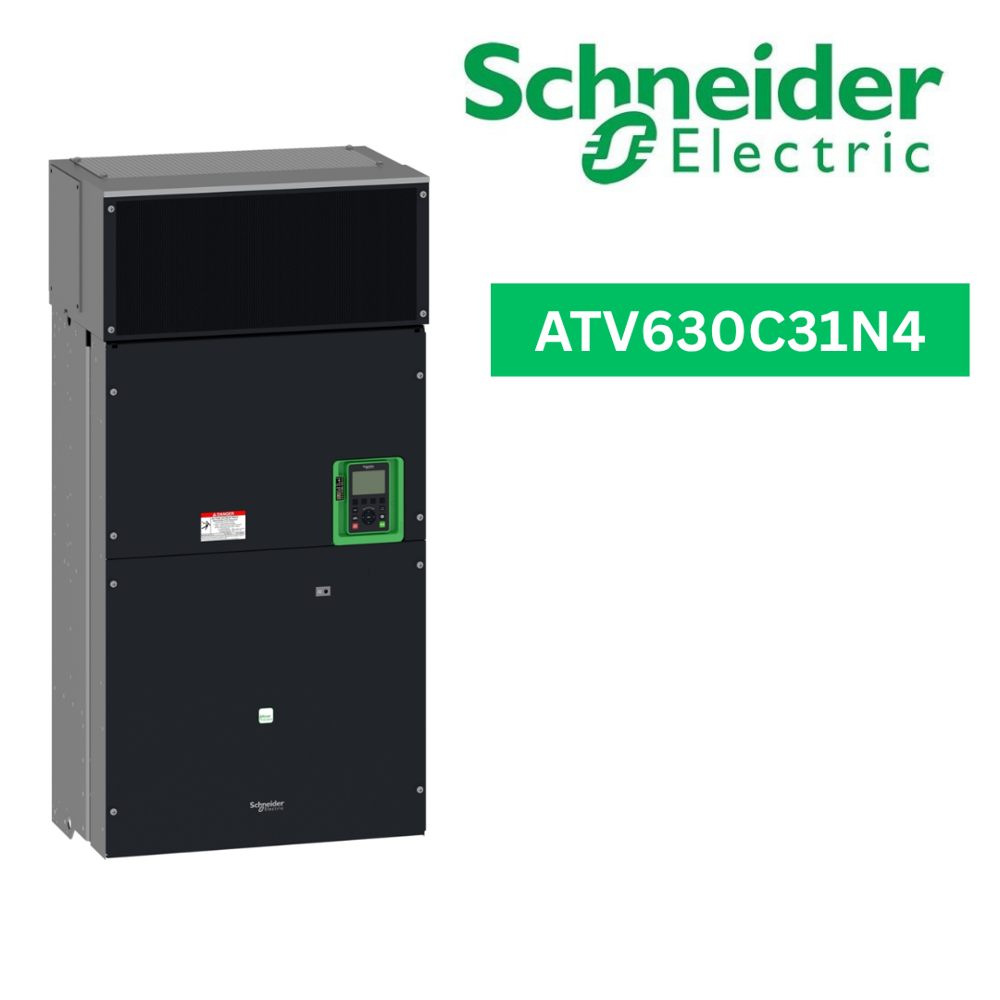

ATV630C31N4-variable speed drive, Altivar Process ATV600, ATV630, 315kW, 500hp, 380 to 480V, IP00

ATV630C31N4-variable speed drive, Altivar Process ATV600, ATV630, 315kW, 500hp, 380 to 480V, IP00

Price 582120.0 INR / Piece

Minimum Order Quantity : 5 Pieces

IP Rating : IP21

Frequency : 60 Hertz (HZ)

Warranty : 1 YEAR

Frequency (MHz) : 60 Hertz (HZ)

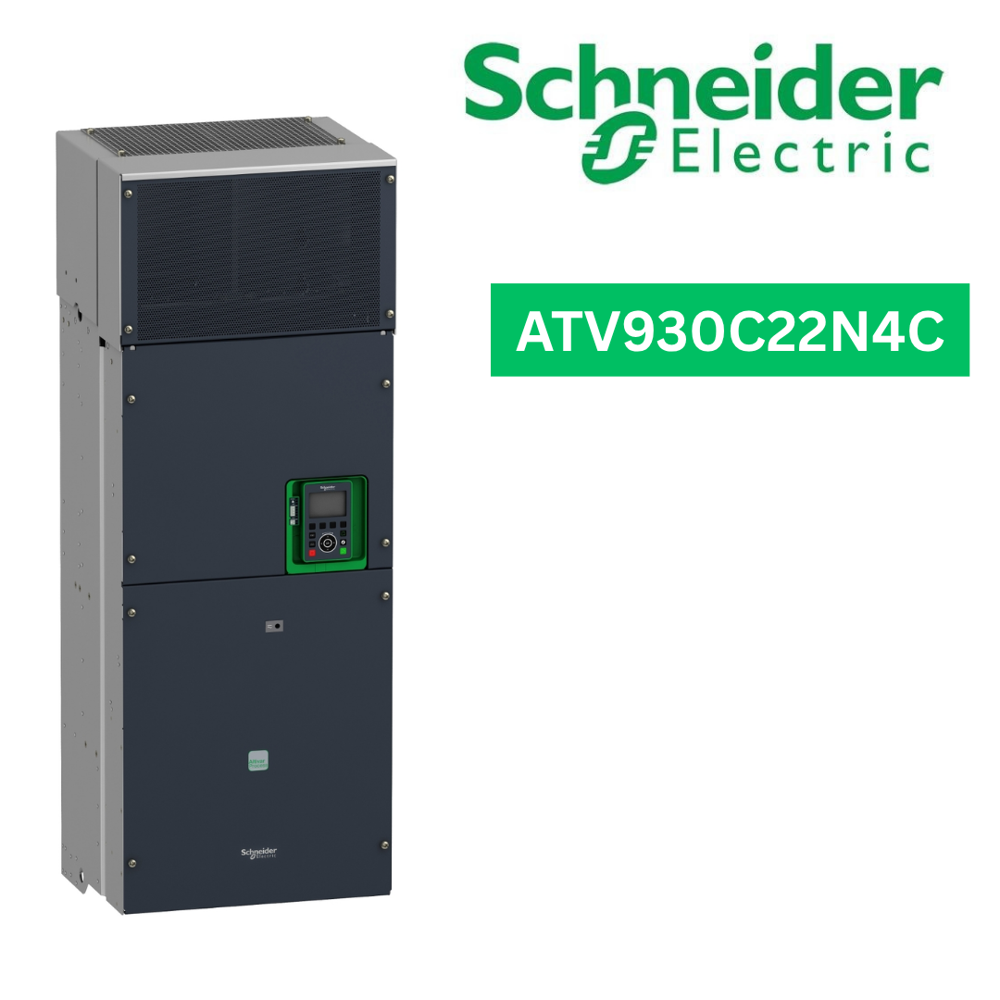

ATV930C22N4C-variable speed drive, Altivar Process ATV900, ATV930, 220kW, 400 to 480V, wihout braking unit, IP00

ATV930C22N4C-variable speed drive, Altivar Process ATV900, ATV930, 220kW, 400 to 480V, wihout braking unit, IP00

Price 507420.0 INR / Piece

Minimum Order Quantity : 1 Piece

IP Rating : IP20

Frequency : 60 Hertz (HZ)

Warranty : 1 YEAR

Frequency (MHz) : 60 Hertz (HZ)

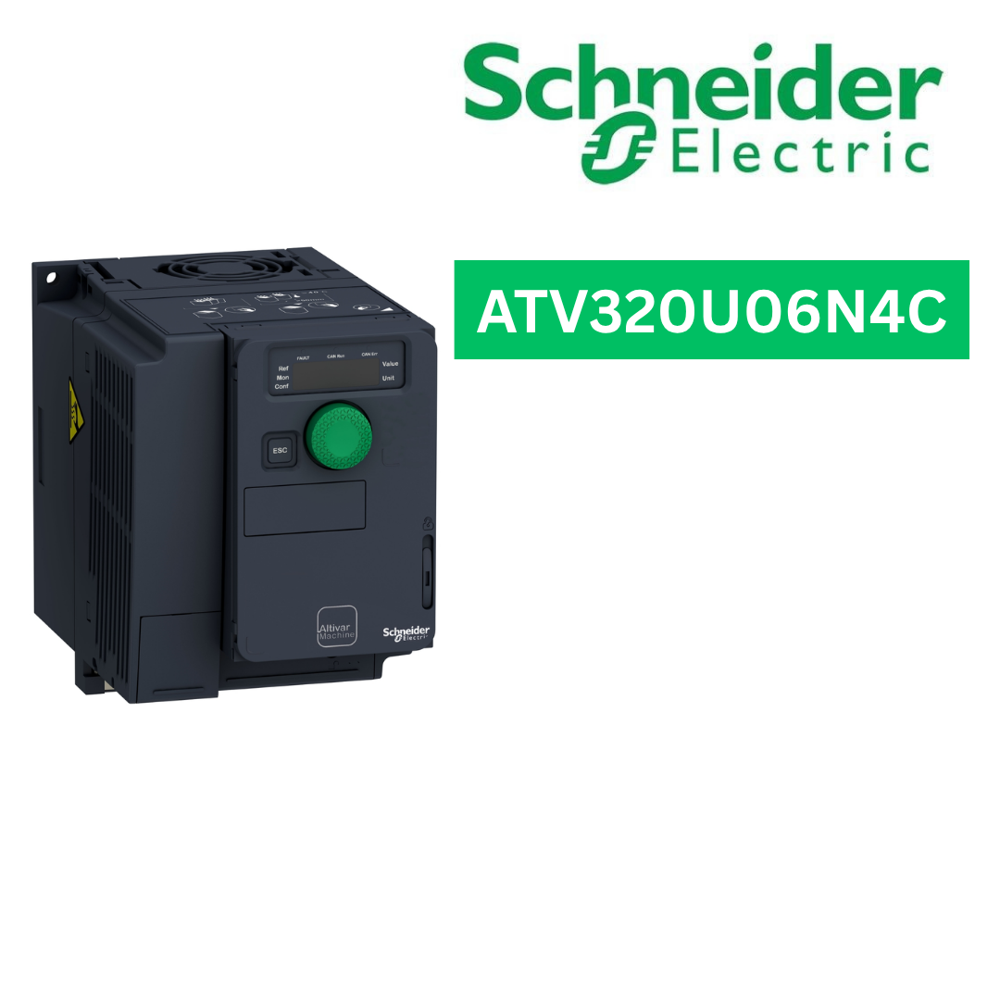

ATV320U06N4C-variable speed drive, Altivar Machine ATV320, 0.55kW, 380 to 500V, 3 phases, compact
