ATV340U55N4-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases
ATV340U55N4-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases

ATV340U55N4-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases

Price 40639.0 INR/ Piece

MOQ : 12 Pieces

ATV340U55N4-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases Specification

  • Overheating Protection
  • YES
  • IP Rating
  • IP20
  • Connector Type
  • 1 RJ45
  • Power Rating
  • 5.5
  • Product Type
  • Variable speed drive
  • Application
  • Machine
  • Protection Level
  • IP54
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Dimension (L*W*H)
  • 270 Millimeter (mm)
  • Weight
  • 2.9 Kilograms (kg)
  • Rated Voltage
  • 400 Volt (V)
  • Warranty
  • 1 YEAR
  • Input Voltage
  • 24 Volt (V)
  • Phase
  • THREE PHASE
  • Rated Current
  • 16 Ampere (amp)
  • Frequency
  • 60 Hertz (HZ)
  • Connection Type
  • Screw terminal, clamping capacity: 4...6 mm for DC bus Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 1.5...6 mm for line side Screw terminal, clamping capacity: 1.5...6 mm for motor


ATV340U55N4-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases Trade Information

  • Minimum Order Quantity
  • 12 Pieces
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 32 Pieces Per Week
  • Delivery Time
  • 5 Days
  • Sample Available
  • No
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATV340U55N4-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. it weighs 2.9kg and its dimensions are, 110mm wide, 270mm high, 234mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Variable Speed Drive Category

ATV630C22N4-variable speed drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00

ATV630C22N4-variable speed drive, Altivar Process ATV600, ATV630, 220kW, 350hp, 380 to 480V, IP00

Price 388742.32 INR / Piece

Minimum Order Quantity : 5 Pieces

Warranty : 1 YEAR

Frequency : 60 Hertz (HZ)

Product Type : Mounting Types

Phase : 3 PHASE

ATV71HD18N4Z-Variable speed drive, Altivar 71, 18.5kW, 25hp, 380 to 480V, 60.2dB, EMC filter, without graphic terminal, CANopen, Modbus, wear part

ATV71HD18N4Z-Variable speed drive, Altivar 71, 18.5kW, 25hp, 380 to 480V, 60.2dB, EMC filter, without graphic terminal, CANopen, Modbus, wear part

Price 166425.0 INR / Piece

Minimum Order Quantity : 1 Piece

Warranty : 1 YEAR

Frequency : 60 Hertz (HZ)

Product Type : Variable speed drive

Phase : 3PHASE

ATV310HD15N4E-variable speed drive, Easy Altivar 310, heavy duty, 15kW, 20hp, normal duty, 18.5kW, 25hp, 380 to 460V, without EMC

ATV310HD15N4E-variable speed drive, Easy Altivar 310, heavy duty, 15kW, 20hp, normal duty, 18.5kW, 25hp, 380 to 460V, without EMC

Price 39815.0 INR / Piece

Minimum Order Quantity : 13 Pieces

Warranty : 1YEAR

Frequency : 60 Hertz (HZ)

Product Type : Variable speed drive

Phase : THREE PHASE

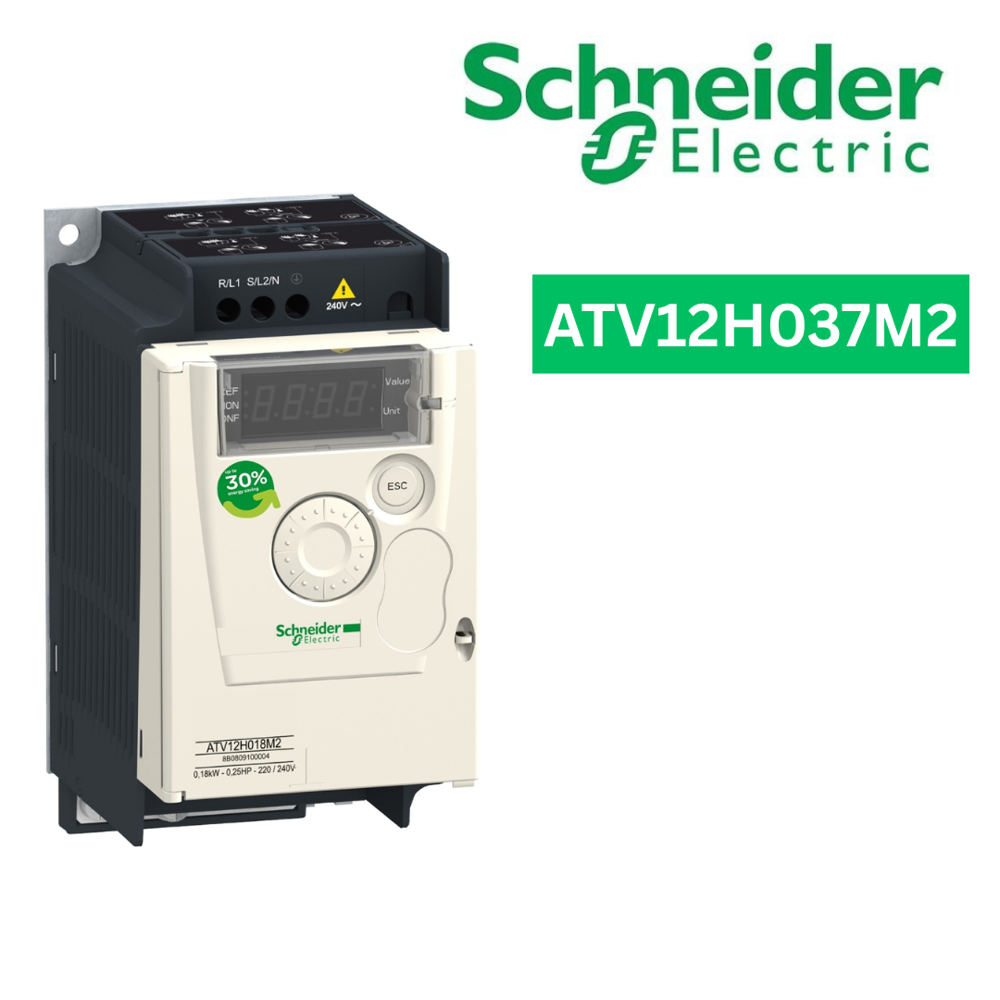

ATV12H037M2-variable speed drive, Altivar 12, 0.37kW, 0.55hp, 200 to 240V, 1 phase, with heat sink
