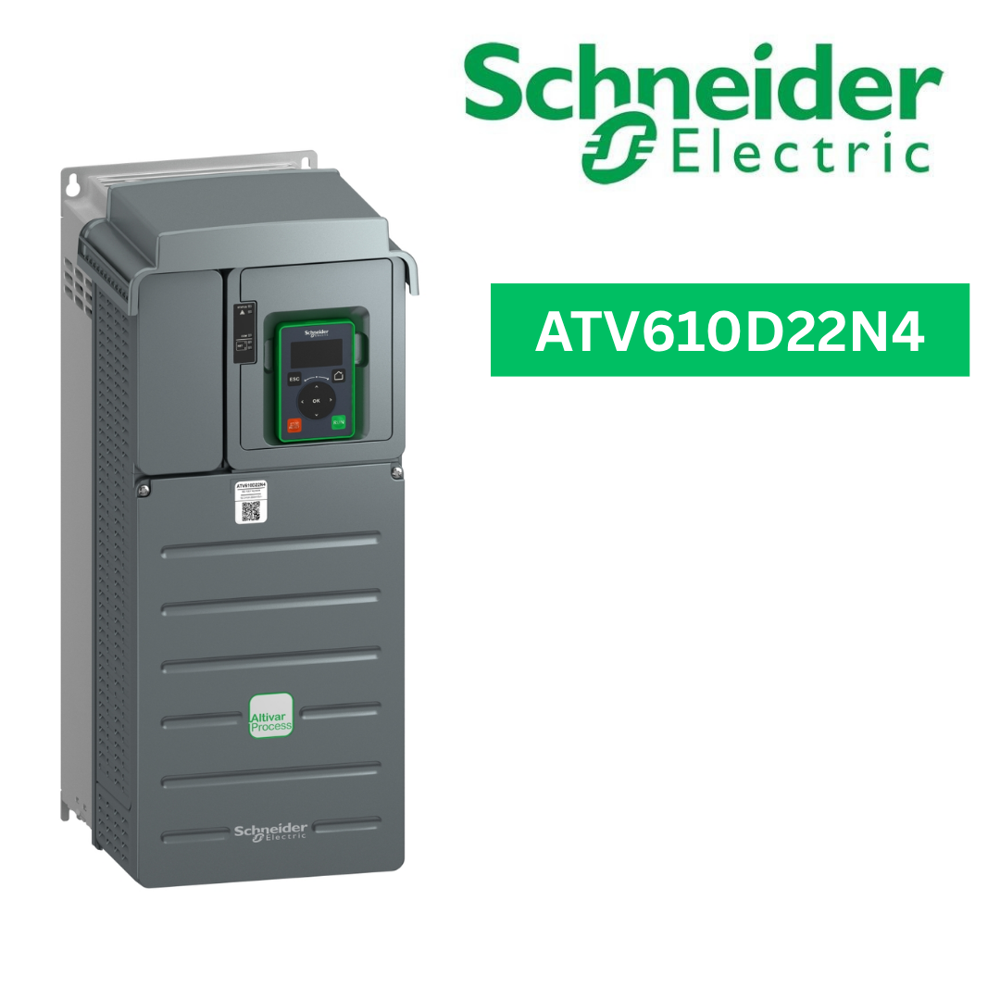

ATV610D22N4-variable speed drive, Easy Altivar 610, 22kW, 30hp, 380 to 460V, IP20

About ATV610D22N4-variable speed drive, Easy Altivar 610, 22kW, 30hp, 380 to 460V, IP20

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 22kW / 30hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive products IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 13.9kg and its dimensions are, 211mm wide, 495mm high, 232mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
