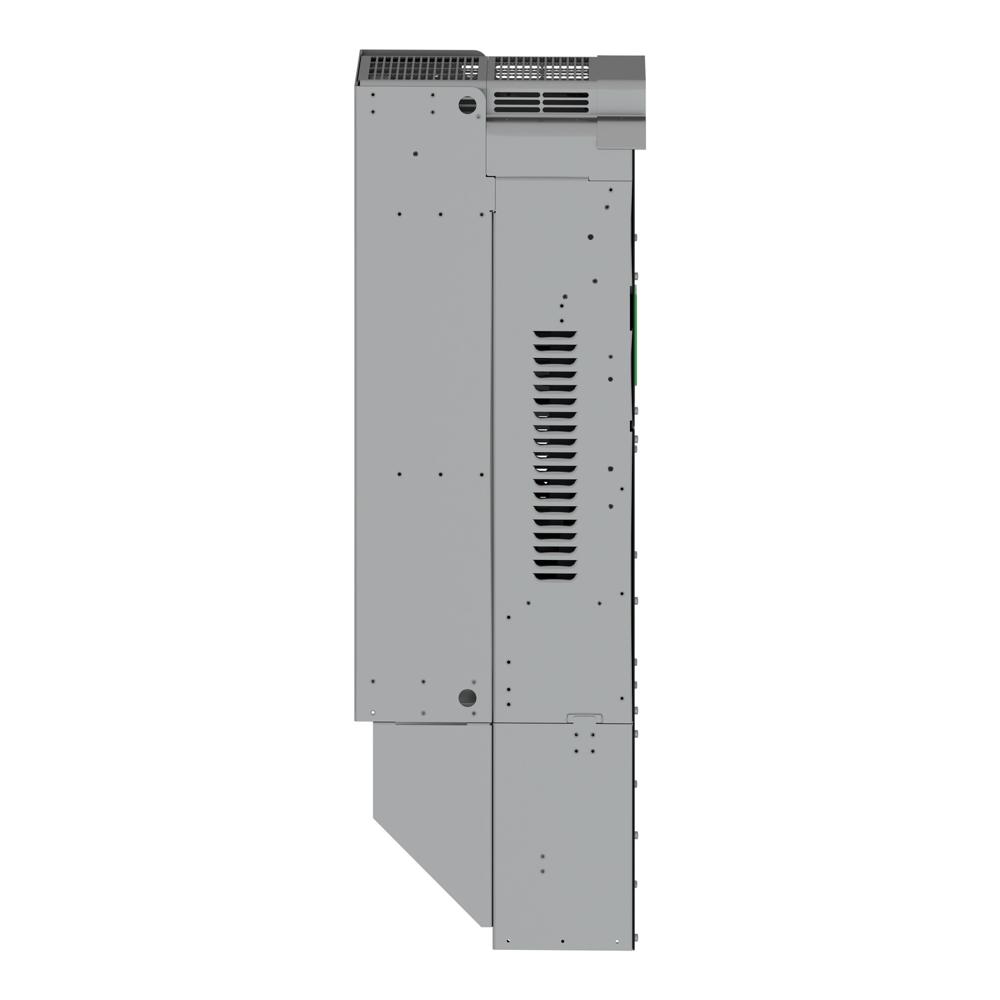

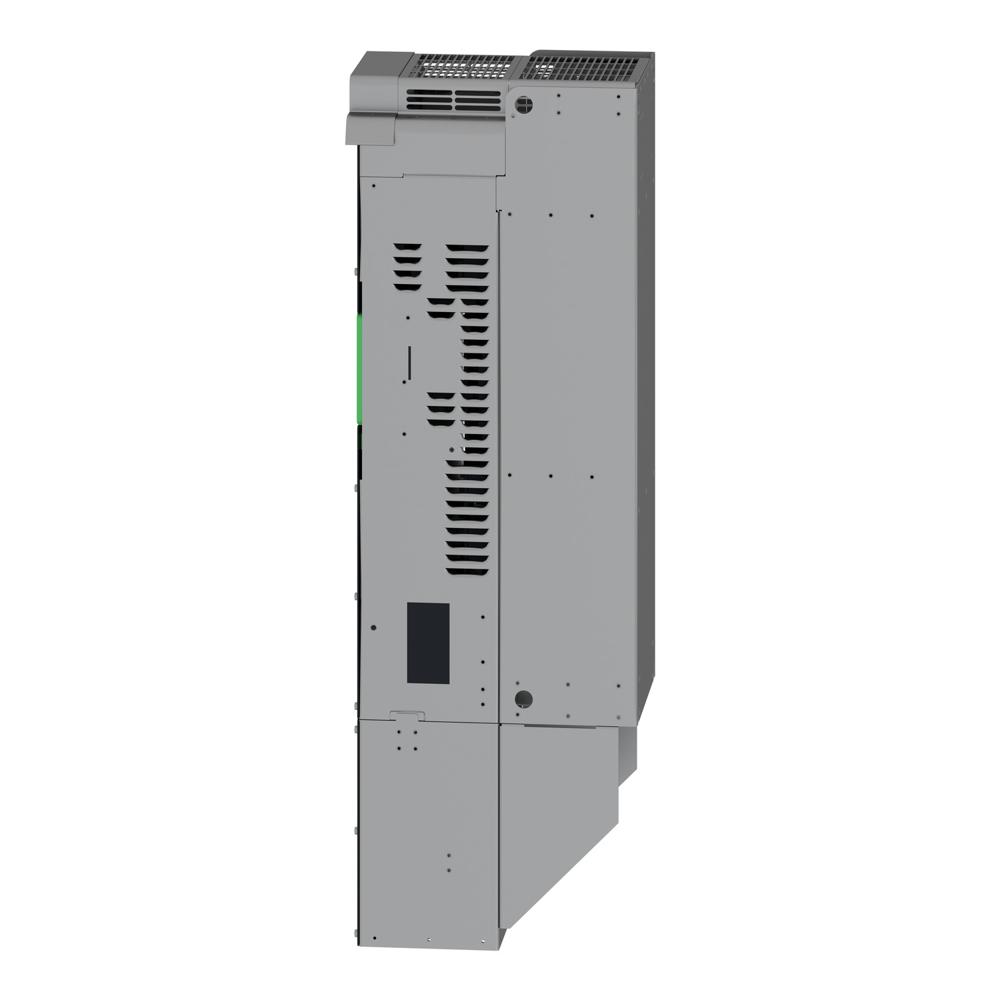

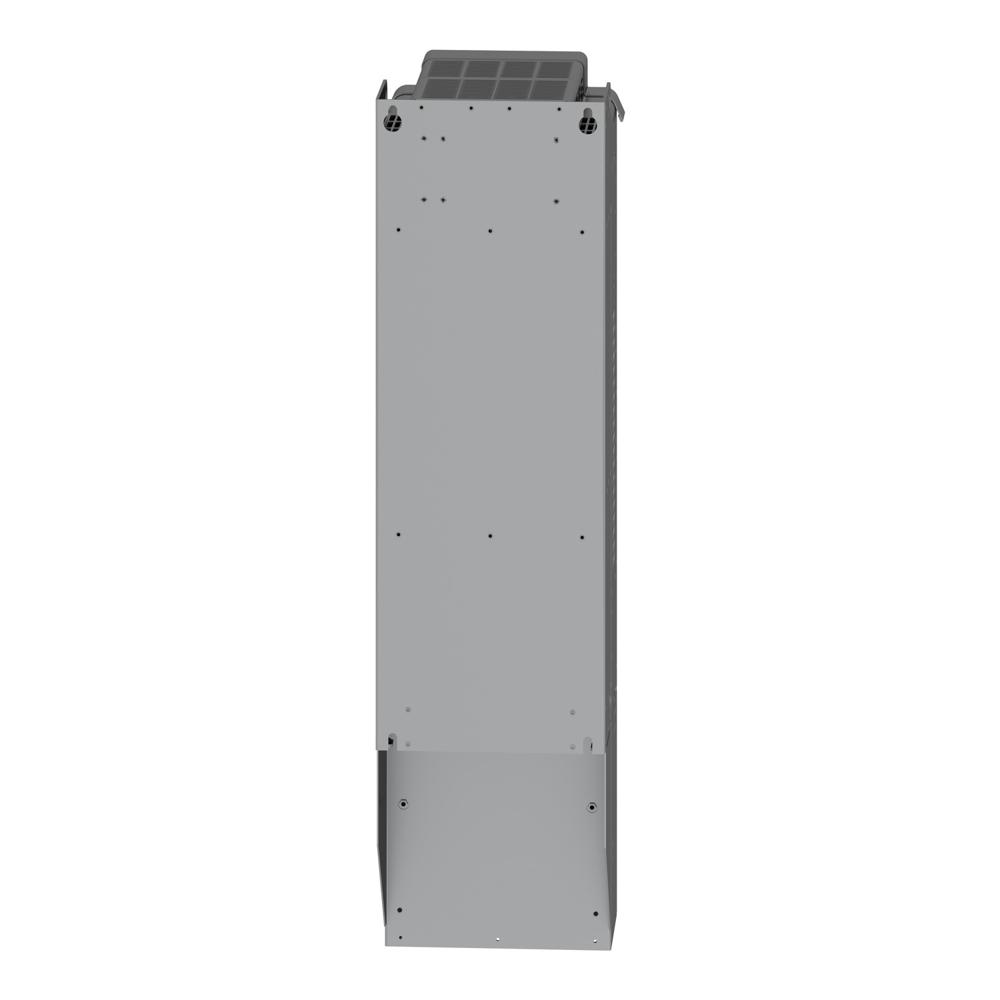

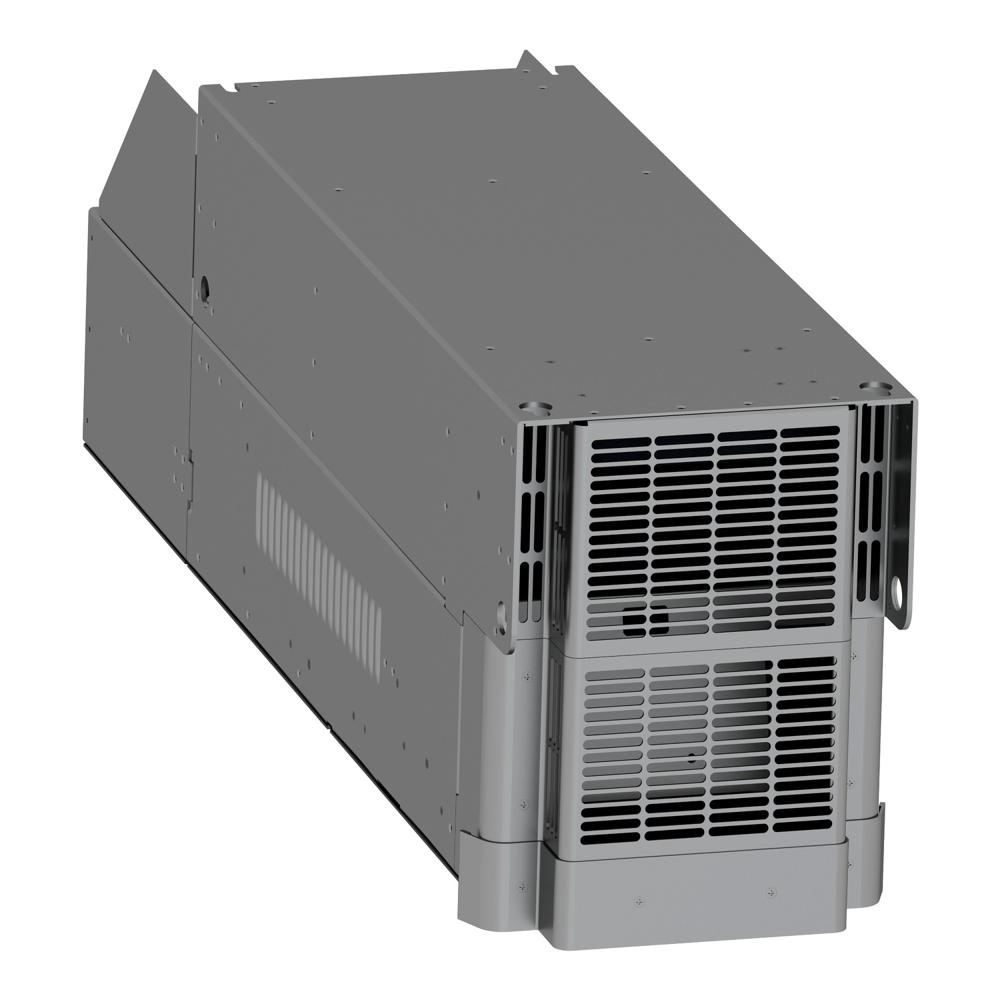

ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00
ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00

ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00

Price 359877.44 INR/ Piece

MOQ : 5 Pieces

ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00 Specification

  • IP Rating
  • IP00
  • Connector Type
  • RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial
  • Mounting Type
  • Wall mount
  • Overheating Protection
  • YES
  • Shape
  • RECTANGLE
  • Product Type
  • Variable speed drive
  • Power Rating
  • 110KW
  • Application
  • Process and utilities
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Output Type
  • Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA
  • Color
  • BLACK
  • Dimension (L*W*H)
  • 320 Millimeter (mm)
  • Weight
  • 82 Kilograms (kg)
  • Rated Voltage
  • 480 Volt (V)
  • Warranty
  • 1YEAR
  • Operating Temperature
  • 60 Celsius (oC)
  • Phase
  • 3 PHASE
  • Input Voltage
  • 380 Ampere (A)
  • Frequency
  • 60 Hertz (HZ)
  • Rated Current
  • 211 Ampere (amp)
  • Connection Type
  • Control: removable screw terminals 0.5...1.5 mm /AWG 20...AWG 16 Line side: screw terminal 2 x 50...3 x 120 mm /2 x AWG 1/0...2 x 300 kcmil Motor: screw terminal 2 x 50...3 x 120 mm /2 x AWG 1/0...2 x 300 kcmil


ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00 Trade Information

  • Minimum Order Quantity
  • 5 Pieces
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Paypal
  • Supply Ability
  • 7 Pieces Per Week
  • Delivery Time
  • 5 Days
  • Sample Available
  • No
  • Packaging Details
  • CARTUN WITH RAIP
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATV630C11N4-variable speed drive, Altivar Process ATV600, ATV630, 110kW, 150hp, 380 to 480V, IP00

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative Stop and Gooperation without additional costs. It is suitable for motors with power rating up to 110kW / 150hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 90kW / 125hp for applications requiring significant overload (up to 150%). It weighs 82kg and its dimensions are, 320mm wide, 852mm high, 390mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
