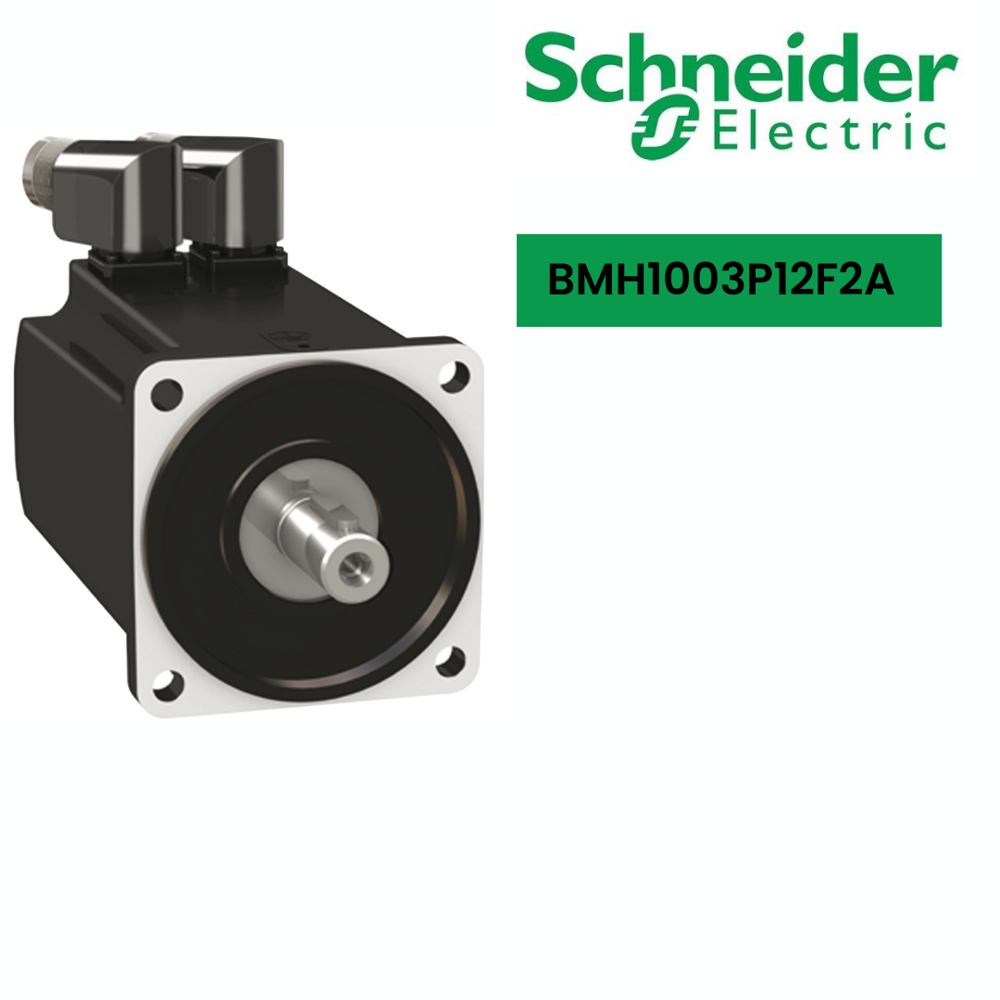

BMH1003P12F2A-servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder
BMH1003P12F2A-servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder

BMH1003P12F2A-servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder

Price 85891.4 INR/ Piece

MOQ : 1 Piece

BMH1003P12F2A-servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder Specification

  • Torque
  • 6.2 N.m for LXM32.D30N4 at 10 A, 400 V, three phase 6.2 N.m for LXM32.D30N4 at 10 A, 480 V, three phase N-m
  • Voltage
  • 480V Volt (v)
  • Poles Number
  • 5
  • Power Rating
  • 3.3W
  • Features
  • maximum mechanical speed
  • Rated Voltage
  • 480V Volt (V)
  • Current Type
  • 29.1 A
  • Product Type
  • Servo Motor
  • Output Power
  • 2700 W for LXM32.D30N4 at 10 A, 400 V, three phase 2700 W for LXM32.D30N4 at 10 A, 480 V, three phase Watt (w)
  • Phase
  • Three Phase
  • Speed
  • 6000RPM RPM
  • Power
  • 3.3W Watt (w)
  • Color
  • BLACK
  • Dimension (L*W*H)
  • 39.5 Millimeter (mm)
  • Weight
  • 8.15 kg Kilograms (kg)
  • Warranty
  • 1 YEAR
  • Material
  • YES
  • Rated Current
  • 29.1 A Ampere (amp)
  • Shaft Diameter
  • 19 mm Millimeter (mm)
  • Mounting Type
  • mounting support is an international standard flange


BMH1003P12F2A-servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 30 Pieces Per Week
  • Delivery Time
  • 5 Days
  • Sample Available
  • No
  • Packaging Details
  • RAIP WITH CARTUN
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About BMH1003P12F2A-servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder


This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 6000RPM, a keyed shaft end, with a holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 7.69A, a continuous power of 3.3W, and a continuous stall torque of 8.4Nm. Its degree of protection is IP54 rated. The motor flange size is 100mm, fixed by 4x 9mm holes. The circle diameter of the mounting holes is 115mm. It weighs 8.15kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD30N4, LXM32SD30N4, LXM32MD30N4, and LXM32CD30N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
