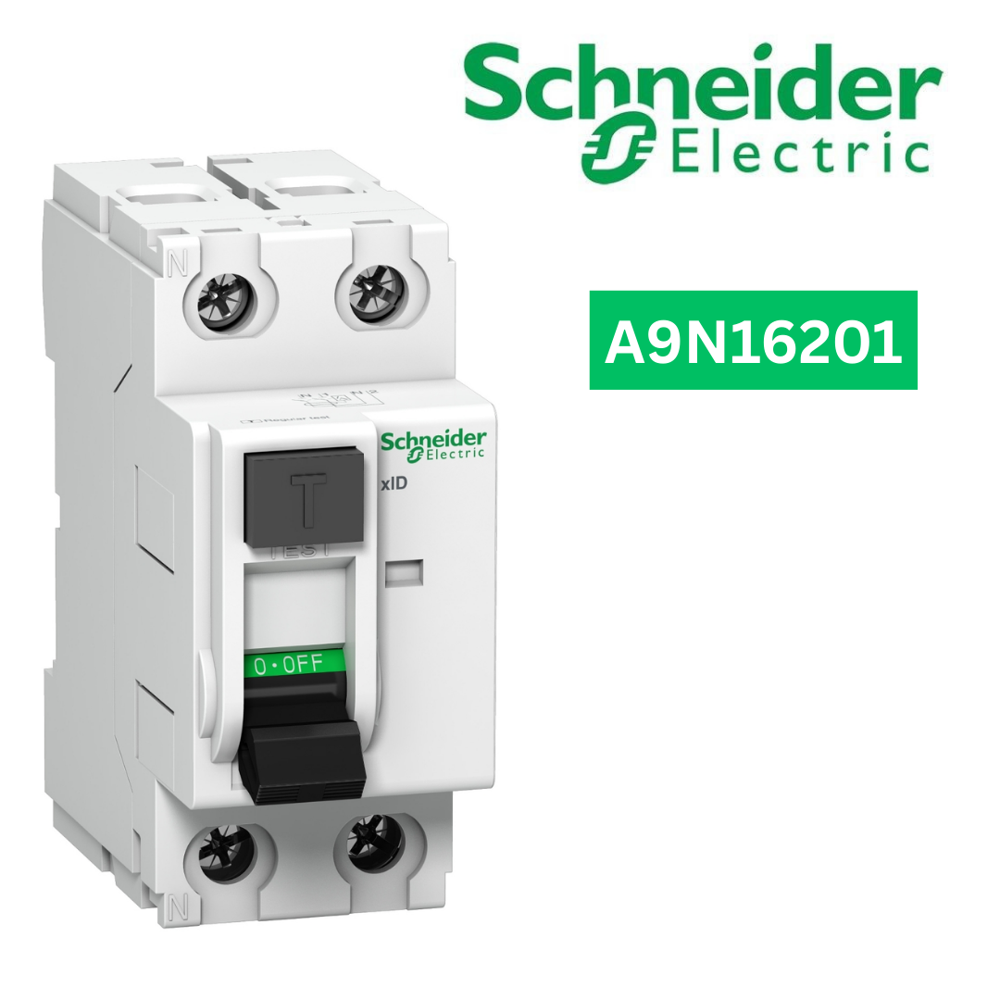

Circuit Breaker -A9N16201
1146.0 INR/Piece
Product Details:
- Rated Current 25A Ampere (amp)
- Warranty 1YEAR
- Phase other
- IP Rating IP40
- Frequency 50 Hertz (HZ)
- Rated Voltage 230VAC to 240VAC Volt (V)
- Rated Short Circuit Breaking Current 500 Ampere (A)
- Click to View more
X
Circuit Breaker -A9N16201 Price And Quantity
- 2 Piece
- 1146.0 INR/Piece
Circuit Breaker -A9N16201 Product Specifications
- 25A Ampere (amp)
- 50 Hertz (HZ)
- IP40
- C
- other
- -40 C to 85 C. Celsius (oC)
- Residual Current
- 1YEAR
- 12 Years
- 50 Hz Hertz (HZ)
- 500 Ampere (A)
- 230VAC to 240VAC Volt (V)
- 210G Grams (g)
- -40 C to 85 C. Celsius (oC)
- 500 Ampere (A)
- 2
Circuit Breaker -A9N16201 Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 200 Piece Per Week
- 4 Days
- Yes
- Asia
- All India
Product Description
This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, a sensitivity of 30mA with a AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.Tell us about your requirement
