Circuit Breaker -A9N16202
1311.0 INR/Piece
Product Details:
- Operating Temperature -40 C to 85 C. Celsius (oC)
- Rated Short Circuit Breaking Current 500A Ampere (A)
- Warranty 1YEAR
- IP Rating IP20
- Rated Voltage 500VAC Volt (V)
- Phase other
- Rated Current 500A Ampere (amp)
- Click to View more
X
Circuit Breaker -A9N16202 Price And Quantity
- 2 Piece
- 1311.0 INR/Piece
Circuit Breaker -A9N16202 Product Specifications
- 50 Hertz (HZ)
- 500A Ampere (A)
- 500A Ampere (amp)
- other
- 500VAC Volt (V)
- IP20
- 2
- C
- 50Hz Hertz (HZ)
- 210G Grams (g)
- 1YEAR
- 500A Ampere (A)
- -40 C to 85 C. Celsius (oC)
- -40 C to 85 C. Celsius (oC)
- Other
Circuit Breaker -A9N16202 Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 200 Piece Per Week
- 4 Days
- Yes
- Asia
- All India
Product Description

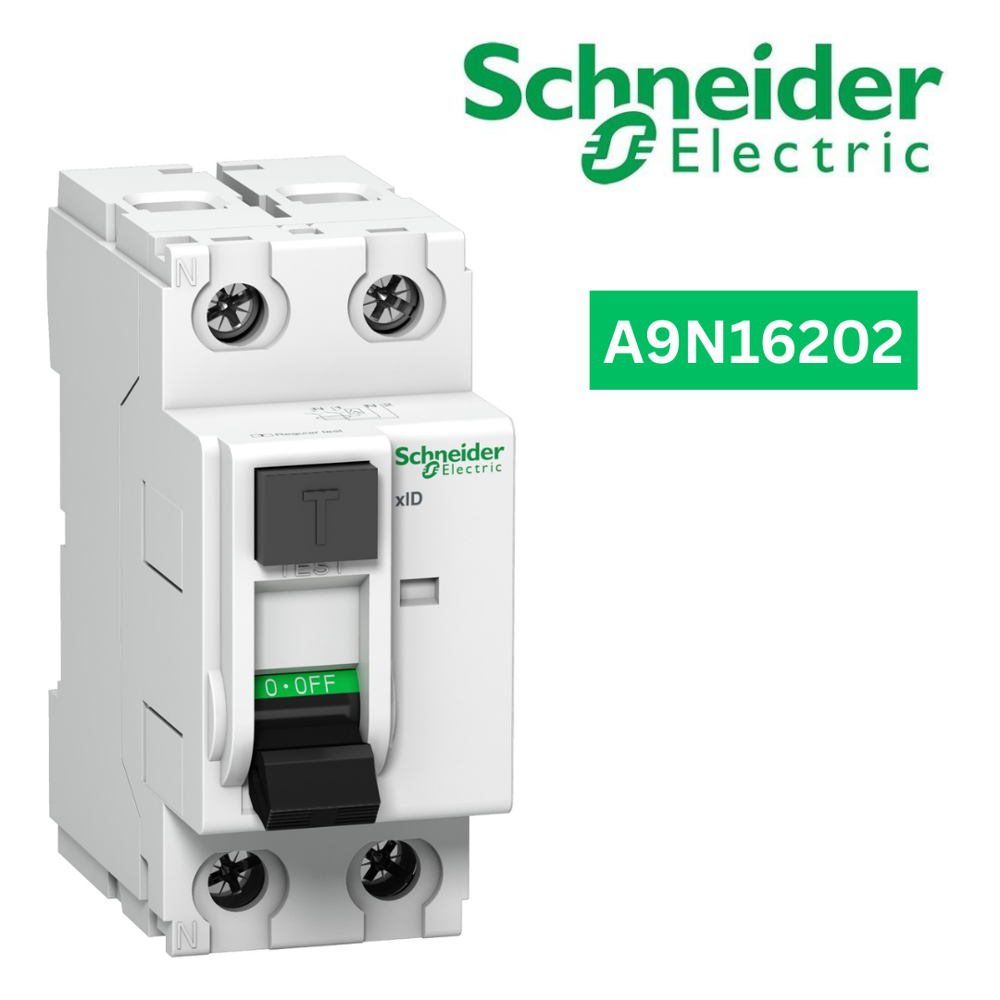

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, 300mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.Tell us about your requirement
