Circuit Breaker -A9N16206
1525.68 INR/Piece
Product Details:
- Rated Short Circuit Making Current 500A Ampere (A)
- Frequency 50 Hertz (HZ)
- Rated Short Circuit Breaking Current 500A Ampere (A)
- Rated Voltage 240 Volt (V)
- Rated Current 40A Ampere (amp)
- IP Rating IP40
- Operating Temperature -40 C to 85 C. Celsius (oC)
- Click to View more
X
Circuit Breaker -A9N16206 Price And Quantity
- 2 Piece
- 1525.68 INR/Piece
Circuit Breaker -A9N16206 Product Specifications
- 1YEAR
- -40 C to 85 C. Celsius (oC)
- -40 C to 85 C. Celsius (oC)
- IP40
- 50Hz Hertz (HZ)
- Residual Current
- C
- 40A Ampere (amp)
- 210 Grams (g)
- 240 Volt (V)
- 2
- 50 Hertz (HZ)
- 500A Ampere (A)
- 500A Ampere (A)
Circuit Breaker -A9N16206 Trade Information
- Cheque, Paypal, Cash Advance (CA), Cash in Advance (CID)
- 100 Piece Per Week
- 4 Days
- Yes
- Asia
- All India
Product Description

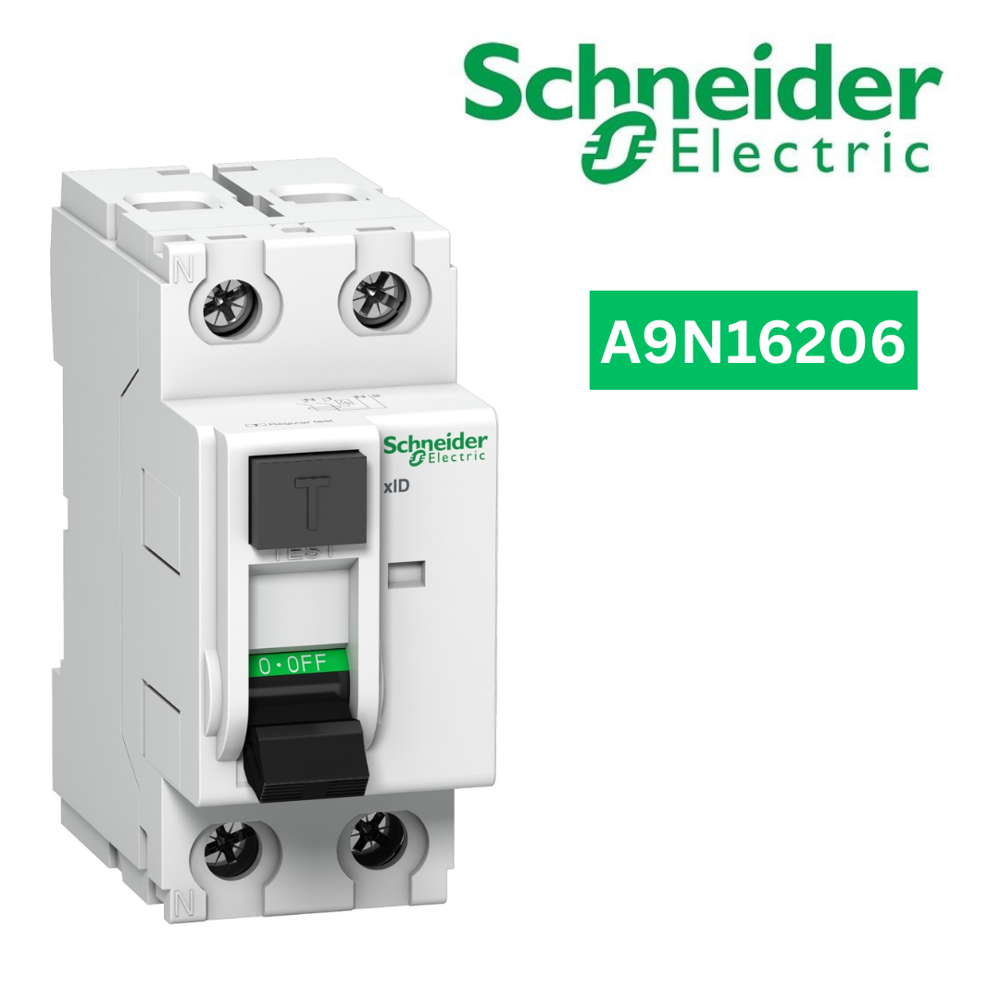

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 40A, AC type protection class and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 500A . The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.Tell us about your requirement
