Circuit Breaker-A9N16210

1782.48 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 230V Volt (V)
Material Substances
Warranty 1 YEAR
Operating Temperature -5 C to 40 C. Celsius (oC)
Frequency 50 Hz Hertz (HZ)
IP Rating IP20
Rated Current 63A Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16210 Price And Quantity

Price 1782.48 INR/Piece
Minimum Order Quantity 1 Piece

Circuit Breaker-A9N16210 Product Specifications

Warranty 1 YEAR
Temperature Protection -40 C to 85 C. Celsius (oC)
Weight 210g. Grams (g)
Material Substances
Rated Current 63A Ampere (amp)
Operating Temperature -5 C to 40 C. Celsius (oC)
Rated Frequency 50 Hz Hertz (HZ)
Poles Number 2
Frequency 50 Hz Hertz (HZ)
IP Rating IP20
Rated Voltage 230V Volt (V)

Circuit Breaker-A9N16210 Trade Information

Payment Terms Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

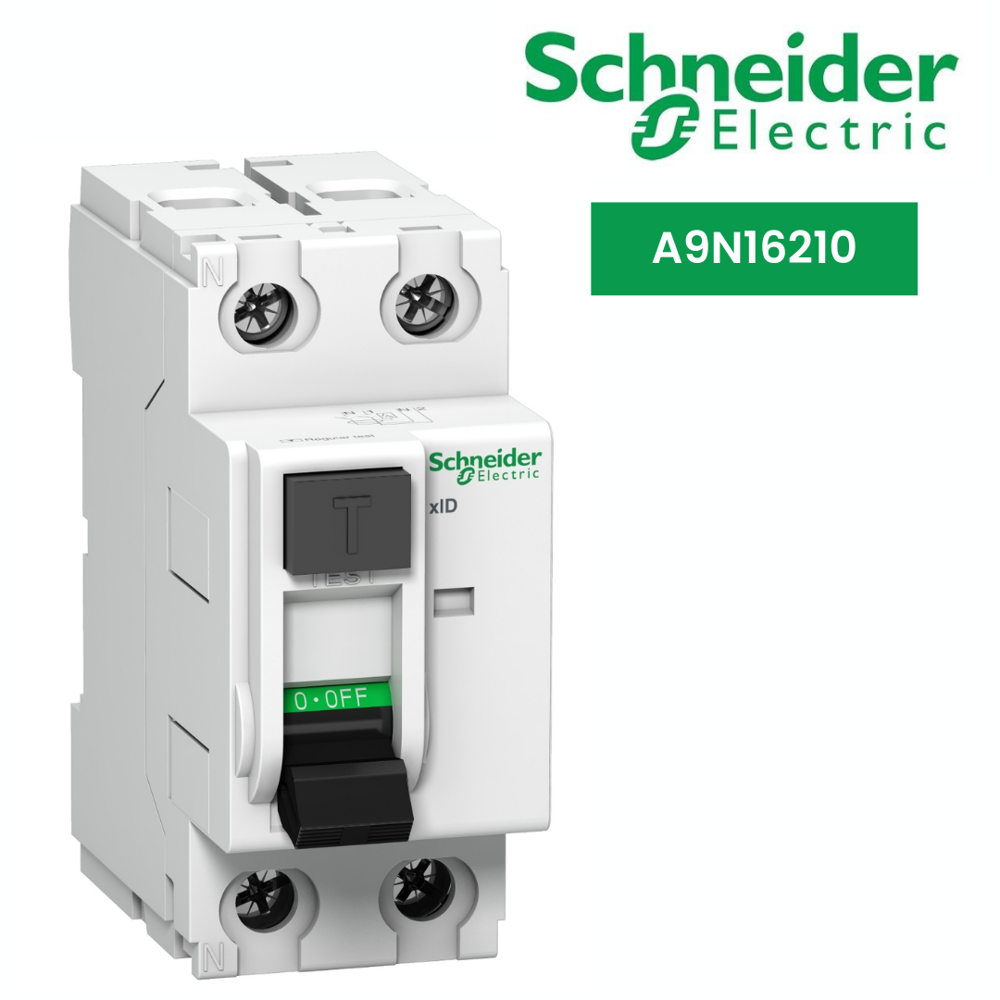

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 63A, AC type protection class and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 630A . The electrical endurance is up to 4000 cycles. The mechanical endurance is up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.
