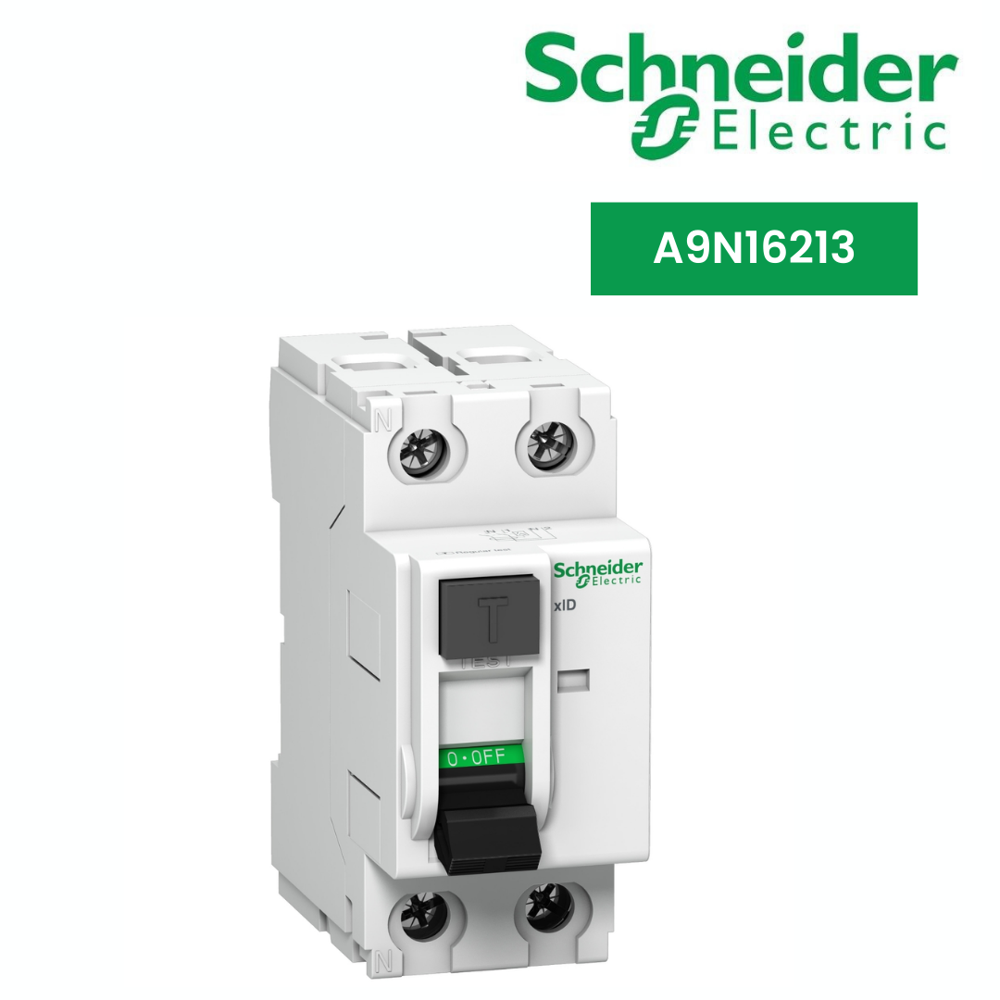

Circuit Breaker-A9N16213

2776.8 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Rated Voltage 230V Volt (V)
Frequency 50Hz Hertz (HZ)
Material Substances
Operating Temperature -5 C to 40 C Celsius (oC)
Rated Current 80 A Ampere (amp)
IP Rating IP20 & IP40
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N16213 Price And Quantity

Price 2776.8 INR/Piece
Minimum Order Quantity 1 Piece

Circuit Breaker-A9N16213 Product Specifications

Poles Number 2
Operating Temperature -5 C to 40 C Celsius (oC)
Rated Frequency 50Hz Hertz (HZ)
Weight 210g Grams (g)
Warranty 1 YEAR
Rated Current 80 A Ampere (amp)
Rated Voltage 230V Volt (V)
Temperature Protection -40 C to 85 C. Celsius (oC)
Material Substances
Frequency 50Hz Hertz (HZ)
IP Rating IP20 & IP40

Circuit Breaker-A9N16213 Trade Information

Payment Terms Cash Advance (CA), Paypal, Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 2P circuit breaker with 80A In rated current, 100mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 800A . It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 75mm. The weight is 210g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker-A9N18363 Price : 2852.0 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 500 V AC Volt (V) Temperature Protection : 40 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Poles Number : 2 Rated Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Weight : 0.41 kg Kilograms (kg) Rated Current : 125A Ampere (amp) IP Rating : IP20 Operating Temperature : 25 70 C Celsius (oC) Usage & Applications : Distribution

Send Inquiry

Circuit Breaker-LV510336 Price : 4650.9 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 440V Volt (V) Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Poles Number : 3 Rated Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Weight : 1.5 kg Kilograms (kg) Rated Current : 80 A Ampere (amp) IP Rating : IP40 Operating Temperature : 25 70 C Celsius (oC) Material : Substances Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories.

Send Inquiry

Circuit Breaker-LV516312 Price : 6123.5 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Temperature Protection : 50 85 C Celsius (oC) Frequency : 50/60 Hz Hertz (HZ) Poles Number : 4 Rated Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Weight : 1.9 kg Kilograms (kg) Rated Current : 125 A Ampere (amp) IP Rating : IP40 Operating Temperature : 25 70 C Celsius (oC) Material : Substances Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Function : This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories.

Send Inquiry

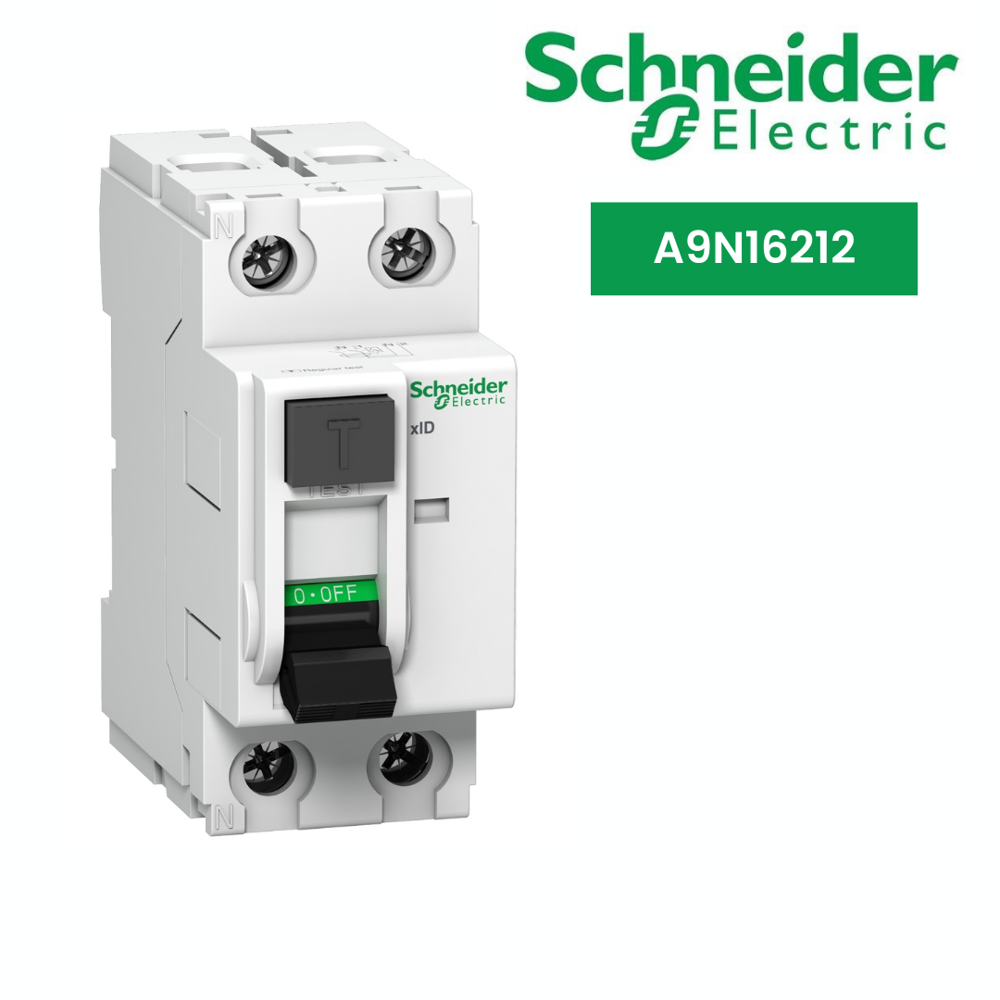

Circuit Breaker-A9N16212 Price : 2731.44 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 230V Volt (V) Temperature Protection : 40 C to 85 C Celsius (oC) Frequency : 50 Hz Hertz (HZ) Poles Number : 2 Rated Frequency : 50 Hz Hertz (HZ) Warranty : 1 YEAR Weight : 210 g Kilograms (kg) Rated Current : 80 A Ampere (amp) IP Rating : IP20 Operating Temperature : 5 C to 40 C Celsius (oC) Material : Substances
