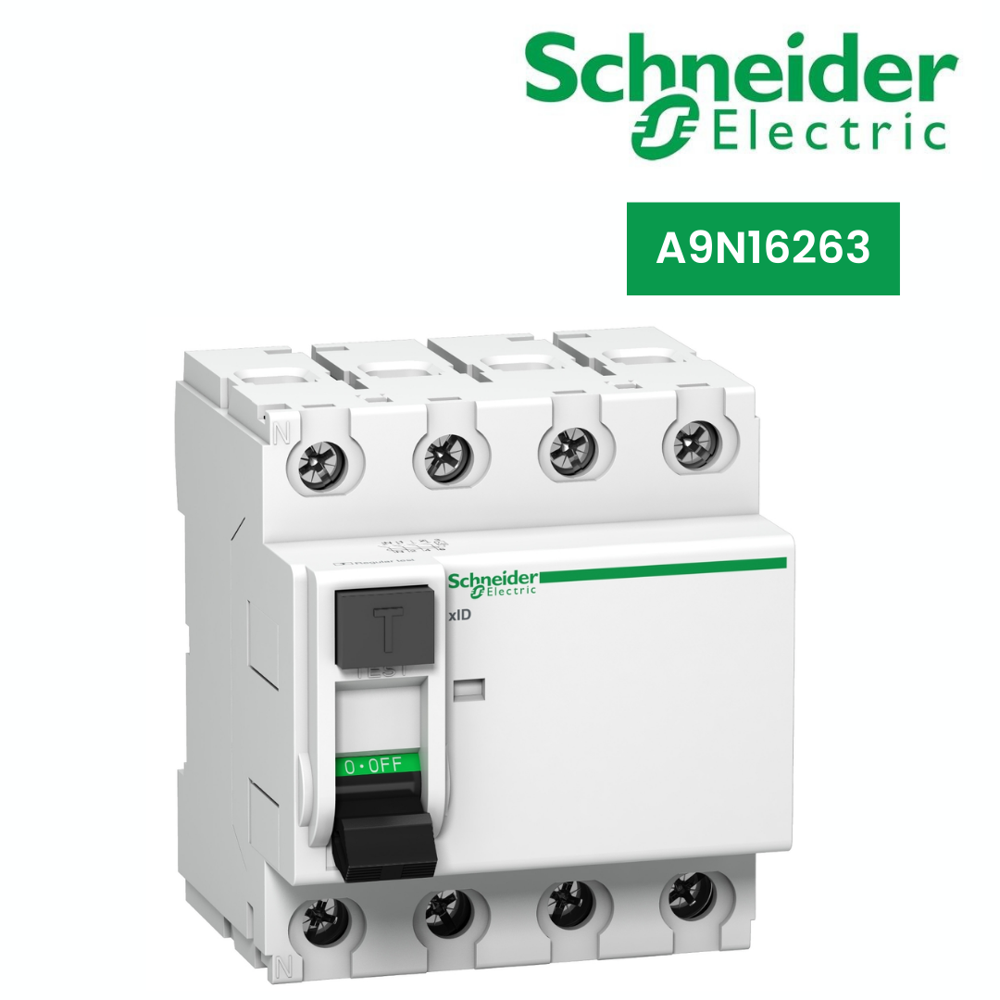

Circuit Breaker-A9N16263
3304.8 INR/Piece
Product Details:
- IP Rating IP20 AND IP40
- Frequency 50 Hz Hertz (HZ)
- Rated Voltage 500 V Volt (V)
- Operating Temperature -5 40 C Celsius (oC)
- Rated Current 80 A Ampere (amp)
- Warranty 1 YEAR
- Material Substances
- Click to View more
X
Circuit Breaker-A9N16263 Price And Quantity
- 1 Piece
- 3304.8 INR/Piece
Circuit Breaker-A9N16263 Product Specifications
- 80 A Ampere (amp)
- -40 85 C Celsius (oC)
- -5 40 C Celsius (oC)
- 500 V Volt (V)
- 50 Hz Hertz (HZ)
- 50 Hz Hertz (HZ)
- 4
- IP20 AND IP40
- Substances
- 370g Grams (g)
- Residual Current
- 1 YEAR
Circuit Breaker-A9N16263 Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 32 Piece Per Week
- 5 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description
This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with 80A In rated current, a sensitivity of 300mA with a AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/Im) rated breaking and making short circuit capacity is up to 800A . The mechanical endurance is going up to 4000 cycles and electrical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5C to 40C. The storage temperature is from -40C to 85C.
