Circuit Breaker-A9N26643

3087.84 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 63 A Ampere (amp)
Operating Temperature -5 60 C Celsius (oC)
Material Substances
IP Rating IP20 AND IP40
Warranty 1 YEAR
Frequency 50/60 Hz Hertz (HZ)
Rated Voltage 500V Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-A9N26643 Price And Quantity

Minimum Order Quantity 1 Piece
Price 3087.84 INR/Piece

Circuit Breaker-A9N26643 Product Specifications

Rated Frequency 50/60 Hz Hertz (HZ)
IP Rating IP20 AND IP40
Material Substances
Operating Temperature -5 60 C Celsius (oC)
Rated Current 63 A Ampere (amp)
Temperature Protection -40 85 C Celsius (oC)
Product Type Earth Leakage
Rated Voltage 500V Volt (V)
Weight 285 g Grams (g)
Poles Number 4
Frequency 50/60 Hz Hertz (HZ)
Warranty 1 YEAR

Circuit Breaker-A9N26643 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cheque, Cash in Advance (CID)
Supply Ability 34 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

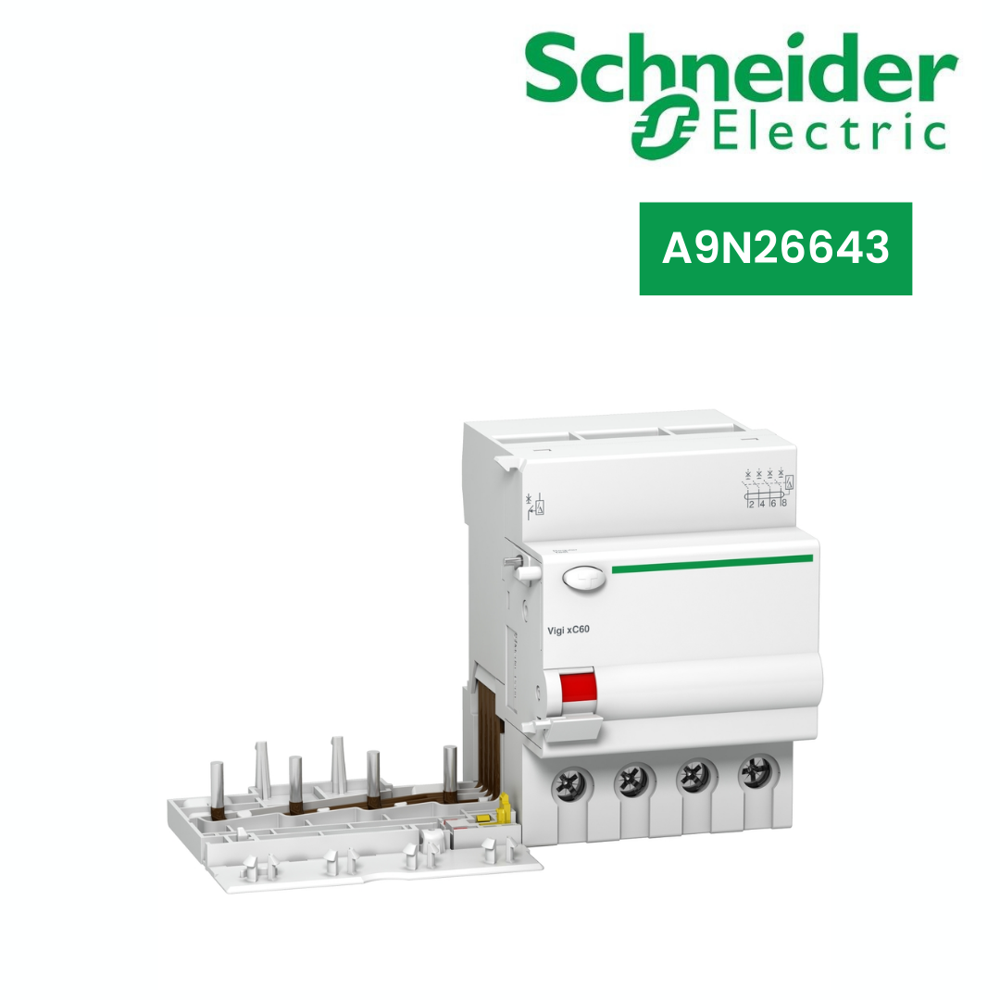

This Acti9 Vigi xC60 is a modular add-on residual current devices. It is a 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a electromechanical technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-2-1 and EN/IEC 61009-1 standard. The Ue rated operational voltage is from 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 135mm x (H) 87mm x (D) 74.5mm. The weight is 285g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5C to 60C. The storage temperature is -40C to 85C
