Product Video

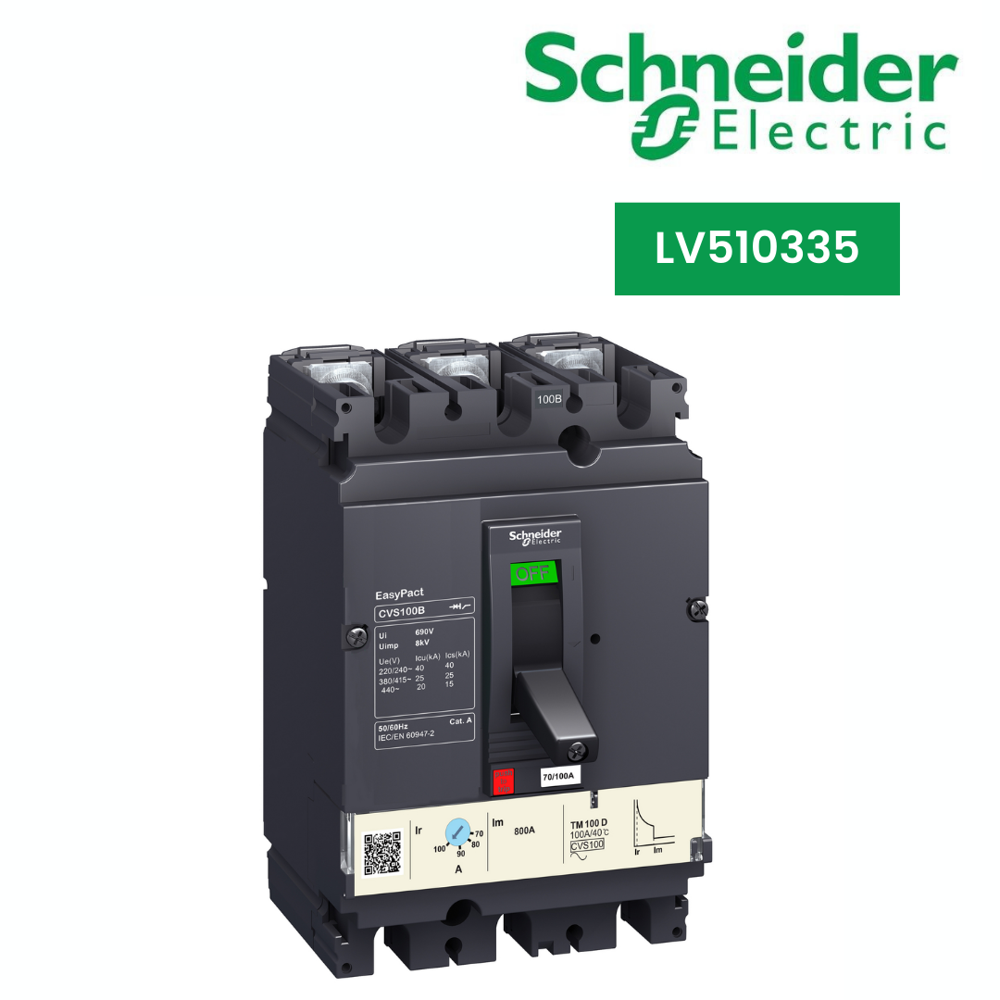

Circuit Breaker-LV510335

4650.9 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50/60 Hz Hertz (HZ)
IP Rating IP40
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Rated Voltage 440V Volt (V)
Operating Temperature -25 70 C Celsius (oC)
Rated Current 63 A Ampere (amp)
Warranty 1 YEAR
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-LV510335 Price And Quantity

Price 4650.9 INR/Piece
Minimum Order Quantity 2 Piece

Circuit Breaker-LV510335 Product Specifications

Temperature Protection -50 85 C Celsius (oC)
Weight 1.5 kg Kilograms (kg)
Operating Temperature -25 70 C Celsius (oC)
Warranty 1 YEAR
Rated Current 63 A Ampere (amp)
Function This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories.
Frequency 50/60 Hz Hertz (HZ)
Rated Frequency 50/60 Hz Hertz (HZ)
IP Rating IP40
Poles Number 3
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Rated Voltage 440V Volt (V)

Circuit Breaker-LV510335 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

EasyPact CVS100F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 63A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS100F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker-LV512231 Price : 54628.8 INR/Piece Minimum Order Quantity : 4 Rated Voltage : 690 V AC Volt (V) Usage & Applications : Distribution Poles Number : 3 IP Rating : IP40 Rated Frequency : 50/60 Hz Hertz (HZ) Frequency : 50/60 Hz Hertz (HZ) Rated Current : 1250 A Ampere (amp) Warranty : 1 YEAR Operating Temperature : 5 55 C Celsius (oC) Weight : 17.6 kg Kilograms (kg) Temperature Protection : 35 70 C Celsius (oC) Function : LSI Rated Short Circuit Making Current : 1250A Ampere (A) Rated Short Circuit Breaking Current : 1250A Ampere (A)

Send Inquiry

Circuit Breaker-LV508241 Price : 41982.4 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 690 V AC Volt (V) Usage & Applications : Distribution Poles Number : 4 IP Rating : IP40 Rated Frequency : 50/60 Hz Hertz (HZ) Frequency : 50/60 Hz Hertz (HZ) Rated Current : 800 A Ampere (amp) Warranty : 1 YEAR Operating Temperature : 5 55 C Celsius (oC) Weight : 18.3 kg Kilograms (kg) Temperature Protection : 35 70 C Celsius (oC) Function : LSI Rated Short Circuit Making Current : 800A Volt (V) Rated Short Circuit Breaking Current : 800A Ampere (A)

Send Inquiry

Circuit Breaker-LV510314 Price : 4728.6 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Poles Number : 4 IP Rating : IP40 Rated Frequency : 50/60 Hz Hertz (HZ) Frequency : 50/60 Hz Hertz (HZ) Rated Current : 50 A Ampere (amp) Warranty : 1 year Operating Temperature : 25 70 C Celsius (oC) Weight : 1.9 kg Kilograms (kg) Temperature Protection : 50 85 C Celsius (oC) Function : This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Material : Substances

Send Inquiry

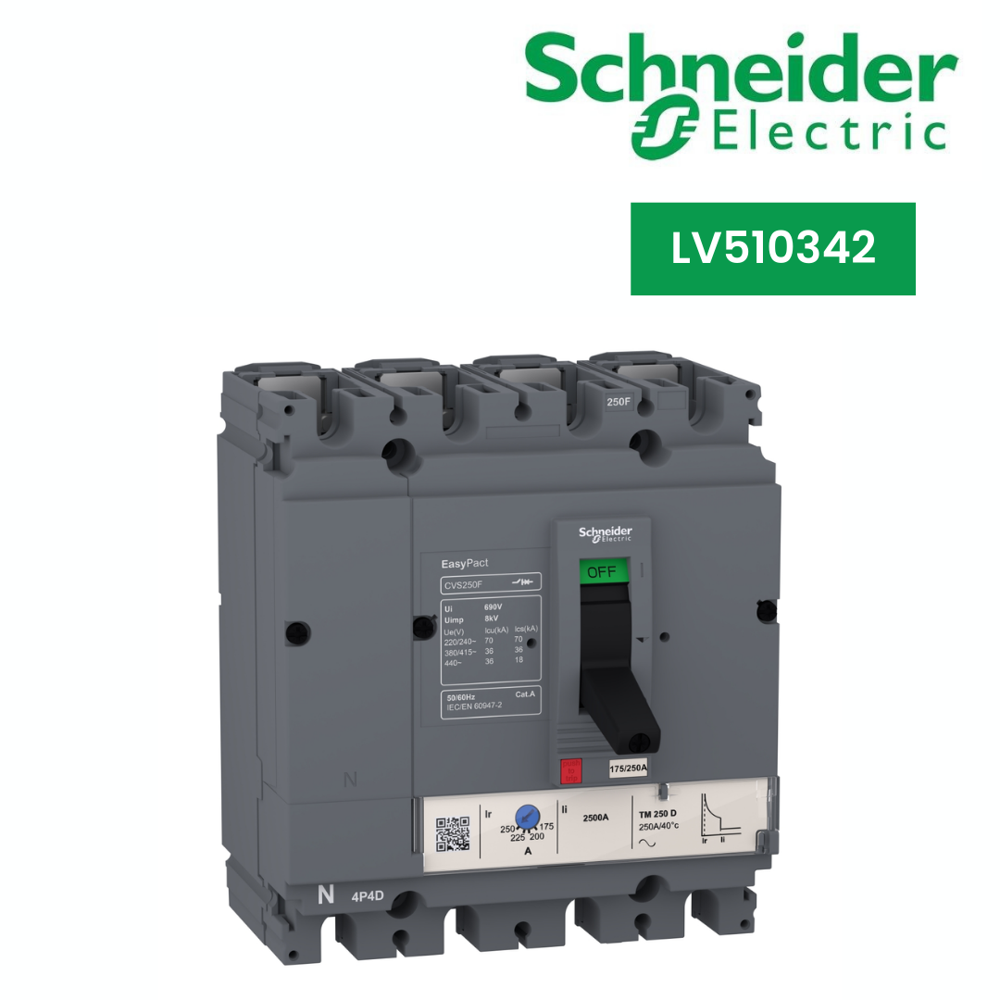

Circuit Breaker-LV510342 Price : 5807.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Poles Number : 4 IP Rating : IP40 Rated Frequency : 50/60 Hz Hertz (HZ) Frequency : 50/60 Hz Hertz (HZ) Rated Current : 32 A Ampere (amp) Warranty : 1 YEAR Operating Temperature : 25 70 C Celsius (oC) Weight : 1.9 kg Kilograms (kg) Temperature Protection : 50 85 C Celsius (oC) Function : This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories Material : Substances
