Product Video

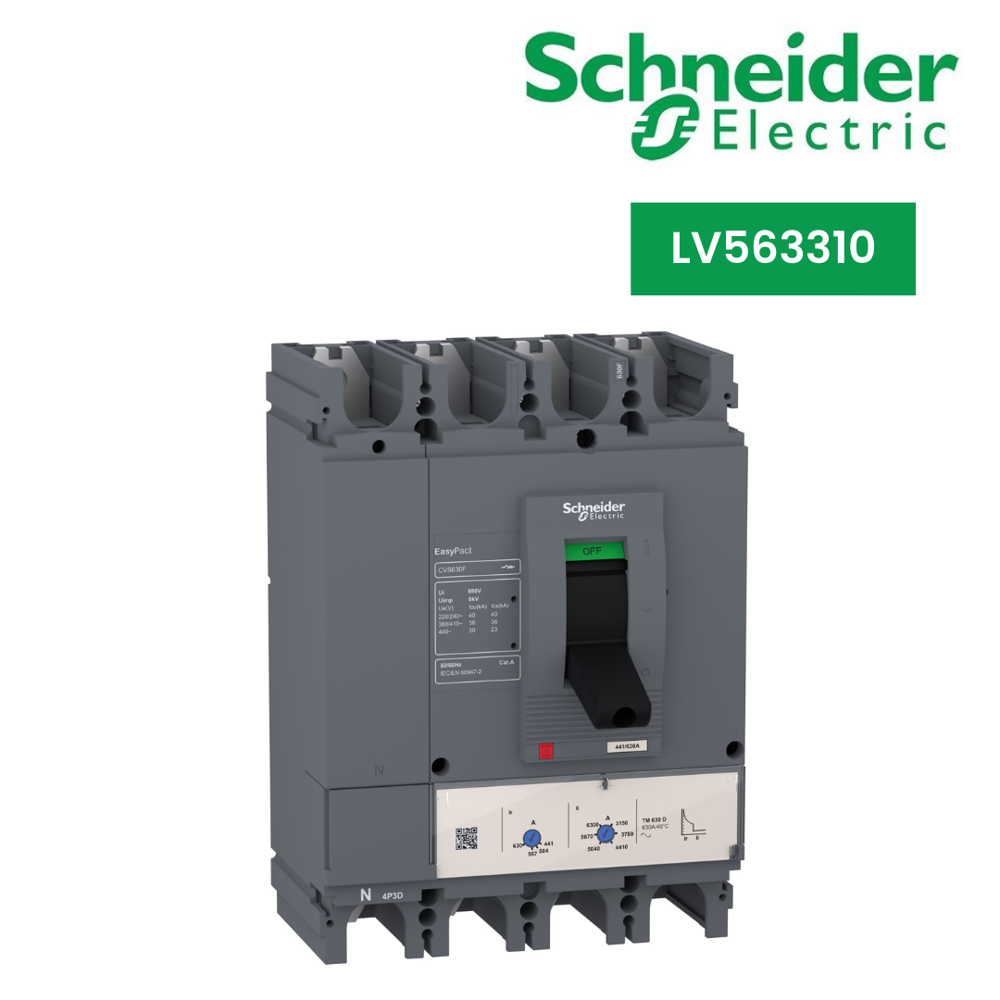

Circuit Breaker-LV563310

24403.0 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Rated Voltage 415V Volt (V)
Material Substances
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Rated Current 630 A Ampere (amp)
IP Rating IP40
Frequency 50/60 Hz Hertz (HZ)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Circuit Breaker-LV563310 Price And Quantity

Minimum Order Quantity 1 Piece
Price 24403.0 INR/Piece

Circuit Breaker-LV563310 Product Specifications

Warranty 1 YEAR
Material Substances
Usage & Applications It is an optimal choice for small and medium-sized buildings protection applications.
Function EasyPact CVS630F is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality.
Rated Voltage 415V Volt (V)
Temperature Protection -50 85 C Celsius (oC)
Rated Frequency 50/60 Hz Hertz (HZ)
Poles Number 4
Operating Temperature -25 70 C Celsius (oC)
IP Rating IP40
Weight 7.1 kg Kilograms (kg)
Frequency 50/60 Hz Hertz (HZ)
Rated Current 630 A Ampere (amp)

Circuit Breaker-LV563310 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

EasyPact CVS630F is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 630A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Circuit Breaker' category

Circuit Breaker-A9N18374 Price : 5012.28 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 500 V Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Usage & Applications : Distribution Temperature Protection : 40 85 C Celsius (oC) Poles Number : 4 Operating Temperature : 25 70 C Celsius (oC) Weight : 0.82 kg Kilograms (kg) Rated Current : 100 A Ampere (amp) IP Rating : IP20 Frequency : 50/60 Hz Hertz (HZ)

Send Inquiry

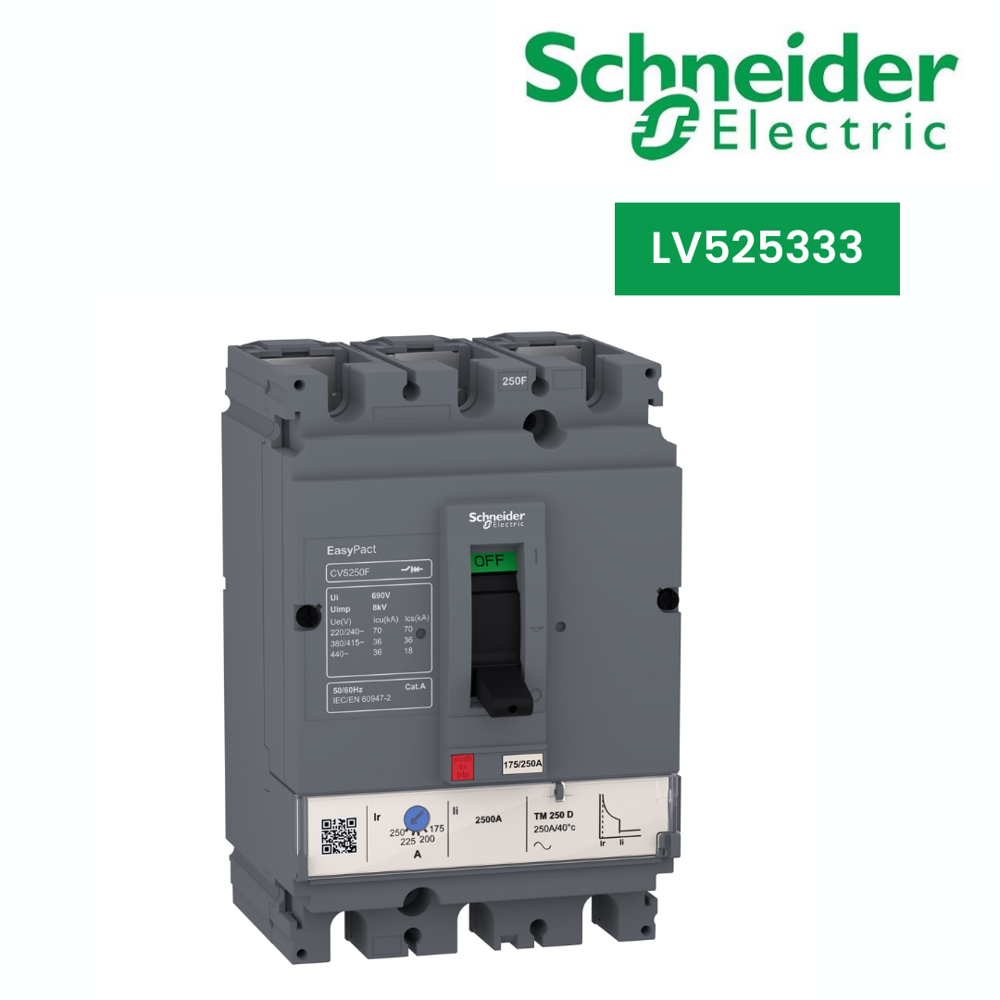

Circuit Breaker-LV525333 Price : 10926.1 INR/Piece Minimum Order Quantity : 2 Rated Voltage : 440V Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Temperature Protection : 50 85 C Celsius (oC) Poles Number : 3 Operating Temperature : 25 70 C Celsius (oC) Weight : 1.7 kg Kilograms (kg) Rated Current : 250 A Ampere (amp) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Function : This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Features : Outstanding durability with the features you need

Send Inquiry

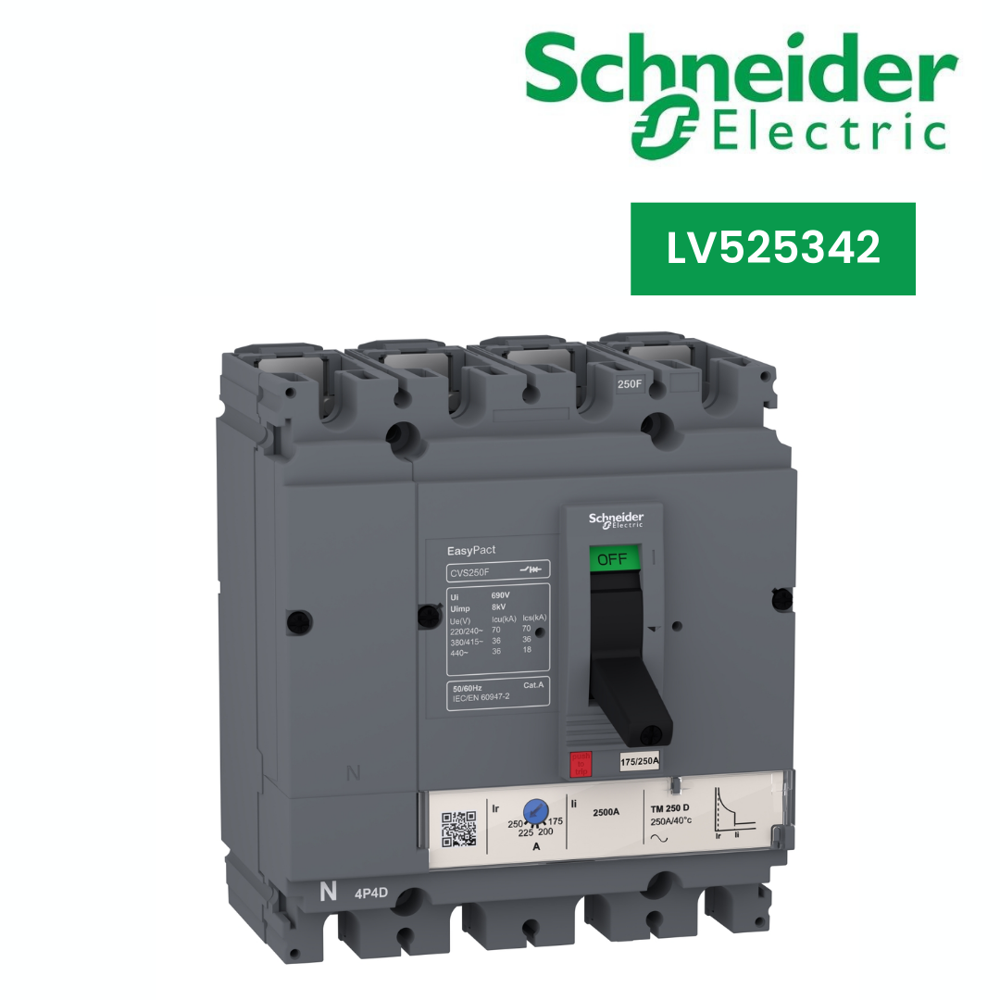

Circuit Breaker-LV525342 Price : 12205.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Temperature Protection : 50 85 C Celsius (oC) Poles Number : 3 Operating Temperature : 25 70 C Celsius (oC) Weight : 2.2 kg Kilograms (kg) Rated Current : 200 A Ampere (amp) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Function : This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. Material : Substances

Send Inquiry

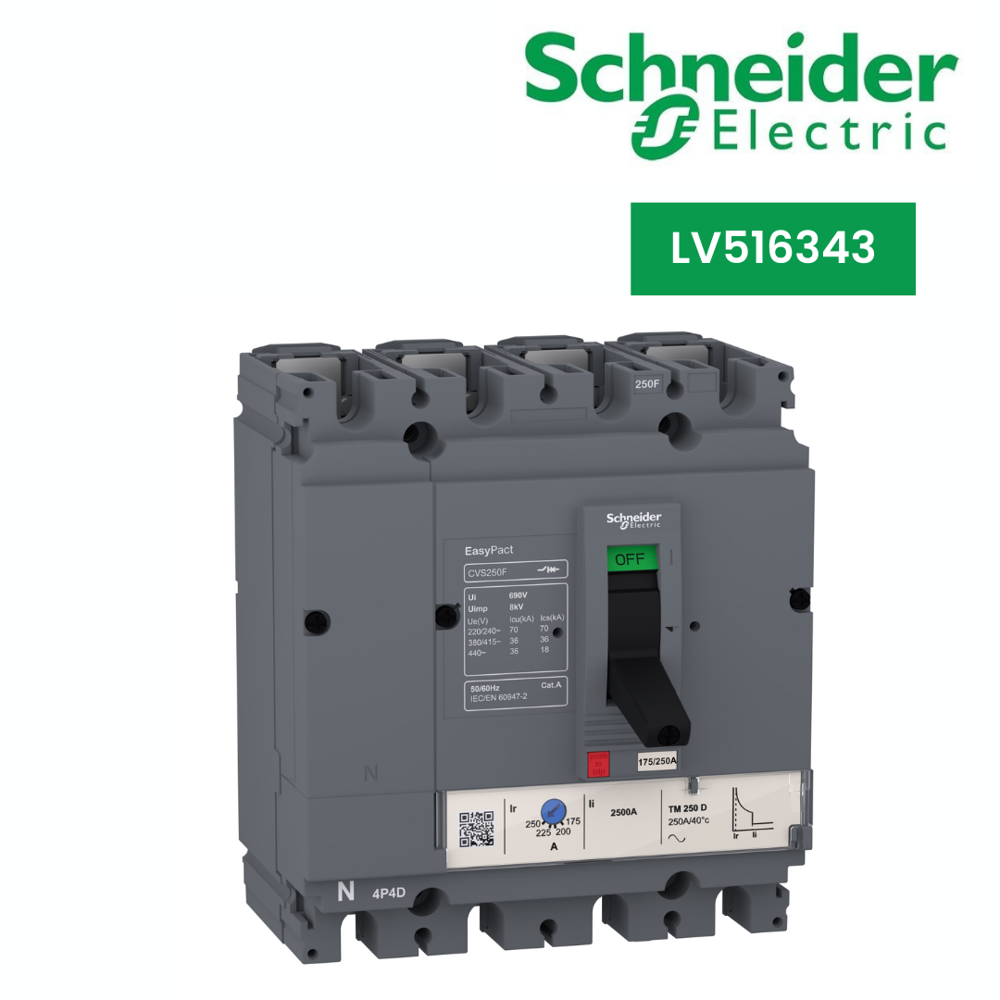

Circuit Breaker-LV516343 Price : 8147.4 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 440V Volt (V) Rated Frequency : 50/60 Hz Hertz (HZ) Warranty : 1 YEAR Usage & Applications : It is an optimal choice for small and mediumsized buildings protection applications. Temperature Protection : 50 85 C Celsius (oC) Poles Number : 3 Operating Temperature : 25 70 C Celsius (oC) Weight : 1.9 kg Kilograms (kg) Rated Current : 160 A Ampere (amp) IP Rating : IP40 Frequency : 50/60 Hz Hertz (HZ) Material : Substances
