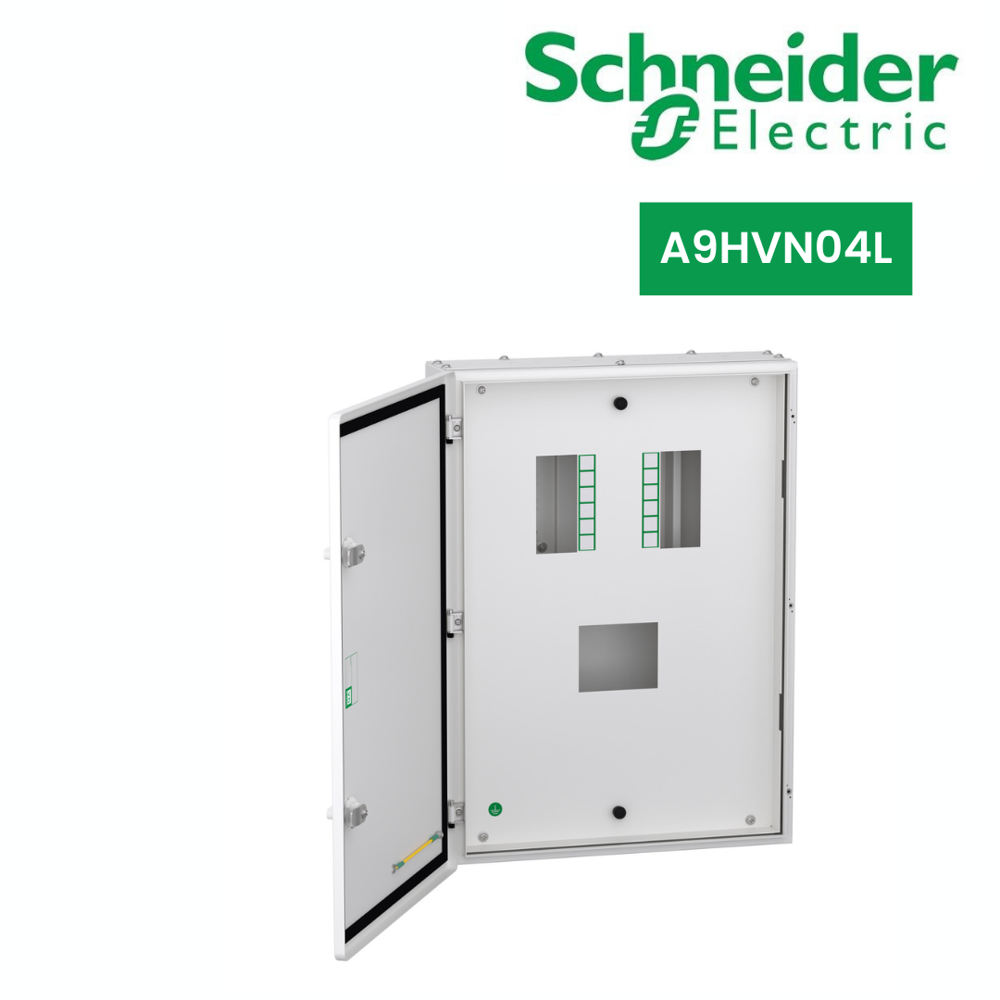

Distribution Board-A9HVN04L

5820.46 INR/Piece

Get a Price/Quote

Product Details:

Way This Acti9 product is a flush or surface mounted 4 ways VTPN distribution board
Cover Material Other
Protection Class The degree of protection is IP43 in an enclosure. The IK degree of protection is IK09.
Usage & Applications Distribution
Components Consumer unit
IP Rating IP43
Base Material Other
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Distribution Board-A9HVN04L Price And Quantity

Price 5820.46 INR/Piece
Minimum Order Quantity 1 Piece

Distribution Board-A9HVN04L Product Specifications

Warranty 1 YEAR
Base Material Other
Material Substances
Protection Level Other
Product Type Distribution Box
Surface Color White
Application Distribution
Surface Finish Other
Protection Class The degree of protection is IP43 in an enclosure. The IK degree of protection is IK09.
Cover Material Other
Usage & Applications Distribution
Way This Acti9 product is a flush or surface mounted 4 ways VTPN distribution board
Dimension (L*W*H) The dimensions are (W) 416mm x (H)558mm x (D) 135mm. The degree of protection is IP43 in an enclosure. The IK degree of protection is IK09 Millimeter (mm)
Components Consumer unit
Standard This distribution board is complies with IEC 61439-3 standard.
IP Rating IP43

Distribution Board-A9HVN04L Trade Information

Payment Terms Paypal, Cheque, Cash Advance (CA), Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

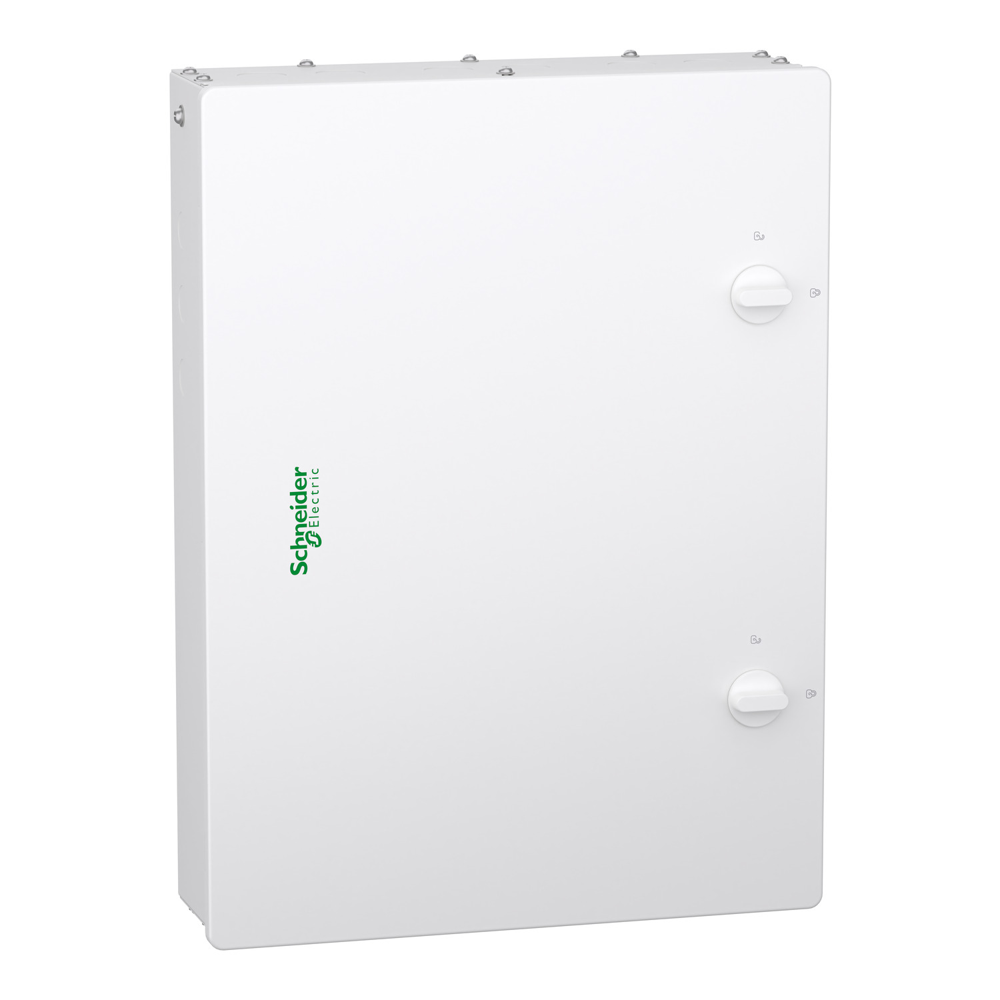

This Acti9 product is a flush or surface mounted 4 ways VTPN distribution board. It comes with a double door and door opening side is reversible. The enclosure material is made of steel. current rating is 100A and insulation voltage 500V. the rated short-time withstand current is 17 kA for 0.25 s,[Uimp] rated impulse withstand voltage is 4kV. The color of the distribution board is white (RAL 9003). The dimensions are (W) 416mm x (H)558mm x (D) 135mm. The degree of protection is IP43 in an enclosure. The IK degree of protection is IK09. This distribution board is complies with IEC 61439-3 standard.
