Distribution Board-A9HVN12H

12105.7 INR/Piece

Get a Price/Quote

Product Details:

Components Consumer unit
Cover Material Other
Warranty 1 YEAR
Material The enclosure material is made of steel.
Base Material Other
Way This Acti9 product is a flush or surface mounted 12 ways VTPN distribution board
IP Rating IP43
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Distribution Board-A9HVN12H Price And Quantity

Minimum Order Quantity 1 Piece
Price 12105.7 INR/Piece

Distribution Board-A9HVN12H Product Specifications

Standard This distribution board is complies with IEC 61439-3 standard.
Application Distribution
Material The enclosure material is made of steel.
Cover Material Other
Components Consumer unit
Warranty 1 YEAR
Surface Color White
Protection Class The degree of protection is IP43 in an enclosure. The IK degree of protection is IK09.
Protection Level Other
Dimension (L*W*H) The dimensions are (W) 416mm x (H)777mm x (D) 135mm. The degree of protection is IP43 in an enclosure. Millimeter (mm)
Surface Finish Other
Usage & Applications Distribution
IP Rating IP43
Way This Acti9 product is a flush or surface mounted 12 ways VTPN distribution board
Base Material Other
Product Type Distribution Box

Distribution Board-A9HVN12H Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

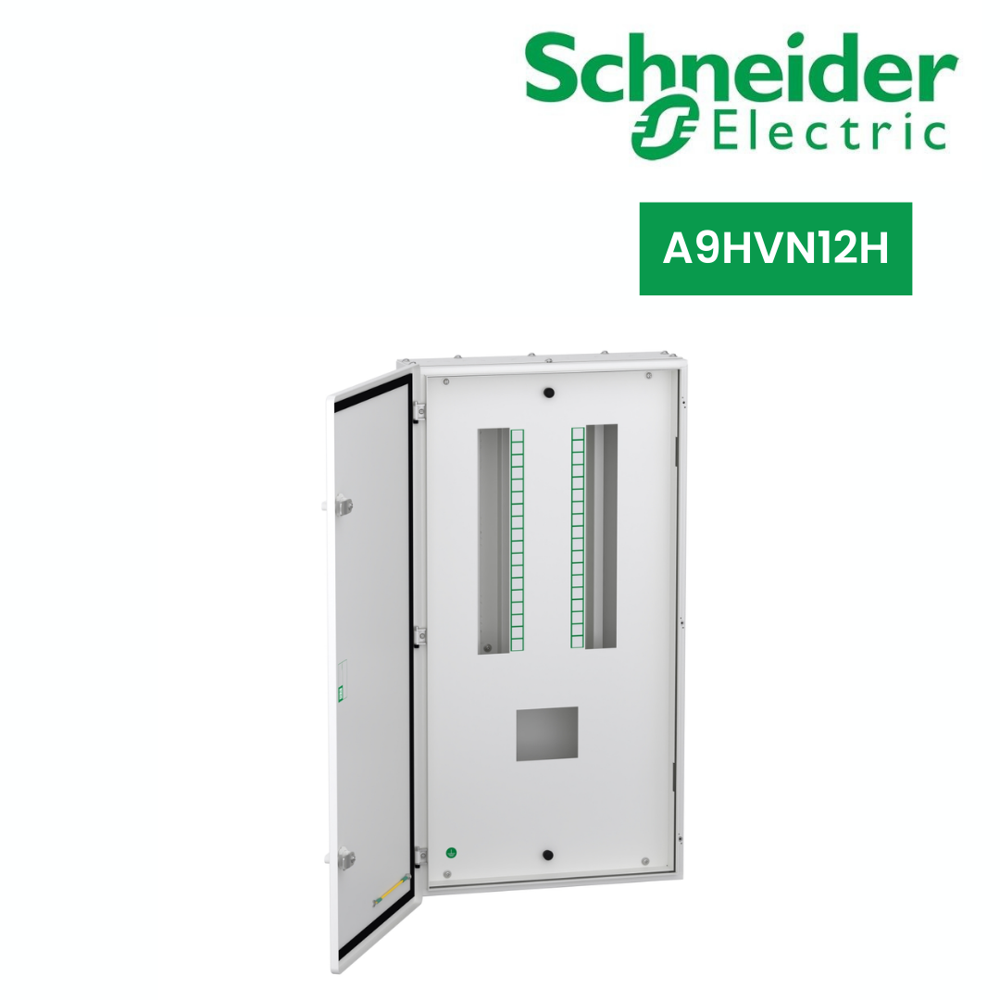

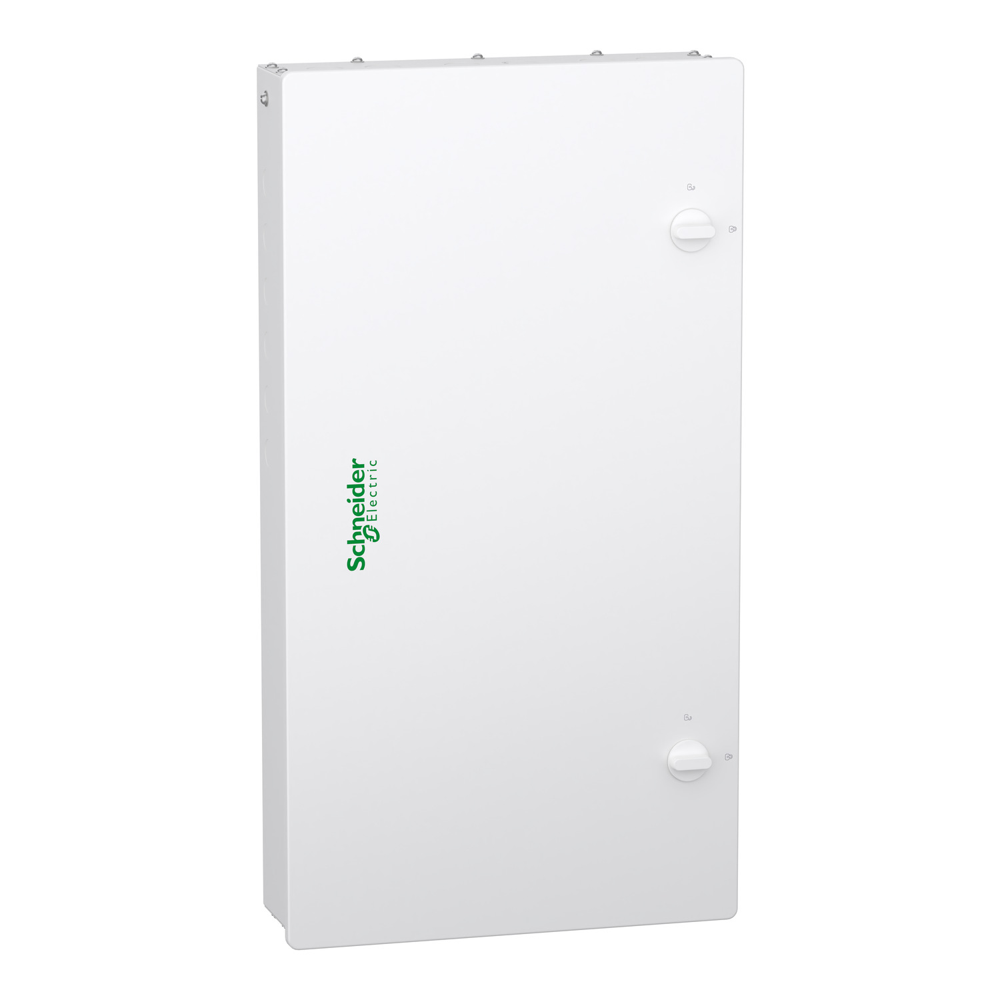

This Acti9 product is a flush or surface mounted 12 ways VTPN distribution board. It comes with a double door and door opening side is reversible. The enclosure material is made of steel. current rating is 250A and insulation voltage 500V. the rated short-time withstand current is 25 kA for 0.5 s,[Uimp] rated impulse withstand voltage is 4kV. The color of the distribution board is white (RAL 9003). The dimensions are (W) 416mm x (H)777mm x (D) 135mm. The degree of protection is IP43 in an enclosure. The IK degree of protection is IK09. This distribution board is complies with IEC 61439-3 standard.
