Distribution Board-ABE7CPA02
8868.75 INR/Piece
Product Details:
- Warranty 1 YEAR
- Rated Insulation Voltage 2000 V terminals/mounting rails
- Operating Voltage 0 60 C Milliamperes (mA)
- Protection Class IP20
- Control System It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC).
- Rated Operation Voltage 0 60 C conforming to IEC 61131-2
- Click to View more
X
Distribution Board-ABE7CPA02 Price And Quantity
- 1 Piece
- 8868.75 INR/Piece
Distribution Board-ABE7CPA02 Product Specifications
- It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC).
- 0 60 C conforming to IEC 61131-2
- 0 60 C Celsius (oC)
- IP20
- ABE7BV20 / ABE7BV20E Millimeter (mm)
- Connection sub-base for counter and analogue channels
- 1 YEAR
- It is suitable for all types of industrial applications. This product is certified by LROS
- Stainless Steel
- IP20
- 0 60 C Milliamperes (mA)
- 2000 V terminals/mounting rails
- 8 output voltage Volt (v)
- 24V Volt (V)
Distribution Board-ABE7CPA02 Trade Information
- Cash Advance (CA), Cheque, Paypal, Cash in Advance (CID)
- 32 Piece Per Week
- 4 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description

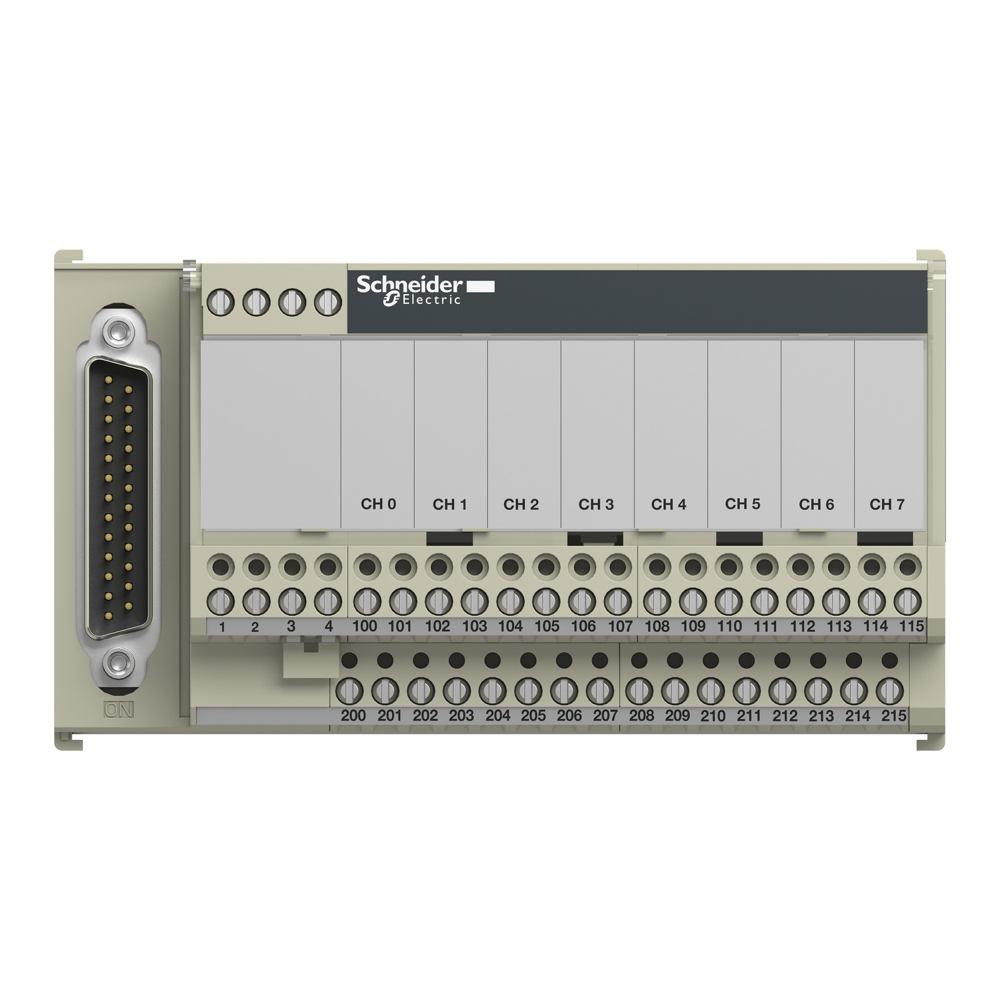

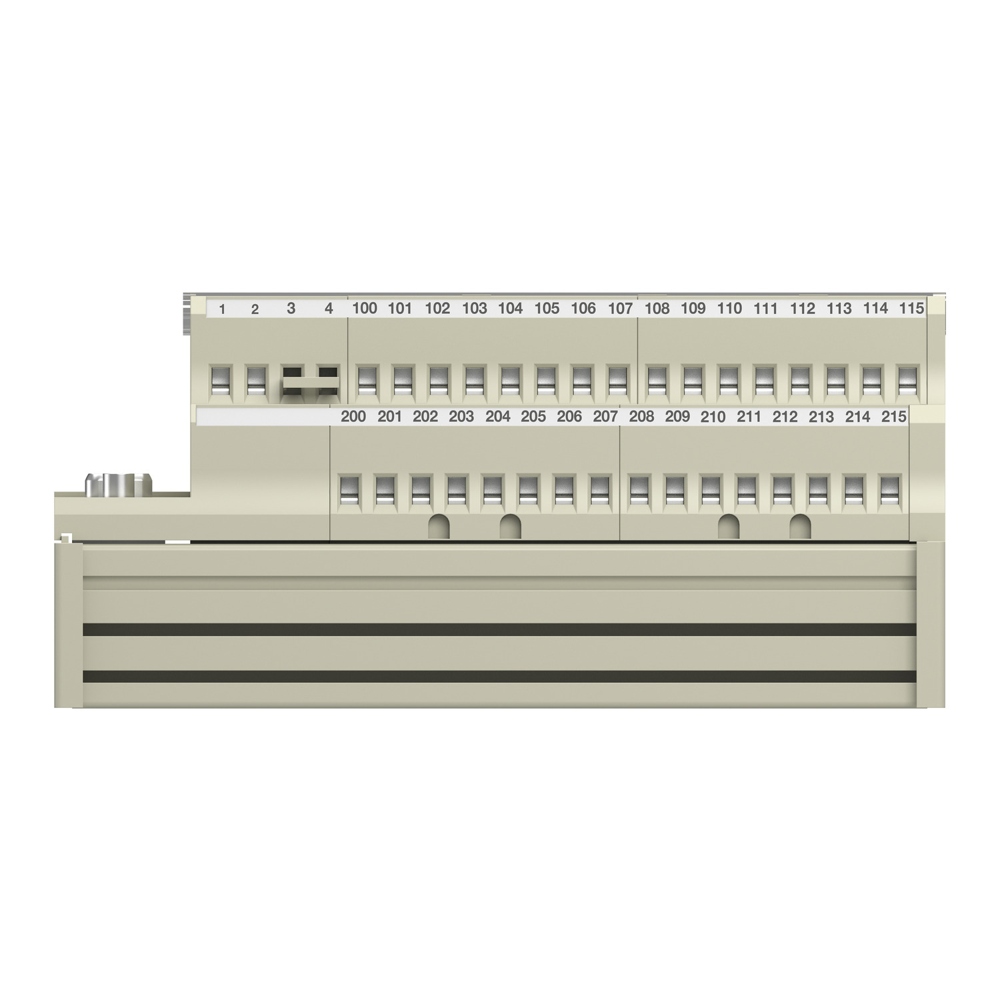

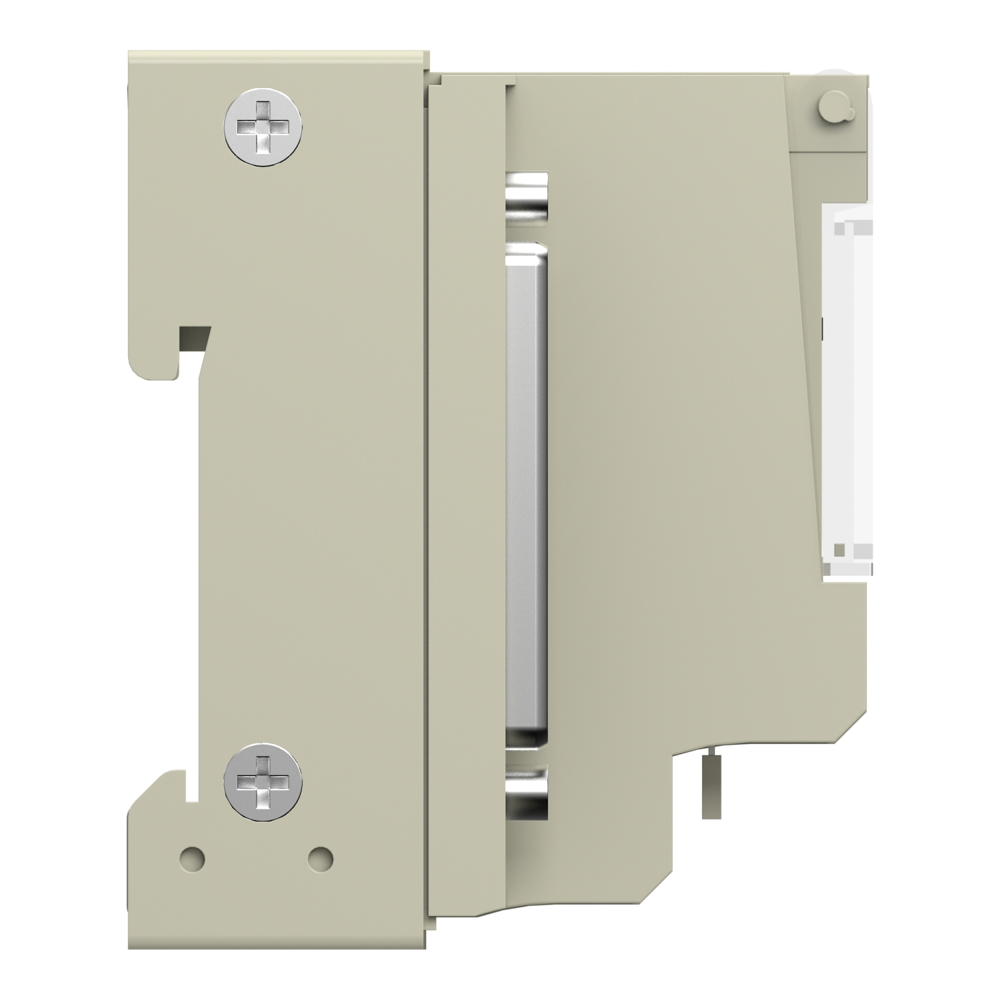

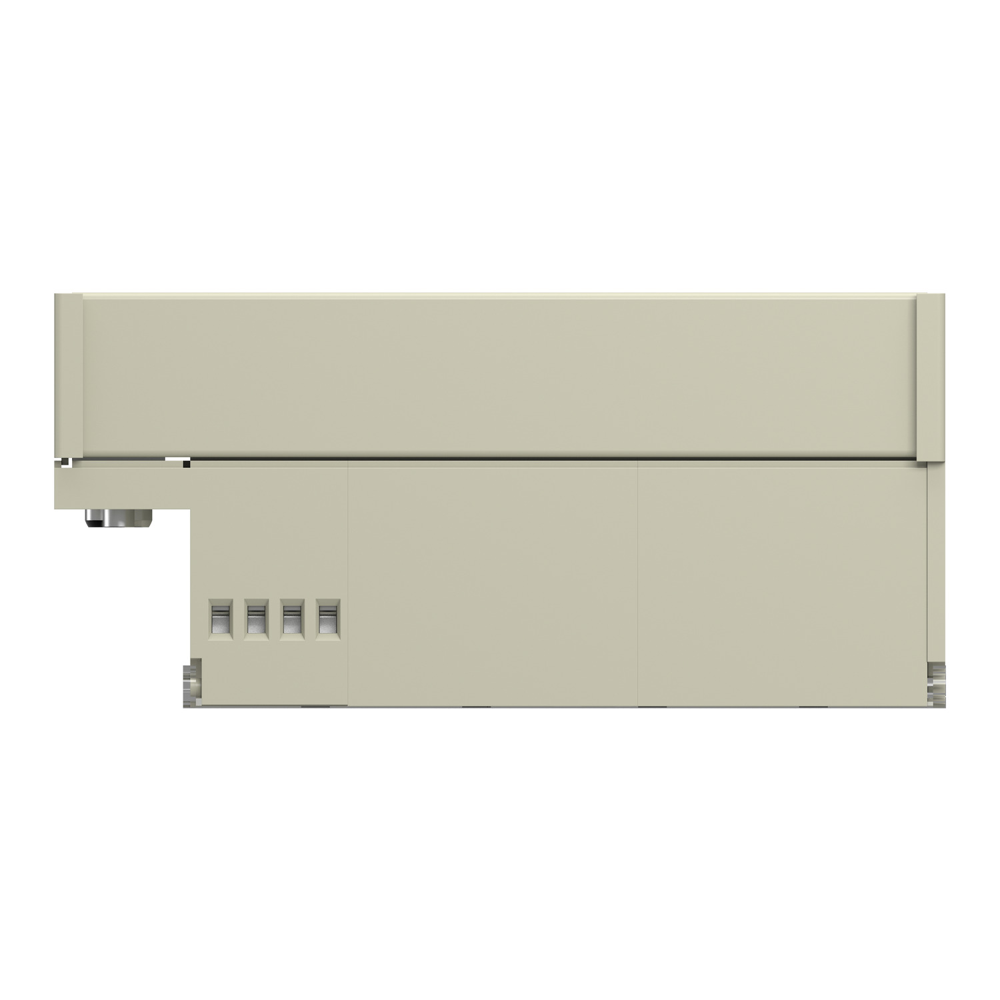

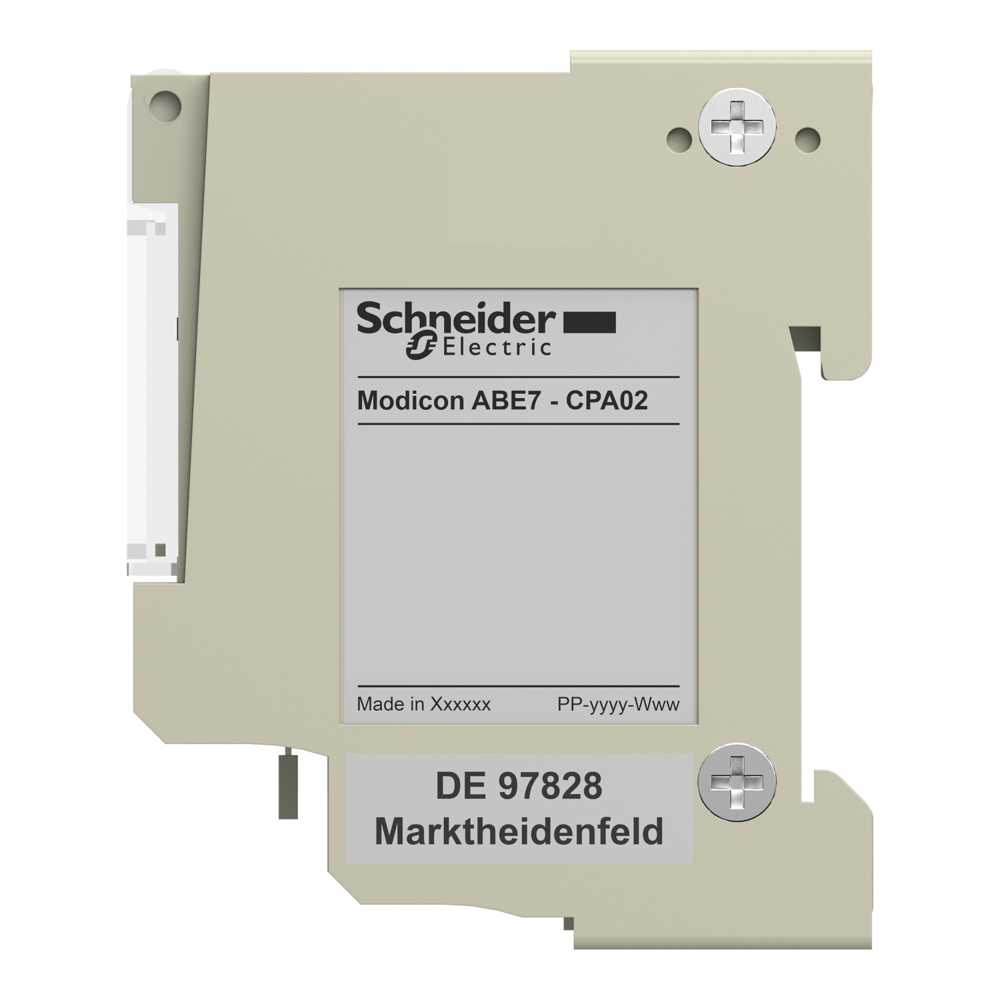

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This product consists in a connection sub-base for passive distribution of 8 channels. It is a sub base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is furnished with screw type terminals for electrical connection and 25-way D-Sub (DB-25) connection to PLC. It is an IP20 rated product. It weighs 0.29kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810, BMEAHI0812 and BMXAMO0802. It is delivered in 1 package (PCE type). The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
