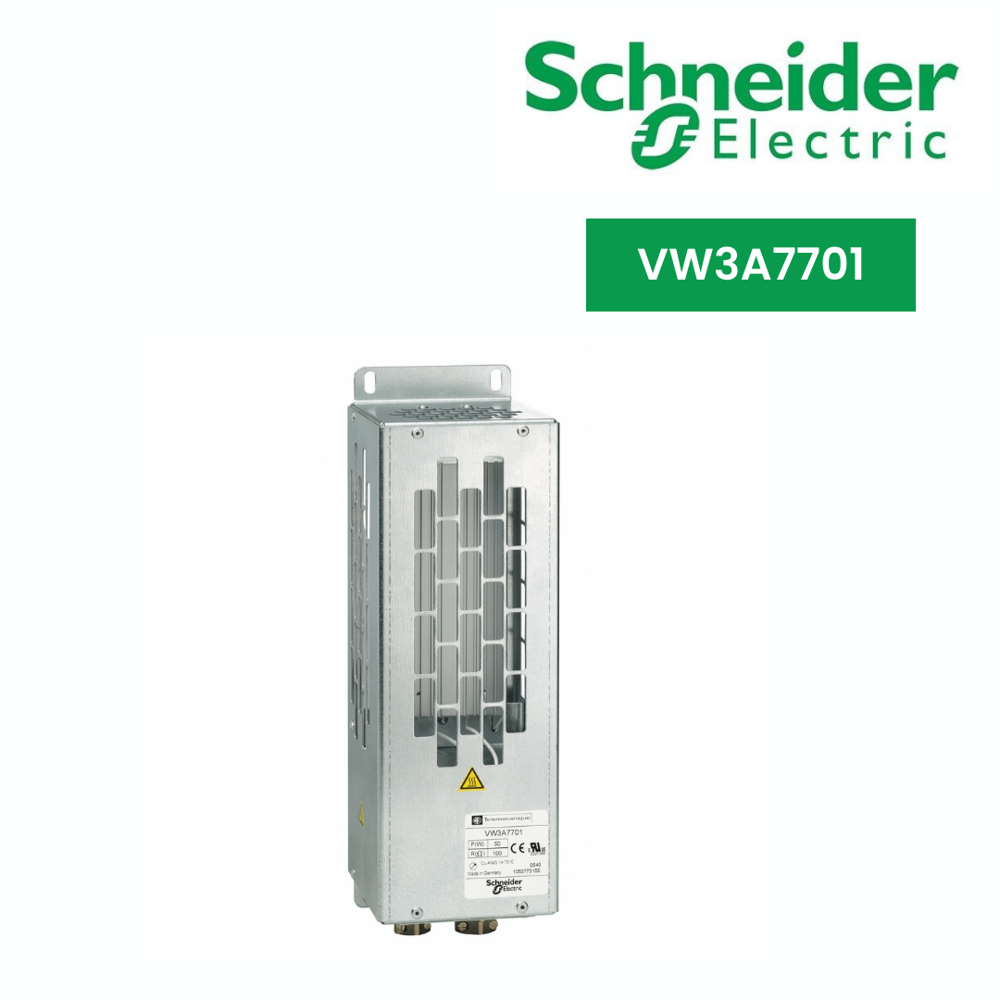

Dynamic Braking Resistor-VW3A7701
12522.4 INR/Piece
Product Details:
- Rated Voltage 24 V DC at 0.1 A 250 V AC at 1 A Volt (V)
- Warranty 1 YEAR
- IP Rating IP20
- Overheating Protection YES
- Product Type braking resistor
- Protection Level Other
- Frequency (MHz) 50/60 HZ Hertz (HZ)
- Click to View more
X
Dynamic Braking Resistor-VW3A7701 Price And Quantity
- 12522.4 INR/Piece
- 1 Piece
Dynamic Braking Resistor-VW3A7701 Product Specifications
- 50/60 HZ Hertz (HZ)
- braking resistor
- YES
- terminal, connection capacity: <= 1.5 mm / AWG 16 for temperature control switch terminal, connection capacity: <= 4 mm / AWG 28 for drive
- IP20
- 1 YEAR
- Other
- 1.9 kg Kilograms (kg)
- 24 V DC at 0.1 A 250 V AC at 1 A Volt (V)
Dynamic Braking Resistor-VW3A7701 Trade Information
- Paypal, Cash in Advance (CID), Cheque, Cash Advance (CA)
- 32 Piece Per Week
- 4 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description
This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms at 20C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 320, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 1.9kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
