Electrical Enclosure-A9HMES02

374.68 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
IP Rating IP30
Usage & Applications Distribution
Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Product Type Consumer unit
Dimension (L*W*H) The dimensions are (W) 108mm x (H) 156mm x (D) 65mm. The color of the distribution board is white (RAL 9003). Millimeter (mm)
Weight 840 g Grams (g)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electrical Enclosure-A9HMES02 Price And Quantity

Price 374.68 INR/Piece
Minimum Order Quantity 1 Piece

Electrical Enclosure-A9HMES02 Product Specifications

Weight 840 g Grams (g)
Dimension (L*W*H) The dimensions are (W) 108mm x (H) 156mm x (D) 65mm. The color of the distribution board is white (RAL 9003). Millimeter (mm)
Usage & Applications Distribution
Material Galvanized steel box Galvanized steel DIN rail Galvanized steel cable gland plate CRCA front plate
Product Type Consumer unit
IP Rating IP30
Warranty 1 YEAR

Electrical Enclosure-A9HMES02 Trade Information

Payment Terms Cash Advance (CA), Paypal, Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Acti9 distribution board comes with single metal door for door opening. This distribution board gives total flexibility to mount any type of modular devices as per load requirement. It allows the mounting of modular devices on 1 row of 2 modules of 18mm (2 modules total). The dimensions are (W) 108mm x (H) 156mm x (D) 65mm. The color of the distribution board is white (RAL 9003). The degree of protection is IP30, IK08 with the single metal door. This distribution board is compliant with IS 8623-1, IS 8623-3 and IEC 61439-3 standards.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electrical Enclosure' category

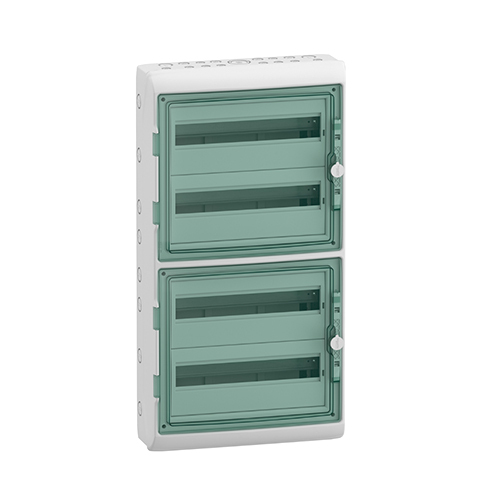

13437 Kaedra Electrical Enclosure For Modular Device Minimum Order Quantity : 10 Material : Other, Plastic Surface Treatment : Powder Coating Paint Finishing : Smooth Usage & Applications : Industrial Color : White Features : Durable

Send Inquiry

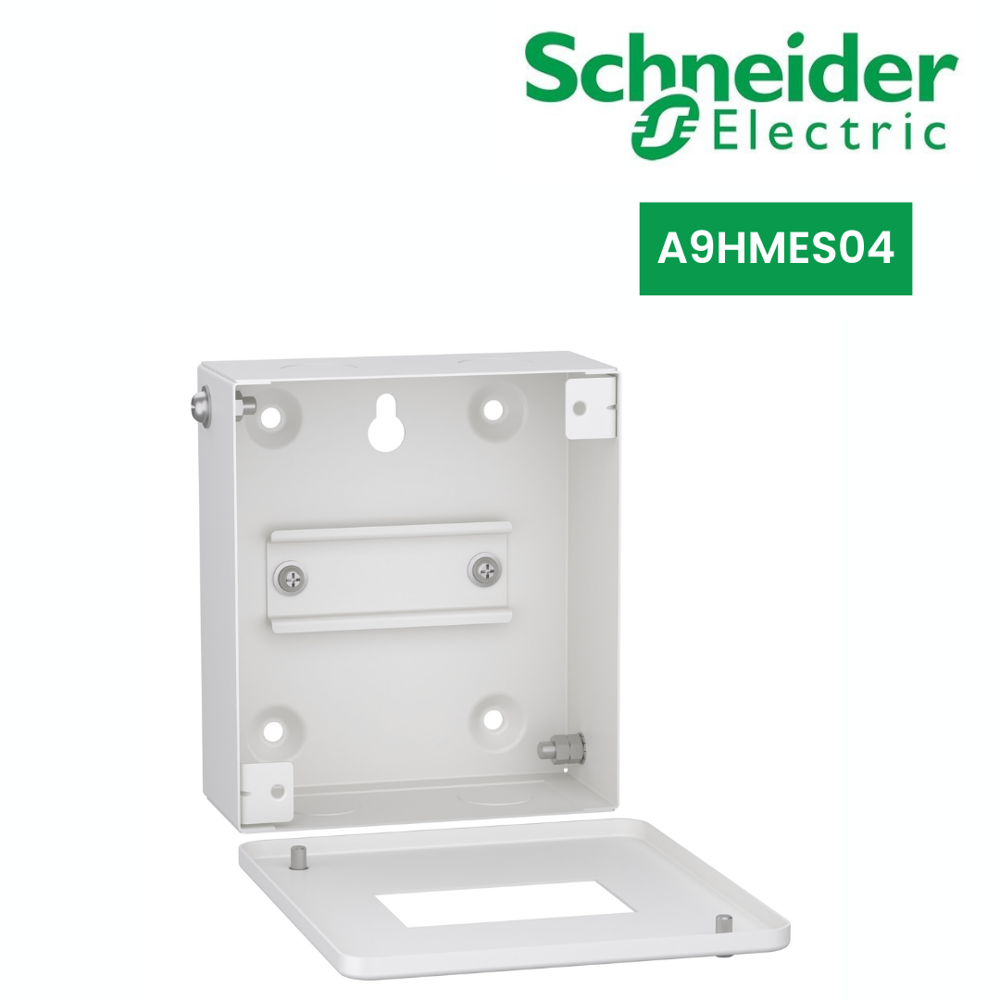

Electrical Enclosure-A9HMES04 Price : 374.68 INR/Piece Minimum Order Quantity : 1
