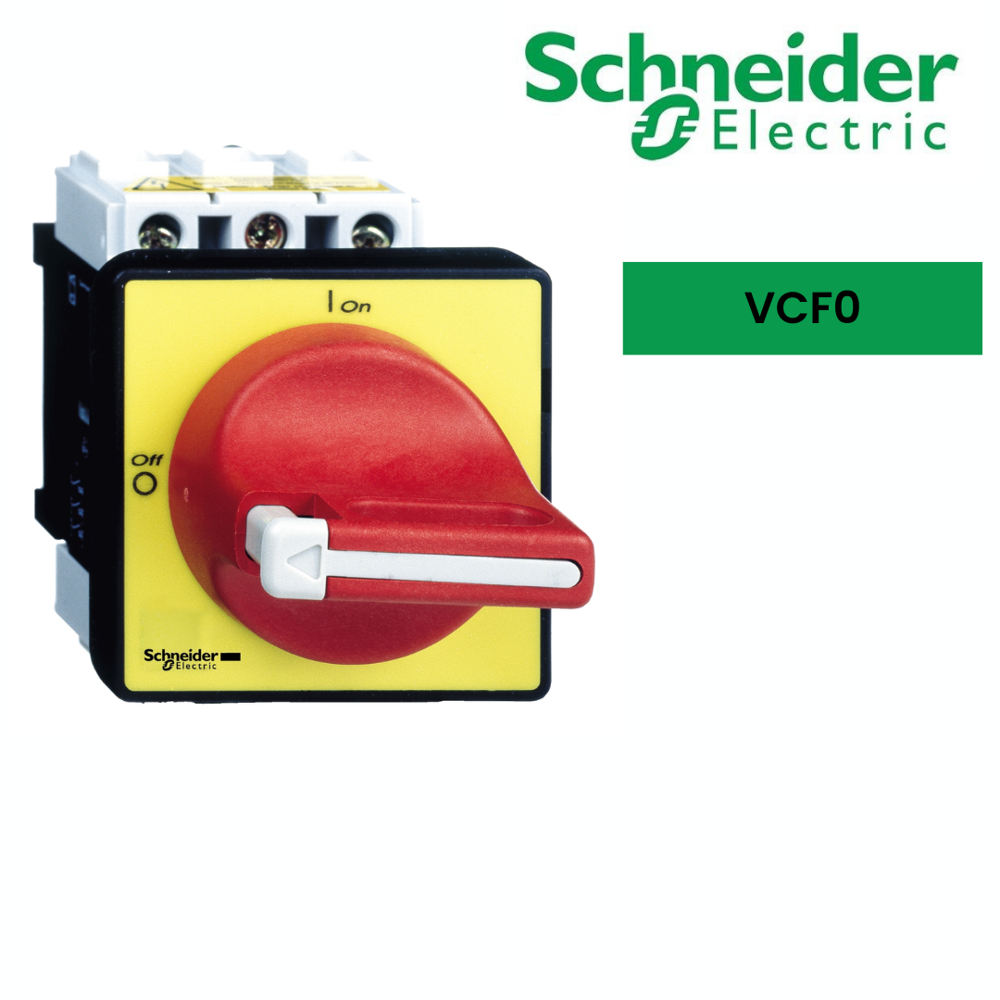

Isolator Switch-VCF0

1656.0 INR/Piece

Get a Price/Quote

Product Details:

Max. Current 14.5 A Ampere (amp)
Circuit Type 10 kA at 400 V - associated fuse 25 A aM 10 kA at 400 V - associated fuse 25 A gG
IP Rating IP20 conforming to IEC 60529 IP65
Rated Current 14.5 A Ampere (amp)
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Warranty 1 YEAR
Usage & Applications TeSys Vario switch disconnector for door mounting, 3 poles, 25A/690V, for motor switching applications up to 7.5kW@400V AC-23
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Isolator Switch-VCF0 Price And Quantity

Price 1656.0 INR/Piece
Minimum Order Quantity 4 Piece

Isolator Switch-VCF0 Product Specifications

Usage & Applications TeSys Vario switch disconnector for door mounting, 3 poles, 25A/690V, for motor switching applications up to 7.5kW@400V AC-23
Protection Level IP20 conforming to IEC 60529 IP65
Warranty 1 YEAR
Product Type Emergency stop switch disconnector
Mounting Type By 4 screws for handle
Current Rating 14.5 A AC-23 Ue: 400 V
Rated Current 14.5 A Ampere (amp)
Rated Voltage 690 V AC 50/60 Hz Volt (V)
Max. Current 14.5 A Ampere (amp)
Weight 0.25 kg Kilograms (kg)
Circuit Type 10 kA at 400 V - associated fuse 25 A aM 10 kA at 400 V - associated fuse 25 A gG
IP Rating IP20 conforming to IEC 60529 IP65
Color RED, Yellow
Max. Voltage 690 V AC 50/60 Hz Volt (V)

Isolator Switch-VCF0 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 50 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Packaging Details CARTUN WITH RAIP
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

TeSys Vario switch disconnector for door mounting, 3 poles, 25A/690V, for motor switching applications up to 7.5kW@400V AC-23. Complete unit composed of a switch body V0, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
