PKF16F435-PratiKa socket - screw - angled - 16A - 3P + N + E - 380...415 V AC - panel

Name: PKF16F435-PratiKa socket - screw - angled - 16A - 3P + N + E - 380...415 V AC - panel
Brand: META AUTOMATION SOLUTIONS
Price: 520.8 INR
Availability: InStock

Price 520.8 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PKF16F435-PratiKa socket - screw - angled - 16A - 3P + N + E - 380...415 V AC - panel Specification

Operating Temperature
-25C to +40C

Feature
Robust design, angled structure for easier access, captive terminal screws

Surface Finish
Matte

Efficiency
Passive device, N/A

Connector Type
Industrial socket, screw connection

Overheating Protection
Heat resistant housing

Insulation Material
High grade insulating polyamide

Shape
Angled

Humidity %
Up to 95% RH

IP Rating
IP44

Mounting Type
Panel mount

Product Type
Panel Mount Industrial Socket

Application
Industrial power distribution, machinery, panel assembly

Protection Level
Enhanced mechanical protection

Frequency (MHz)
50/60 Hz

Rated Voltage
380...415 V AC

Energy Consumption
Passive component, negligible own consumption

Output Type
Socket (Female)

Color
Red/Blue

Dimension (L*W*H)
Approx. 90 x 90 x 110 mm

Weight
Approx. 250 g

Input Voltage
380...415 V AC

Size
16A

Phase
Three Phase + Neutral + Earth

Material
Polyamide (PA6), flame retardant

No Of Poles
5 (3P + N + E)

Connection Type
Screw terminal

Torque on Terminal Screws
0.8 Nm

Terminal Type
Screw Terminals, captive screws

Contacts
Brass

Flame Retardance
V2 rating

Impact Resistance
IK08

Cable Entry
Panel

Voltage Endurance
2000V AC/min

Contact Resistance
2 m

PKF16F435-PratiKa socket - screw - angled - 16A - 3P + N + E - 380...415 V AC - panel Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5 Days

About PKF16F435-PratiKa socket - screw - angled - 16A - 3P + N + E - 380...415 V AC - panel

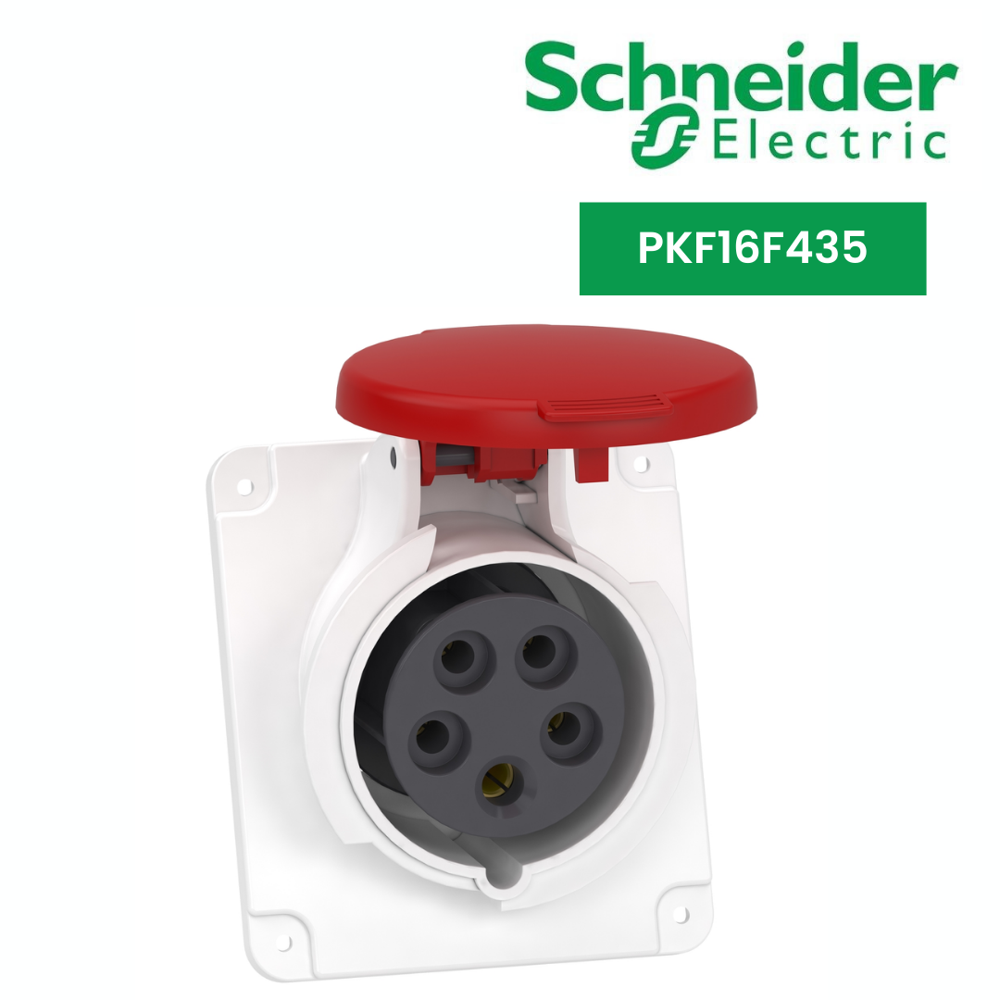

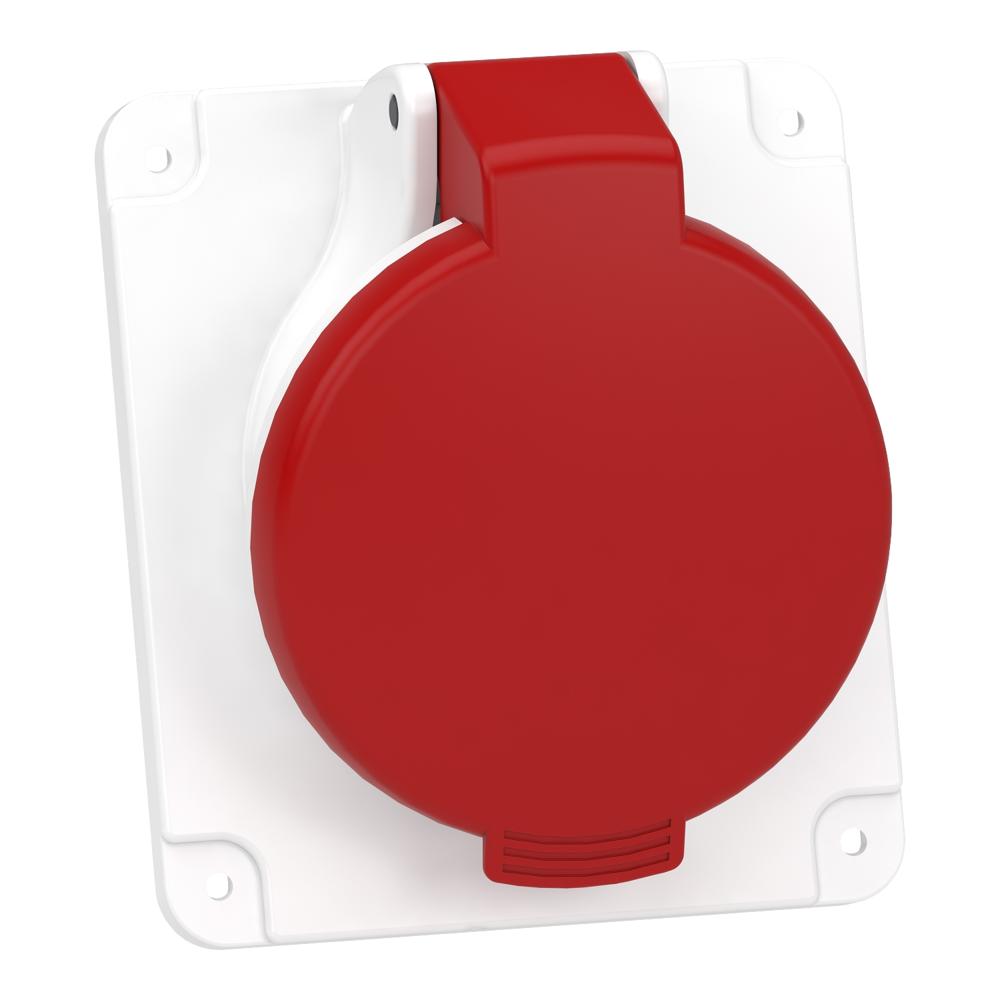

This Pratika industrial socket with captive screws connection is angled panel mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 90mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm to 4mm. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Rugged and Safe Construction

Manufactured from high-grade, flame-retardant polyamide (PA6), the PKF16F435-PratiKa socket excels in durability and safety. With captive terminal screws and enhanced mechanical protection, it's built to endure rigorous industrial use and resist impacts (IK08 rating). The socket's heat-resistant housing and V2 flame retardance contribute to its exceptional operational life and safety during continued industrial use.

Easy, Secure Panel Mounting

The angled socket design streamlines cable entry, making panel installation both efficient and straightforward. Screw terminals with captive screws enable hassle-free, secure wiring. Rated for 16A and a voltage range of 380-415V AC, the socket is ideal for three-phase connections in machine panels and power distribution boards, facilitating quick and reliable assembly.

FAQ's of PKF16F435-PratiKa socket - screw - angled - 16A - 3P + N + E - 380...415 V AC - panel:

Q: How do I connect cables to the PKF16F435-PratiKa socket?

A: To connect cables, use the screw terminal connections provided. The captive terminal screws ensure easy and secure wiring-tighten the screws to 0.8 Nm torque for optimal conductivity and safety.

Q: What applications is this socket primarily used for?

A: The socket is intended for industrial power distribution, machinery, and panel assemblies requiring a secure three-phase plus neutral and earth connection. It's suitable for factory, workshop, and other high-load environments in India.

Q: When should I choose an angled socket design like this one?

A: Choose the angled design for installations where space is constrained or where easier cable access is needed, such as tight panel layouts or when quick connection and disconnection are frequent requirements.

Q: Where can the PKF16F435-PratiKa socket be installed?

A: It is engineered for panel mounting and can be installed in electrical panels, distribution boxes, and machine consoles. The IP44 rating makes it suitable for environments exposed to dust and water splashes, but not for continuous submersion.

Q: What protection features does this socket offer?

A: It is equipped with a heat-resistant, flame-retardant housing (V2 rating), impact resistance (IK08), and enhanced mechanical protection. The IP44 ingress rating also safeguards against dust and water splashes, ensuring safe industrial operation.

Q: How does the socket withstand industrial conditions?

A: With a robust PA6 housing, captive screws, and resistance to high relative humidity (up to 95%), the socket is built for durability. It tolerates temperatures from -25C to +40C and endures high-voltage conditions up to 2000V AC/min.
