PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67
PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67
PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67
PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67
PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67
PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67
PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67
PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67

PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67

Price 783.84 INR/ Piece

MOQ : 1 Piece

PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67 Specification

  • Operating Temperature
  • 35 C Celsius (oC)
  • Overheating Protection
  • YES
  • IP Rating
  • IP67
  • Product Type
  • Wander socket
  • Protection Level
  • IP67
  • Frequency (MHz)
  • 50/60 Hz Hertz (HZ)
  • Color
  • Grey (RAL 7035)
  • Dimension (L*W*H)
  • The dimensions of the base plate are (W) 84mm x (H) 84mm. The degree of protection is IP67 and IK08. Millimeter (mm)
  • Weight
  • 0.17 kg Kilograms (kg)
  • Rated Voltage
  • 200V Volt (V)
  • Warranty
  • 1 YEAR
  • Rated Current
  • 16A Ampere (amp)
  • Frequency
  • 50/60 Hz Hertz (HZ)
  • Connection Type
  • Captive screws
  • Material
  • Housing: self-extinguishing engineering polymer


PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67 Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 32 Pieces Per Week
  • Delivery Time
  • 4 Days
  • Sample Available
  • No
  • Packaging Details
  • RAIP WITH CARTUN
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About PKF16M723-PratiKa wander socket - straight - 16 A - 2P + E - 200...250 V AC - IP67

This Pratika industrial wander socket with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 84mm x (H) 84mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm to 4mm cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Wander Plug And Socket Category

PKF16F723-PratiKa socket - screw - angled - 16A - 2P + E - 200...250 V AC - panel

PKF16F723-PratiKa socket - screw - angled - 16A - 2P + E - 200...250 V AC - panel

Price 611.04 INR / Piece

Minimum Order Quantity : 1 Piece

Frequency : 50/60 Hz Hertz (HZ)

Color : Grey (RAL 7035)

Warranty : 1 YEAR

Rated Current : 16 A Ampere (amp)

PKF32W435-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - wall

PKF32W435-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - wall

Price 886.56 INR / Piece

Minimum Order Quantity : 1 Piece

Frequency : 50/60 Hz Hertz (HZ)

Color : Grey (RAL 7035)

Warranty : 1 YEAR

Rated Current : 32A Ampere (amp)

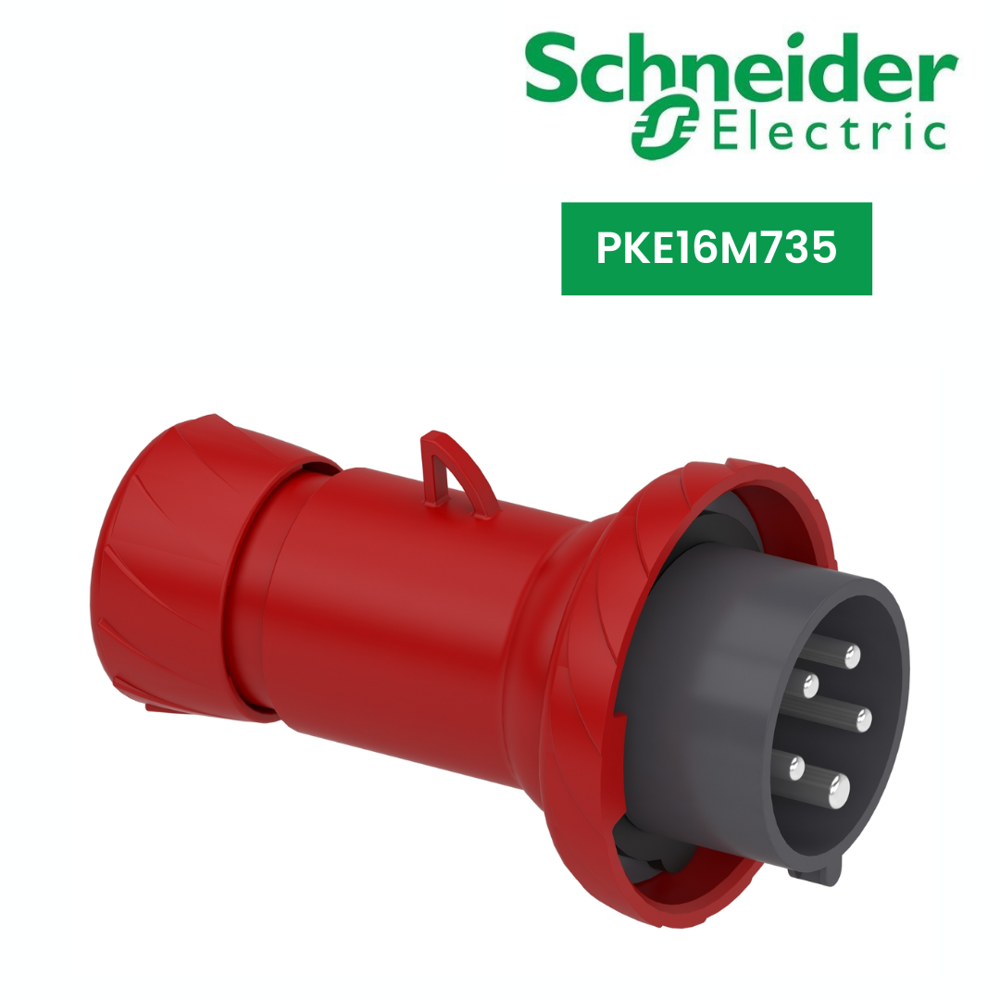

PKE16M735-PratiKa wander plug - straight - 16 A - 3P + N + E - 380...415 V AC - IP67
