PKF32F735-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel
PKF32F735-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel

PKF32F735-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel

Price 944.64 INR/ Piece

MOQ : 1 Piece

PKF32F735-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel Specification

  • IP Rating
  • IP67
  • Overheating Protection
  • YES
  • Operating Temperature
  • 35 C ( 86400 s ) Celsius (oC)
  • Product Type
  • Socket
  • Protection Level
  • IP67
  • Frequency (MHz)
  • 50/60 Hz Hertz (HZ)
  • Color
  • Grey (RAL 7035)
  • Dimension (L*W*H)
  • The dimensions of the base plate are (W) 102mm x (H) 100mm. The degree of protection is IP67 and IK08. Millimeter (mm)
  • Weight
  • 0.26 kg Kilograms (kg)
  • Rated Voltage
  • 400V Volt (V)
  • Warranty
  • 1 YEAR
  • Rated Current
  • 32A Ampere (amp)
  • Material
  • Sleeves: brass
  • Connection Type
  • Captive screws
  • Frequency
  • 50/60 Hz Hertz (HZ)


PKF32F735-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 32 Pieces Per Week
  • Delivery Time
  • 4 Days
  • Sample Available
  • No
  • Packaging Details
  • RAIP WITH CARTUN
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About PKF32F735-PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - panel


This Pratika industrial socket with captive screws connection is angled panel mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 102mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm to 10mm. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Wander Plug And Socket Category

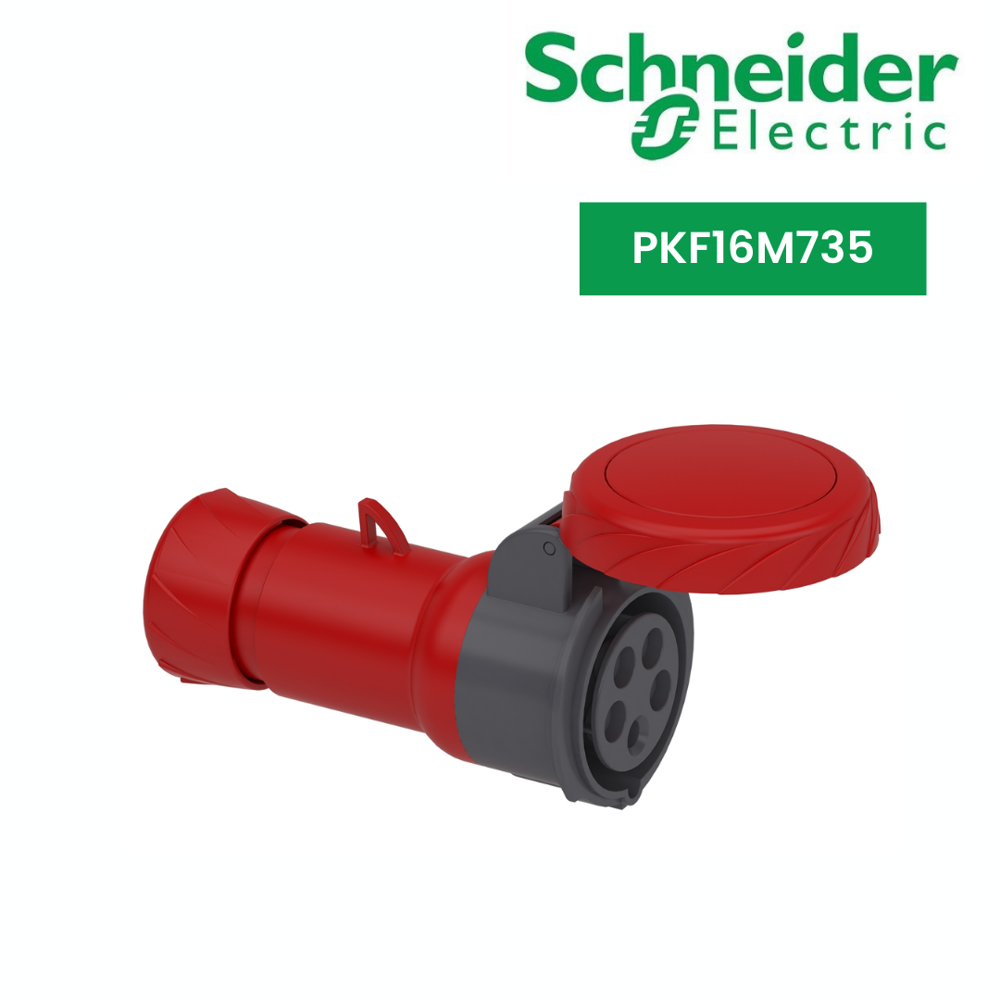

PKF16M735-PratiKa wander socket - straight - 16 A - 3P + N + E - 380...415 V AC - IP67

PKF16M735-PratiKa wander socket - straight - 16 A - 3P + N + E - 380...415 V AC - IP67

Price 1027.2 INR / Piece

Minimum Order Quantity : 1 Piece

Color : Grey (RAL 7035)

Warranty : 1 YEAR

Rated Voltage : 380V Volt (V)

Dimension (L*W*H) : The dimensions of the base plate are (W) 96mm x (H) 96mm. The degree of protection is IP67 and IK08 Millimeter (mm)

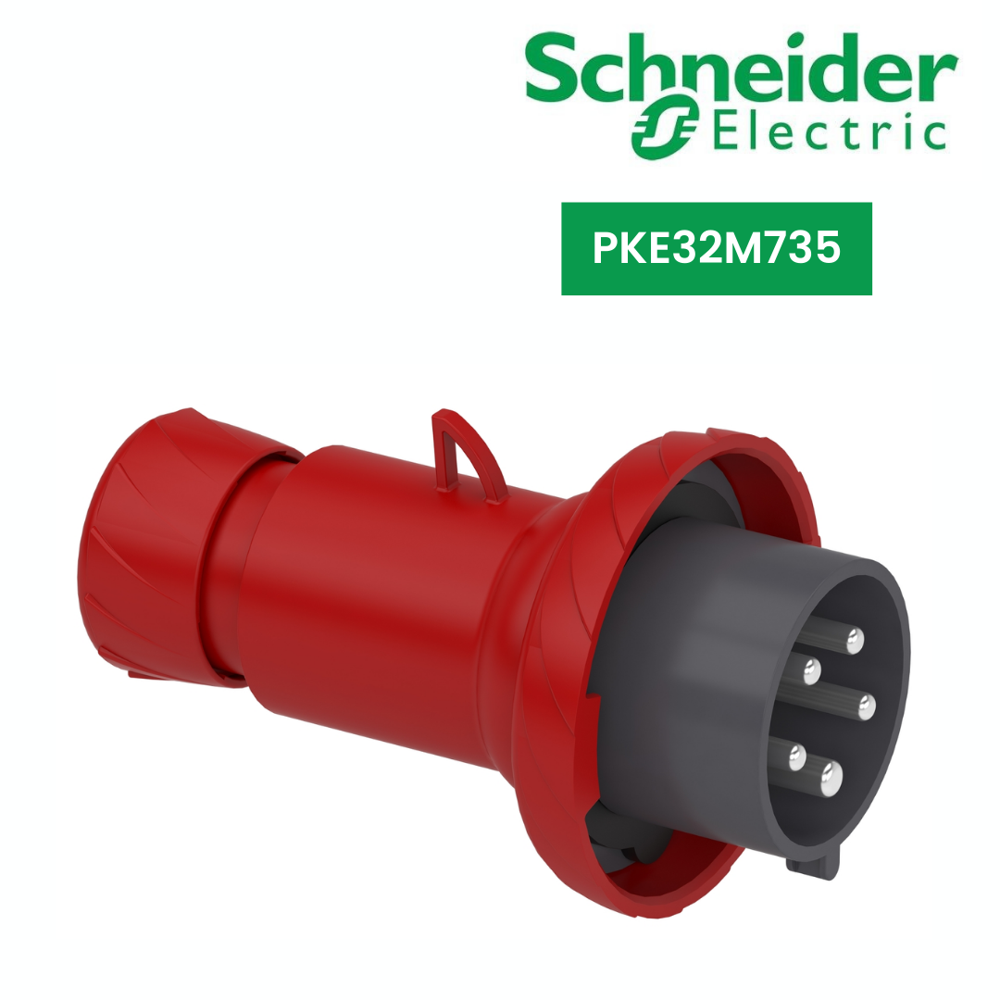

PKE32M735-PratiKa wander plug - straight - 32 A - 3P + N + E - 380...415 V AC - IP67
