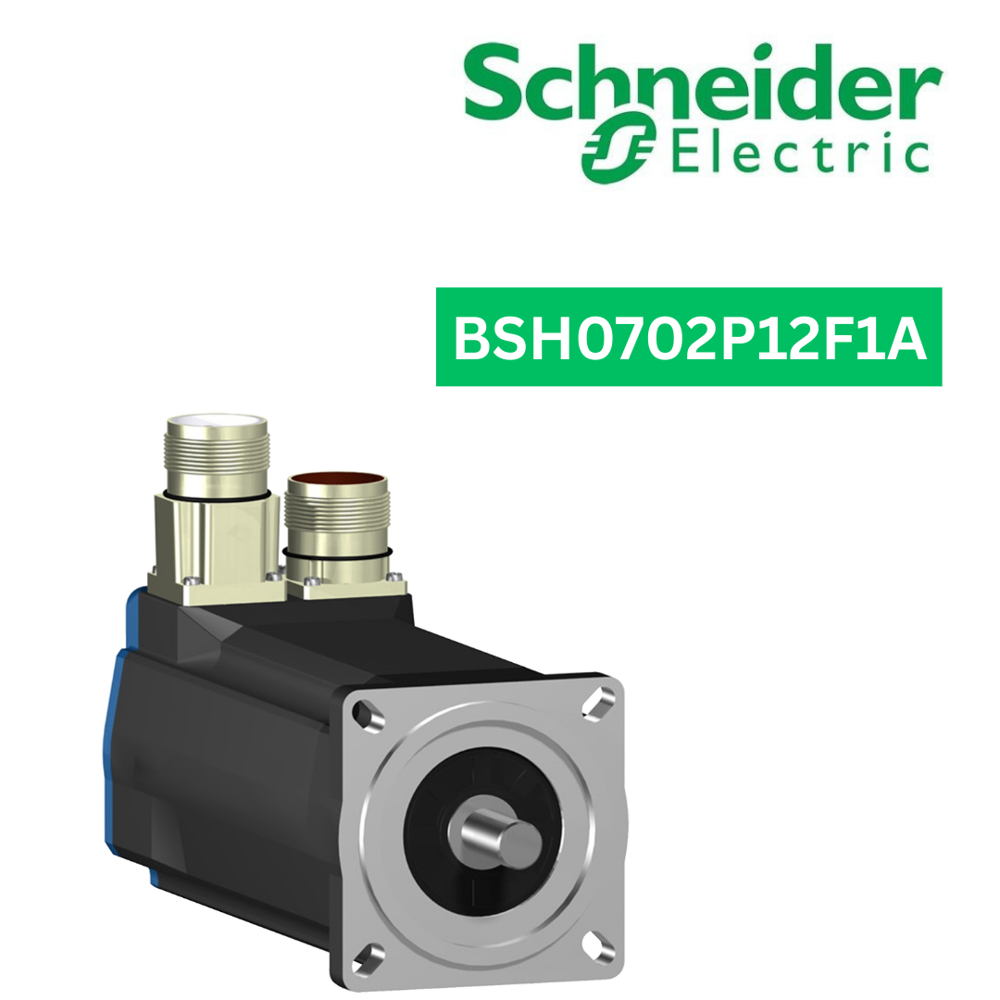

Servo Motor -BSH0702P12F1A

79749.6 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP50
Warranty 1YEAR
Rated Current 2.9 Ampere (amp)
Ambient Temperature 120 Celsius (oC)
Voltage 480V Volt (v)
Operating Temperature 100 Celsius (oC)
Poles Number 6
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor -BSH0702P12F1A Price And Quantity

Minimum Order Quantity 1 Piece
Price 79749.6 INR/Piece

Servo Motor -BSH0702P12F1A Product Specifications

Rated Current 2.9 Ampere (amp)
Shaft Diameter 11 mm Millimeter (mm)
Power Rating 0.4kW to 6kW
Frequency (MHz) 8 kHz Hertz (HZ)
Rated Voltage 480 Volt (V)
Output Power 850 Watt (w)
Speed 8000 RPM
Product Type Servo Motor
Efficacy Other
Warranty 1YEAR
Weight 3KG Kilograms (kg)
Operating Temperature 100 Celsius (oC)
Mounting Type International standard flange
Poles Number 6
Dimension (L*W*H) 2.5mm (depth) x 60mm (diameter) with 82mm Millimeter (mm)
Phase Single Phase
IP Rating IP50
Power 1.51W Watt (w)
Protect Feature Other
Ambient Temperature 120 Celsius (oC)
Voltage 480V Volt (v)

Servo Motor -BSH0702P12F1A Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details CARTUN WITH RAIP
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This product is part of the Lexium 32 & Motors range, an offer of servo motors from 0.4kW to 6kW. The 6-pole AC servo motor features a low moment of inertia with a maximum mechanical speed of 8000RPM and keyed shaft with holding brake. It is an equipped with a multi-turn (1,31,072 points/turn x 4096 turns) SinCos Hiperface high resolution absolute encoder. It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 2.9A and a maximum continuous power of 1.51W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished with straight connectors for electrical connection. It is an IP50 standard rated product. The length of this product is 212.5mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3kg. This range is compatible with Lexium 32, Lexium 15 and Lexium 05 servo drives. This product is compatible with LXM05AD10M2 at 200V to 240V single phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Servo Motor' category

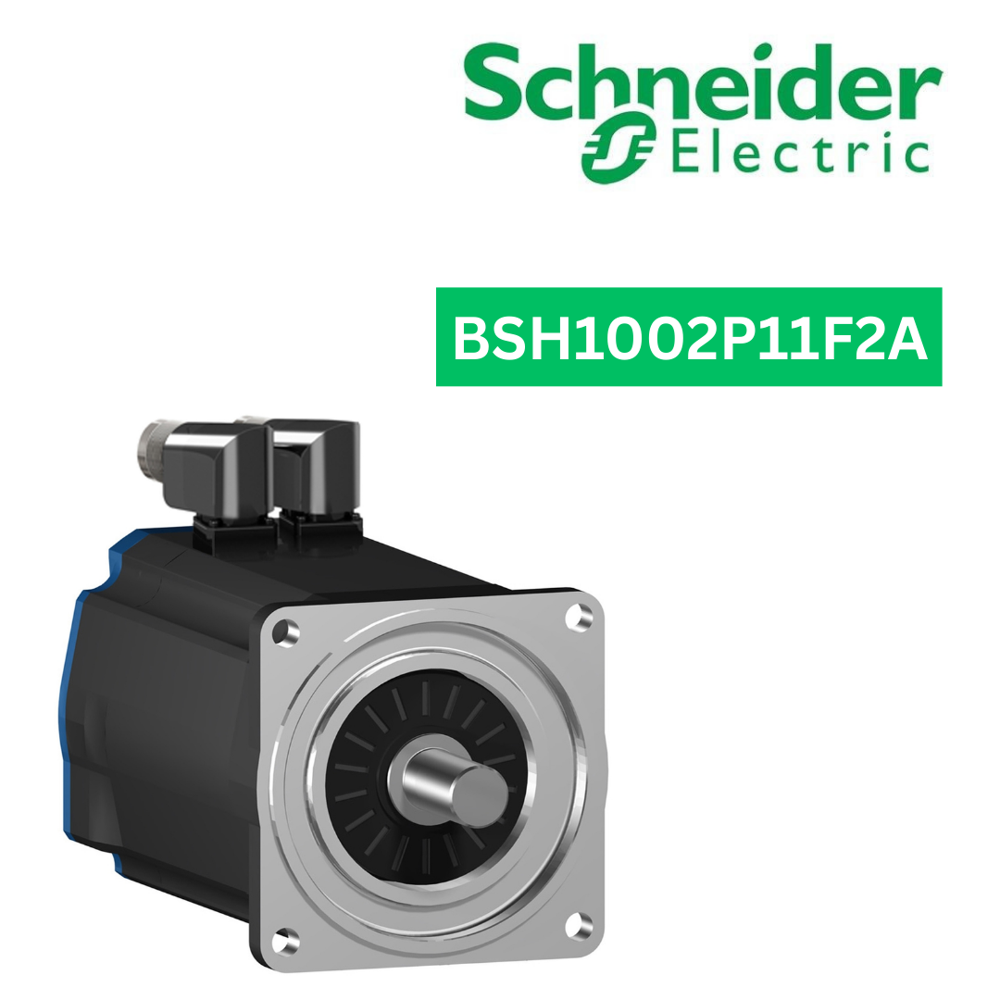

Servo Motor -BSH1002P11F2A Price : 96420.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 480 Volt (V) Phase : Three Phase Weight : 6.3 Kilograms (kg) Poles Number : 4 Voltage : 480 Volt (v) Current Type : 4.8A Product Type : Servo Motor IP Rating : IP50 Power : 2.52W Watt (w) Warranty : 1YEAR Power Rating : 2.51W Speed : 6000 RPM Dimension (L*W*H) : 39MM Millimeter (mm) Efficacy : Other Ambient Temperature : 120 Celsius (oC) Rated Current : 17 Ampere (amp) Mounting Type : International standard flange Shaft Diameter : 19MM Millimeter (mm) Operating Temperature : 100 Celsius (oC) Protect Feature : Other Output Power : 950W Watt (w) Starting Type : Electric Start Frequency (MHz) : 8 Hertz (HZ) Rated Frequency : 8 Hertz (HZ)

Send Inquiry

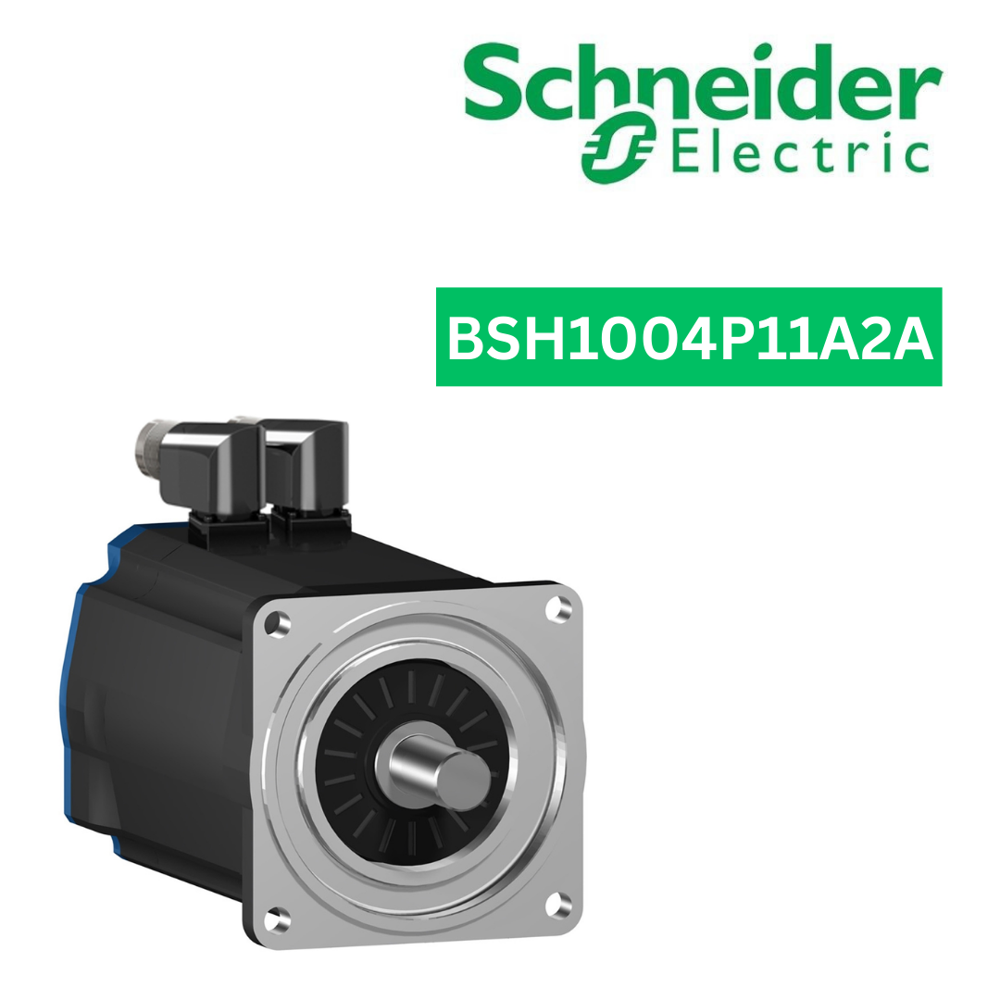

Servo Motor -BSH1004P11A2A Price : 75329.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 480 Volt (V) Phase : Three Phase Weight : 9.5 Kilograms (kg) Poles Number : 8 Voltage : 480 Volt (v) Current Type : 6.2A Product Type : Servo Motor IP Rating : IP50 Power : 3.64W Watt (w) Warranty : 1YEAR Power Rating : 2600W Speed : 6000 RPM Dimension (L*W*H) : 3.5mm (Depth) x 95mm (Diameter) with 115mm Millimeter (mm) Efficacy : Other Ambient Temperature : 120 Celsius (oC) Rated Current : 6.2 Ampere (amp) Mounting Type : International standard flange Shaft Diameter : 19MM Millimeter (mm) Operating Temperature : 100 Celsius (oC) Protect Feature : Other Output Power : 2600 Watt (w) Starting Type : Electric Start Frequency (MHz) : 8 kHz Hertz (HZ) Rated Frequency : 8 Hertz (HZ)

Send Inquiry

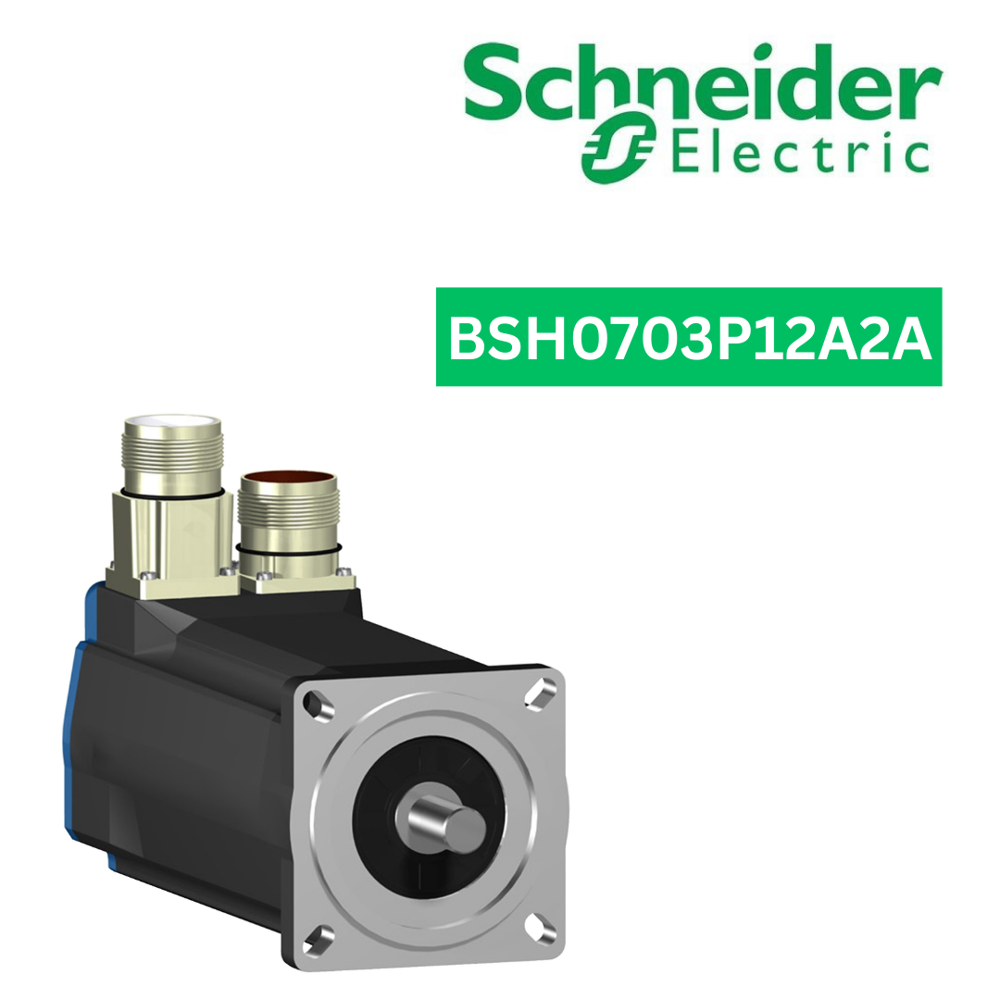

Servo Motor -BSH0703P12A2A Price : 86328.0 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 480 Volt (V) Phase : Three Phase Weight : 3.65 Kilograms (kg) Poles Number : 6 Voltage : 480 Volt (v) Current Type : 4.1A Product Type : Servo Motor IP Rating : IP50 Power : 750 Watt (w) Warranty : 1YEAR Power Rating : 1.7W Speed : 8000 RPM Dimension (L*W*H) : 2.5mm (Depth) x 60mm (Diameter) with 82mm Millimeter (mm) Efficacy : Other Ambient Temperature : 100 Celsius (oC) Rated Current : 4.1A Ampere (amp) Mounting Type : International standard flange Shaft Diameter : 14MM Millimeter (mm) Operating Temperature : 120 Celsius (oC) Protect Feature : Other Output Power : 750 Watt (w) Frequency (MHz) : 8 kHz Hertz (HZ) Rated Frequency : 8 Hertz (HZ)

Send Inquiry

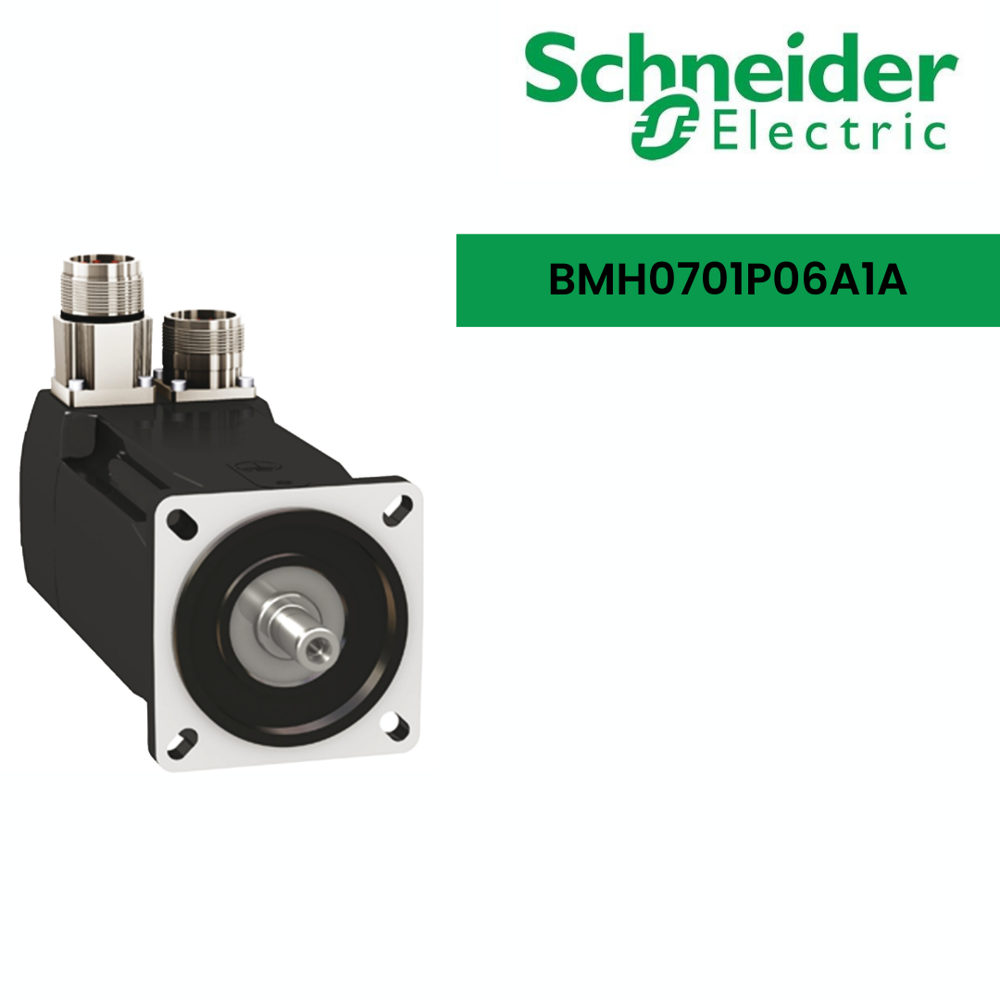

servo motor-BMH0701P06A1A Price : 26419.05 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 480V Volt (V) Phase : Three Phase Weight : 3.5 lb(US) (1.6 kg) Kilograms (kg) Poles Number : 10 Voltage : 480V Volt (v) Current Type : 1.78A Product Type : Servo Motor IP Rating : IP54 Power : 1.05W Watt (w) Warranty : 1 year Power Rating : 0.15kW to 11kW Speed : 8000RPM RPM Dimension (L*W*H) : 2.5mm (depth) x 60mm (diameter) Millimeter (mm) Rated Current : 5.97 A Ampere (amp) Mounting Type : International standard flange Output Power : 350 W LXM32.U60N4 1.5 A, 400 V, three phase 350 W LXM32.U60N4 1.5 A, 480 V, three phase 700 W LXM32.D12N4 3 A, 400 V, three phase 700 W LXM32.D12N4 3 A, 480 V, three phase Watt (w) Starting Type : Electric Start Features : maximum mechanical speed of 8000RPM and smooth shaft end without holding brake
