Soft Starter - ATS22C25Q

145304.00 INR/Piece

Get a Price/Quote

Product Details:

Phase THREE PHASE
Rated Voltage 440 Volt (V)
Connector Type 1 RJ45
Warranty 1YEAR
Power Rating 132KW
IP Rating IP00
Operating Temperature 60 Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Soft Starter - ATS22C25Q Price And Quantity

Minimum Order Quantity 1 Piece
Price 145304.00 INR/Piece

Soft Starter - ATS22C25Q Product Specifications

Product Type Soft starter
Warranty 1YEAR
Operating Temperature 60 Celsius (oC)
IP Rating IP00
Power Rating 132KW
Phase THREE PHASE
Protection Level IP54
Connector Type 1 RJ45
Input Voltage 30 Volt (V)
Rated Voltage 440 Volt (V)
Application Pumps and fans
Connection Type In the motor supply line To the motor delta terminals
Weight 33 Kilograms (kg)
Frequency (MHz) 60 Hertz (HZ)
Rated Current 233 Ampere (amp)
Frequency 60 Hertz (HZ)
Dimension (L*W*H) 229 Millimeter (mm)
Overheating Protection YES

Soft Starter - ATS22C25Q Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 15 Piece Per Week
Delivery Time 5 Days
Sample Available No
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 250A and 230V to 440V, a rated power up to 132kW (400V to 440V in supply line) and up to 220kW (400V to 440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Soft Starter' category

Soft Starter - ATS22C11Q Price : 74083.60 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 66 Hertz (HZ) IP Rating : IP20 Application : Pumps and fans Phase : THREE PHASE Product Type : Soft starter Weight : 18 Kilograms (kg) Connection Type : In the motor supply line To the motor delta terminals Rated Current : 100 Ampere (amp) Rated Voltage : 440 Volt (V) Connector Type : 1 RJ45 Warranty : 1YEAR Power Rating : 90KW Dimension (L*W*H) : 269 Millimeter (mm) Frequency : 60 Hertz (HZ) Output Type : Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Overheating Protection : YES Input Voltage : 30 Volt (V) Protection Level : IP54

Send Inquiry

Soft Starter - ATS480C11Y Price : 75278.0 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 60 Hertz (HZ) IP Rating : IP20 Application : Process and infrastructures Phase : THREE PHASE Product Type : SOFT STARTER Weight : 8.5 Kilograms (kg) Connection Type : In the motor supply line To the motor delta terminals Rated Current : 110 Ampere (amp) Rated Voltage : 690 Volt (V) Connector Type : 1 RJ45 Warranty : 1YEAR Power Rating : 30KW Dimension (L*W*H) : 190 Millimeter (mm) Frequency : 60 Hertz (HZ) Output Type : Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable Overheating Protection : YES Input Voltage : 24 Volt (V) Operating Temperature : 70 Celsius (oC)

Send Inquiry

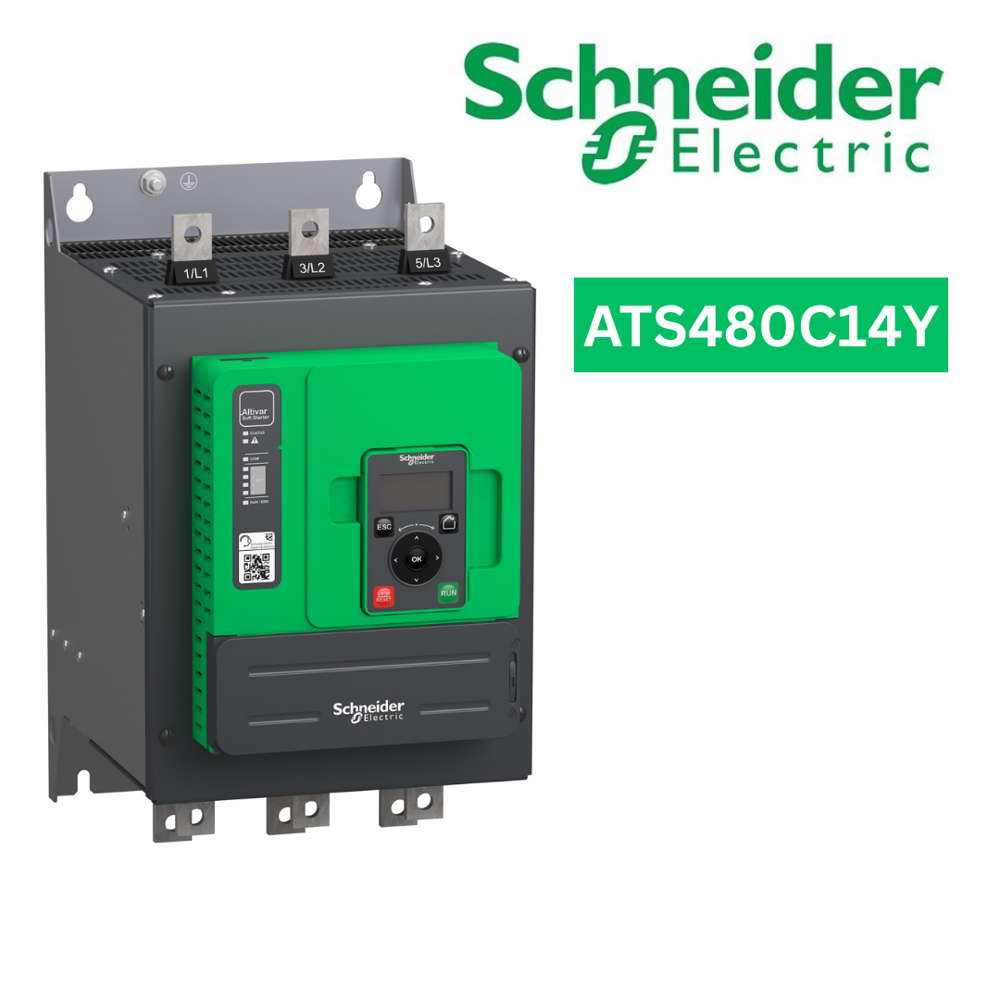

Soft Starter - ATS480C14Y Price : 87939.20 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 60 Hertz (HZ) IP Rating : IP00 Application : Process and infrastructures Phase : THREE PHASE Product Type : SOFT STARTER Weight : 12 Kilograms (kg) Connection Type : In the motor supply line To the motor delta terminals Rated Current : 140 Ampere (amp) Rated Voltage : 690 Volt (V) Connector Type : 1 RJ45 Warranty : 1YEAR Power Rating : 37KW Dimension (L*W*H) : 200 Millimeter (mm) Frequency : 60 Hertz (HZ) Output Type : Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable Overheating Protection : YES Operating Temperature : 70 Celsius (oC)

Send Inquiry

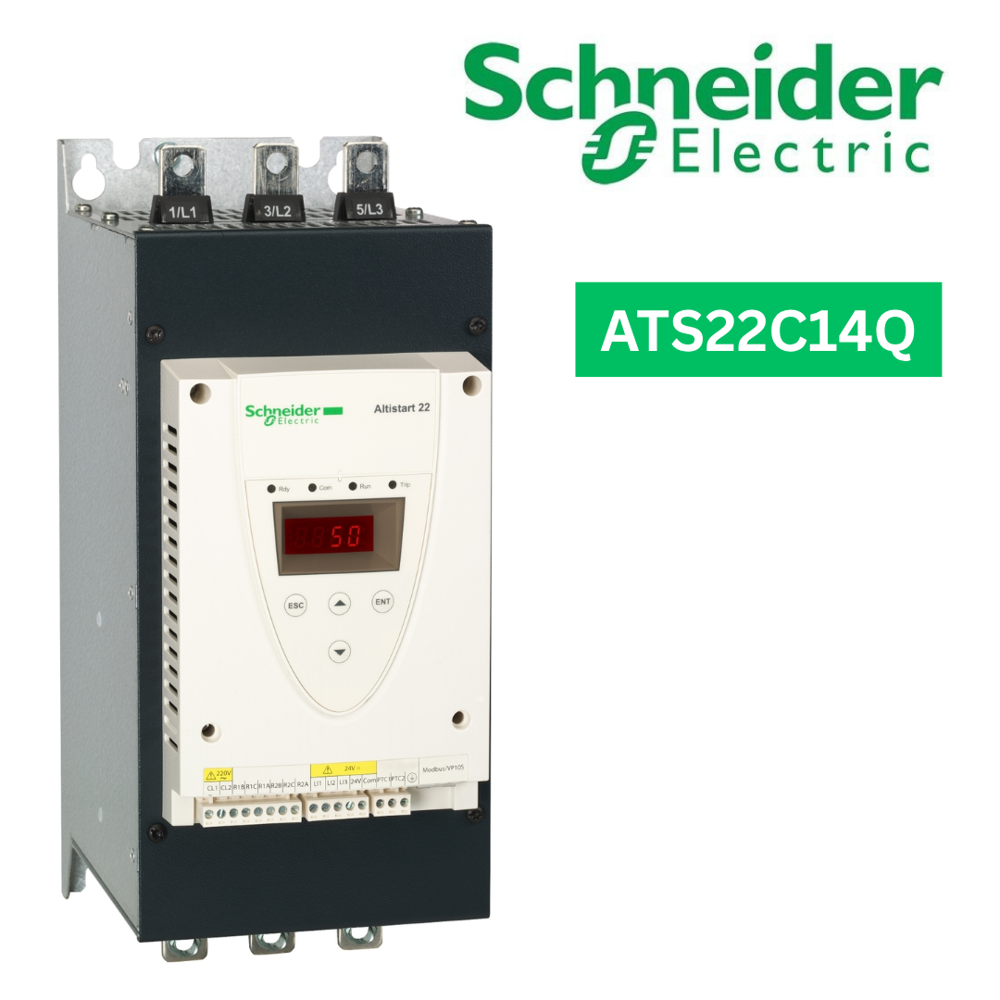

Soft Starter - ATS22C14Q Price : 81789.60 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 60 Hertz (HZ) IP Rating : IP20 Application : Pumps and fans Phase : 3 PHASE Product Type : Soft starter Weight : 18 Kilograms (kg) Connection Type : In the motor supply line To the motor delta terminals Rated Current : 100 Ampere (amp) Rated Voltage : 440 Volt (V) Connector Type : 1 RJ45 Warranty : 1YEAR Power Rating : 75KW Dimension (L*W*H) : 229 Millimeter (mm) Frequency : 60 Hertz (HZ) Input Voltage : 30 Volt (V) Operating Temperature : 60 Celsius (oC) Protection Level : IP54
