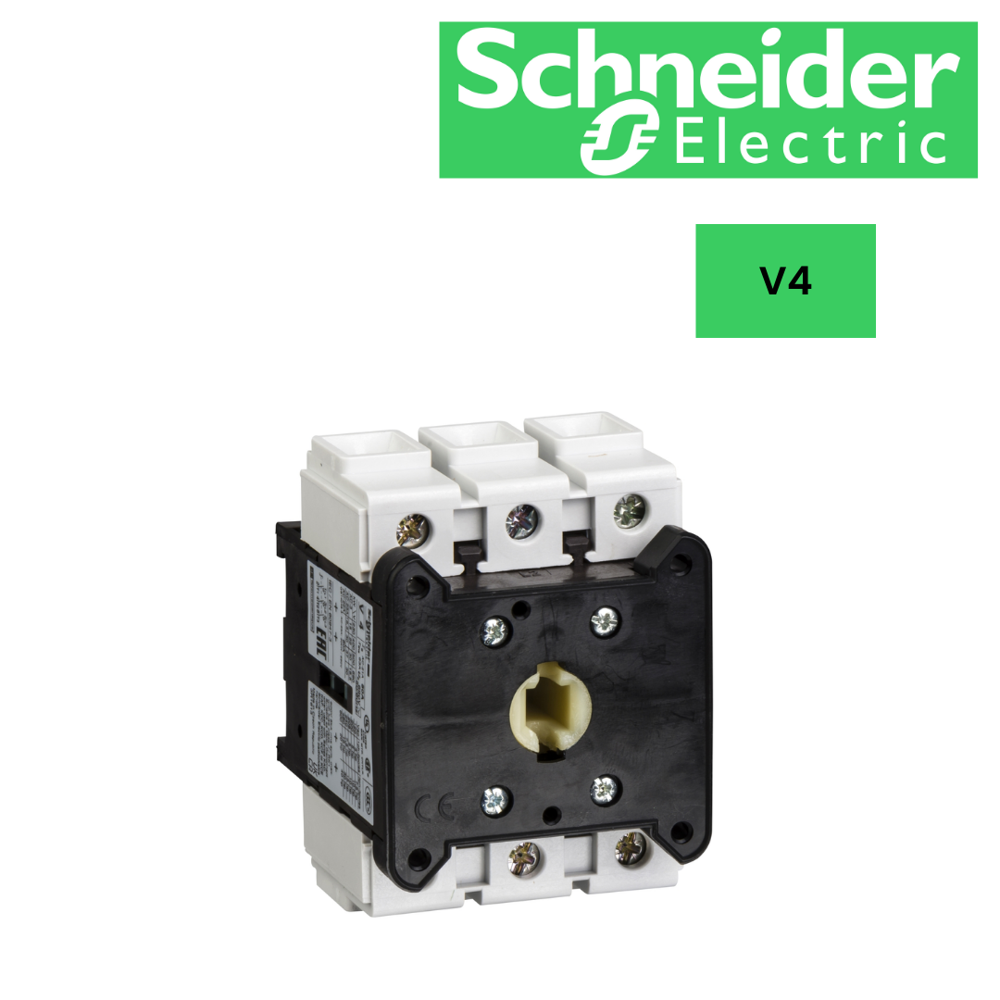

V4-TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A
V4-TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A

V4-TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A

Price 3883.0 INR/ Piece

MOQ : 1 Piece

V4-TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A Specification

  • Circuit Type
  • 10 kA at 400 V - associated fuse 80 A aM 10 kA at 400 V - associated fuse 80 A gG
  • Protection Level
  • IP20
  • Temperature Range
  • -20 50 C Celsius (oC)
  • Max. Current
  • 80 A Ampere (amp)
  • Rated Voltage
  • 690 V AC 50/60 Hz Volt (V)
  • Product Type
  • Switch body
  • Warranty
  • 1 YEAR
  • Operating Temperature
  • -20 50 C Celsius (oC)
  • Weight
  • 0.5 kg Kilograms (kg)
  • Rated Current
  • 80 A Ampere (amp)
  • Frequency
  • 50/60 Hz Hertz (HZ)
  • Mounting Type
  • Plate Symmetrical rail
  • Current Rating
  • 80 A


V4-TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 4 Days


About V4-TeSys VARIO - Switch body for switch-disconnector - 3 poles - 80 A


TeSys Vario switch body, 3 poles, 80A/690V, for motor switching applications up to 30kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Isolator Switch Category

VCF6-TeSys Vario - emergency stop switch disconnector - 175 A - on door

VCF6-TeSys Vario - emergency stop switch disconnector - 175 A - on door

Price 10131.75 INR / Piece

Minimum Order Quantity : 4 Pieces

Rated Voltage : 690 V AC 50/60 Hz Volt (V)

Warranty : 1 YEAR

Mounting Type : By 4 screws for handle

Rated Current : 140 A Ampere (amp)

VCF01-TeSys Vario - emergency stop switch disconnector - 20 A - on door

VCF01-TeSys Vario - emergency stop switch disconnector - 20 A - on door

Price 1419.75 INR / Piece

Minimum Order Quantity : 5 Pieces

Rated Voltage : 20 50 C690 V AC 50/60 Hz Volt (V)

Warranty : 1 YEAR

Mounting Type : By 4 screws for handle

Rated Current : 11 A Ampere (amp)

VCF0-TeSys Vario - emergency stop switch disconnector - 25 A - on door

VCF0-TeSys Vario - emergency stop switch disconnector - 25 A - on door

Price 1656.0 INR / Piece

Minimum Order Quantity : 4 Pieces

Rated Voltage : 690 V AC 50/60 Hz Volt (V)

Warranty : 1 YEAR

Mounting Type : By 4 screws for handle

Rated Current : 14.5 A Ampere (amp)

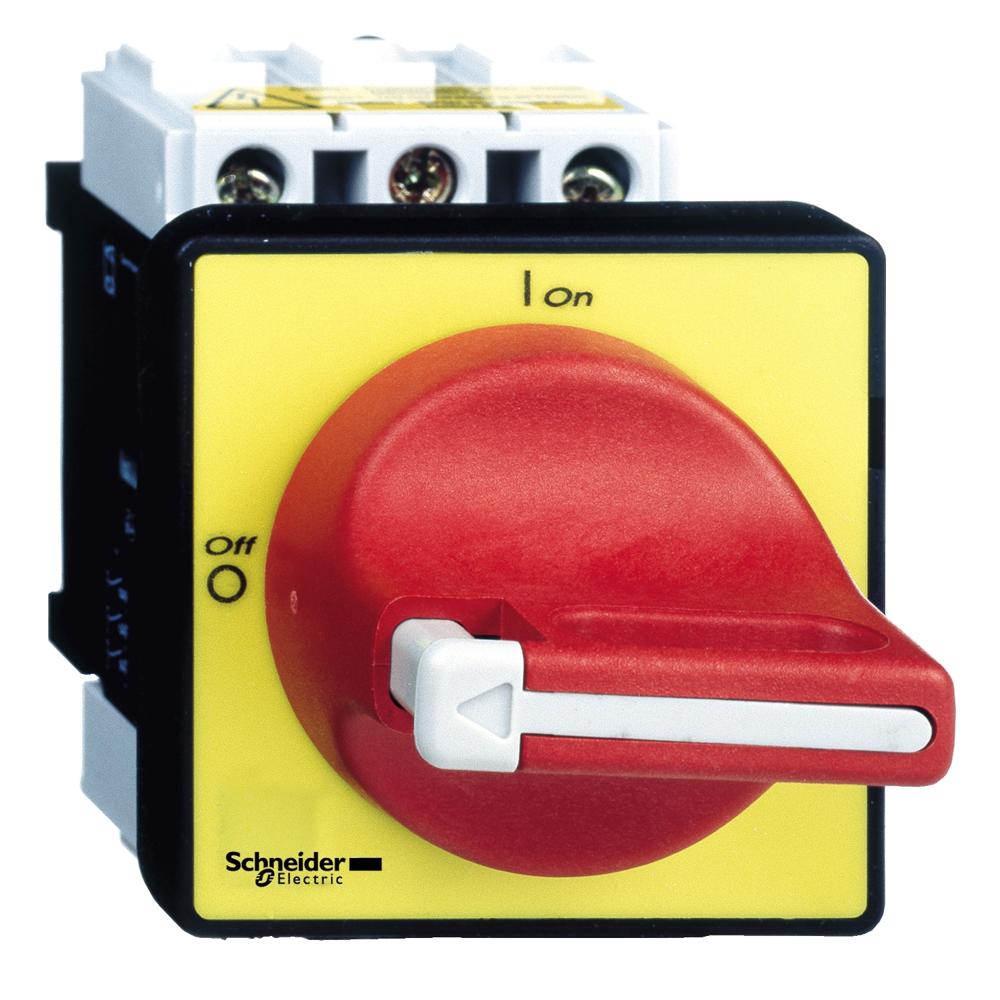

VCF02-TeSys Vario - emergency stop switch disconnector - 12 A - on door
