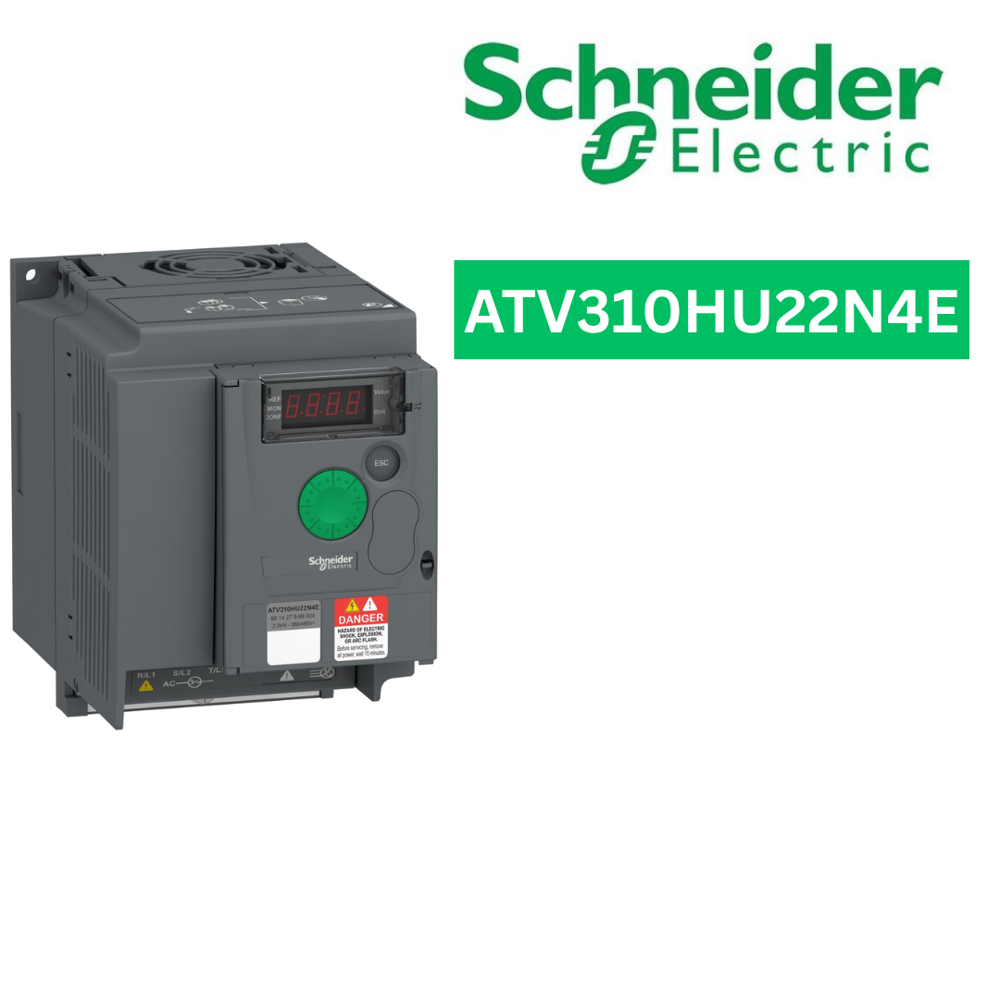

Variable Speed Drive -ATV310HU22N4E

13831.68 INR/Piece

Get a Price/Quote

Product Details:

Rated Current 8.8 Ampere (amp)
Rated Voltage 460 Volt (V)
Phase THREE PHASE
Connector Type RJ45 (on front face) for Modbus
Warranty 1YEAR
Power Rating 2.2KW
Overheating Protection YES
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV310HU22N4E Price And Quantity

Minimum Order Quantity 2 Piece
Price 13831.68 INR/Piece

Variable Speed Drive -ATV310HU22N4E Product Specifications

Rated Voltage 460 Volt (V)
Rated Current 8.8 Ampere (amp)
Connection Type RJ45 (on front face) fTerminal, clamping capacity: 1.5...2.5 mm , AWG 16...AWG 14 (L1, L2, L3, PA/+, PB, U, V, W)or Modbus
Overheating Protection YES
Phase THREE PHASE
Connector Type RJ45 (on front face) for Modbus
Warranty 1YEAR
Power Rating 2.2KW
Weight 1.1 Kilograms (kg)
Frequency (MHz) 400 Hertz (HZ)
IP Rating IP20
Application Simple machine
Product Type Variable speed drive
Frequency 400 Hertz (HZ)

Variable Speed Drive -ATV310HU22N4E Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 60 Piece Per Week
Delivery Time 4 Days
Sample Available No
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to 2.2kW/3HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It offers high readability of key parameters thanks to a bright LED 4-digit display. Underload and overload detection help to protect your installation. It weighs 1.1kg and its dimensions are, 105mm wide, 143mm high, 151mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.
