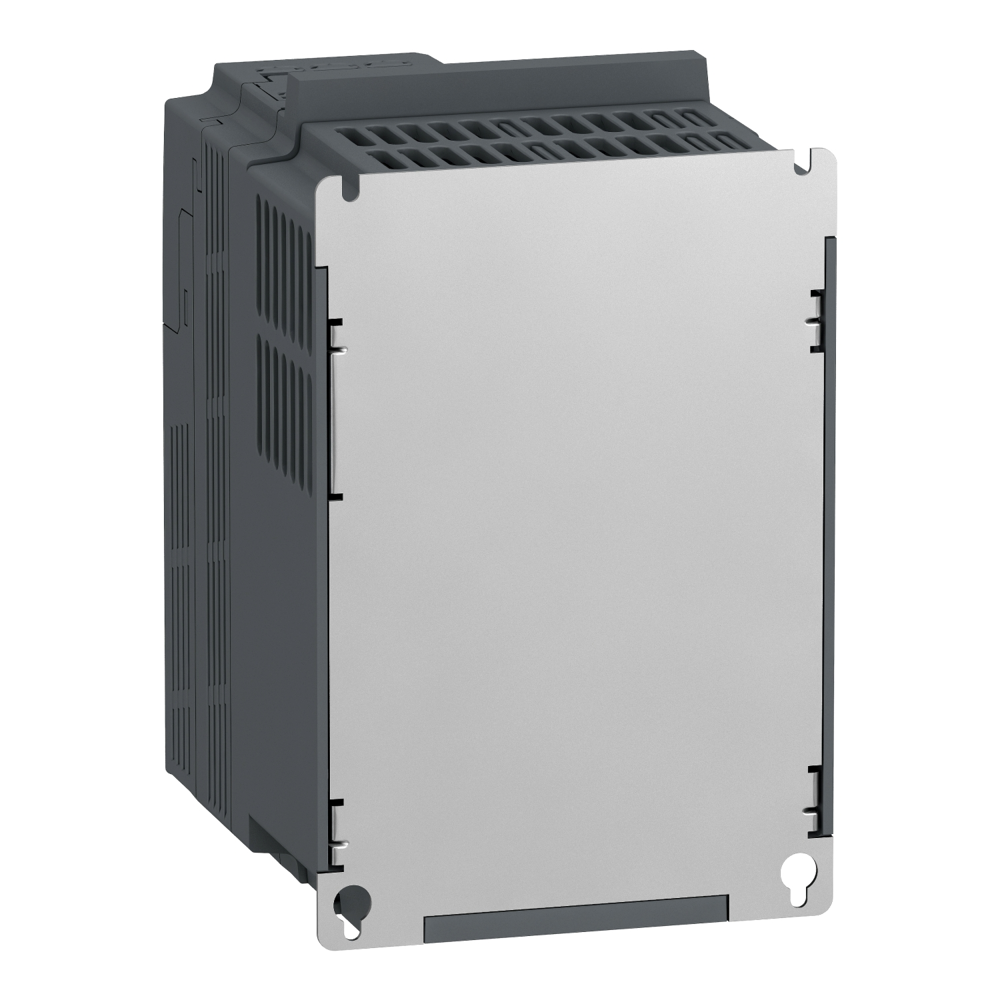

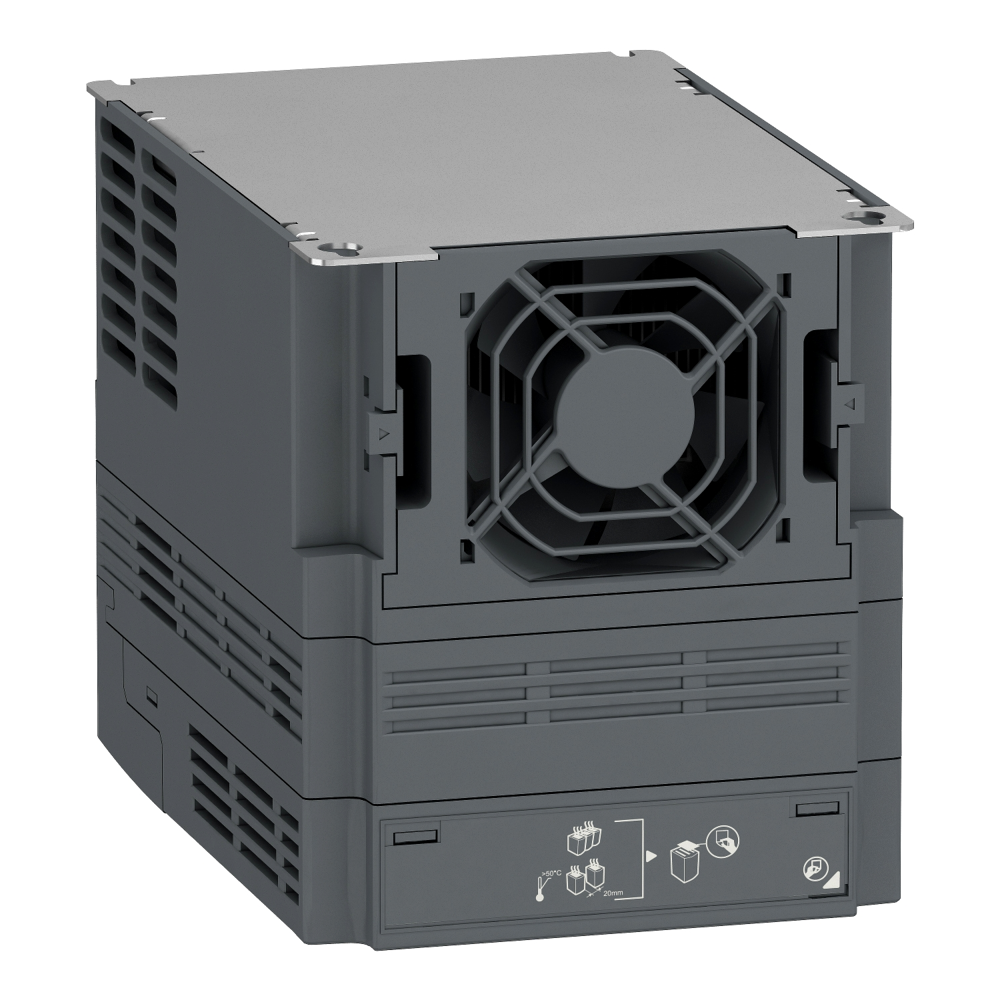

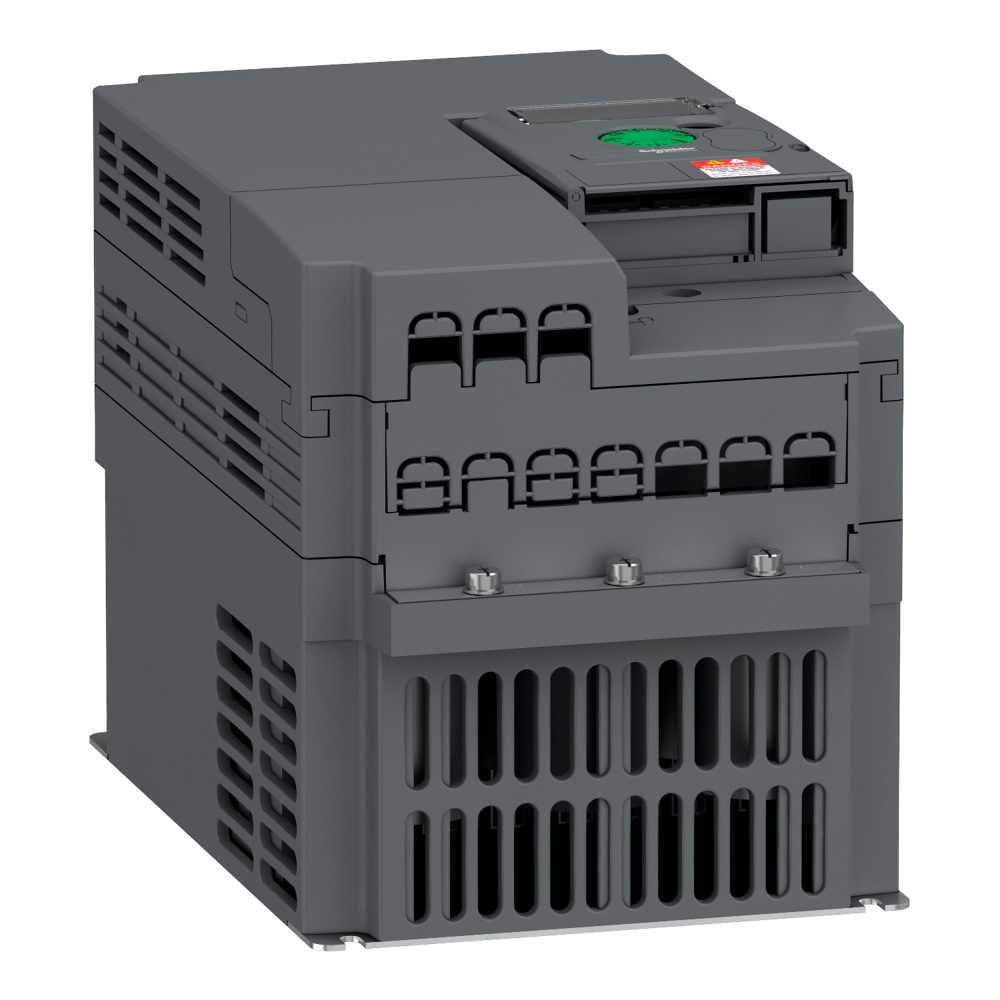

Variable Speed Drive - ATV310HU75N4E
25372.16 INR/Piece
Product Details:
- Rated Current 25 Ampere (amp)
- Rated Voltage 460 Volt (V)
- Connector Type RJ45 (on front face) for Modbus
- Frequency 60 Hertz (HZ)
- Phase THREE PHASE
- Power Rating 11KW
- Mounting Type WALL MOUNT
- Click to View more
X
Variable Speed Drive - ATV310HU75N4E Price And Quantity
- 16 Piece
- 25372.16 INR/Piece
Variable Speed Drive - ATV310HU75N4E Product Specifications
- 11KW
- Variable speed drive
- Simple machine
- WALL MOUNT
- IP66
- THREE PHASE
- 60 Hertz (HZ)
- 460 Volt (V)
- RJ45 (on front face) for Modbus
- 25 Ampere (amp)
- 60 Hertz (HZ)
- 20
- 3 Kilograms (kg)
- 1 YEAR
- YES
- Terminal, clamping capacity: 6...10 mm , AWG 10...AWG 7 (L1, L2, L3, PA/+, PB, U, V, W)
- AO1 software-configurable voltage: 0...10 V AC 0...10 V 0 0.02 A, impedance: 470 Ohm, resolution 8 bits AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits
- 380 Volt (V)
Variable Speed Drive - ATV310HU75N4E Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 32 Piece Per Week
- 3 Days
- No
- Within a certain price range free samples are available
- Asia
- All India
Product Description
This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to 7.5kW/10HP or ND 11kW/15HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It offers high readability of key parameters thanks to a bright LED 4-digit display. Underload and overload detection help to protect your installation. It weighs 3.7kg and its dimensions are, 180mm wide, 232mm high, 171mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.FAQs of Variable Speed Drive - ATV310HU75N4E:
Q: What is the application of the Variable Speed Drive - ATV310HU75N4E?
A: The Variable Speed Drive - ATV310HU75N4E is designed for simple machine applications.Q: What is the rated voltage and input voltage for this product?
A: The rated voltage is 460 Volt (V), and the input voltage is 380 Volt (V).Q: Does the Variable Speed Drive - ATV310HU75N4E provide overheating protection?
A: Yes, this product is equipped with overheating protection.Q: What type of connection does the Variable Speed Drive - ATV310HU75N4E have?
A: The product uses a terminal connection with a clamping capacity of 6...10 mm and supports AWG 10...AWG 7 (L1, L2, L3, PA/+, PB, U, V, W).Q: What is the mounting type and IP rating of the Variable Speed Drive - ATV310HU75N4E?
A: The mounting type is wall mount, and the IP rating is IP20.Tell us about your requirement
