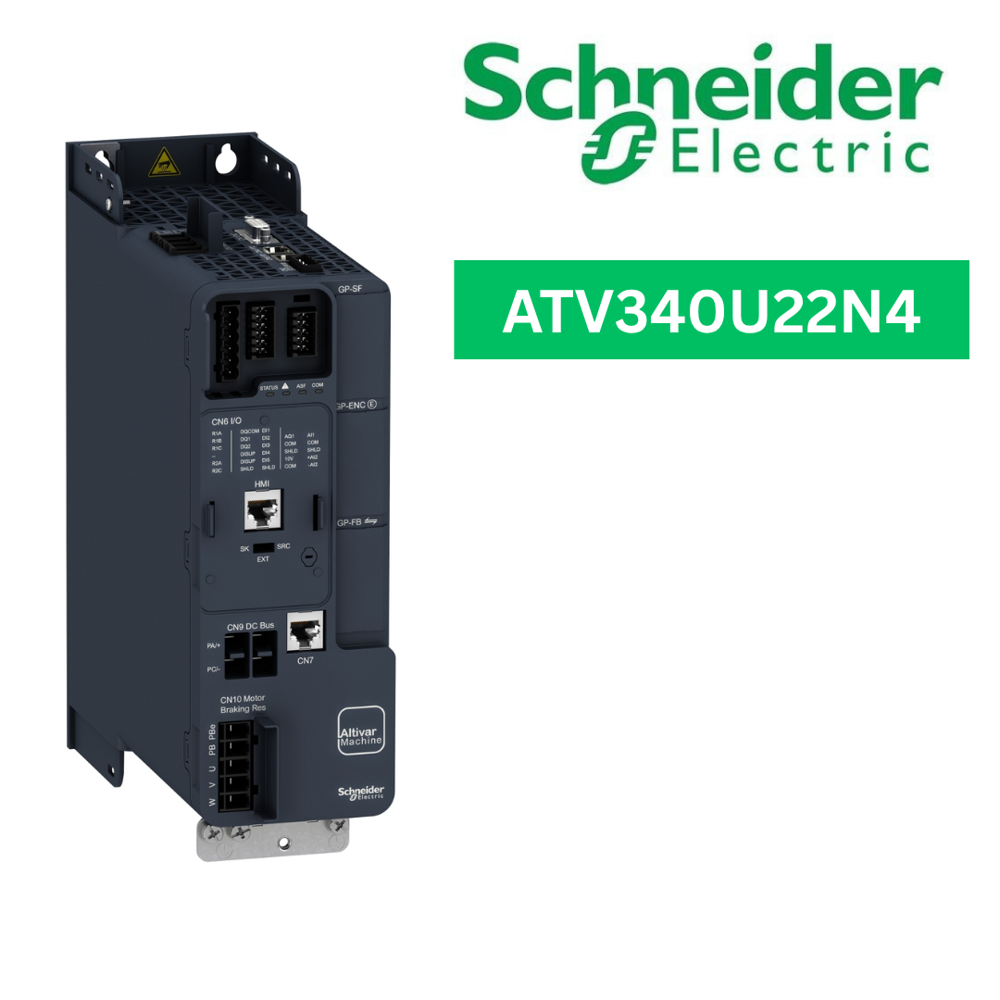

Variable Speed Drive -ATV340U22N4

31575.36 INR/Piece

Get a Price/Quote

Product Details:

Connector Type 1 RJ45
IP Rating IP20
Phase THREE PHASE
Rated Current 5
Power Rating 2.2KW
Rated Voltage 480 Volt (V)
Mounting Type Cabinet mount
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV340U22N4 Price And Quantity

Minimum Order Quantity 15 Piece
Price 31575.36 INR/Piece

Variable Speed Drive -ATV340U22N4 Product Specifications

Input Voltage 380 Volt (V)
Dimension (L*W*H) 270 Millimeter (mm)
Product Type Variable speed drive
Connector Type 1 RJ45
Warranty 1YEAR
Phase THREE PHASE
Weight 1.8 Kilograms (kg)
Rated Current 5
Application Machine
Connection Type Line side: screw terminal 1.5...4 mm /AWG 14...AWG 12 DC bus: screw terminal 4...6 mm /AWG 12...AWG 10 Motor: screw terminal 1.5...4 mm /AWG 14...AWG 12 Control: screw terminal 0.2...2.5 mm /AWG 24...AWG 12
IP Rating IP20
Rated Voltage 480 Volt (V)
Power Rating 2.2KW
Mounting Type Cabinet mount
Frequency (MHz) 60 Hertz (HZ)
Operating Temperature 60 Celsius (oC)
Frequency 60 Hertz (HZ)
Output Type Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits

Variable Speed Drive -ATV340U22N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. it weighs 1.8kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
