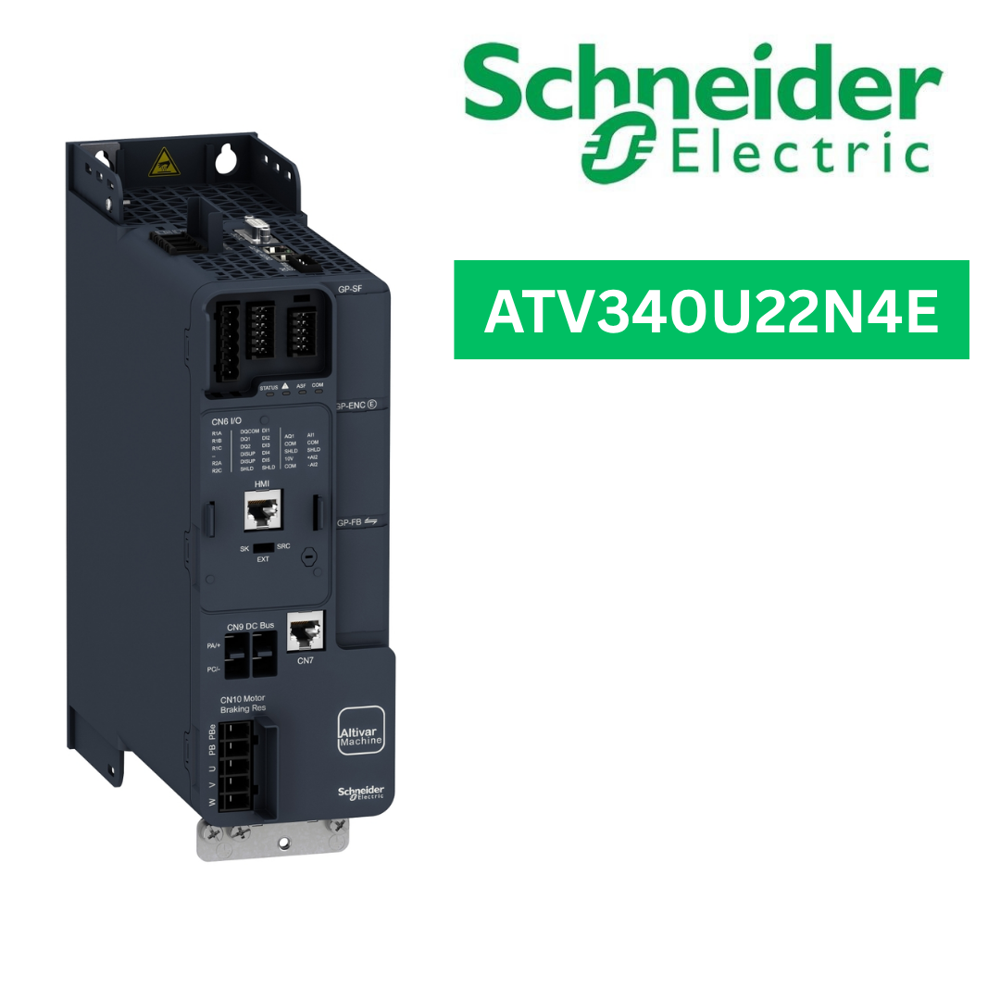

Variable Speed Drive -ATV340U22N4E
37087.0 INR/Piece
Product Details:
- Frequency 60 Hertz (HZ)
- Phase 3 PHASE
- Operating Temperature 60 Celsius (oC)
- Connector Type 3 RJ45
- Mounting Type Cabinet mount
- Power Rating 2.2KW
- Rated Current 5.6 Ampere (amp)
- Click to View more
X
Variable Speed Drive -ATV340U22N4E Price And Quantity
- 37087.0 INR/Piece
- 1 Piece
Variable Speed Drive -ATV340U22N4E Product Specifications
- 1.8
- 3 RJ45
- 270 Millimeter (mm)
- 60 Celsius (oC)
- 3 PHASE
- Screw terminal, clamping capacity: 1.5...4 mm for line side Screw terminal, clamping capacity: 4...6 mm for DC bus Screw terminal, clamping capacity: 1.5...4 mm for motor Screw terminal, clamping capacity: 0.2...2.5 mm for control
- 60 Hertz (HZ)
- 1YEAR
- Variable speed drive
- 60 Hertz (HZ)
- 380 Volt (V)
- IP20
- 480 Volt (V)
- Machine
- 5.6 Ampere (amp)
- Black
- Cabinet mount
- 2.2KW
Variable Speed Drive -ATV340U22N4E Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 35 Piece Per Week
- 5 Days
- Yes
- Within a certain price range free samples are available
- Asia
- All India
Product Description
This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 1.8kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email

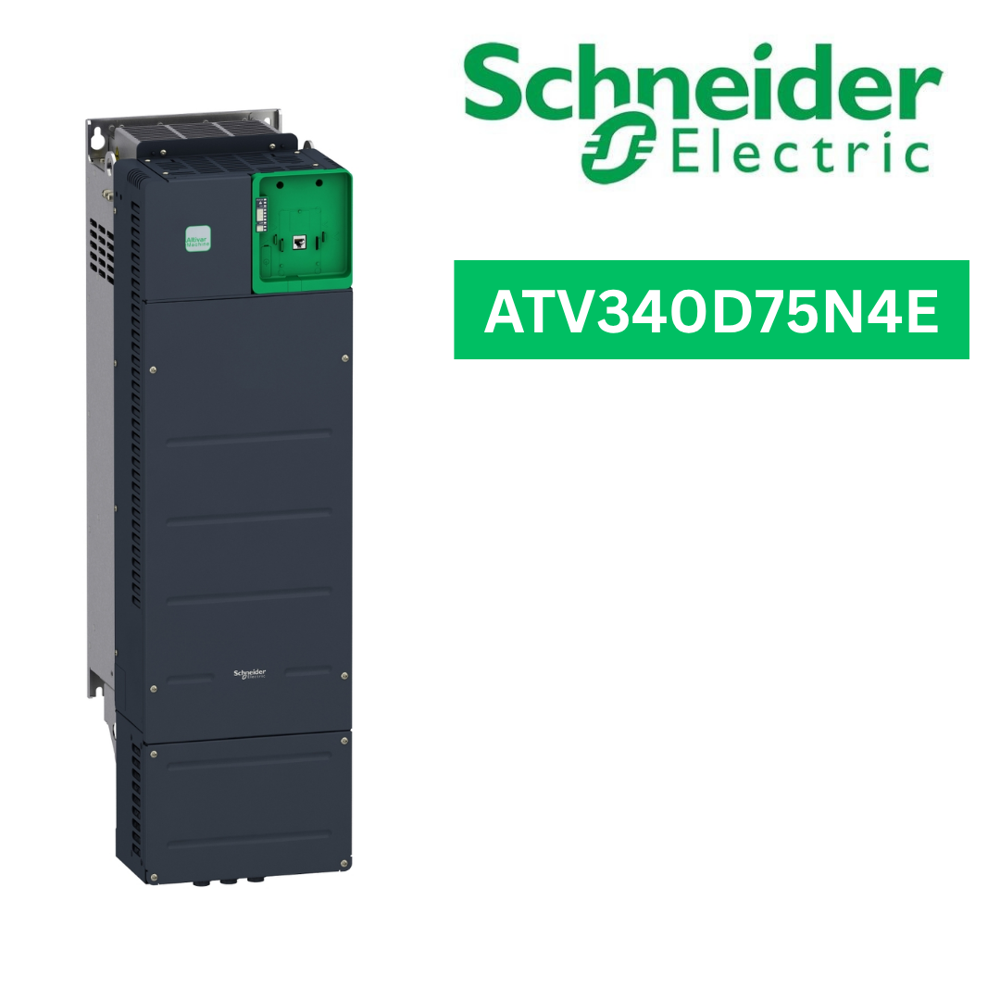

Other Products in 'Variable Speed Drive' category
