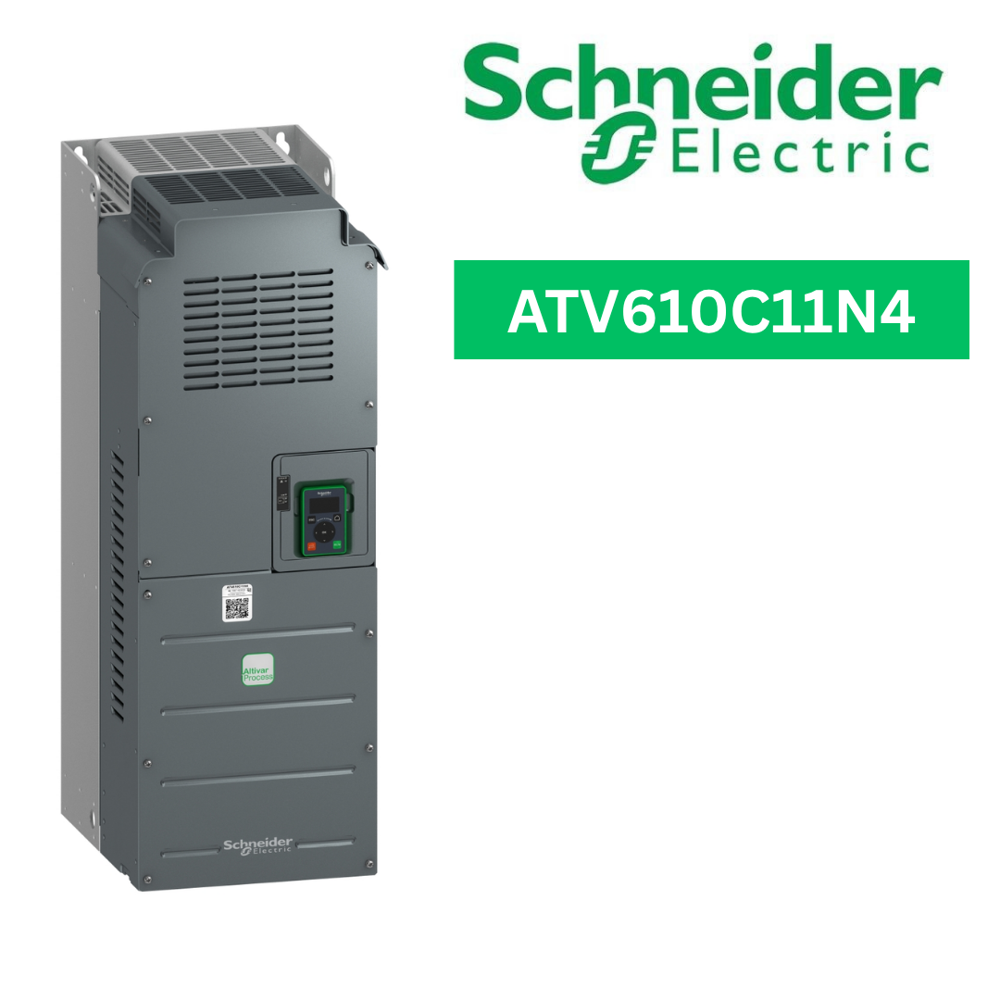

Variable Speed Drive -ATV610C11N4

211618.24 INR/Piece

Get a Price/Quote

Product Details:

Shape RECTANGLE
IP Rating IP20
Rated Current 200 Ampere (amp)
Warranty 1YEAR
Operating Temperature 60 Celsius (oC)
Overheating Protection YES
Mounting Type Cabinet mount
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV610C11N4 Price And Quantity

Minimum Order Quantity 1 Piece
Price 211618.24 INR/Piece

Variable Speed Drive -ATV610C11N4 Product Specifications

Operating Temperature 60 Celsius (oC)
Product Type Variable speed drive
Overheating Protection YES
Weight 85.5 Kilograms (kg)
Rated Voltage 415 Volt (V)
Connector Type 1 RJ45 (on the remote graphic terminal) for Modbus serial
Protection Level Other
Connection Type Control, screw terminal: 0.5...1.5 mm Line side, screw terminal: 2 x 50...3 x 120 mm Motor, screw terminal: 3 x 50...3 x 120 mm
Phase 3 PHASE
Frequency 60 Hertz (HZ)
Input Voltage 380 Volt (V)
Frequency (MHz) 60 Hertz (HZ)
Warranty 1YEAR
Shape RECTANGLE
Power Rating 110KW
Rated Current 200 Ampere (amp)
IP Rating IP20
Application Fan, pump, compressor, conveyor
Output Type Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Mounting Type Cabinet mount

Variable Speed Drive -ATV610C11N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 30 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 110kW / 150hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 90kW / 125hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive products IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 82kg and its dimensions are, 320mm wide, 852mm high, 390mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

Variable Speed Drive -ATV340D45N4E Price : 157986.88 INR/Piece Minimum Order Quantity : 1 Rated Current : 88 Ampere (amp) IP Rating : IP20 Application : Machine Warranty : 1YEAR Frequency (MHz) : 60 Power Rating : 45KW Product Type : Variable speed drive Phase : THREE PHASE Frequency : 60 Hertz (HZ) Weight : 56.4 Kilograms (kg) Rated Voltage : 480 Volt (V) Operating Temperature : 60 Celsius (oC) Output Type : Softwareconfigurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits Connector Type : 3 RJ45 Shape : RECTANGLE Overheating Protection : YES Color : BLACK Input Voltage : 380 Volt (V) Connection Type : Control: screw terminal 0.75...1.5 mm /AWG 18...AWG 16 Line side: screw terminal 70...120 mm /AWG 1/0...250 kcmil DC bus: screw terminal 70...120 mm /AWG 1/0...250 kcmil Motor: screw terminal 70...120 mm /AWG 1/0...250 kcmil Dimension (L*W*H) : 213 Mounting Type : WALL MOUNT

Send Inquiry

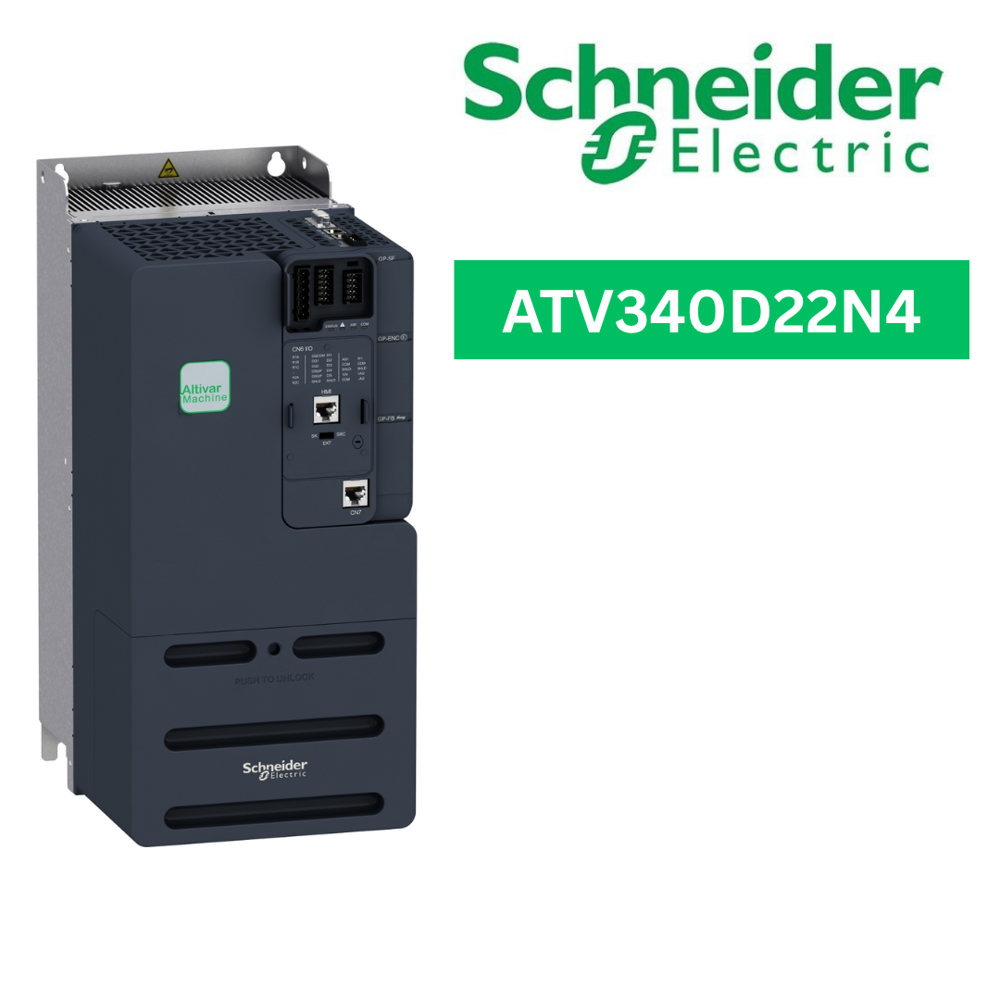

Variable Speed Drive -ATV340D22N4 Price : 74821.76 INR/Piece Minimum Order Quantity : 1 Rated Current : 46 Ampere (amp) IP Rating : IP20 Application : Machine Warranty : 1YEAR Frequency (MHz) : 60 Hertz (HZ) Power Rating : 22K Product Type : Variable speed drive Phase : THREE PHASE Frequency : 58 Weight : 10.2 Kilograms (kg) Rated Voltage : 480 Volt (V) Operating Temperature : 60 Celsius (oC) Output Type : Softwareconfigurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits Connector Type : 1 RJ45 Shape : RECTANGLE Color : BLACK Input Voltage : 380 Volt (V) Connection Type : Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 6...25 mm for motor Screw terminal, clamping capacity: 10...25 mm for line side Screw terminal, clamping capacity: 10...25 mm for DC bus Dimension (L*W*H) : 180 Millimeter (mm) Mounting Type : Cabinet mount

Send Inquiry

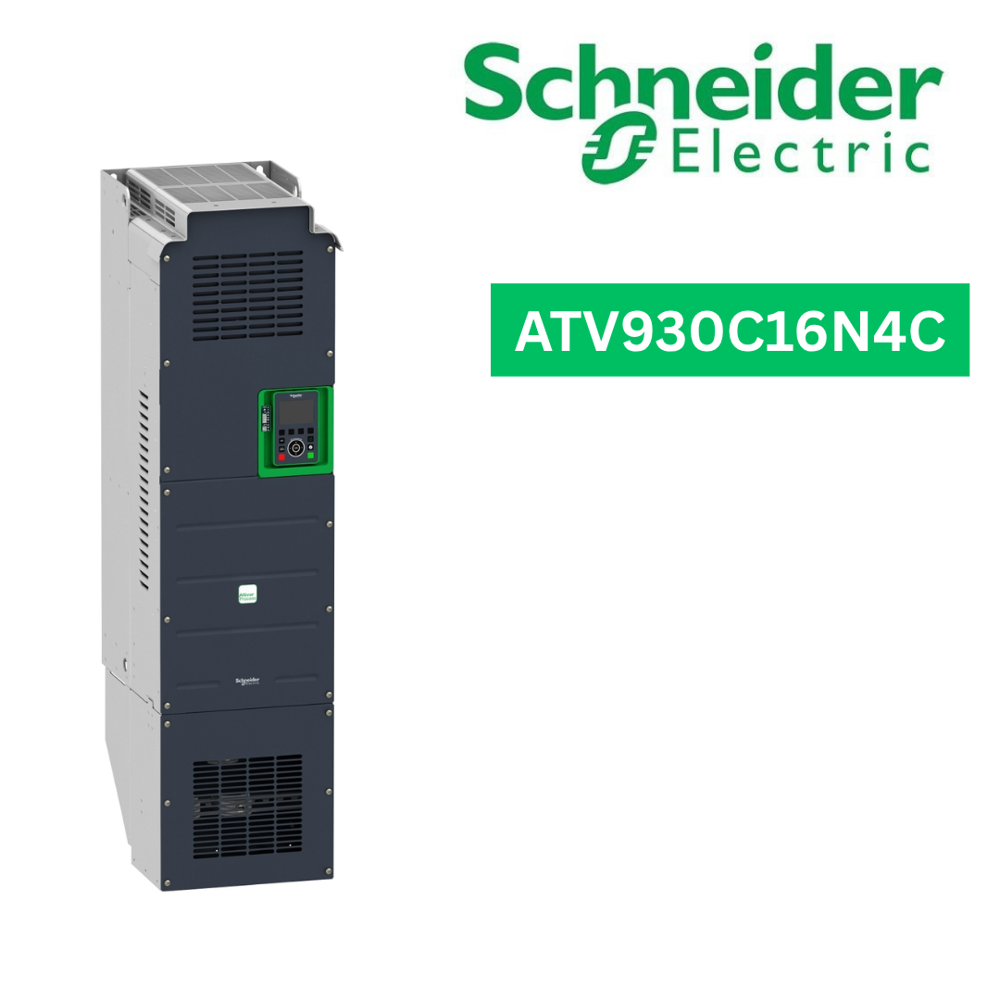

Variable Speed Drive-ATV930C16N4C Price : 401968.0 INR/Piece Minimum Order Quantity : 1 Rated Current : 284 Ampere (amp) IP Rating : IP00 Application : Industrial application Warranty : 1 YEAR Frequency (MHz) : 60 Hertz (HZ) Power Rating : 160KW Product Type : Variable speed drive Phase : 3Phase Frequency : 60 Hertz (HZ) Weight : 82 Kilograms (kg) Rated Voltage : 480 Volt (V) Connector Type : 2 RJ45 1 RJ45 Overheating Protection : YES Input Voltage : 400 Volt (V) Connection Type : Connection diagrams conforming to standards EN 9541 category 1 and IEC/EN 61508 capacity SIL1, stopping category 0 in accordance with standard IEC/EN 602041 Dimension (L*W*H) : 360 Millimeter (mm) Mounting Type : Wall Mount Protection Level : IP67

Send Inquiry

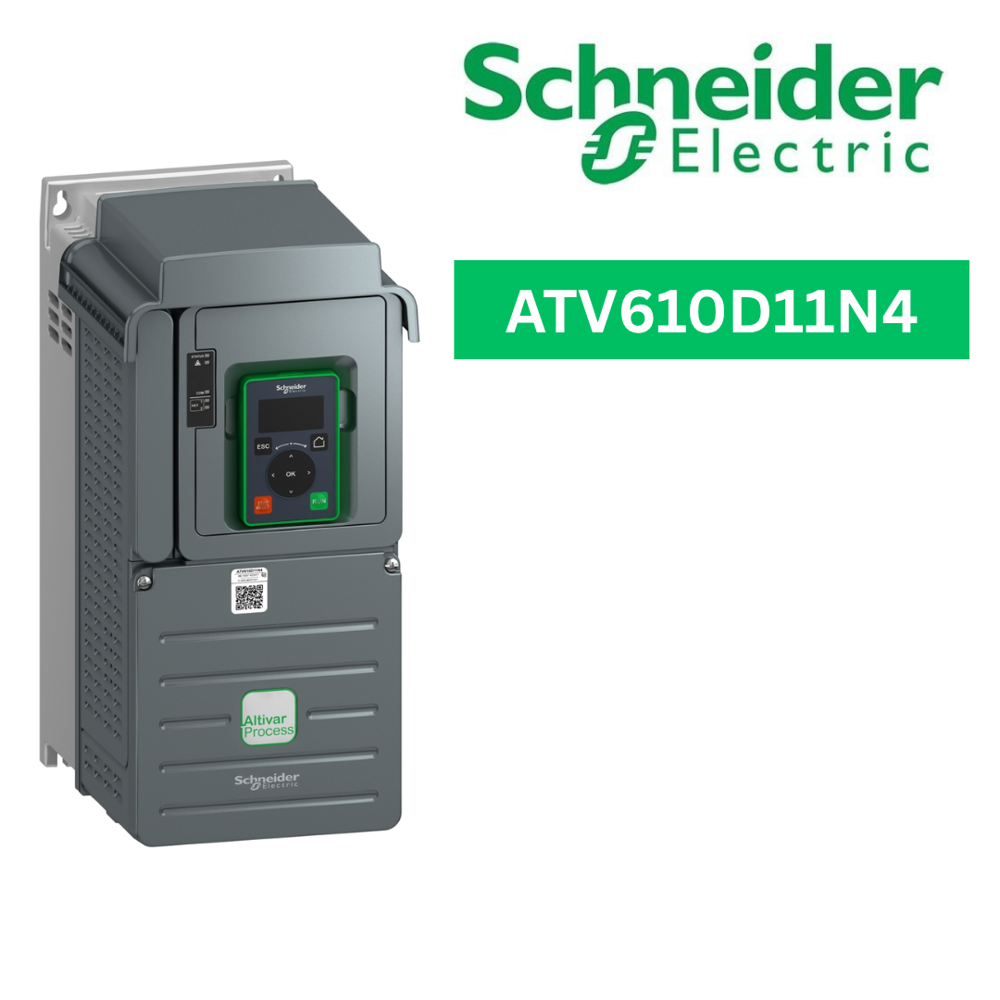

Variable Speed Drive -ATV610D11N4 Price : 45573.12 INR/Piece Minimum Order Quantity : 1 Rated Current : 23 Ampere (amp) IP Rating : IP20 Application : Fan, pump, compressor, conveyor Warranty : 1 YEAR Frequency (MHz) : 60 Hertz (HZ) Power Rating : 11KW Product Type : Variable Speed Drive Phase : 3 PHASE Frequency : 60 Hertz (HZ) Weight : 7.7 Kilograms (kg) Rated Voltage : 415 Volt (V) Operating Temperature : 60 Celsius (oC) Output Type : Softwareconfigurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Softwareconfigurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Connector Type : 1 RJ45 (on the remote graphic terminal) for Modbus serial Shape : RECTANGLE Overheating Protection : YES Input Voltage : 380 Volt (V) Connection Type : Control, screw terminal: 0.5...1.5 mm Line side, screw terminal: 4...16 mm Motor, screw terminal: 4...16 mm Protection Level : Other
