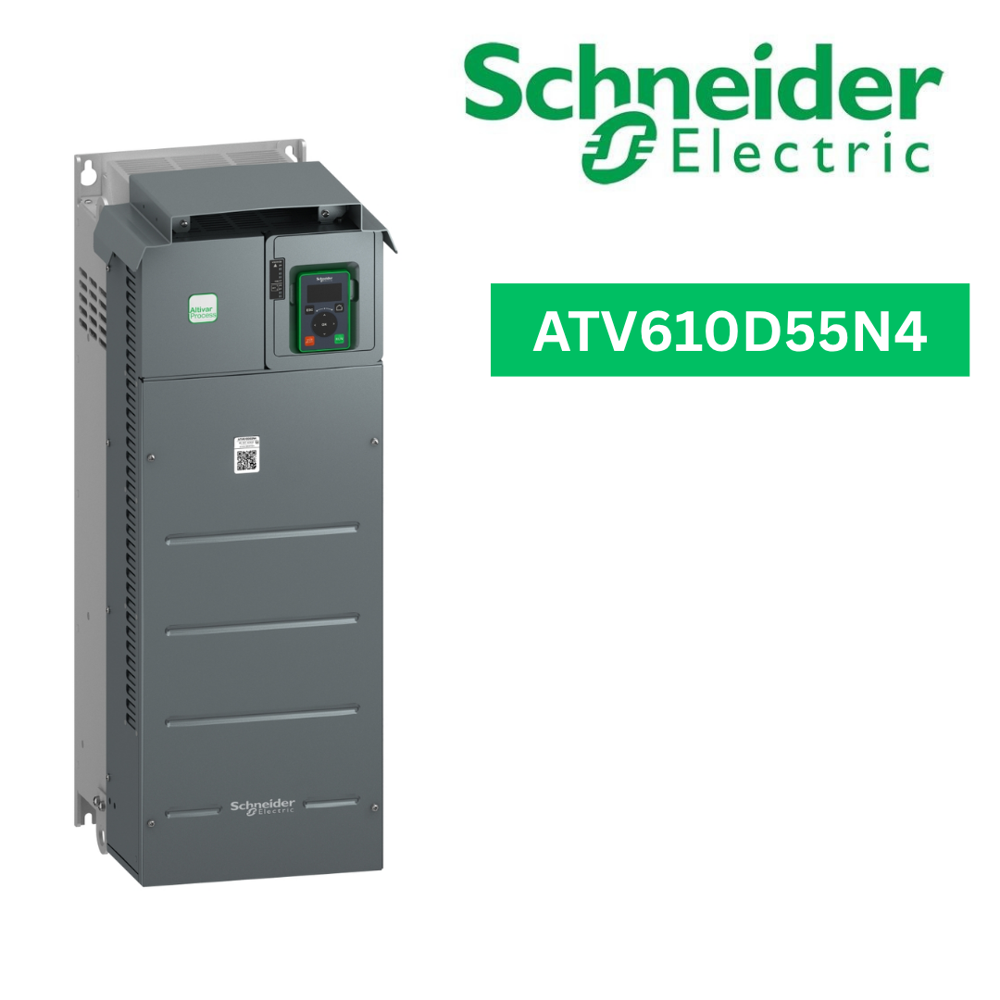

Variable Speed Drive - ATV610D55N4

116060.48 INR/Piece

Get a Price/Quote

Product Details:

Frequency 60 Hertz (HZ)
Warranty 1 YEAR
IP Rating IP20
Rated Voltage 460 Volt (V)
Connector Type 1 RJ45 (on the remote graphic terminal) for Modbus serial
Overheating Protection YES
Phase THREE PHASE
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive - ATV610D55N4 Price And Quantity

Price 116060.48 INR/Piece
Minimum Order Quantity 12 Piece

Variable Speed Drive - ATV610D55N4 Product Specifications

Overheating Protection YES
Phase THREE PHASE
Connector Type 1 RJ45 (on the remote graphic terminal) for Modbus serial
Power Rating 45
Application Fan, pump, compressor, conveyor
Rated Current 132 Ampere (amp)
Connection Type Control, screw terminal: 0.5...1.5 mm Line side, screw terminal: 70...120 mm Motor, screw terminal: 70...120 mm
Dimension (L*W*H) 290 Millimeter (mm)
Protection Level IP54
Frequency 60 Hertz (HZ)
Rated Voltage 460 Volt (V)
Input Voltage 380 Volt (V)
Weight 53 Kilograms (kg)
Frequency (MHz) 60 Hertz (HZ)
Product Type Variable speed drive
IP Rating IP20
Warranty 1 YEAR

Variable Speed Drive - ATV610D55N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 20 Piece Per Week
Delivery Time 4 Days
Sample Available No
Sample Policy Within a certain price range free samples are available
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 55kW / 75hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 45kW / 60hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive products IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 53.7kg and its dimensions are, 290mm wide, 762mm high, 323mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
