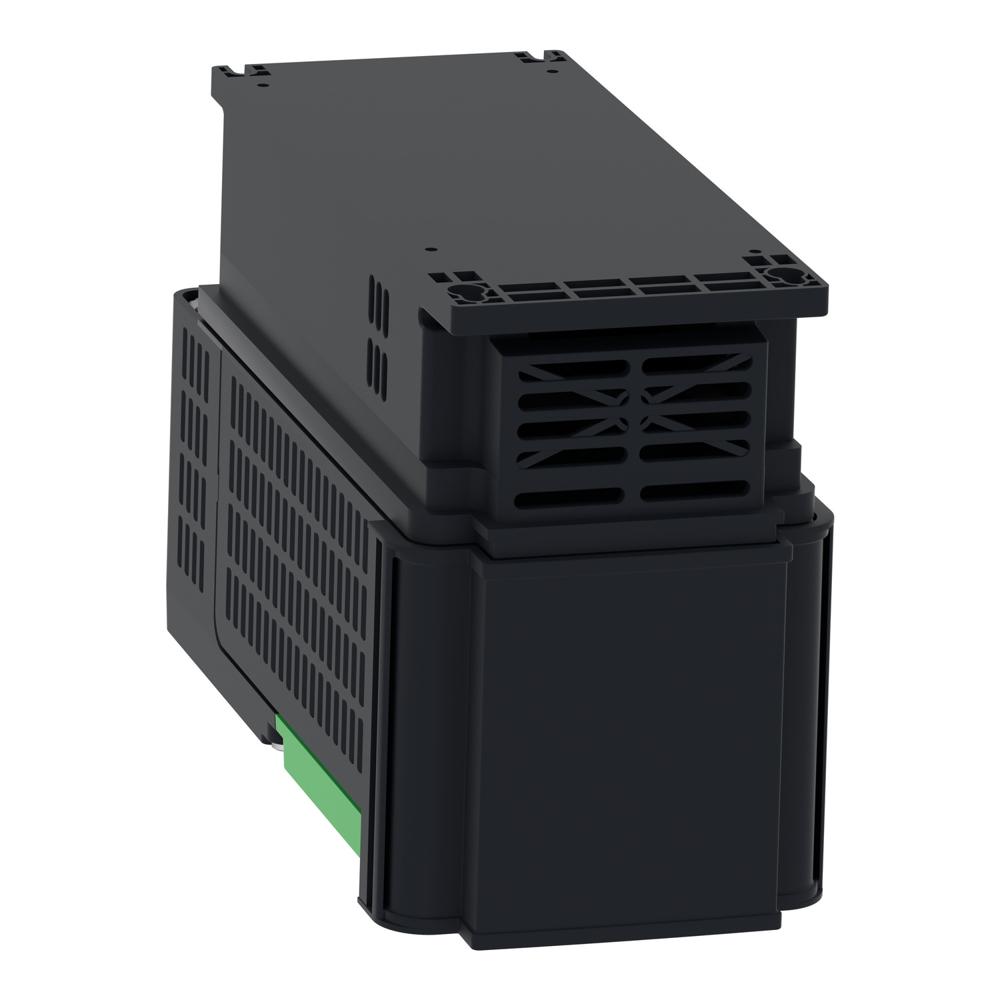

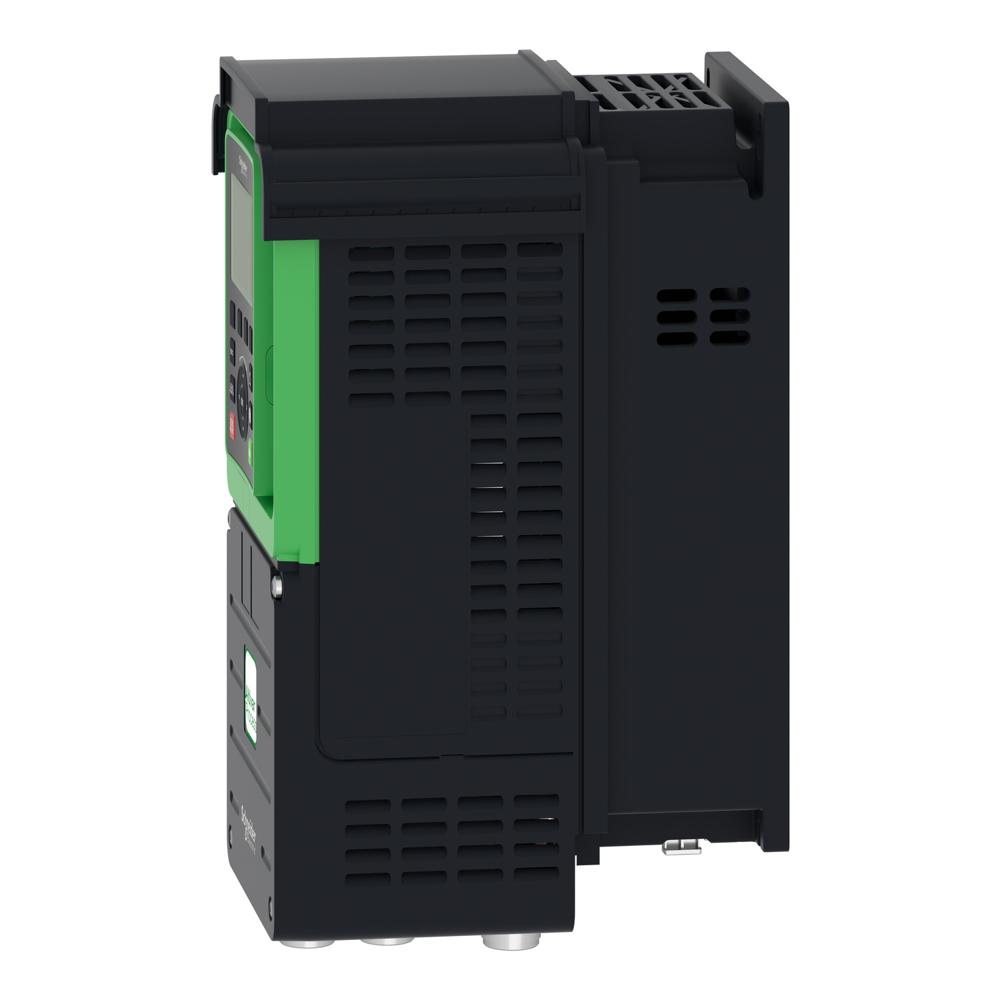

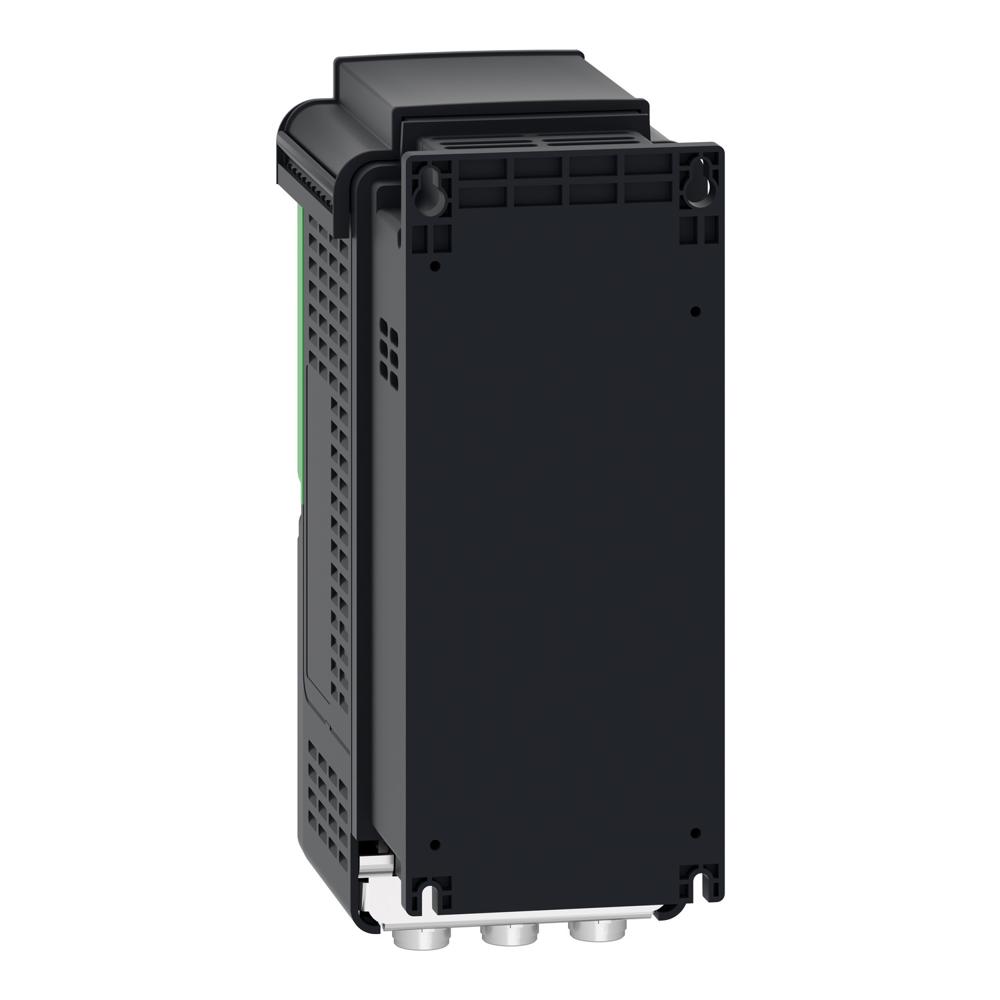

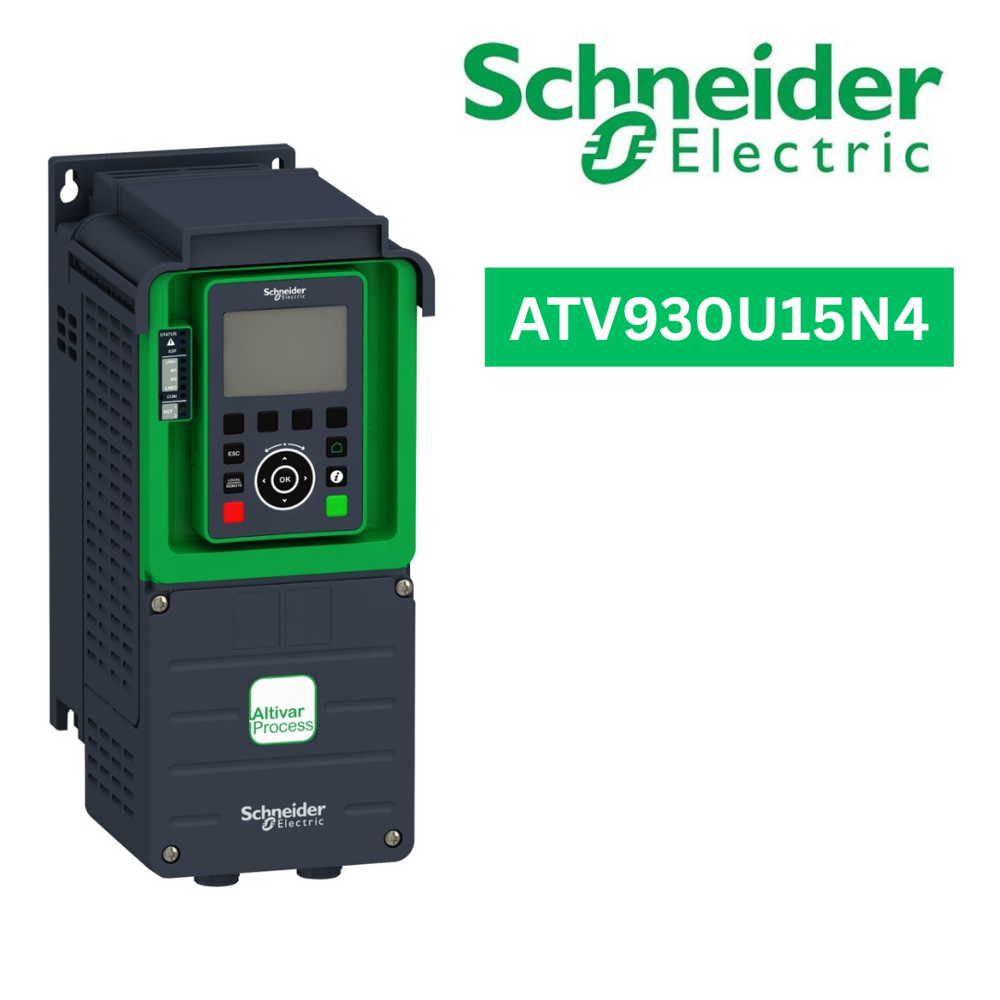

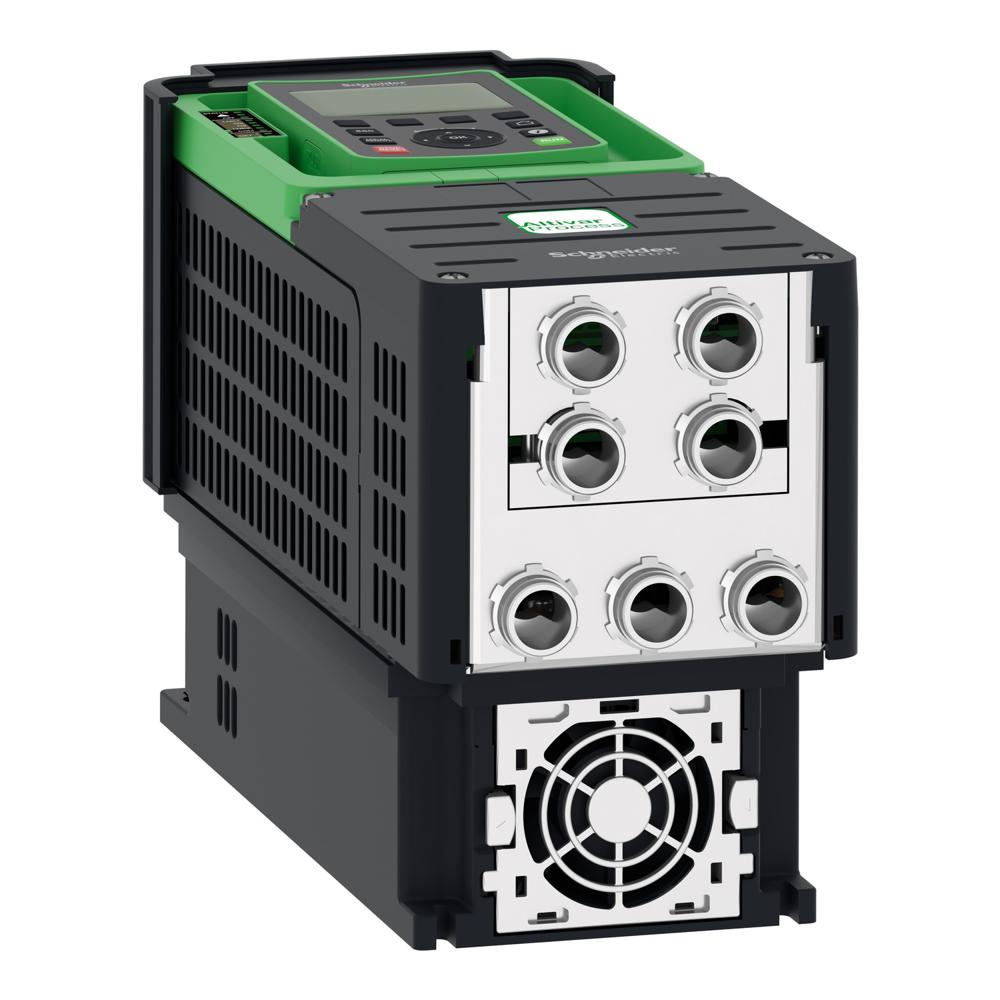

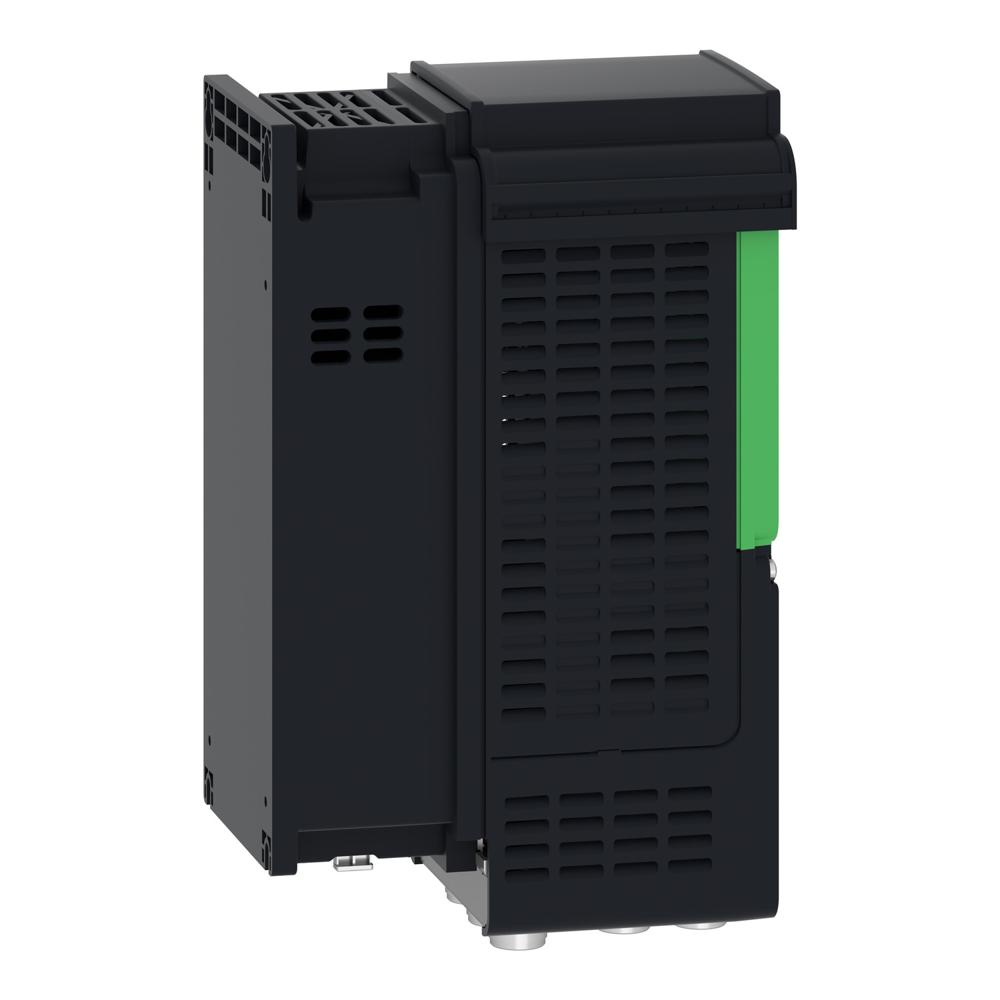

Variable Speed Drive -ATV930U15N4

47547.0 INR/Piece

Get a Price/Quote

Product Details:

Connector Type 2 RJ45 1 RJ45
Rated Current 4 Ampere (amp)
Operating Temperature 60 Celsius (oC)
IP Rating IP21
Shape RECTANGLE
Mounting Type Wall mount
Phase 3 PHASE
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV930U15N4 Price And Quantity

Minimum Order Quantity 1 Piece
Price 47547.0 INR/Piece

Variable Speed Drive -ATV930U15N4 Product Specifications

Warranty 1YEAR
Product Type Variable speed drive
Application Process for industrial
Mounting Type Wall mount
Phase 3 PHASE
Connection Type Control screw terminal 0.5...1.5 mm AWG 20...AWG 16 Line side screw terminal 2.5...6 mm AWG 14...AWG 10 Motor screw terminal 2.5...6 mm AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm AWG 14...AWG 10
IP Rating IP21
Shape RECTANGLE
Weight 9.9 Kilograms (kg)
Output Type Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits Software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Color BLACK
Connector Type 2 RJ45 1 RJ45
Rated Current 4 Ampere (amp)
Operating Temperature 60 Celsius (oC)
Frequency 60 Hertz (HZ)
Power Rating 1.5KW
Frequency (MHz) 60 Hertz (HZ)
Rated Voltage 480 Volt (V)

Variable Speed Drive -ATV930U15N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 20 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 1.5kW/2hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 0.75kW/1hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. It is designed to be mounted in vertical position (+/- 10 ) on a wall.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

Variable Speed Drive -ATV630D90N4 Price : 214382.0 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 60 Hertz (HZ) Application : (fan kit, graphic display terminal) Product Type : Variable speed drive Warranty : 1 YEAR IP Rating : IP21 Rated Voltage : 480 Volt (V) Power Rating : 90kW / 125hp Phase : 3PHASE Operating Temperature : 60 Planck temperature () Frequency : 60 Hertz (HZ) Color : BLACK Weight : 58 Kilograms (kg) Connector Type : RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial Connection Type : removable screw terminals 0.5...1.5 mm /AWG 20...AWG 16 Line side: screw terminal 120 mm /AWG 4/0...250 kcmil Motor: screw terminal 120 mm /250 kcmil Mounting Type : Wall mount Output Type : Softwareconfigurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Softwareconfigurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Softwareconfigurable current DQ, DQ+: 30 V DC Softwareconfigurable current DQ, DQ+: 100 mA Input Voltage : 380 Volt (V) Dimension (L*W*H) : 290 Centimeter (cm)

Send Inquiry

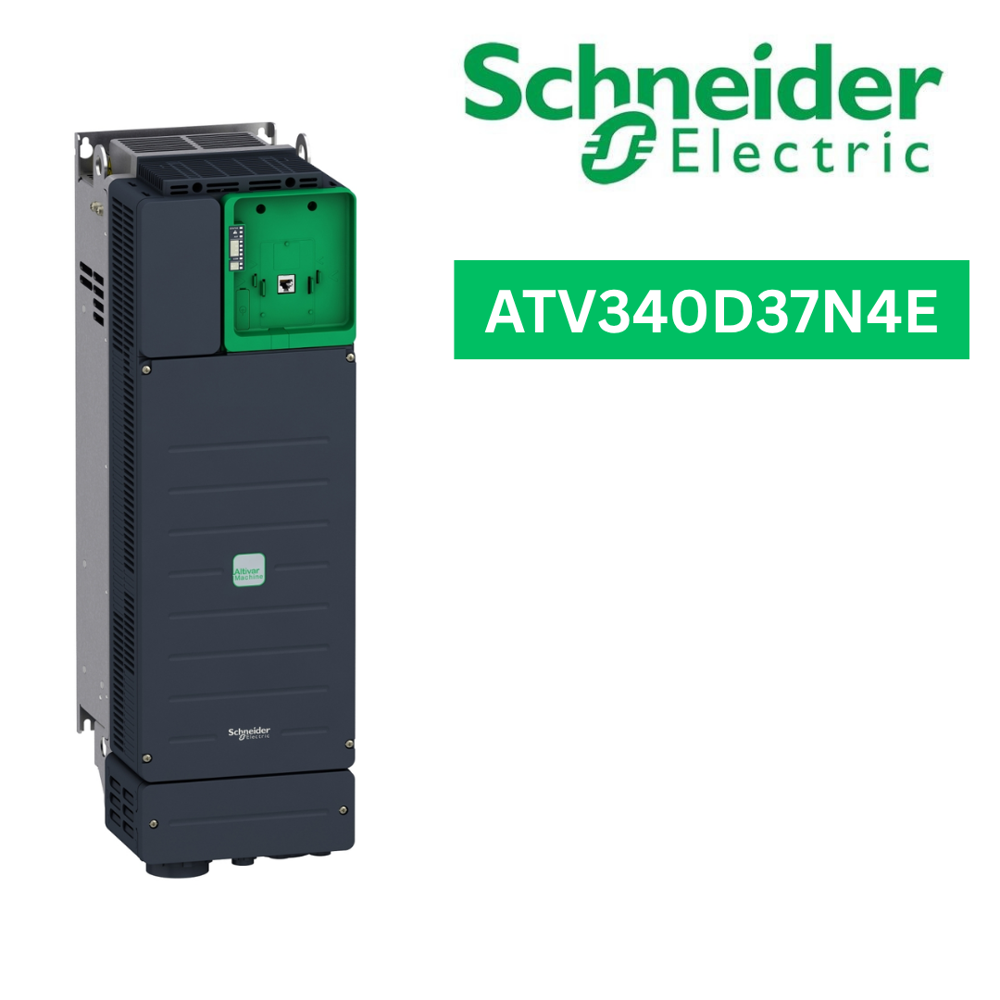

Variable Speed Drive -ATV340D37N4E Price : 119705.28 INR/Piece Minimum Order Quantity : 1 Frequency (MHz) : 60 Hertz (HZ) Application : Machine Product Type : Variable speed drive Warranty : 1YEAR IP Rating : IP20 Rated Voltage : 480 Volt (V) Power Rating : 37KW Phase : THREE PHASE Operating Temperature : 60 Celsius (oC) Frequency : 60 Hertz (HZ) Color : BLACK Rated Current : 74 Ampere (amp) Weight : 28 Kilograms (kg) Connector Type : 3 RJ45 Connection Type : Screw terminal, clamping capacity: 0.75...1.5 mm for control Screw terminal, clamping capacity: 35...50 mm for line side Screw terminal, clamping capacity: 35...50 mm for DC bus Screw terminal, clamping capacity: 50 mm for motor Mounting Type : WALL MOUNT Output Type : Relay outputs R1A Relay outputs R1C electrical durability 100000 cycles Relay outputs R2A Relay outputs R2C electrical durability 100000 cycles Input Voltage : 380 Volt (V) Dimension (L*W*H) : 213 Millimeter (mm) Shape : RECTANGLE
