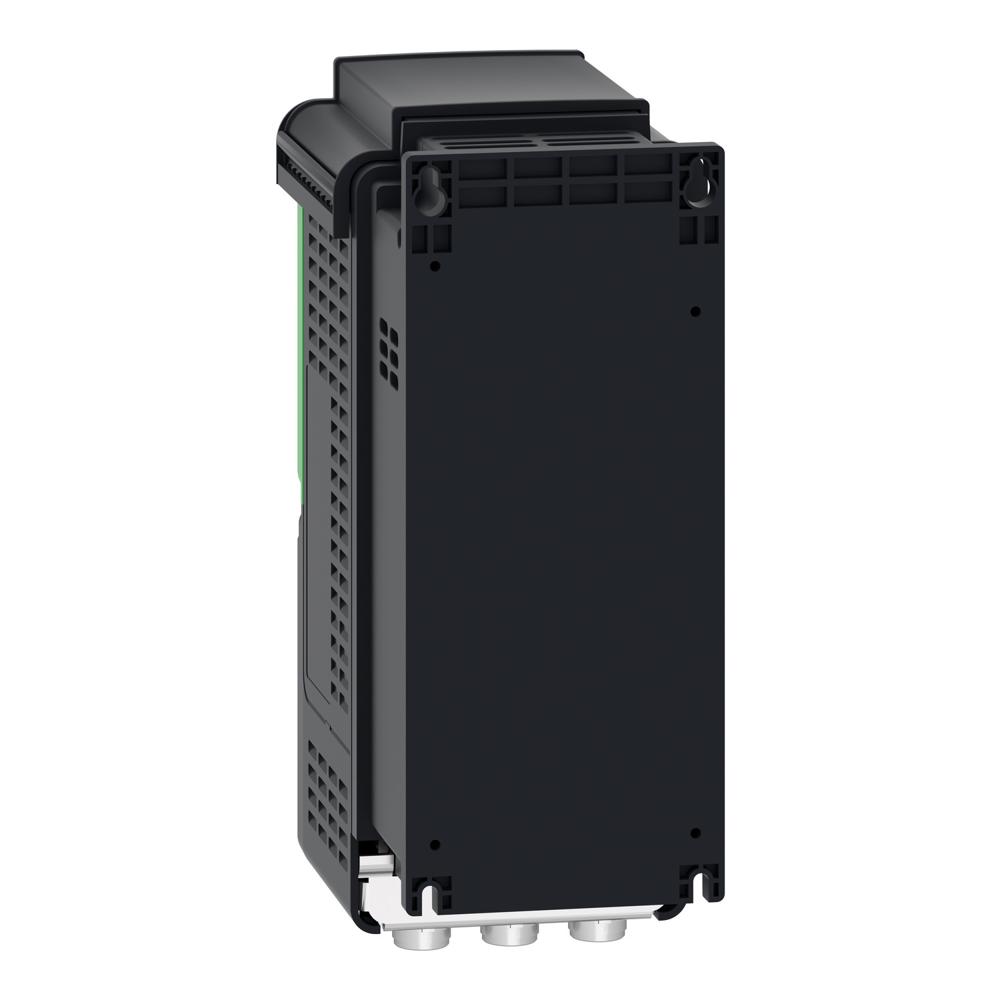

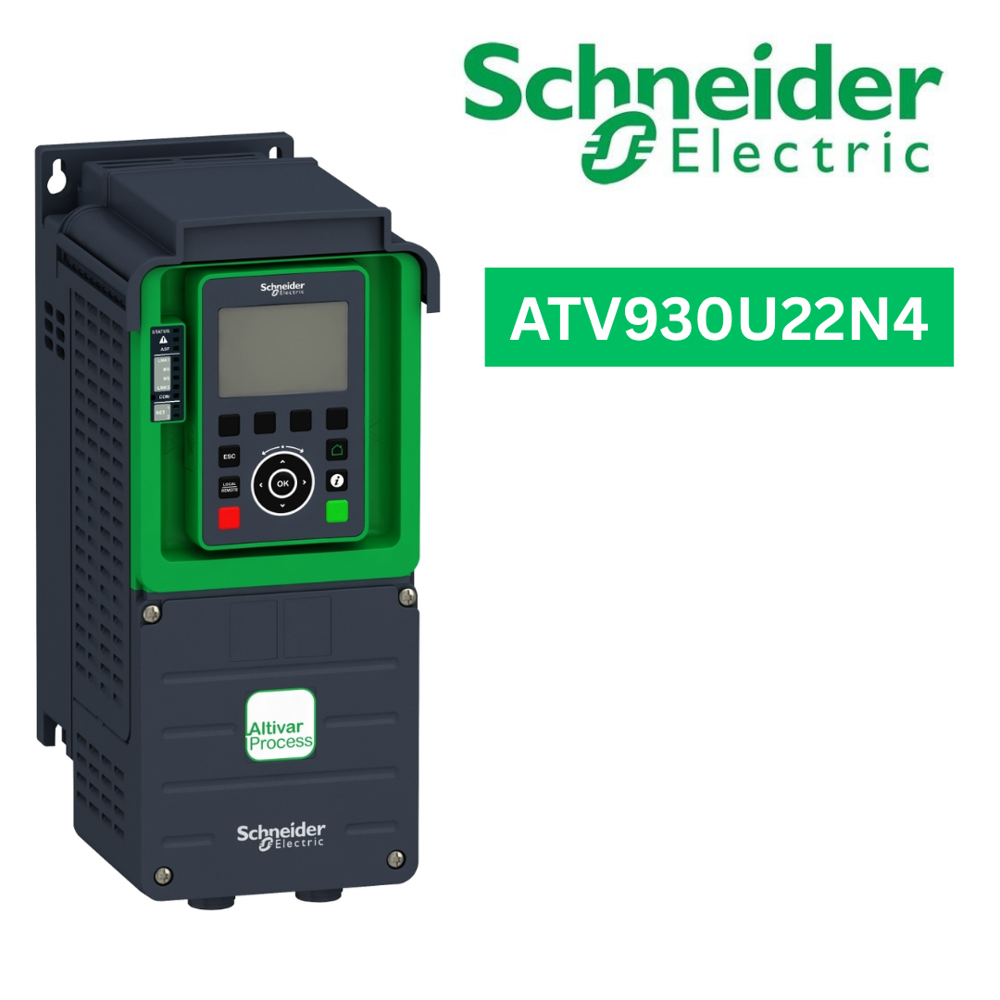

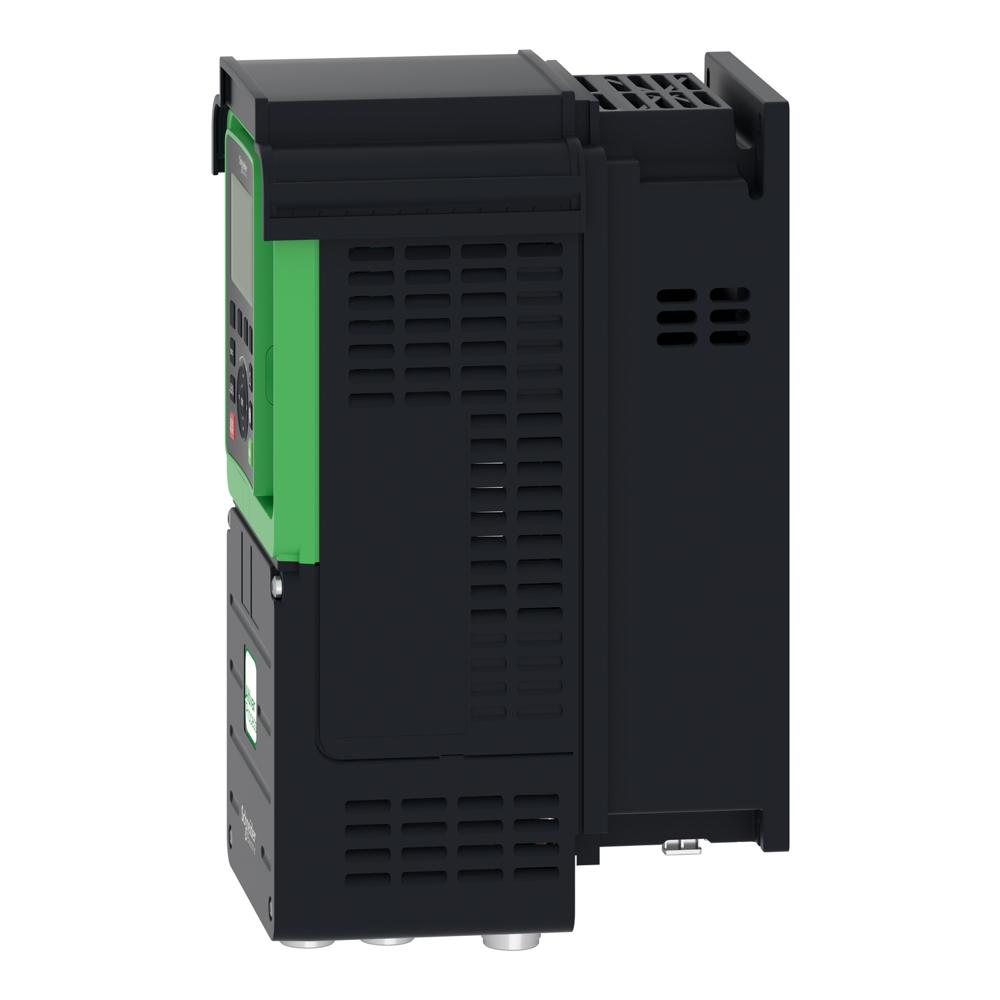

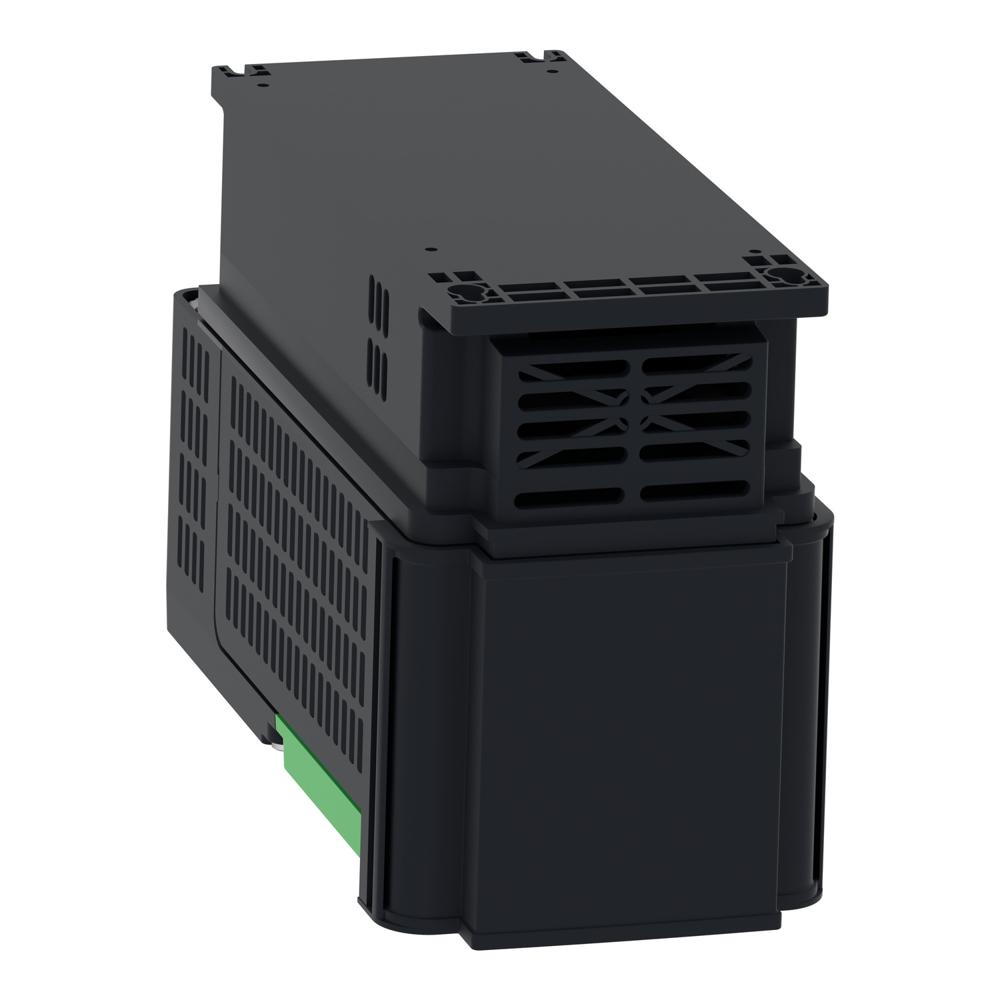

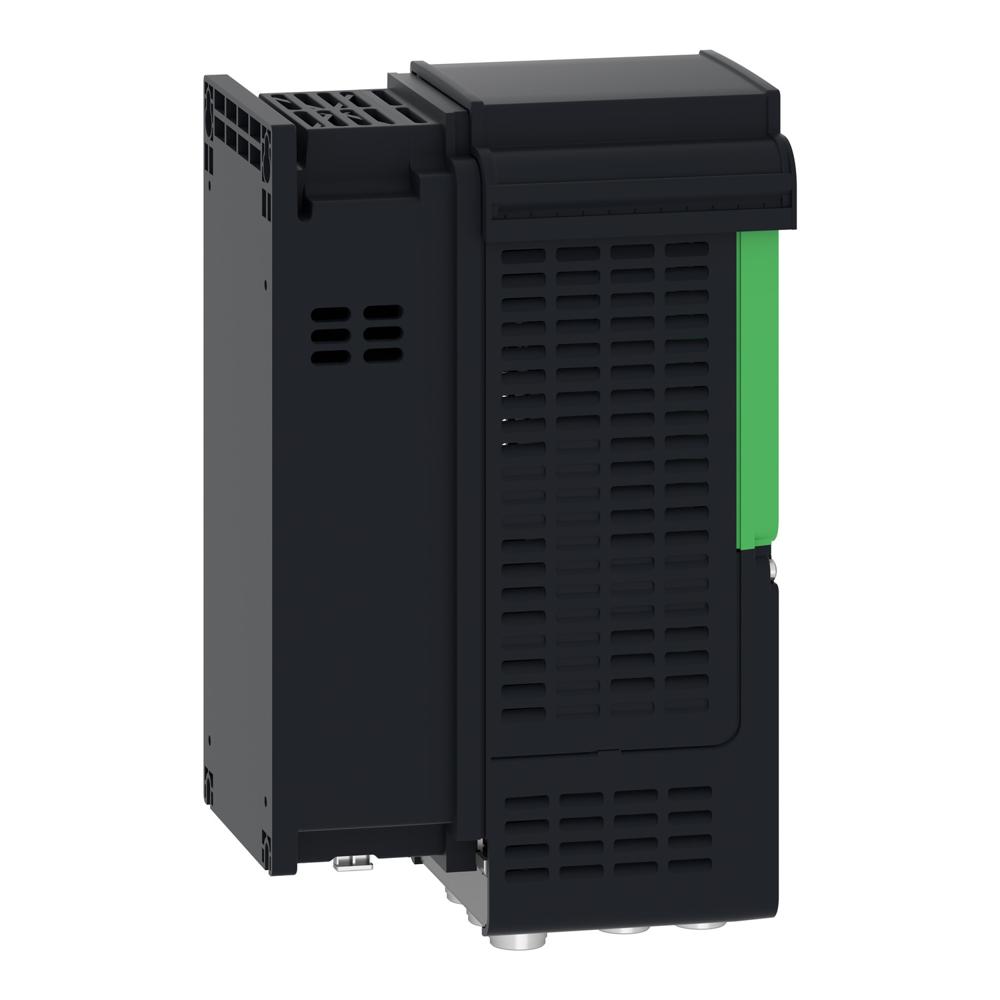

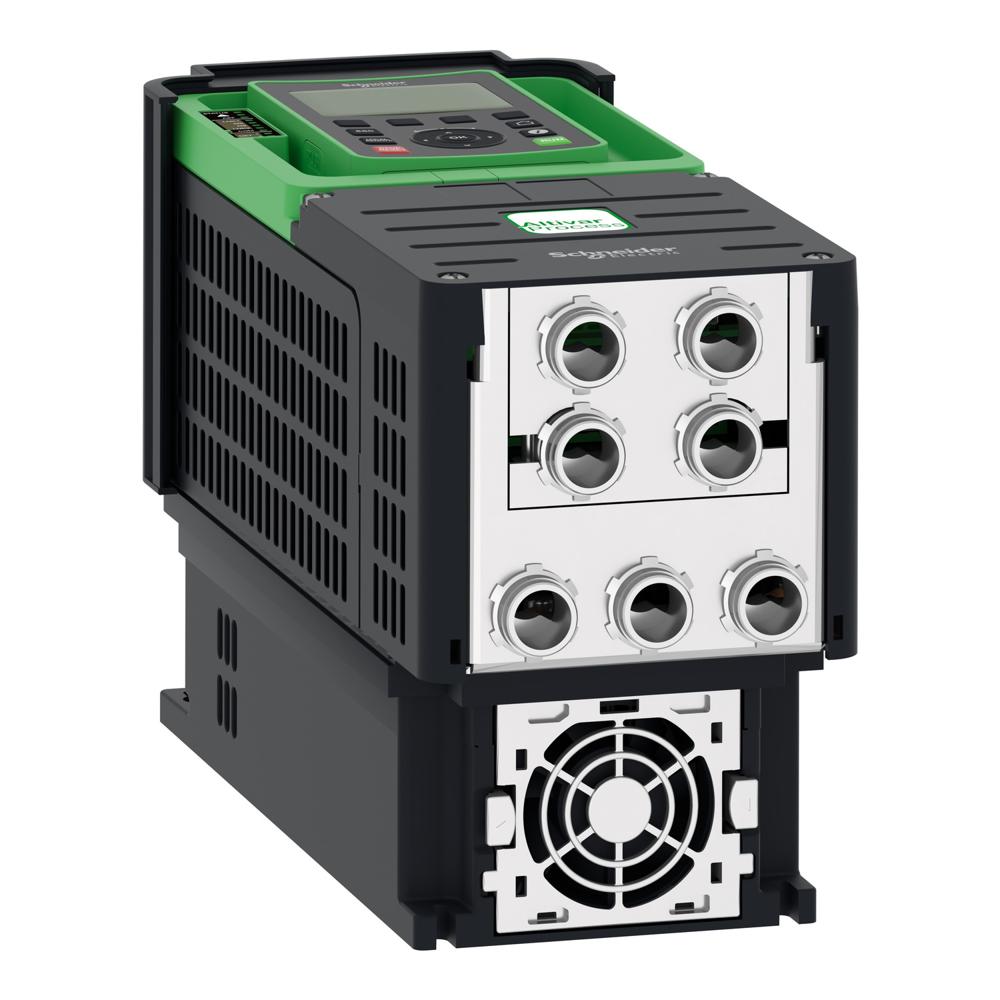

Variable Speed Drive -ATV930U22N4

50049.38 INR/Piece

Get a Price/Quote

Product Details:

Frequency 60 Hertz (HZ)
Connector Type 2 RJ45 1 RJ45
Operating Temperature 70 Celsius (oC)
Power Rating 2.2KW
Phase 3 PHASE
Rated Current 5.6 Ampere (amp)
IP Rating IP21
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV930U22N4 Price And Quantity

Price 50049.38 INR/Piece
Minimum Order Quantity 1 Piece

Variable Speed Drive -ATV930U22N4 Product Specifications

Warranty 1YEAR
Shape RECTANGEL
IP Rating IP21
Product Type Variable speed drive
Rated Current 5.6 Ampere (amp)
Application Process for industrial
Mounting Type WALL MOUNT
Overheating Protection YES
Rated Voltage 480 Volt (V)
Connection Type Control: screw terminal 0.5...1.5 mm /AWG 20...AWG 16 Line side: screw terminal 2.5...6 mm /AWG 14...AWG 10 Motor: screw terminal 2.5...6 mm /AWG 14...AWG 10 DC bus: screw terminal 2.5...6 mm /AWG 14...AWG 10
Operating Temperature 70 Celsius (oC)
Frequency 60 Hertz (HZ)
Connector Type 2 RJ45 1 RJ45
Weight 4.5 Kilograms (kg)
Frequency (MHz) 60 Hertz (HZ)
Phase 3 PHASE
Color BLACK
Power Rating 2.2KW

Variable Speed Drive -ATV930U22N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 20 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details CARTUN WITH RAIP
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 2.2kW/3hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 1.5kW/2hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. It is designed to be mounted in vertical position (+/- 10 ) on a wall.
