Product Video

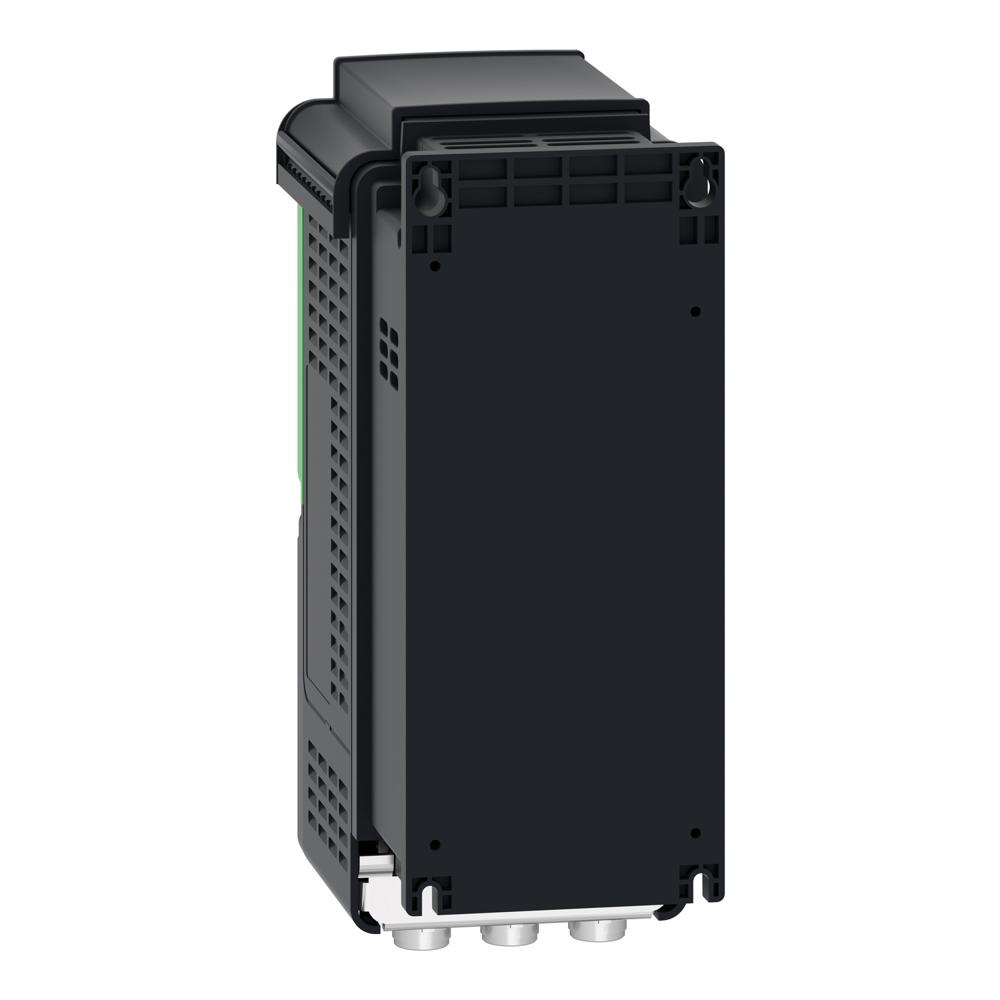

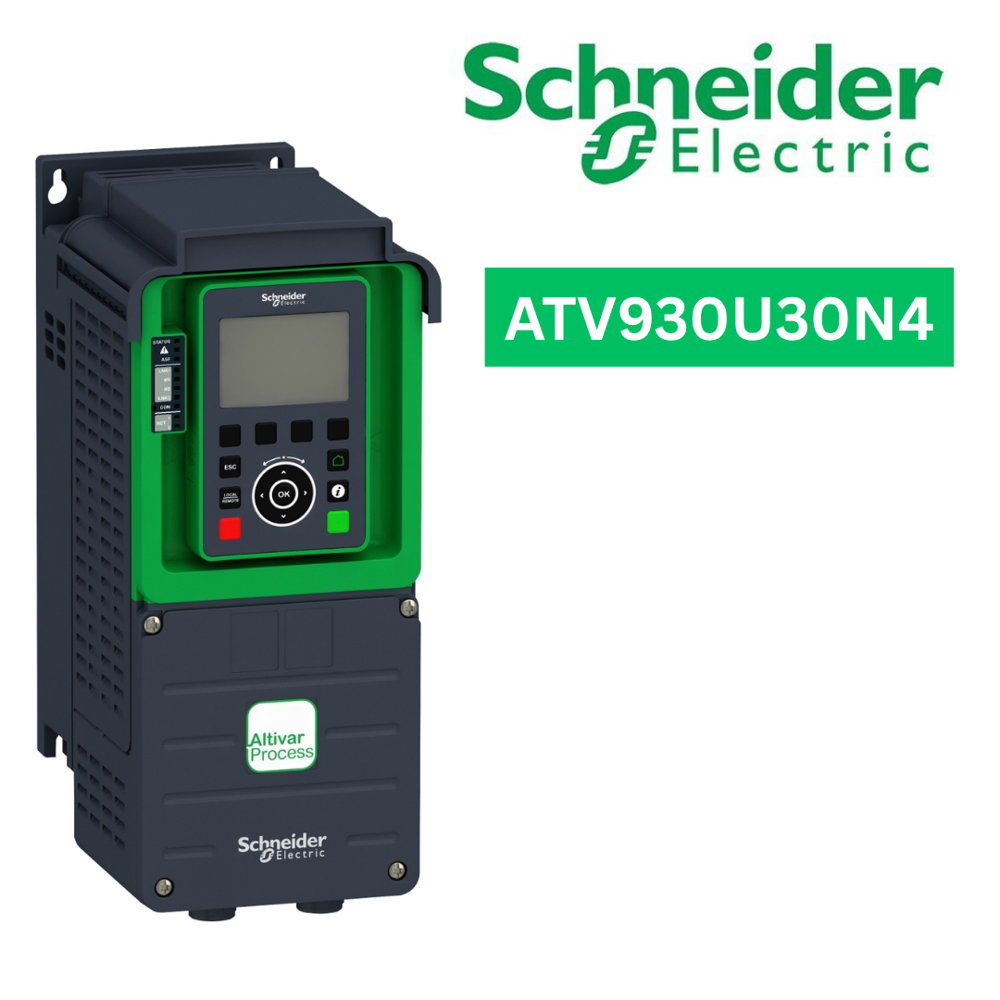

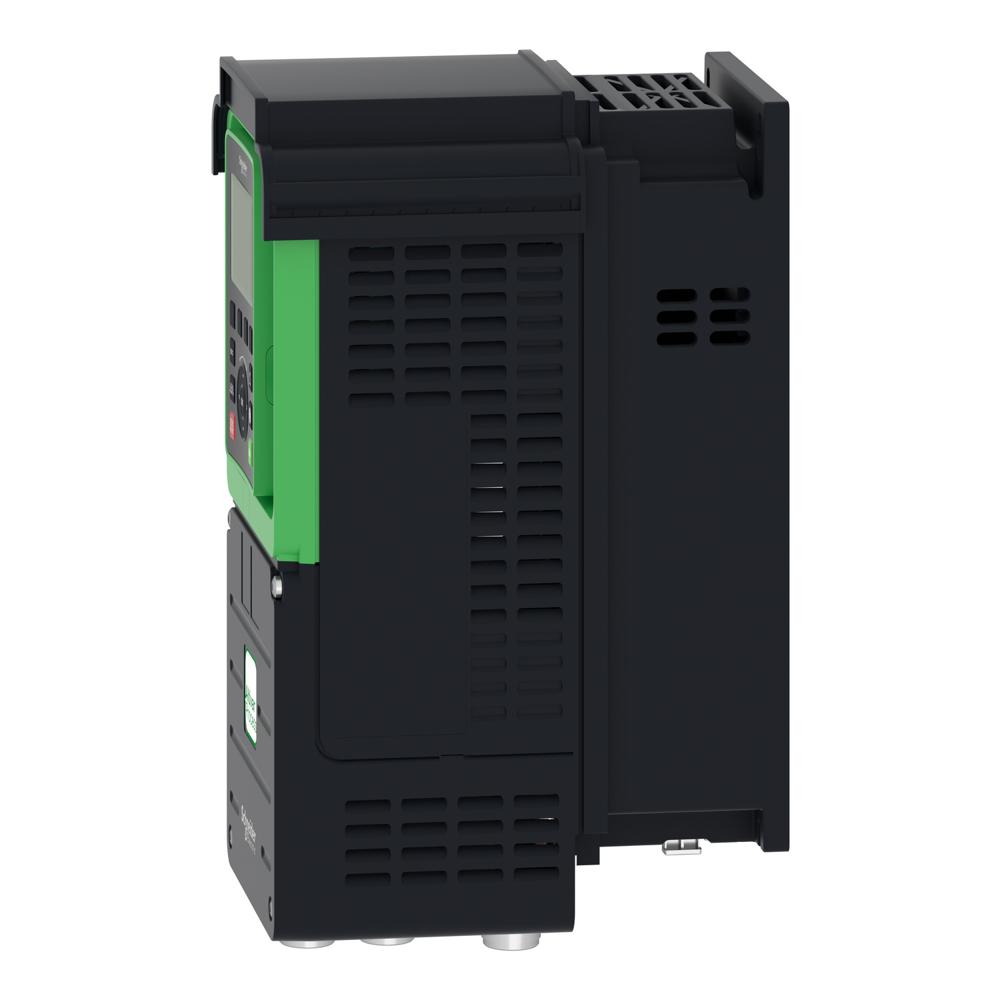

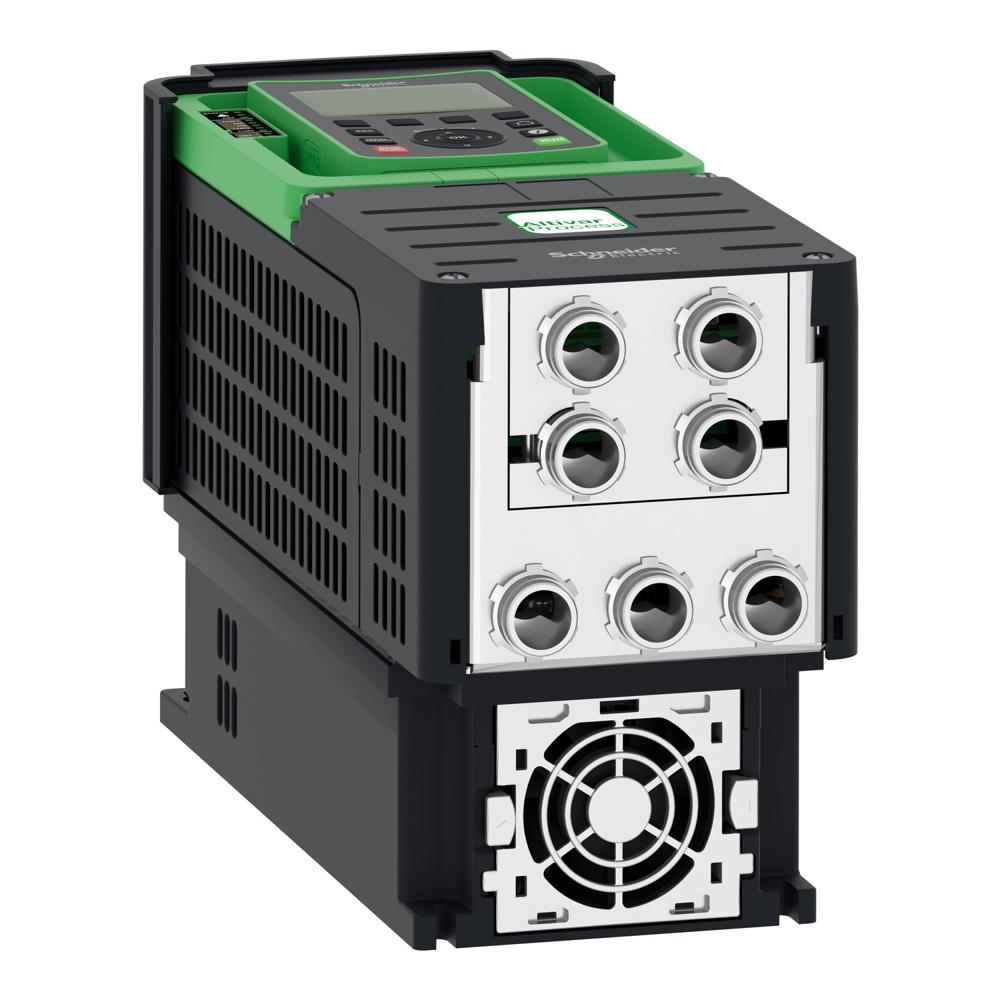

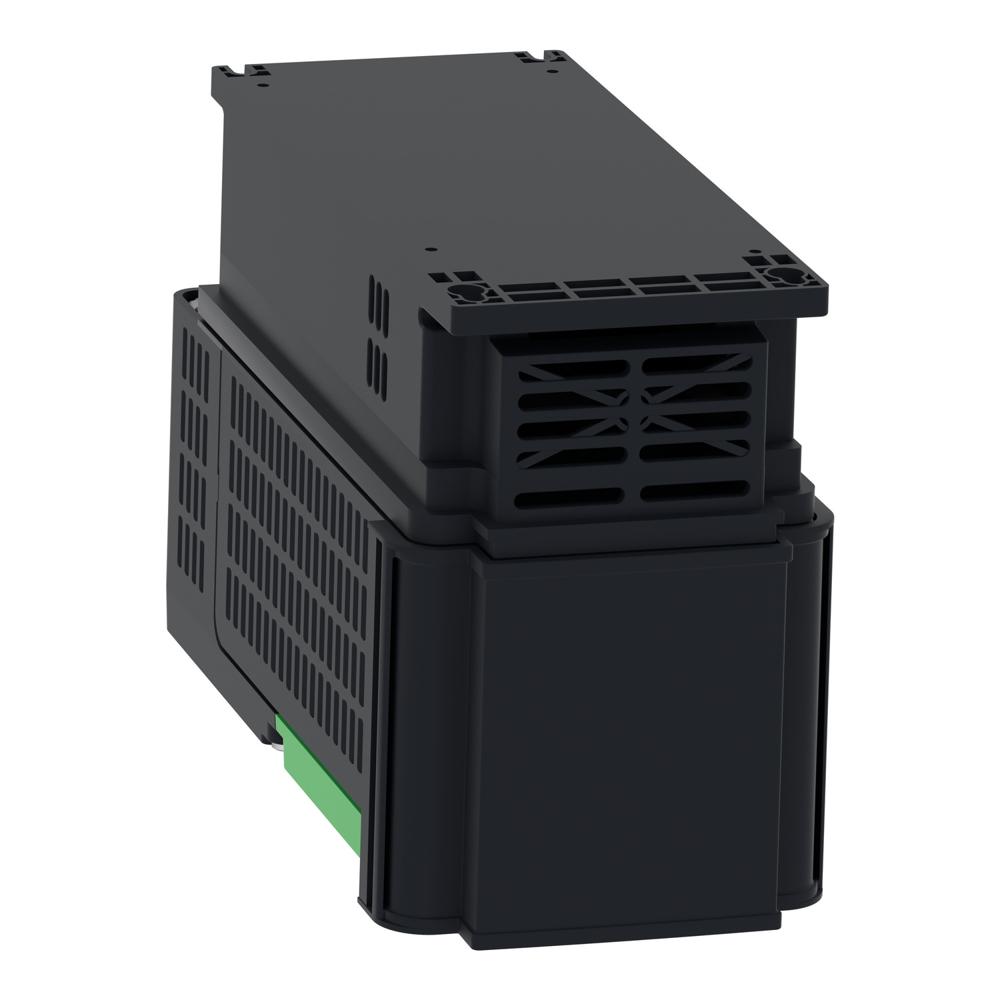

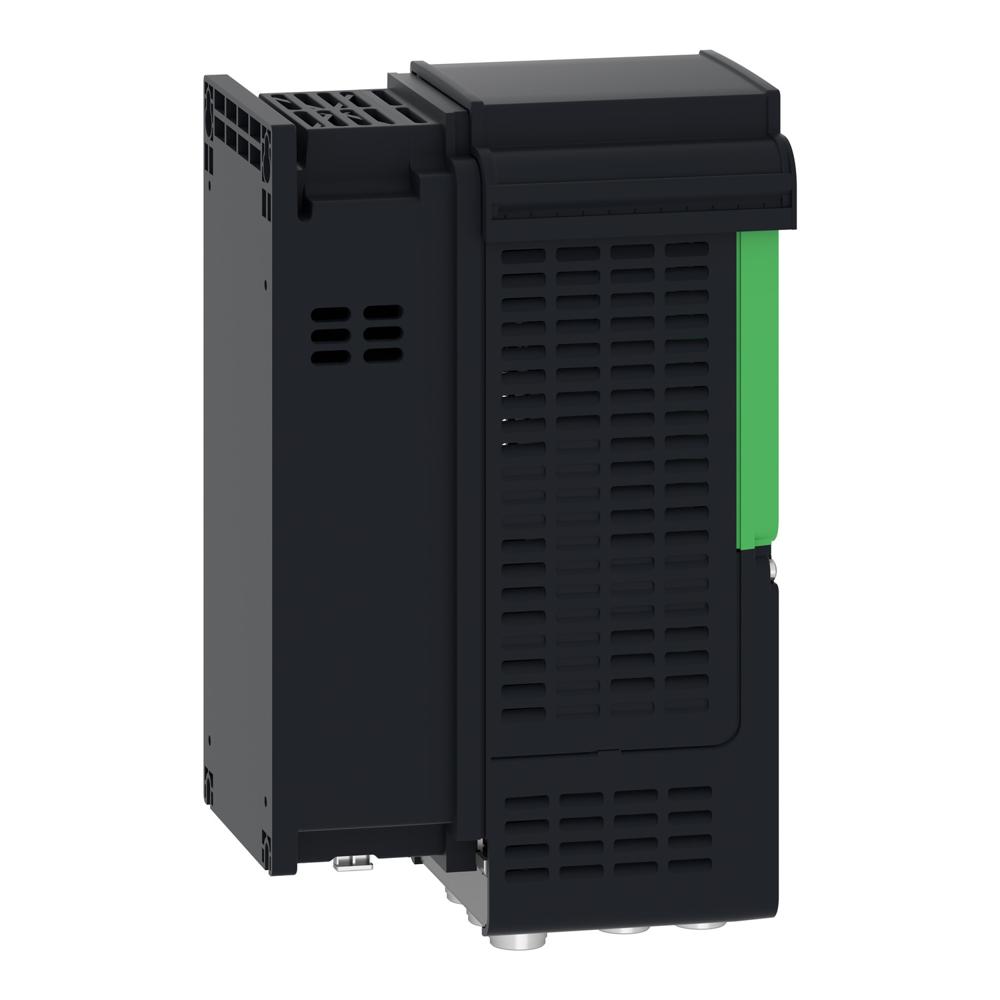

Variable Speed Drive -ATV930U30N4

51299.43 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1YEAR
Rated Current 7.2 Ampere (amp)
Frequency 60 Hertz (HZ)
Shape RECTANGLE
IP Rating IP21
Power Rating 3KW
Mounting Type Wall mount
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive -ATV930U30N4 Price And Quantity

Price 51299.43 INR/Piece
Minimum Order Quantity 1 Piece

Variable Speed Drive -ATV930U30N4 Product Specifications

Frequency (MHz) 60 Hertz (HZ)
Color BLACK
Warranty 1YEAR
Frequency 60 Hertz (HZ)
Rated Current 7.2 Ampere (amp)
Connection Type Control screw terminal 0.5...1.5 mm AWG 20...AWG 16 Line side screw terminal 2.5...6 mm AWG 14...AWG 10 Motor screw terminal 2.5...6 mm AWG 14...AWG 10 DC bus screw terminal 2.5...6 mm AWG 14...AWG 10
Shape RECTANGLE
Output Type Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 1000000 cycles Configurable relay logic R3 sequence relay NO 1000000 cycles
IP Rating IP21
Power Rating 3KW
Phase 3 PHASE
Mounting Type Wall mount
Operating Temperature 70 Celsius (oC)
Rated Voltage 480 Volt (V)
Product Type Variable speed drive
Weight 10 Kilograms (kg)
Application Industrial Application

Variable Speed Drive -ATV930U30N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 30 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 3kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 2.2kW/3hp for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380V to 480V AC. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures. It is designed to be mounted in vertical position (+/- 10 ) on a wall.
