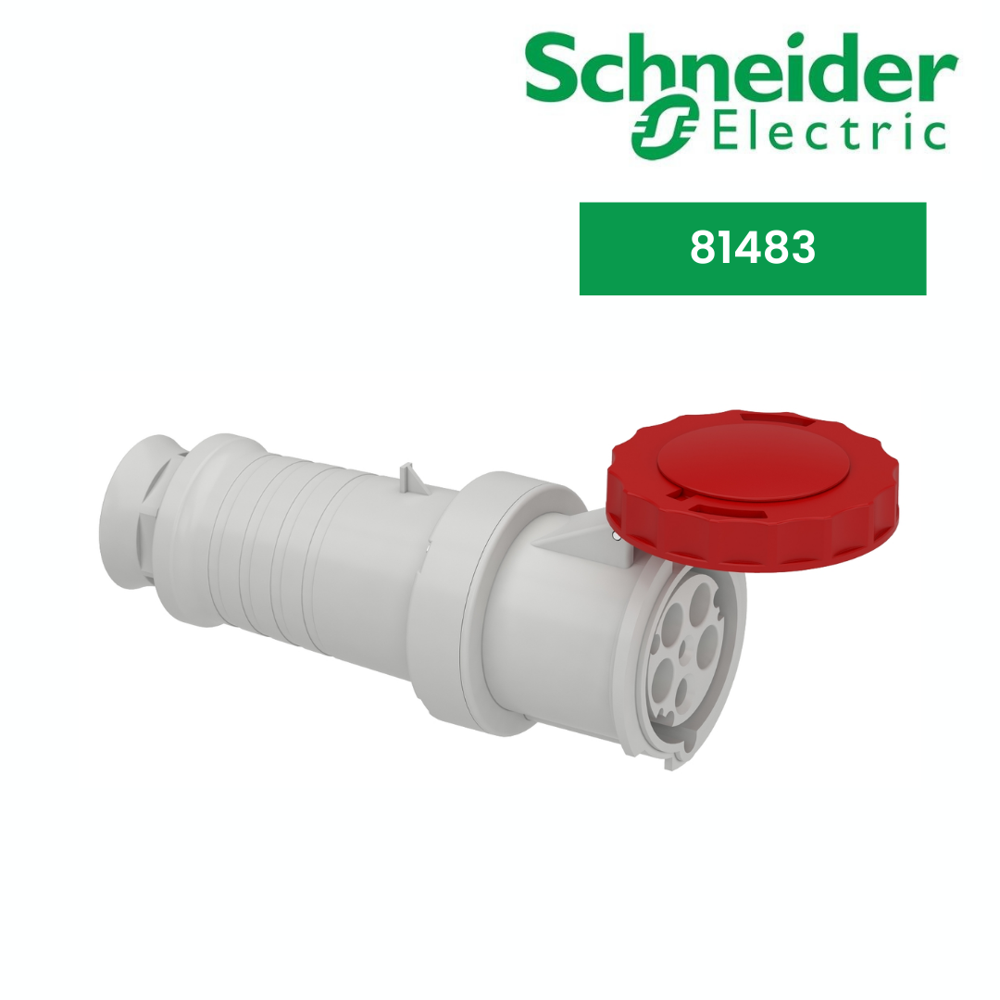

Wander Plug And Socket-81483
2963.04 INR/Piece
Product Details:
- Rated Voltage 380...415 V Volt (V)
- IP Rating IP67
- Operating Temperature -25 40 C Celsius (oC)
- Warranty 1 YEAR
- Frequency 50/60 Hz Hertz (HZ)
- Material Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
- Rated Current 63A Ampere (amp)
- Click to View more
X
Wander Plug And Socket-81483 Price And Quantity
- 2963.04 INR/Piece
- 1 Piece
Wander Plug And Socket-81483 Product Specifications
- The dimensions of the wander socket are (W) 110mm x (H) 110mm. The degree of protection is IP67 and IK08. Millimeter (mm)
- 1 YEAR
- -25 40 C Celsius (oC)
- Wander socket
- Captive screws
- 50/60 Hz Hertz (HZ)
- 0.783 kg Kilograms (kg)
- Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
- 63A Ampere (amp)
- 50/60 Hz Hertz (HZ)
- 380...415 V Volt (V)
- IP67
- IP67
- Grey (RAL 7035)
Wander Plug And Socket-81483 Trade Information
- Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
- 32 Piece Per Week
- 4 Days
- Yes
- RAIP WITH CARTUN
- Asia
- All India
Product Description
This PratiKa industrial wander socket with captive screws connection is straight. It has 3P+N+E pole, rated current is 63A and the operating voltage is 380VAC to 415VAC. The dimensions of the wander socket are (W) 110mm x (H) 110mm. The degree of protection is IP67 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm to 25mm cables. The color of the socket is grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
