Wander Plug And Socket-PKE32M435

545.0 INR/Piece

Get a Price/Quote

Product Details:

Frequency 50Hz or 60Hz Hertz (HZ)
Operating Temperature -25 40 C Celsius (oC)
Overheating Protection YES
IP Rating IP44
Rated Voltage 400V Volt (V)
Material Housing: self-extinguishing engineering polymer
Rated Current 32 A Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKE32M435 Price And Quantity

Minimum Order Quantity 1 Piece
Price 545.0 INR/Piece

Wander Plug And Socket-PKE32M435 Product Specifications

Weight 0.25 kg Kilograms (kg)
Frequency (MHz) 50Hz or 60Hz Hertz (HZ)
Color Grey (RAL 7035)
Overheating Protection YES
Dimension (L*W*H) The dimensions of the base plate are (W) 86mm x (H) 160mm. The degree of protection is IP44 and IK08 Millimeter (mm)
Operating Temperature -25 40 C Celsius (oC)
Connection Type Captive screws
Frequency 50Hz or 60Hz Hertz (HZ)
Warranty 1 YEAR
Rated Current 32 A Ampere (amp)
Rated Voltage 400V Volt (V)
Material Housing: self-extinguishing engineering polymer
Protection Level Other
Product Type Wander plug
IP Rating IP44

Wander Plug And Socket-PKE32M435 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cheque, Cash in Advance (CID)
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

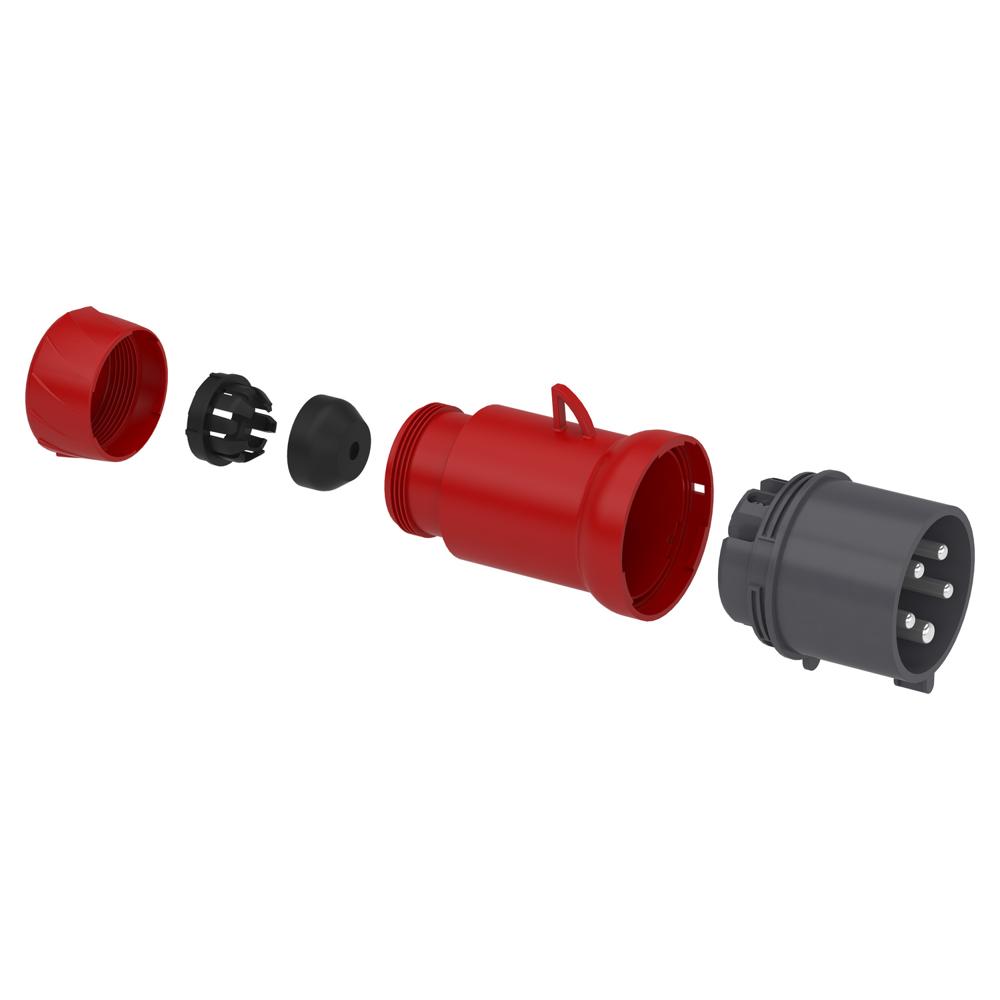

This Pratika industrial wander plug with captive screws connection is straight. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 86mm x (H) 160mm. The degree of protection is IP44 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm to 10mm cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
