Product Video

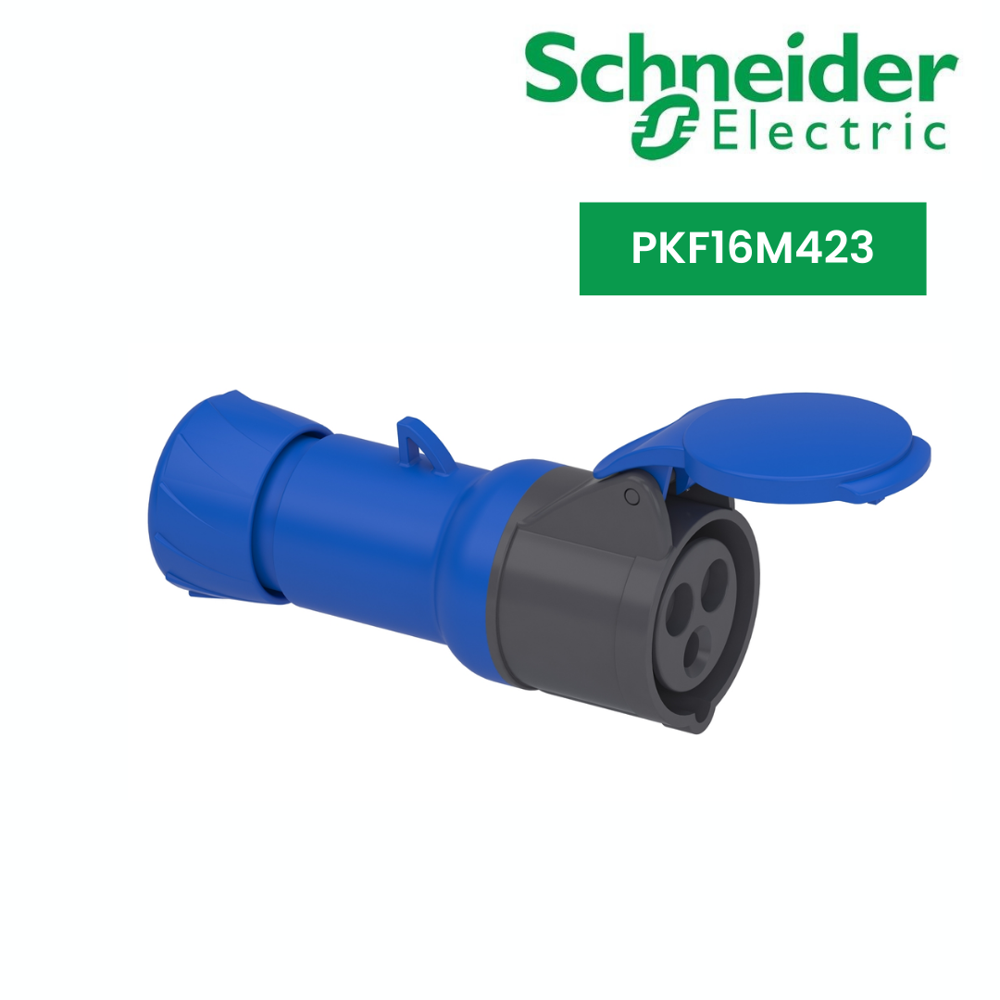

Wander Plug And Socket-PKF16M423

423.36 INR/Piece

Get a Price/Quote

Product Details:

Warranty 1 YEAR
Material Housing: self-extinguishing engineering polymer
Frequency 50/60 Hz Hertz (HZ)
Overheating Protection YES
Rated Voltage 200V Volt (V)
IP Rating IP44
Rated Current 16 A Ampere (amp)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKF16M423 Price And Quantity

Price 423.36 INR/Piece
Minimum Order Quantity 1 Piece

Wander Plug And Socket-PKF16M423 Product Specifications

Overheating Protection YES
Frequency 50/60 Hz Hertz (HZ)
Warranty 1 YEAR
Material Housing: self-extinguishing engineering polymer
Frequency (MHz) 50/60 Hz Hertz (HZ)
Product Type Wander socket
Operating Temperature -25 40 C Celsius (oC)
Rated Current 16 A Ampere (amp)
Weight 0.16 kg Kilograms (kg)
IP Rating IP44
Rated Voltage 200V Volt (V)
Dimension (L*W*H) The dimensions of the base plate are (W) 78mm x (H) 78mm. The degree of protection is IP44 and IK08. Millimeter (mm)
Connection Type Captive screws
Protection Level Other

Wander Plug And Socket-PKF16M423 Trade Information

Payment Terms Cash in Advance (CID), Paypal, Cash Advance (CA), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Pratika industrial wander socket with captive screws connection is straight. It has 2P+E poles, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 78mm x (H) 78mm. The degree of protection is IP44 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm to 4mm cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
