Product Video

Wander Plug And Socket-PKF32M435

711.0 INR/Piece

Get a Price/Quote

Product Details:

Material Sleeves: brass
Rated Current 32 A Ampere (amp)
Rated Voltage 380V Volt (V)
Overheating Protection YES
Operating Temperature 35 C Celsius (oC)
Frequency 50/60 Hz Hertz (HZ)
Warranty 1 YEAR
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wander Plug And Socket-PKF32M435 Price And Quantity

Minimum Order Quantity 1 Piece
Price 711.0 INR/Piece

Wander Plug And Socket-PKF32M435 Product Specifications

Rated Voltage 380V Volt (V)
Product Type Wander socket
Frequency (MHz) 50/60 Hz Hertz (HZ)
Material Sleeves: brass
Rated Current 32 A Ampere (amp)
Protection Level Other
Overheating Protection YES
Operating Temperature 35 C Celsius (oC)
Weight 0.3 kg Kilograms (kg)
Connection Type Captive screws
Dimension (L*W*H) The dimensions of the base plate are (W) 106mm x (H) 106mm. The degree of protection is IP44 and IK08 Millimeter (mm)
Frequency 50/60 Hz Hertz (HZ)
IP Rating IP44
Warranty 1 YEAR

Wander Plug And Socket-PKF32M435 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 2 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

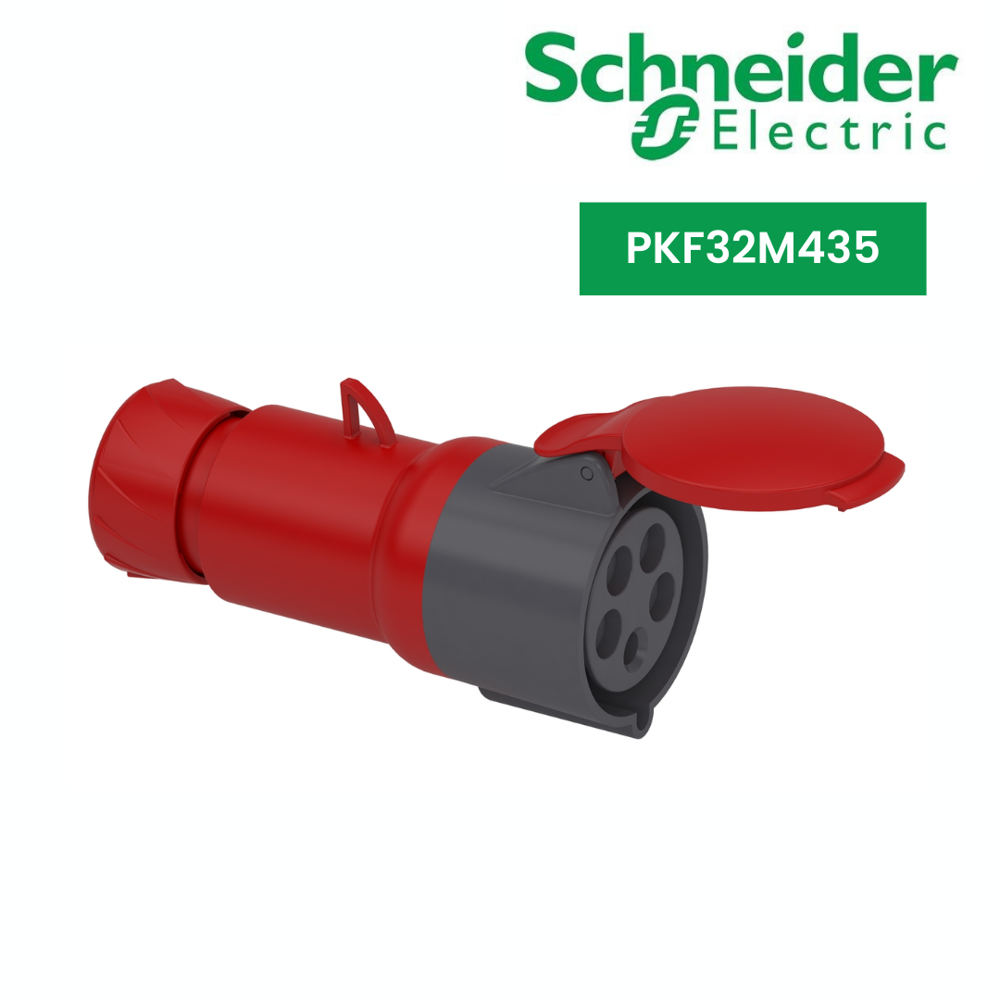

This Pratika industrial wander socket with captive screws connection is straight. It has 3P+N+E poles, rated current is 32A and the operating voltage is 380VAC to 415VAC. The dimensions of the base plate are (W) 106mm x (H) 106mm. The degree of protection is IP44 and IK08. The fire resistance is 850C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 11.5mm to 21mm for 2.5mm to 10mm cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
