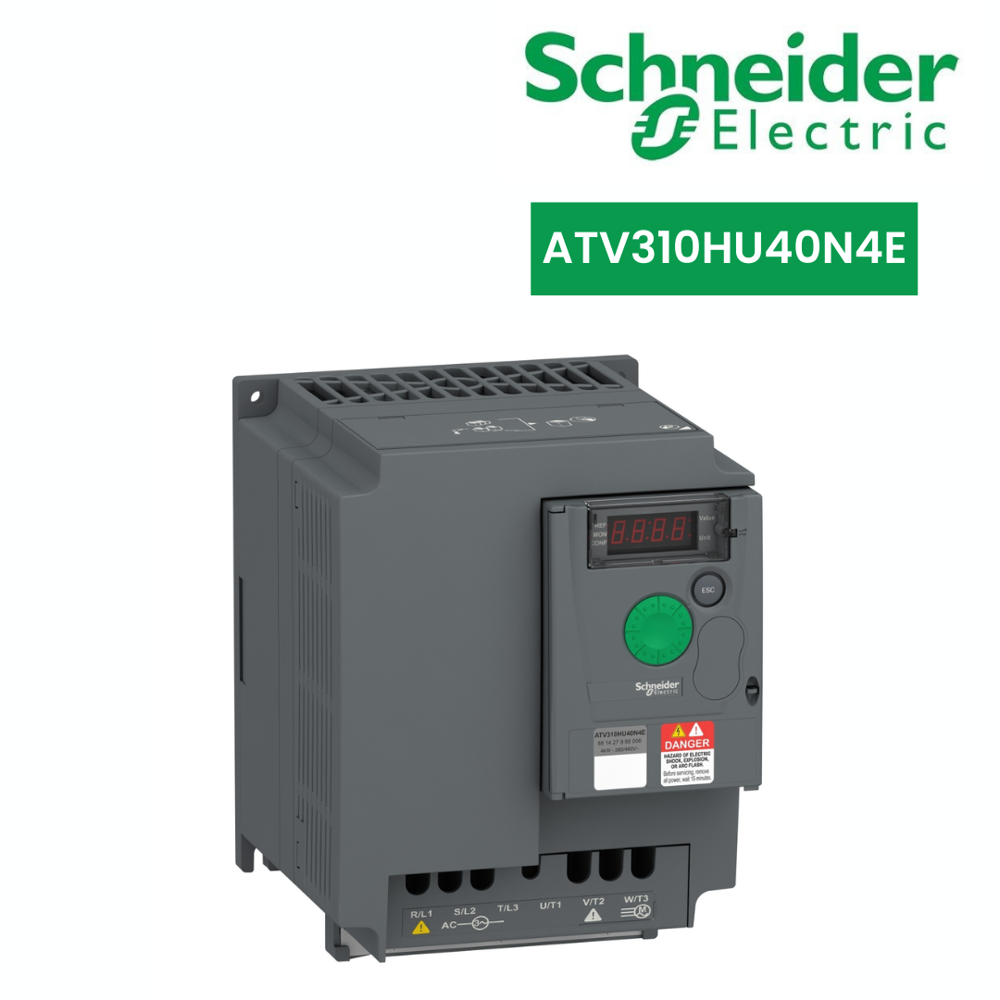

Variable Speed Drive-ATV310HU40N4E

18201.28 INR/Piece

Get a Price/Quote

Product Details:

Material Substances
Usage & Applications Simple machine
Rated Voltage 380...460 V Volt (V)
IP Rating IP20
Warranty 1 YEAR
Operating Temperature -10 55 C Celsius (oC)
Connector Type RJ45 (on front face) for Modbus
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive-ATV310HU40N4E Price And Quantity

Price 18201.28 INR/Piece
Minimum Order Quantity 1 Piece

Variable Speed Drive-ATV310HU40N4E Product Specifications

Overheating Protection YES
Connection Type Terminal, clamping capacity: 2.5...4 mm , AWG 14...AWG 12 (L1, L2, L3, PA/+, PB, U, V, W)
Product Type Variable speed drive
Frequency 50/60 Hz +/- 5 % Hertz (HZ)
Rated Current 5 mA Megaampere ( MA)
Dimension (L*W*H) It weighs 1.8kg and its dimensions are, 140mm wide, 184mm high, 151mm deep. This drive incorporates functions that are suitable for the most common applications Millimeter (mm)
Warranty 1 YEAR
Output Type Logic output LO+, LO- Protected relay output R1A, R1B, R1C 1 C/O
Application Simple machine
Operating Temperature -10 55 C Celsius (oC)
Frequency (MHz) 50/60 Hz +/- 5 % Hertz (HZ)
Connector Type RJ45 (on front face) for Modbus
Usage & Applications Simple machine
Weight 1.8 kg Kilograms (kg)
Rated Voltage 380...460 V Volt (V)
IP Rating IP20
Material Substances

Variable Speed Drive-ATV310HU40N4E Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 32 Piece Per Week
Delivery Time 4 Days
Sample Available Yes
Packaging Details RAIP WITH CARTUN
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

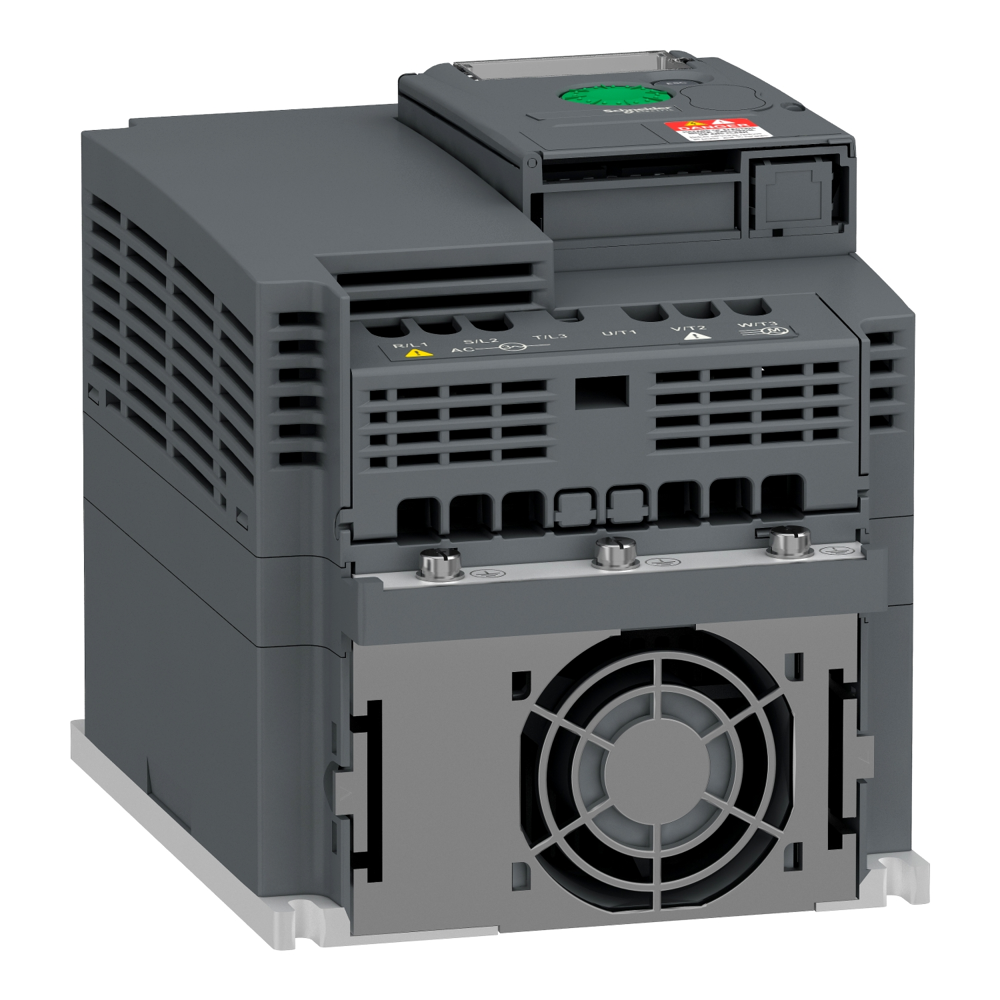

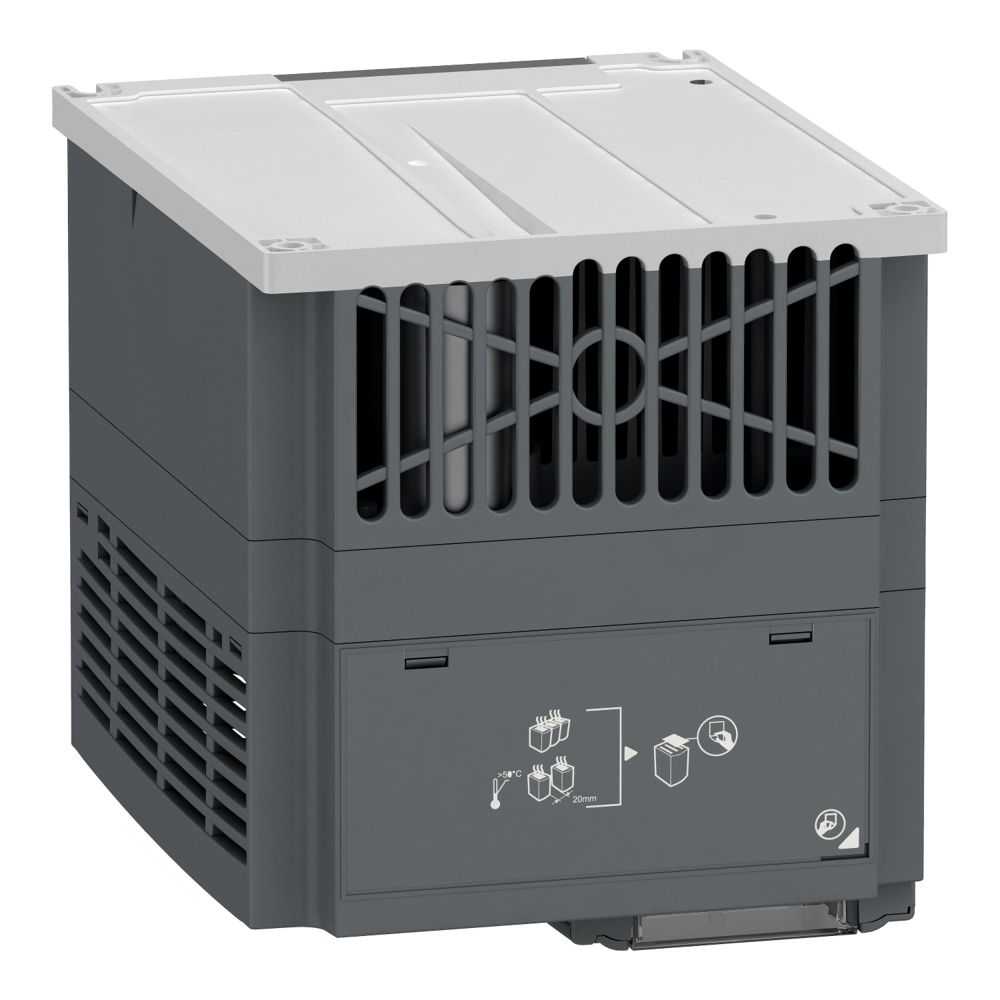

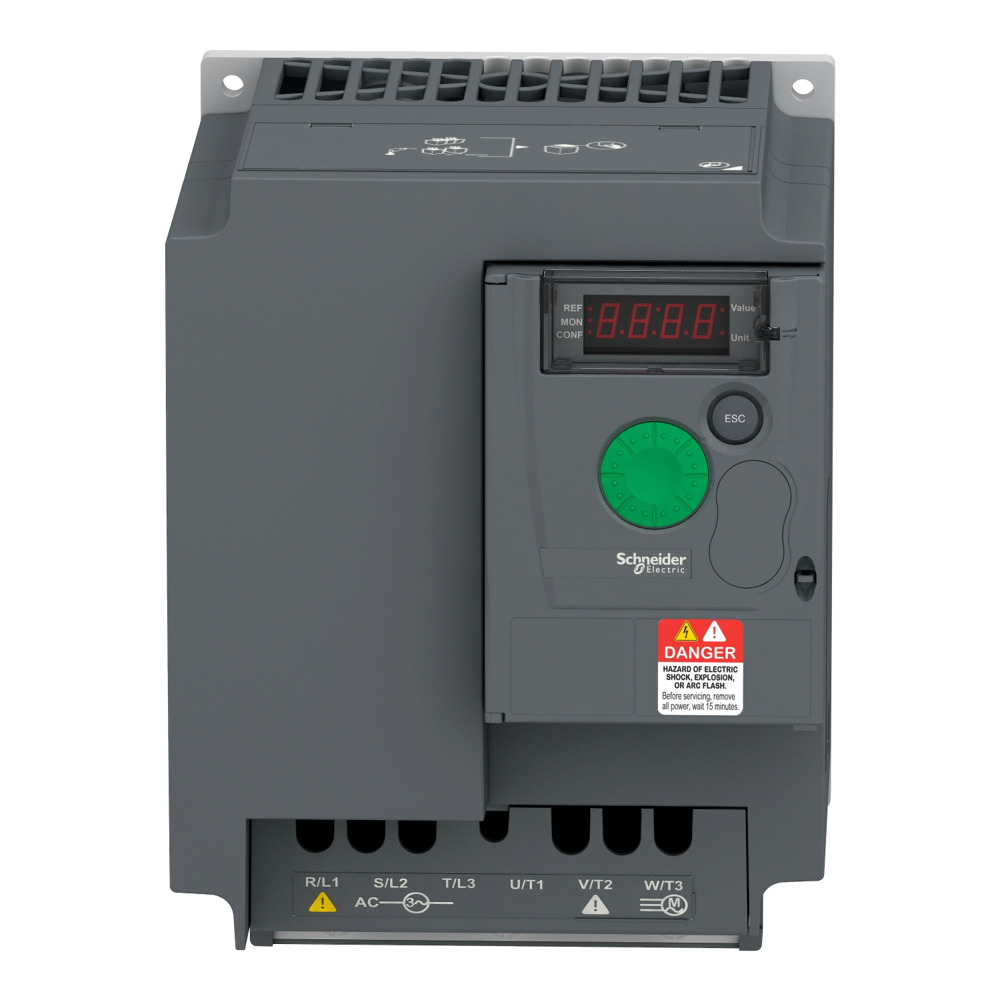

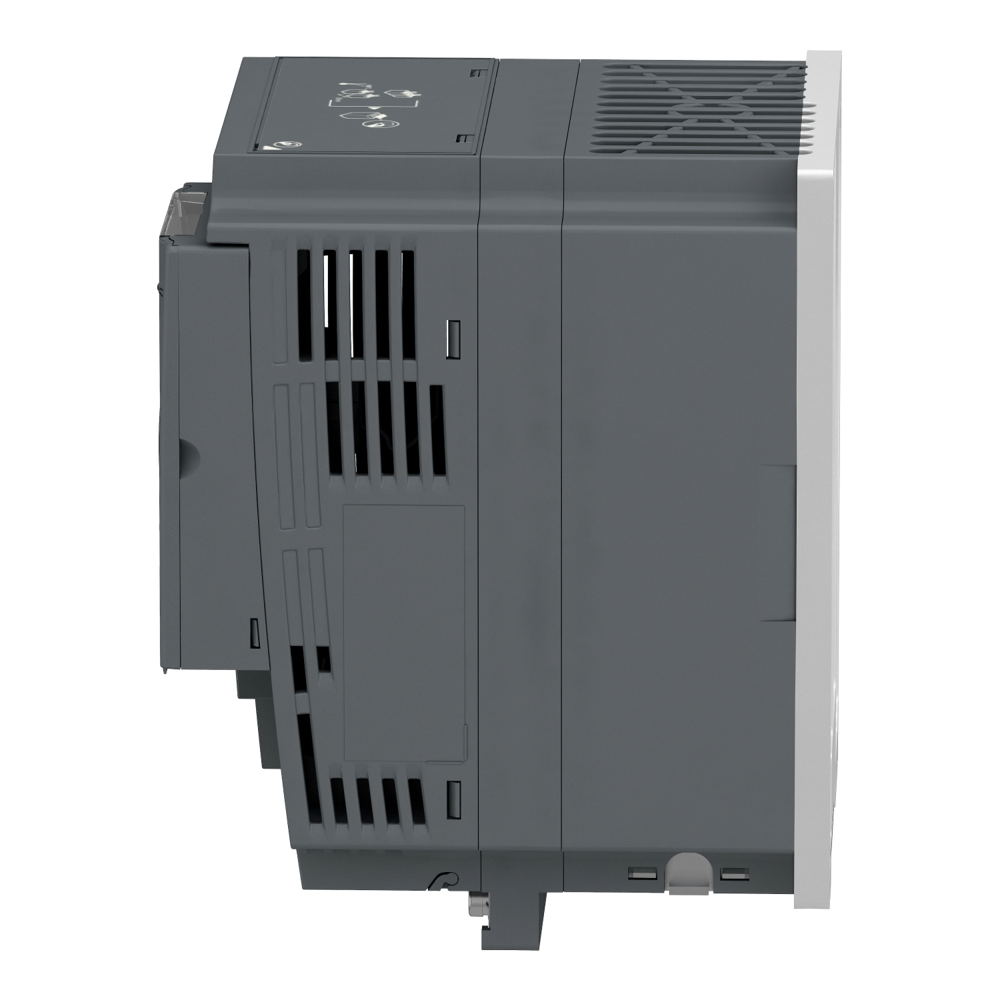

This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to HD 4kW/5HP or ND 5.5kW/7.5HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It offers high readability of key parameters thanks to a bright LED 4-digit display. Underload and overload detection help to protect your installation. It weighs 1.8kg and its dimensions are, 140mm wide, 184mm high, 151mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Speed Drive' category

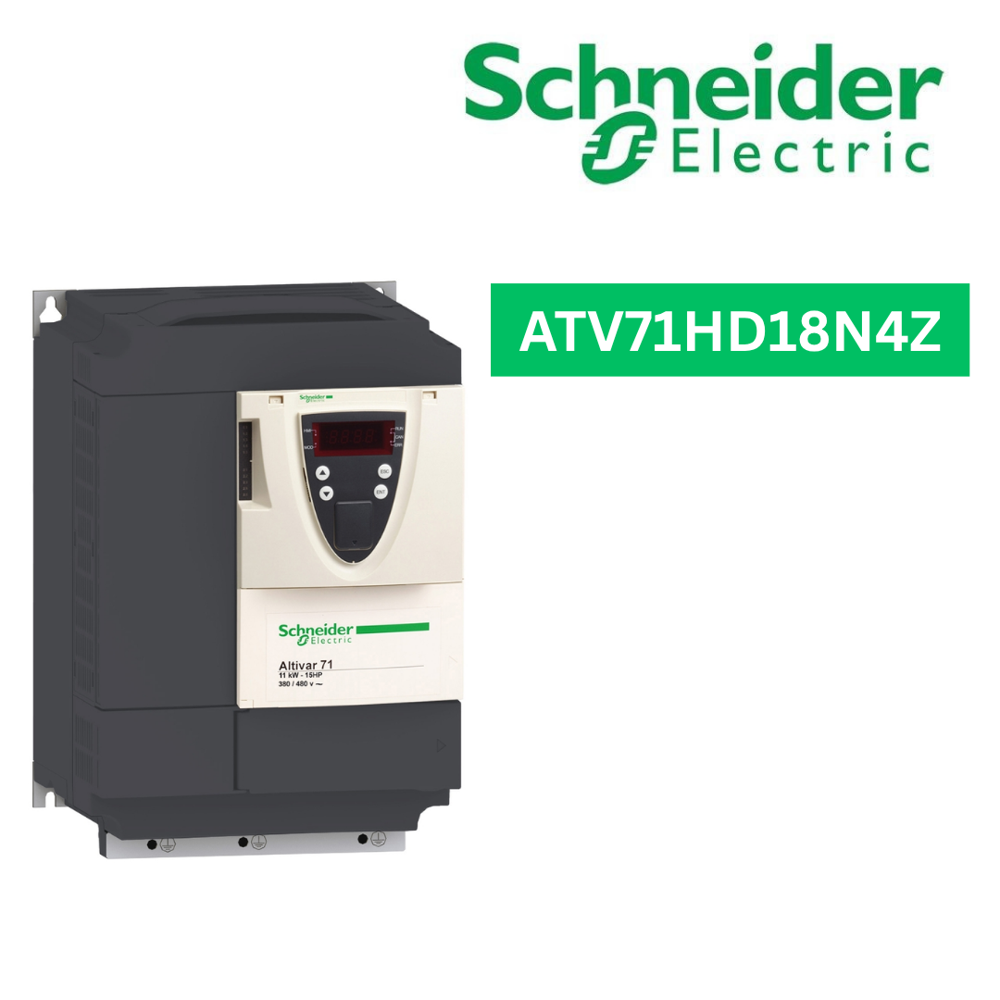

Variable Speed Drive-ATV71HD18N4Z Price : 166425.0 INR/Piece Minimum Order Quantity : 1 Overheating Protection : YES Product Type : Variable speed drive Frequency : 60 Hertz (HZ) Rated Current : 61 Milliampere (mA) Application : Complex, highpower machines Warranty : 1 YEAR Phase : 3PHASE Frequency (MHz) : 60 Hertz (HZ) Weight : 15 Kilograms (kg) Rated Voltage : 480 Volt (V) IP Rating : IP20 Power Rating : 18 KW Input Voltage : 24 Volt (V) Connection Type : Terminal, clamping capacity: 2.5 mm , AWG 14 (AI1/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal, clamping capacity: 35 mm , AWG 2 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/, PO, PA/+, PA, PB) Dimension (L*W*H) : 400 Millimeter (mm) Protection Level : IP65 Operating Temperature : 10 Planck temperature () Output Type : AO1 softwareconfigurable logic output 10 V 20 mA AO1 softwareconfigurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits AO1 softwareconfigurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits Color : WHITEBLACK
