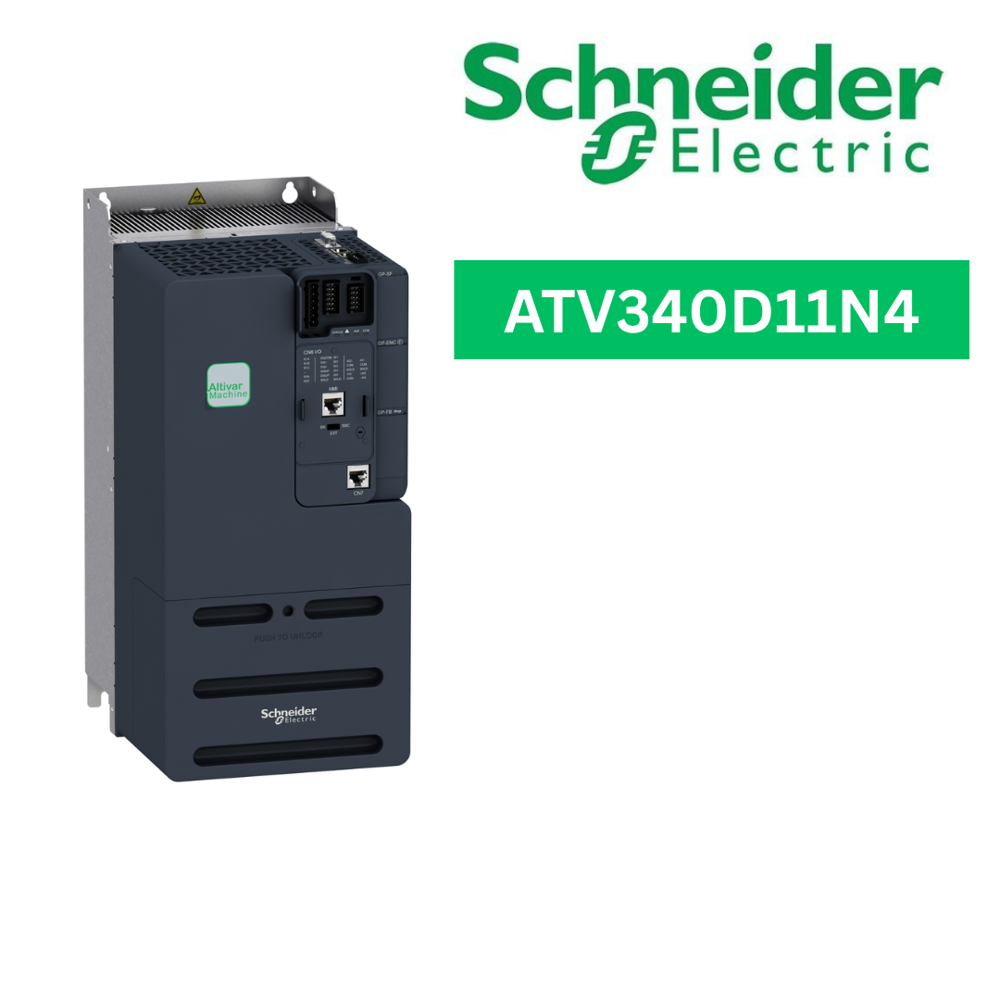

Variable Speed Drive - ATV340D11N4

56197.44 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP20
Phase 3 Phase
Overheating Protection YES
Connector Type 1 RJ45
Frequency 60 Hertz (HZ)
Warranty 1 Year
Mounting Type Cabinet mount
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Variable Speed Drive - ATV340D11N4 Price And Quantity

Minimum Order Quantity 17 Piece
Price 56197.44 INR/Piece

Variable Speed Drive - ATV340D11N4 Product Specifications

Connector Type 1 RJ45
Warranty 1 Year
Frequency 60 Hertz (HZ)
Mounting Type Cabinet mount
Operating Temperature 70 Celsius (oC)
Insulation Material 2...16 kHz adjustable 4...16
Application Machine
Rated Voltage 400 Volt (V)
Product Type Variable speed drive
Rated Current 34.7 Ampere (amp)
IP Rating IP20
Color Black
Phase 3 Phase
Weight 9.5 Kilograms (kg)
Output Type Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits
Overheating Protection YES
Connection Type Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 4...25 mm for line side Screw terminal, clamping capacity: 4...25 mm for DC bus Screw terminal, clamping capacity: 2.5...25 mm for motor
Frequency (MHz) 60 Hertz (HZ)

Variable Speed Drive - ATV340D11N4 Trade Information

Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 50 Piece Per Week
Delivery Time 5 Days
Sample Available Yes
Sample Policy Within a certain price range free samples are available
Packaging Details CARTUN WITH RAIP
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 11kW / 15hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. it weighs 9.5kg and its dimensions are, 180mm wide, 385mm high, 249mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.
