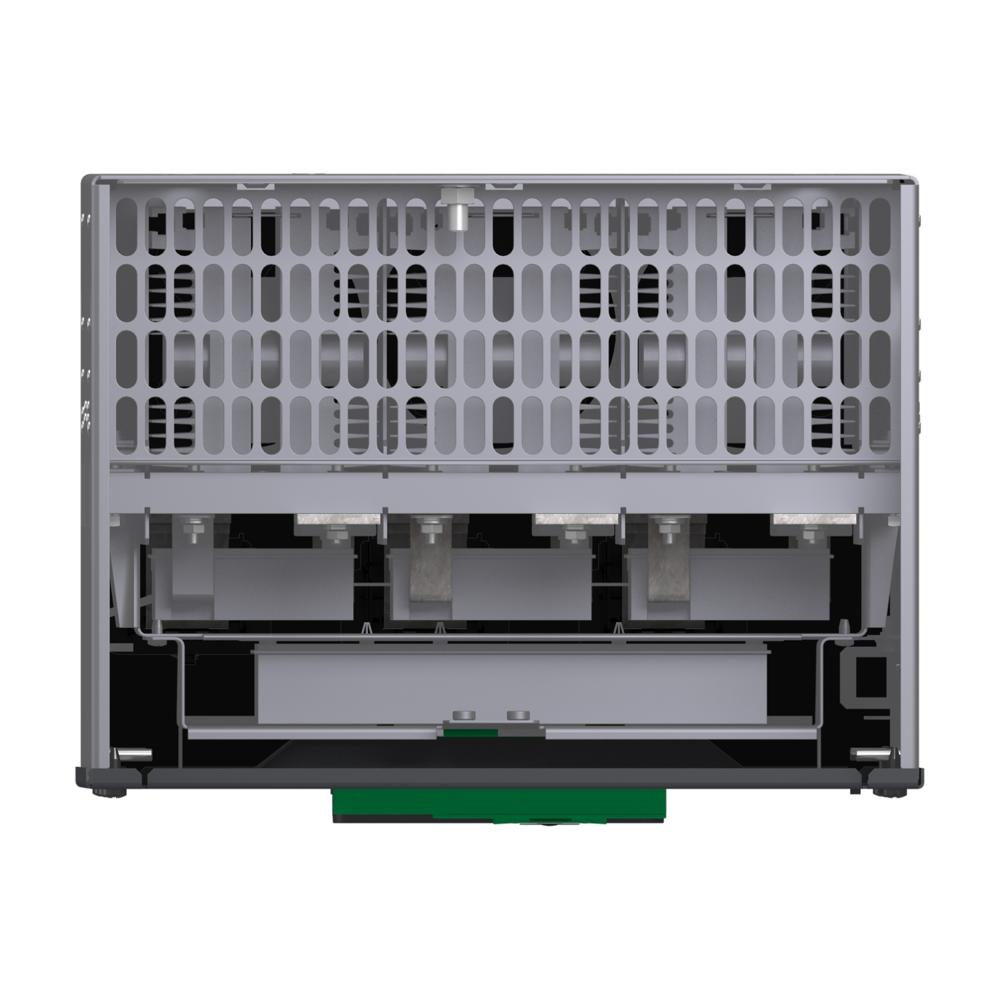

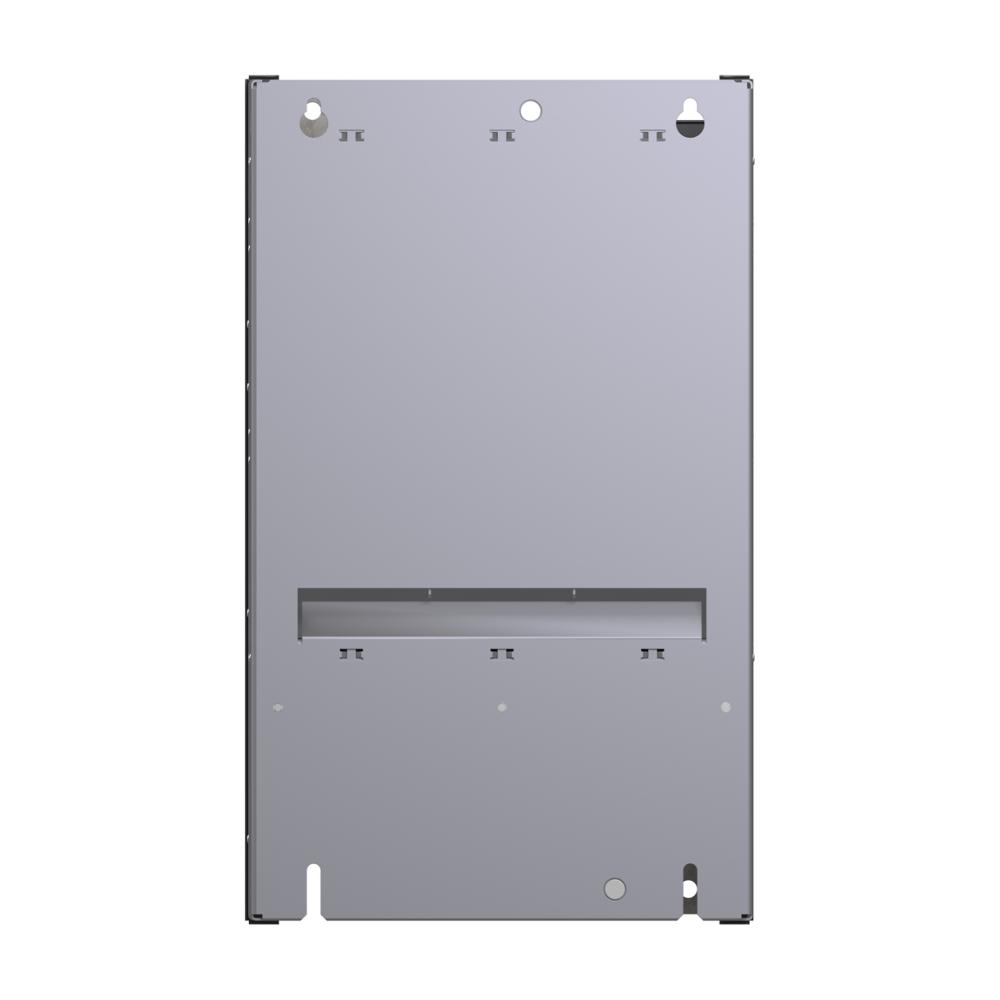

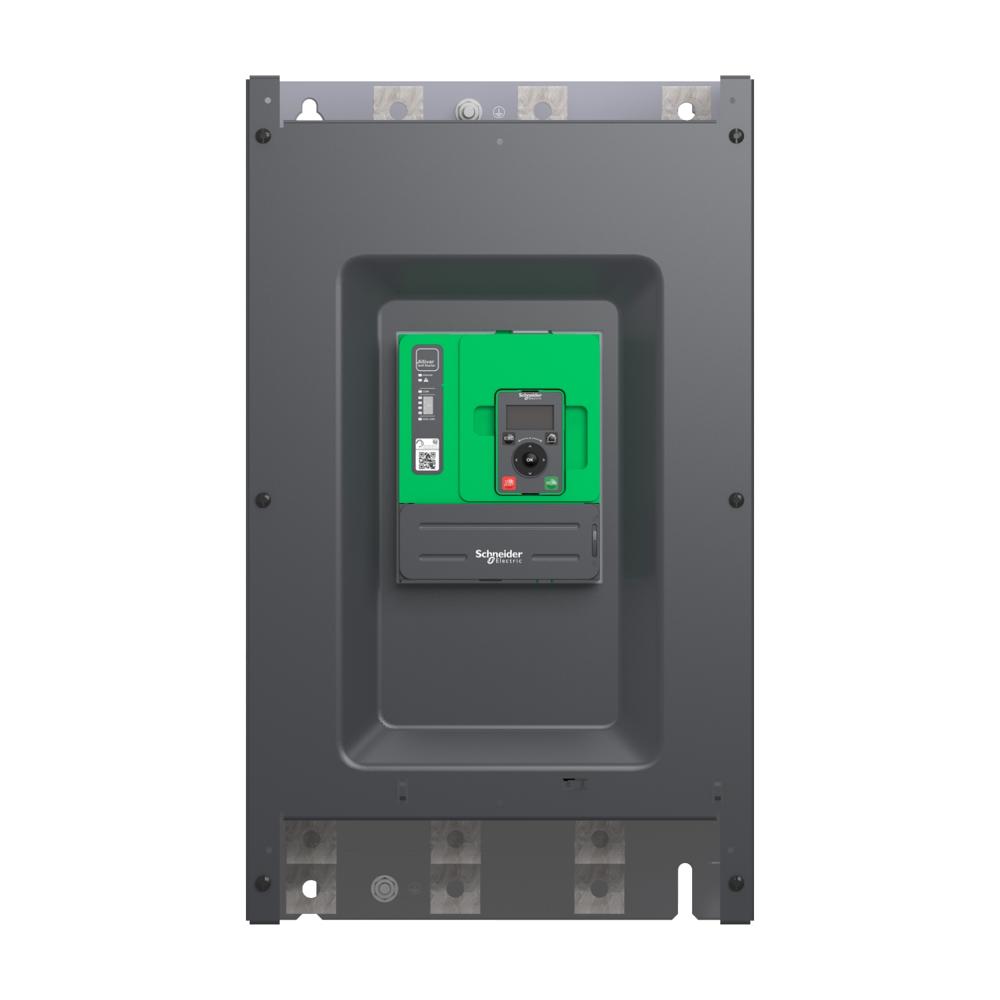

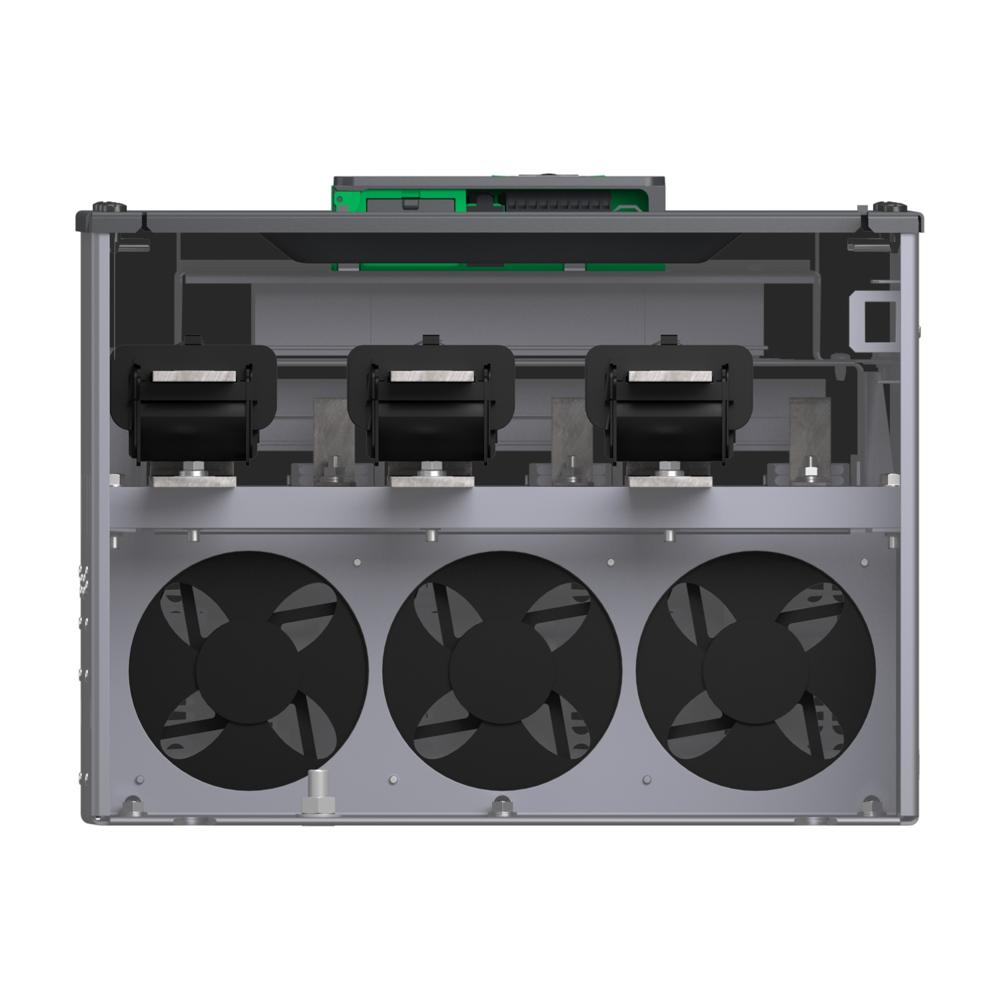

ATS480C59Y-Soft starter, Altistart 480, 590A, 208 to 690V AC, control supply 110 to 230V AC ATS480C59Y

Name: ATS480C59Y-Soft starter, Altistart 480, 590A, 208 to 690V AC, control supply 110 to 230V AC ATS480C59Y
Brand: META AUTOMATION SOLUTIONS
Price: 275120.8 INR
Availability: InStock

Price 275120.8 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ATS480C59Y-Soft starter, Altistart 480, 590A, 208 to 690V AC, control supply 110 to 230V AC ATS480C59Y Specification

Connector Type
1 RJ45

Shape
RECTANGLE

IP Rating
IP00

Feature
STABLE PERFORMANCE

Operating Temperature
70 Celsius (oC)

Power Rating
160kW to 560kW

Product Type
SOFT STARTER

Application
Process and infrastructures

Frequency (MHz)
60 Hertz (HZ)

Output Type
Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable

Color
BLACK / GREEN

Rated Voltage
690 Volt (V)

Weight
51.5 Kilograms (kg)

Warranty
1YEAR

Phase
THREE PHASE

Size
STANDARD

Rated Current
590 Ampere (amp)

Connection Type
In the motor supply line To the motor delta terminals

Frequency
60 Hertz (HZ)

ATS480C59Y-Soft starter, Altistart 480, 590A, 208 to 690V AC, control supply 110 to 230V AC ATS480C59Y Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
20 Pieces Per Week

Delivery Time
2 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About ATS480C59Y-Soft starter, Altistart 480, 590A, 208 to 690V AC, control supply 110 to 230V AC ATS480C59Y

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 590A in normal duty, it supplies motor from 160kW to 560kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 400mm (width) x 314mm (depth) x 670mm (height) and it weighs 51,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
