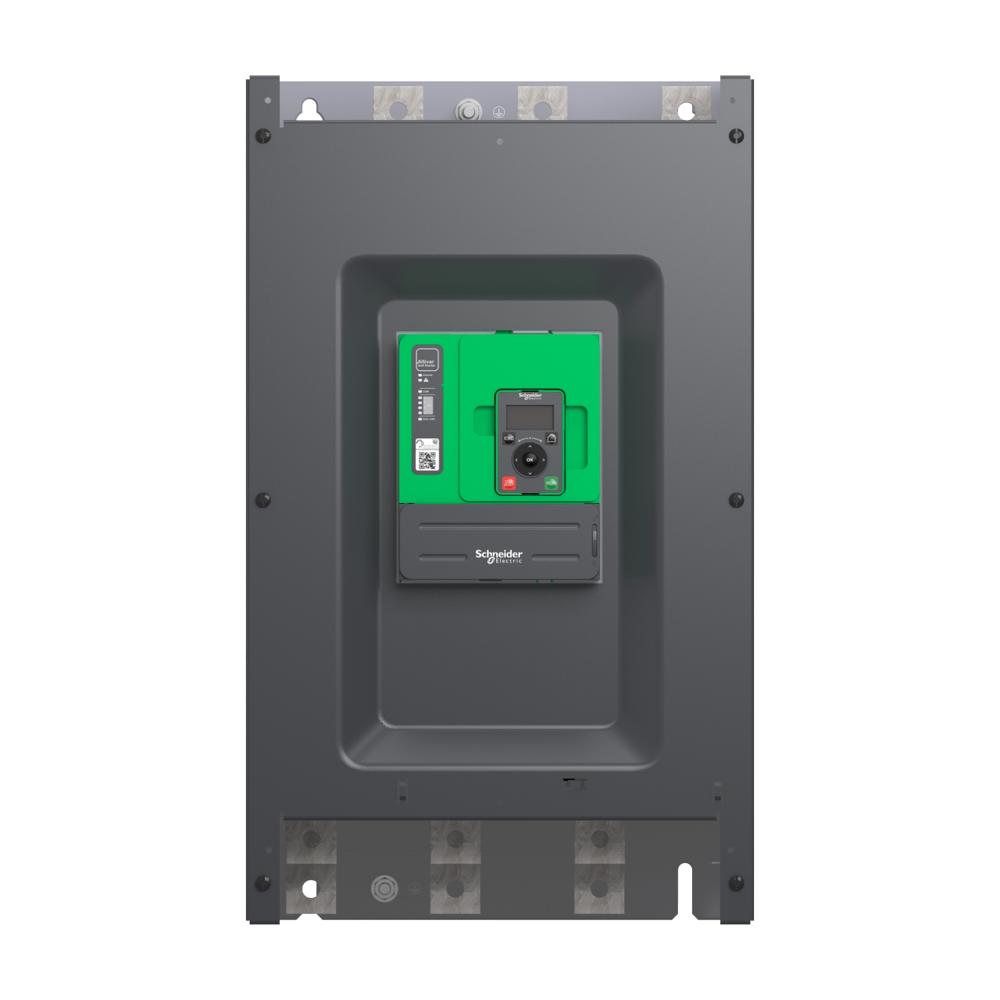

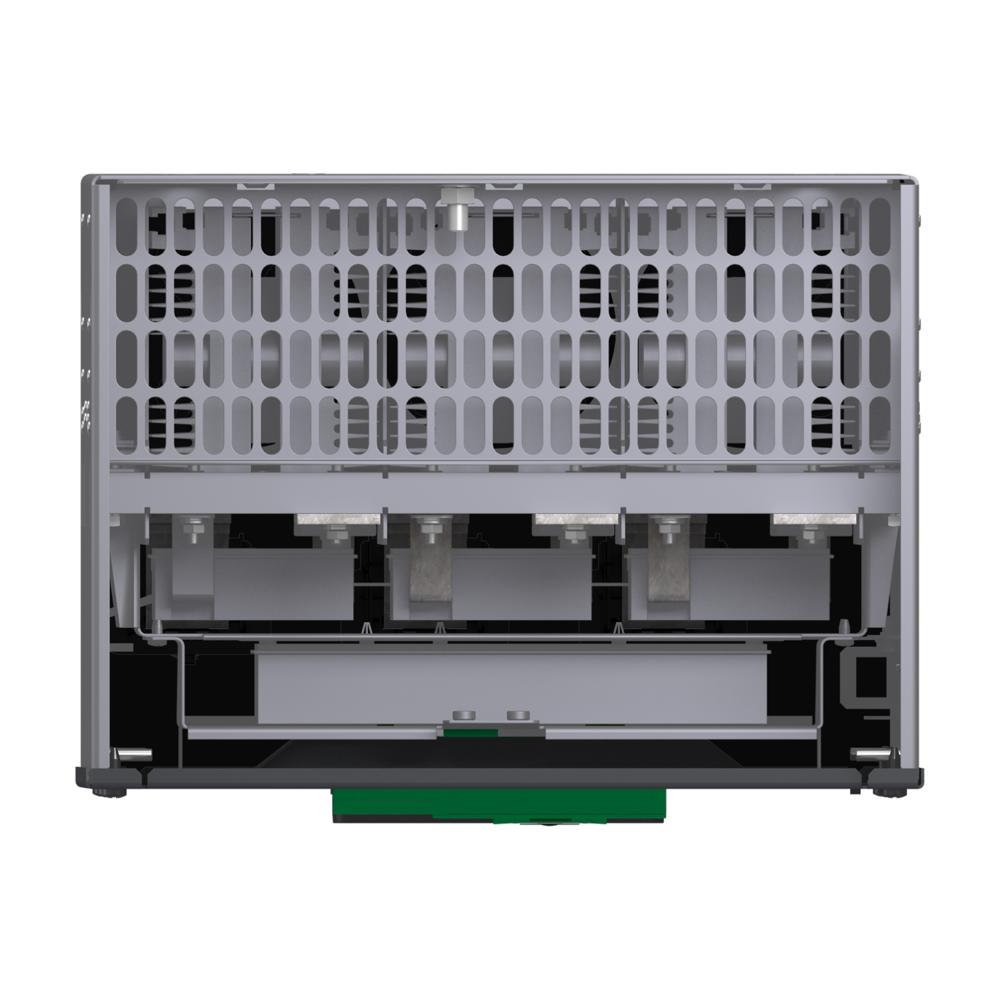

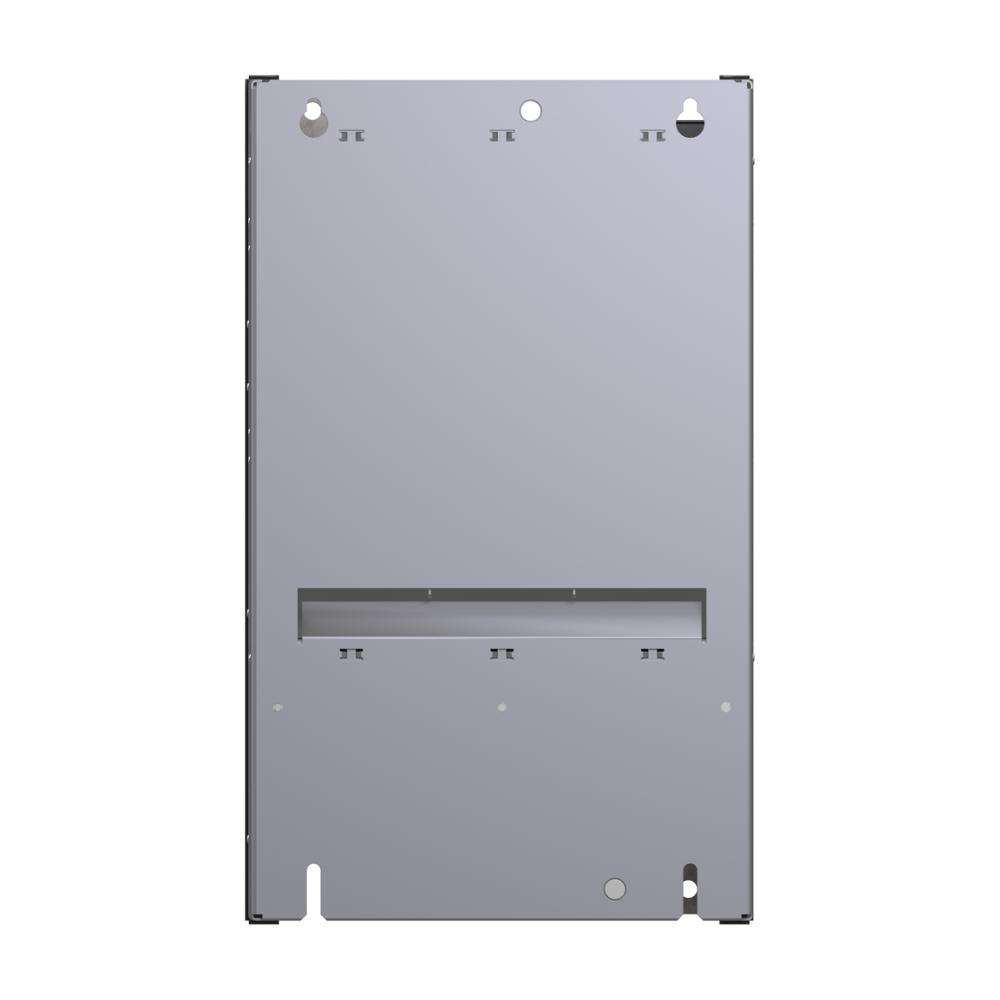

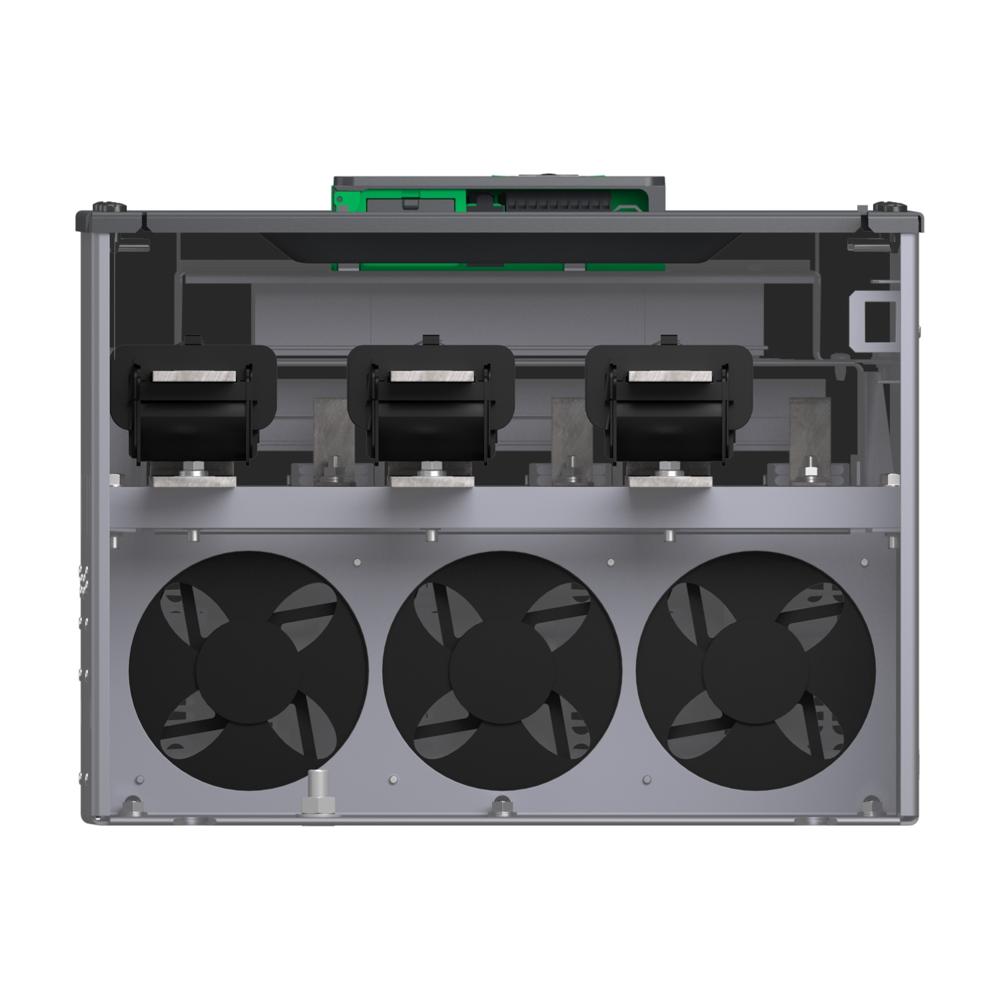

ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC
ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC

ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC

Price 333030.0 INR/ Piece

MOQ : 5 Pieces

ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC Specification

  • Feature
  • STABLE PERFORMANCE
  • Connector Type
  • 1 RJ45
  • Shape
  • RECTANGLE
  • Overheating Protection
  • YES
  • IP Rating
  • IP00
  • Surface Finish
  • COATED
  • Power Rating
  • 160kW to 630kW
  • Product Type
  • SOFT STARTER
  • Application
  • Process and infrastructures
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Output Type
  • Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable
  • Color
  • BLACK / GREEN
  • Weight
  • 51.5 Kilograms (kg)
  • Rated Voltage
  • 690 Volt (V)
  • Warranty
  • 1YEAR
  • Phase
  • THREE PHASE
  • Size
  • STANDARD
  • Connection Type
  • In the motor supply line To the motor delta terminals
  • Rated Current
  • 660 Ampere (amp)
  • Features
  • STABLE PERFORMANCE


ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC Trade Information

  • Minimum Order Quantity
  • 5 Pieces
  • Payment Terms
  • Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque
  • Supply Ability
  • 50 Pieces Per Week
  • Delivery Time
  • 2 Days
  • Sample Available
  • No
  • Sample Policy
  • Within a certain price range free samples are available
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATS480C66Y-Soft starter, Altistart 480, 660A, 208 to 690V AC, control supply 110 to 230V AC


Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 660A in normal duty, it supplies motor from 160kW to 630kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 400mm (width) x 314mm (depth) x 670mm (height) and it weighs 51,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
