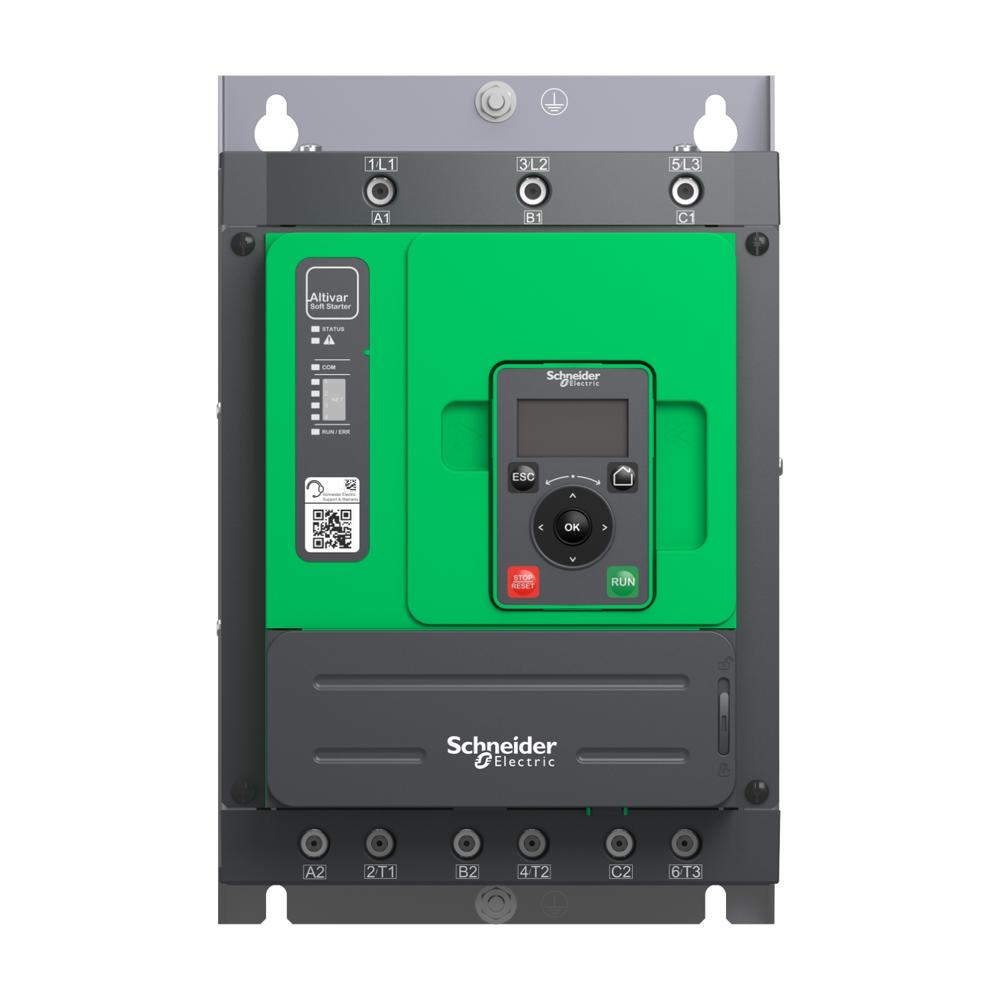

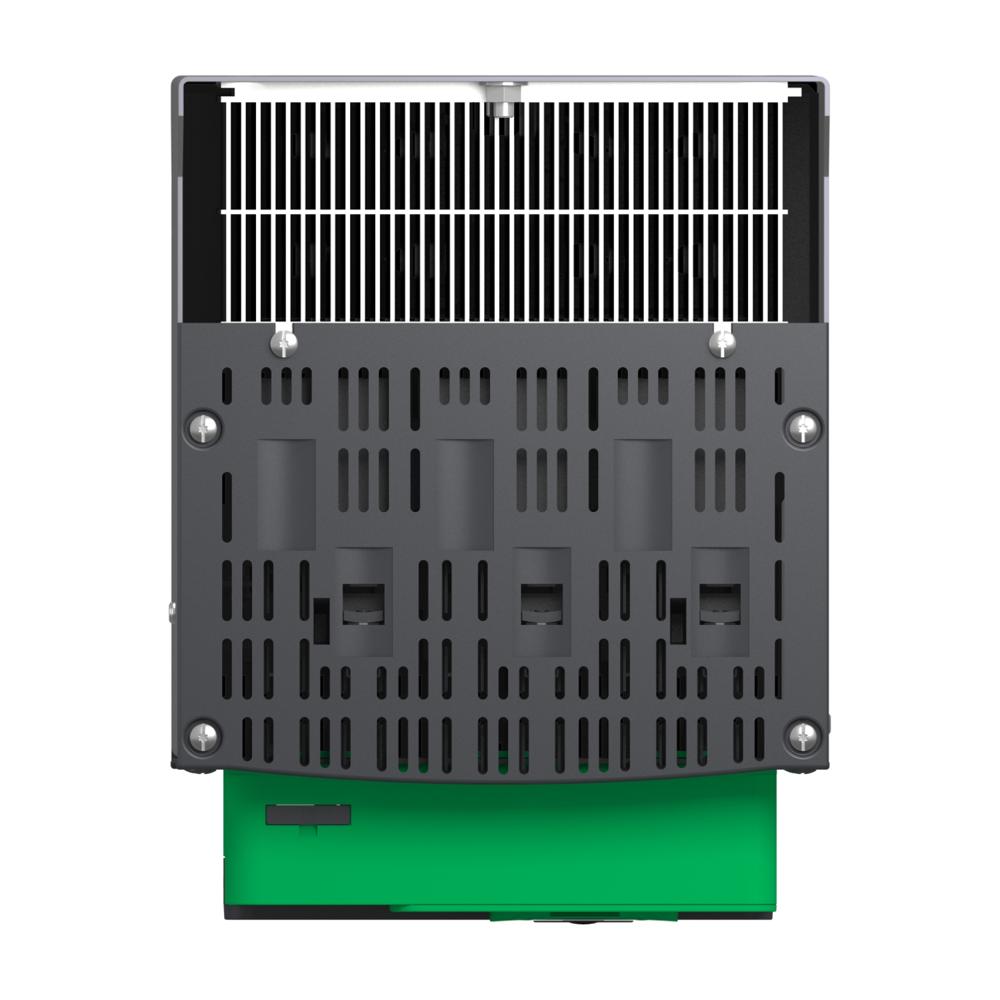

ATS480D88Y-Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC

Name: ATS480D88Y-Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC
Brand: META AUTOMATION SOLUTIONS
Price: 69902.4 INR
Availability: InStock

Price 69902.4 INR/ Piece

Get a Price/Quote

MOQ : 14 Pieces

ATS480D88Y-Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC Specification

Shape
Rectangle

Surface Finish
Coated

Overheating Protection
YES

IP Rating
IP20

Operating Temperature
70 Celsius (oC)

Product Type
Soft Starter

Power Rating
18kW to 75kW

Application
Process and infrastructures

Frequency (MHz)
60 Hertz (HZ)

Color
Black/Green

Weight
8.3 Kilograms (kg)

Rated Voltage
690 Volt (V)

Warranty
1Year

Phase
Three Phase

Size
Rectangle

Frequency
60 Hertz (HZ)

Connection Type
Connection in line, with line and bypass contactor, freewheel or controlled stop, type 1 or 2 coordination, non reversing, 2-wire or 3-wire

Features
Stable Performance

Rated Current
88 Ampere (amp)

ATS480D88Y-Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC Trade Information

Minimum Order Quantity
14 Pieces

Payment Terms
Paypal, Cheque, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
50 Pieces Per Week

Delivery Time
5 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About ATS480D88Y-Soft starter, Altistart 480, 88A, 208 to 690V AC, control supply 110 to 230V AC

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 88A in normal duty, it supplies motor from 22kW to 75kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 190mm (width) x 247mm (depth) x 290mm (height) and it weighs 8,3kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
