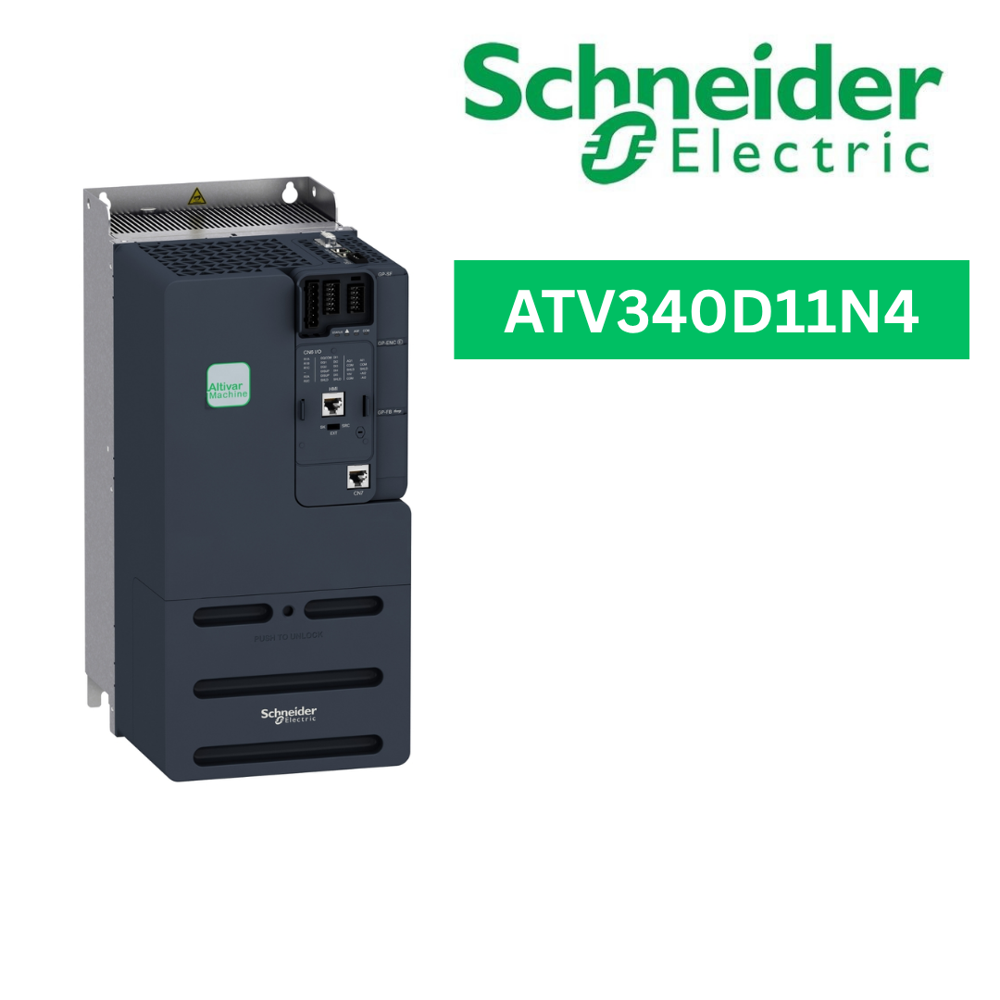

ATV340D11N4-variable speed drive, Altivar Machine ATV340, 11kW, heavy duty, 400V, 3 phases
ATV340D11N4-variable speed drive, Altivar Machine ATV340, 11kW, heavy duty, 400V, 3 phases

ATV340D11N4-variable speed drive, Altivar Machine ATV340, 11kW, heavy duty, 400V, 3 phases

Price 56197.44 INR/ Piece

MOQ : 1 Piece

ATV340D11N4-variable speed drive, Altivar Machine ATV340, 11kW, heavy duty, 400V, 3 phases Specification

  • Operating Temperature
  • 70 Celsius (oC)
  • Insulation Material
  • 2...16 kHz adjustable 4...16
  • IP Rating
  • IP20
  • Connector Type
  • 1 RJ45
  • Mounting Type
  • Cabinet mount
  • Overheating Protection
  • YES
  • Product Type
  • Variable speed drive
  • Application
  • Machine
  • Frequency (MHz)
  • 60 Hertz (HZ)
  • Output Type
  • Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits
  • Color
  • Black
  • Weight
  • 9.5 Kilograms (kg)
  • Rated Voltage
  • 400 Volt (V)
  • Warranty
  • 1 YEAR
  • Phase
  • 3 Phase
  • Connection Type
  • Screw terminal, clamping capacity: 0.2...2.5 mm for control Screw terminal, clamping capacity: 4...25 mm for line side Screw terminal, clamping capacity: 4...25 mm for DC bus Screw terminal, clamping capacity: 2.5...25 mm for motor
  • Frequency
  • 60 Hertz (HZ)
  • Rated Current
  • 34.7 Ampere (amp)


ATV340D11N4-variable speed drive, Altivar Machine ATV340, 11kW, heavy duty, 400V, 3 phases Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash Advance (CA), Paypal, Cash in Advance (CID), Cheque
  • Supply Ability
  • 50 Pieces Per Week
  • Delivery Time
  • 5 Days
  • Sample Available
  • No
  • Sample Policy
  • Within a certain price range free samples are available
  • Packaging Details
  • CARTUN WITH RAIP
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India


About ATV340D11N4-variable speed drive, Altivar Machine ATV340, 11kW, heavy duty, 400V, 3 phases


This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 11kW / 15hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 C is needed. This product integrates Modbus serial line communication protocols as standard. it weighs 9.5kg and its dimensions are, 180mm wide, 385mm high, 249mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Variable Speed Drive Category

ATV340U07N4- variable speed drive, Altivar Machine ATV340, 0.75kW, heavy duty, 400V, 3 phases

ATV340U07N4- variable speed drive, Altivar Machine ATV340, 0.75kW, heavy duty, 400V, 3 phases

Price 26136.64 INR / Piece

Minimum Order Quantity : 1 Piece

Rated Voltage : 400 Volt (V)

Application : Machine

Phase : 3 phases

Frequency (MHz) : 60 Hertz (HZ)

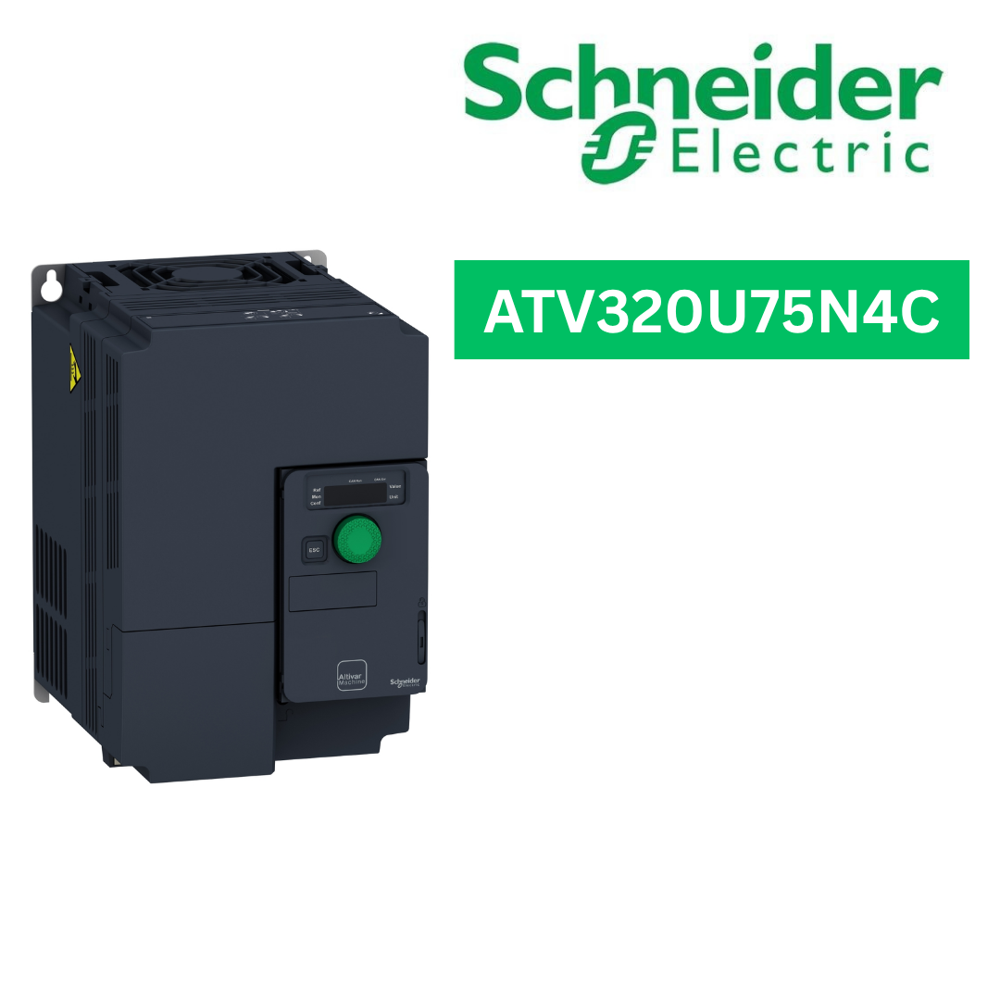

ATV320U75N4C- variable speed drive, Altivar Machine ATV320, 7.5kW, 380 to 500V, 3 phases, compact

ATV320U75N4C- variable speed drive, Altivar Machine ATV320, 7.5kW, 380 to 500V, 3 phases, compact

Price 33264.64 INR / Piece

Minimum Order Quantity : 18 Pieces

Rated Voltage : 500 Volt (V)

Application : Complex machines

Phase : 3 Phase

Frequency (MHz) : 60 Hertz (HZ)

ATV340U55N4E-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases, Ethernet

ATV340U55N4E-variable speed drive, Altivar Machine ATV340, 5.5kW, heavy duty, 400V, 3 phases, Ethernet

Price 47546.0 INR / Piece

Minimum Order Quantity : 12 Pieces

Rated Voltage : 400 Volt (V)

Application : Machine

Phase : THREE PHASE

Frequency (MHz) : 60 Hertz (HZ)

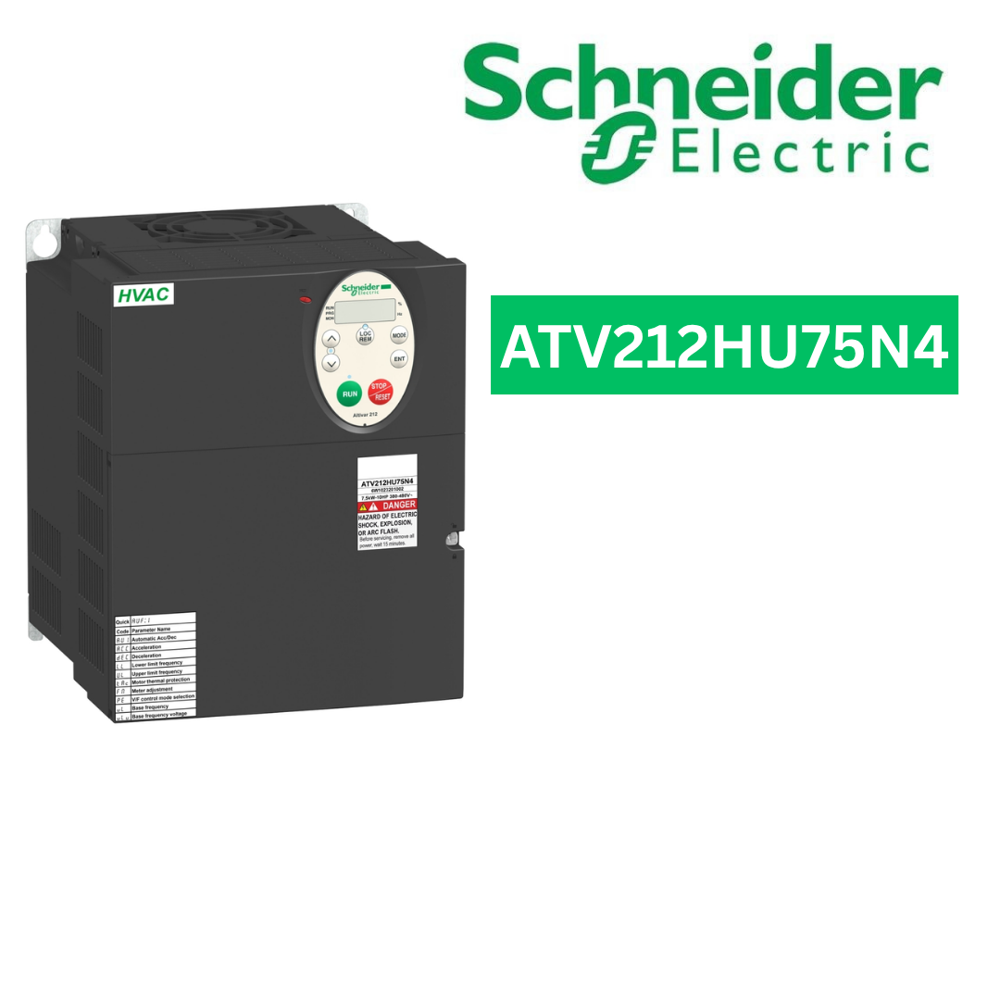

ATV212HU75N4-variable speed drive, Altivar 212, 7.5kW, 10hp, 480V, 3 phases, with EMC, IP21
